Features:
This is an essential kit specially designed for Raspberry Pi 1 B+ / 2 B / 3 B.

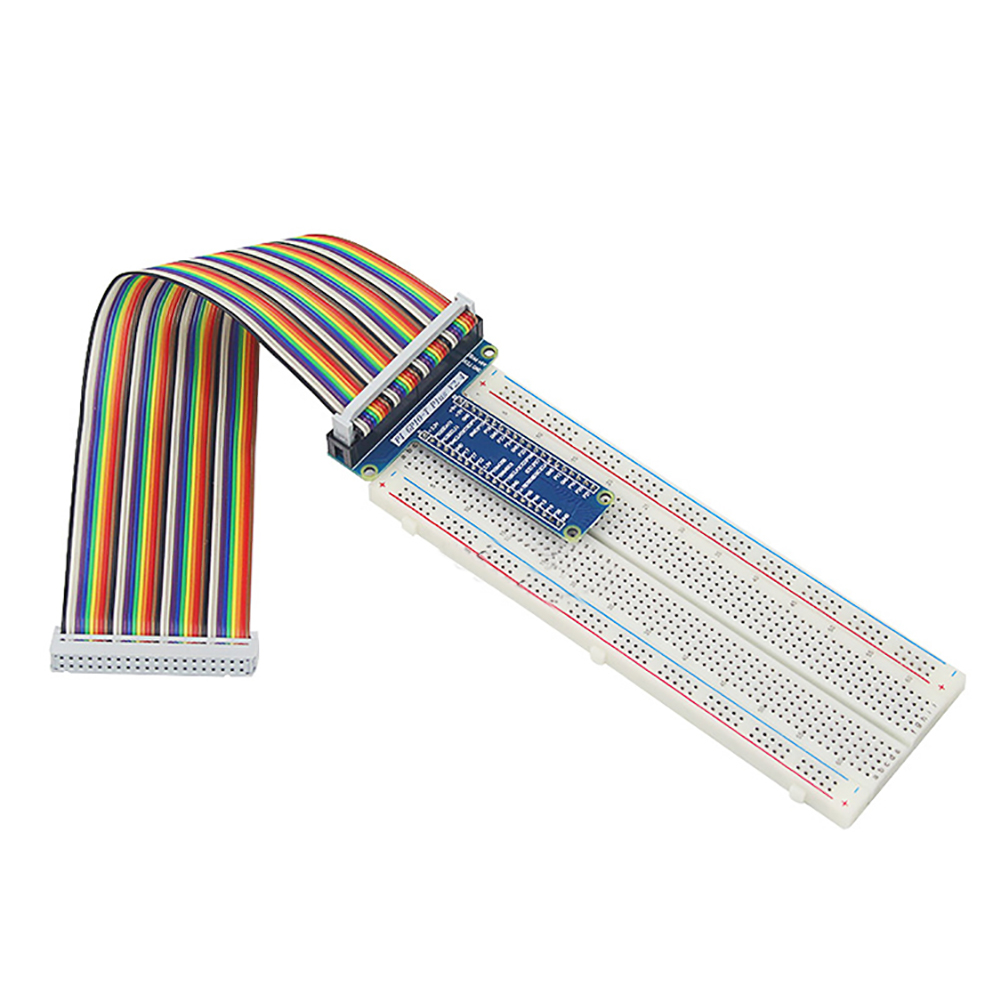

T-type expansion board and breadboard makes the experiment more convenient.
Connect to sensors and electrical component through GPIO expansion board.
The breadboard with self-adhesive tape on the back, it easy to stick.
Comes with a 40 pin GPIO cable and 65 pcs jump cables and a 630 tie points breadboard.

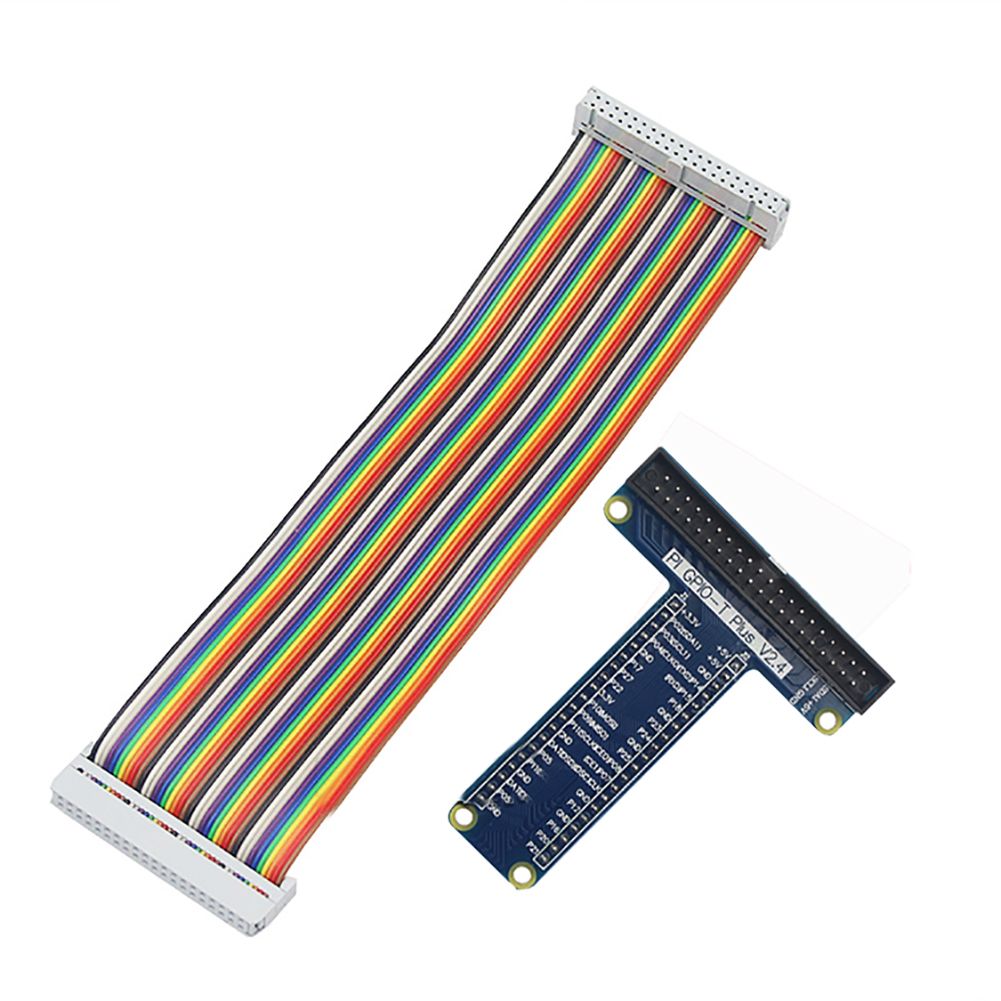

T-type GPIO Expansion Board:
Scope of application: For Raspberry Pi 1 B+ / 2 B / 3 B
External connection to for Raspberry Pi via GPIO port, applicable to breadboard experiment.
T-type expansion board size: 7.4 * 5.9 * 2cm
GPIO Cable:
Cable length: 20cm

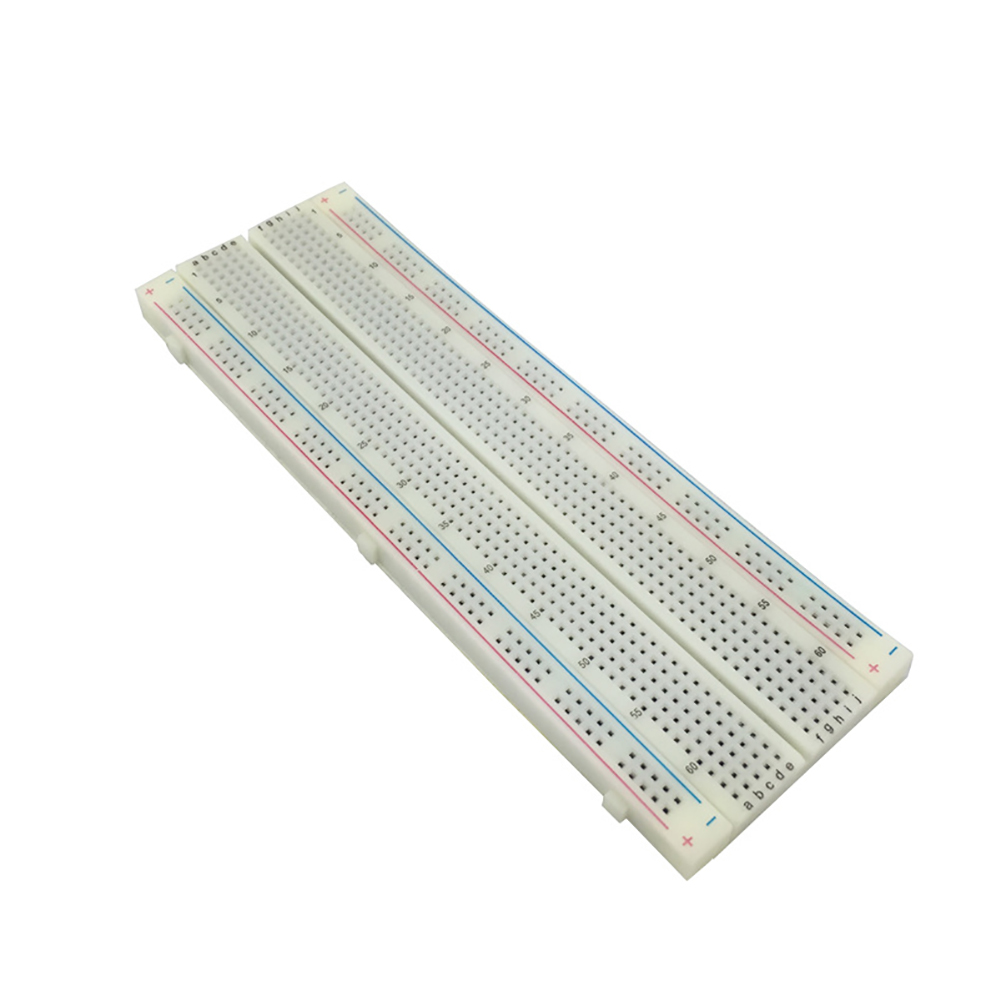

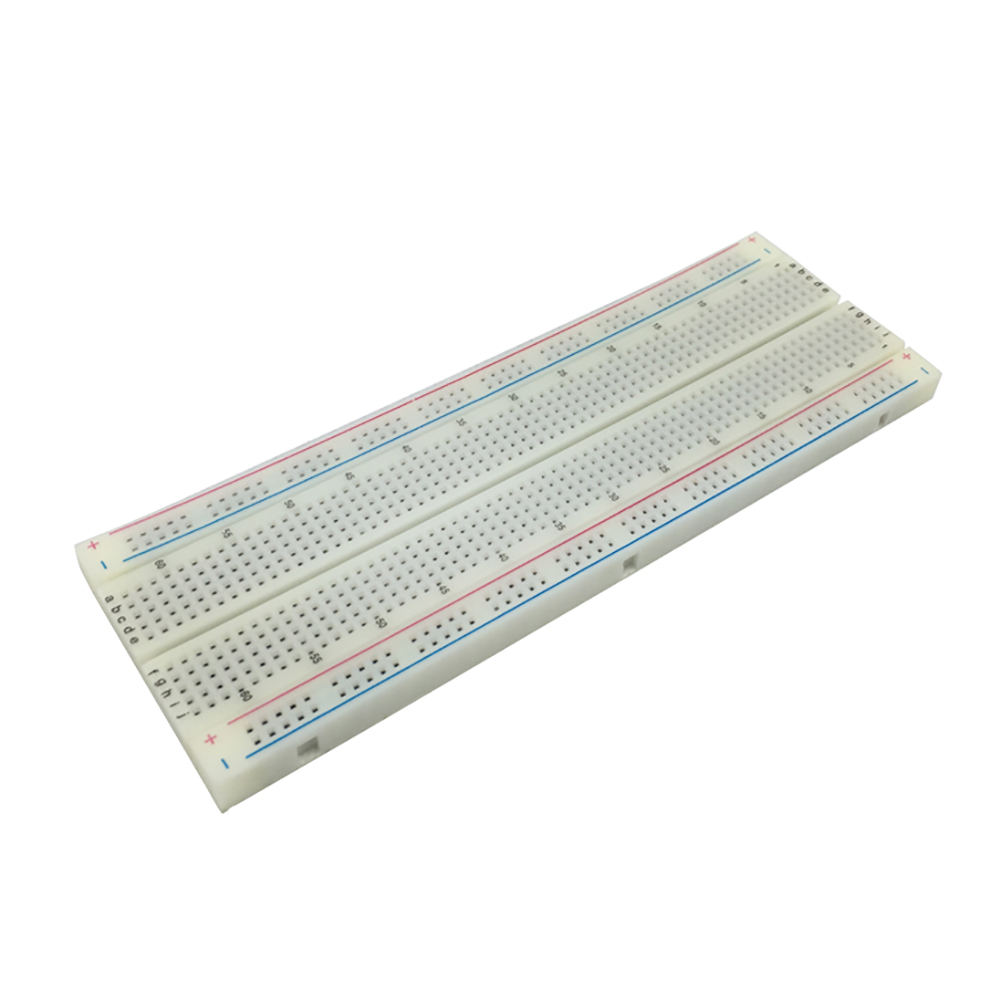

Breadboard:
Tie points: 630 pcs tie points
Two distribution strips: 200 pcs tie points
Product Size: 5.6x16.5x0.85 (cm)
Plastic parts: ABS
Weight: 89g
Uses: experiment, test
Contacts are phosphor bronze with plated nickel finish, rated for 50,000 insertion cycles.
Features: Recyclable, environmentally friendly recycling. Structure and color is clear, easy to use. Bread board can be assembled by a fixed unit.

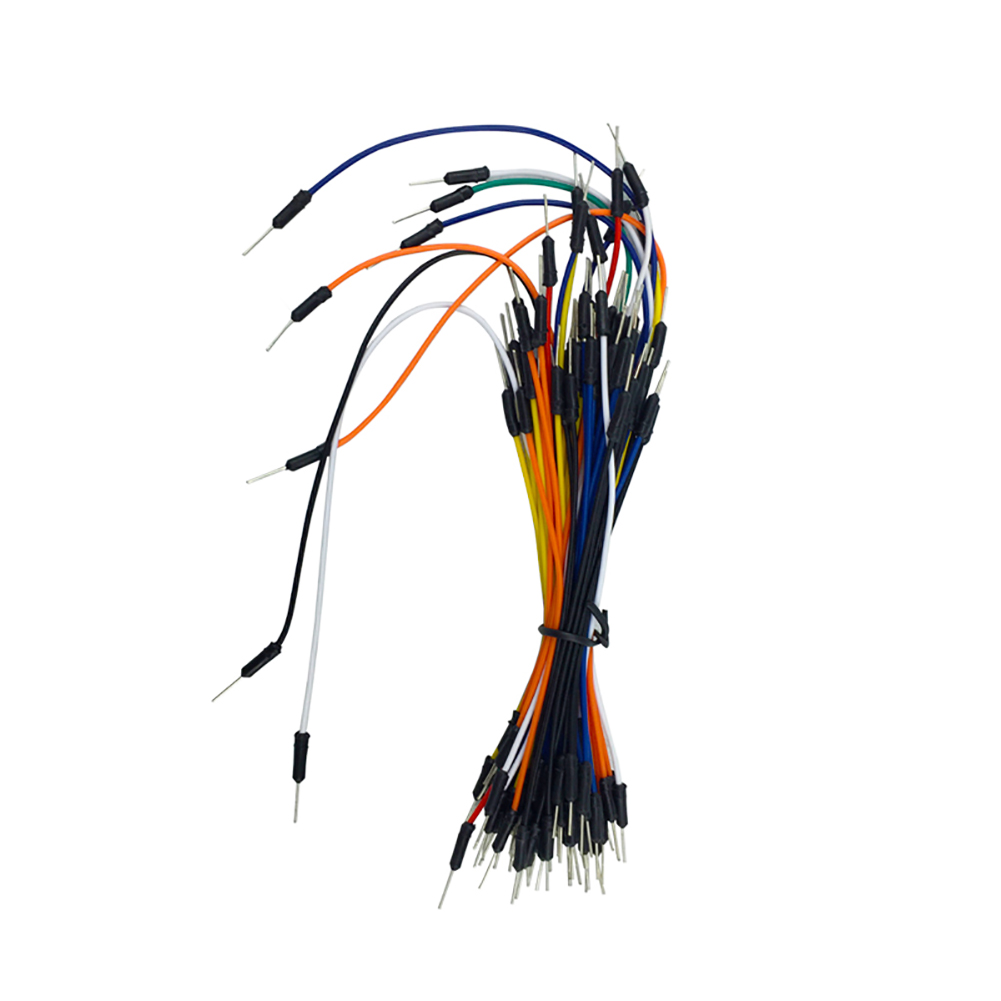

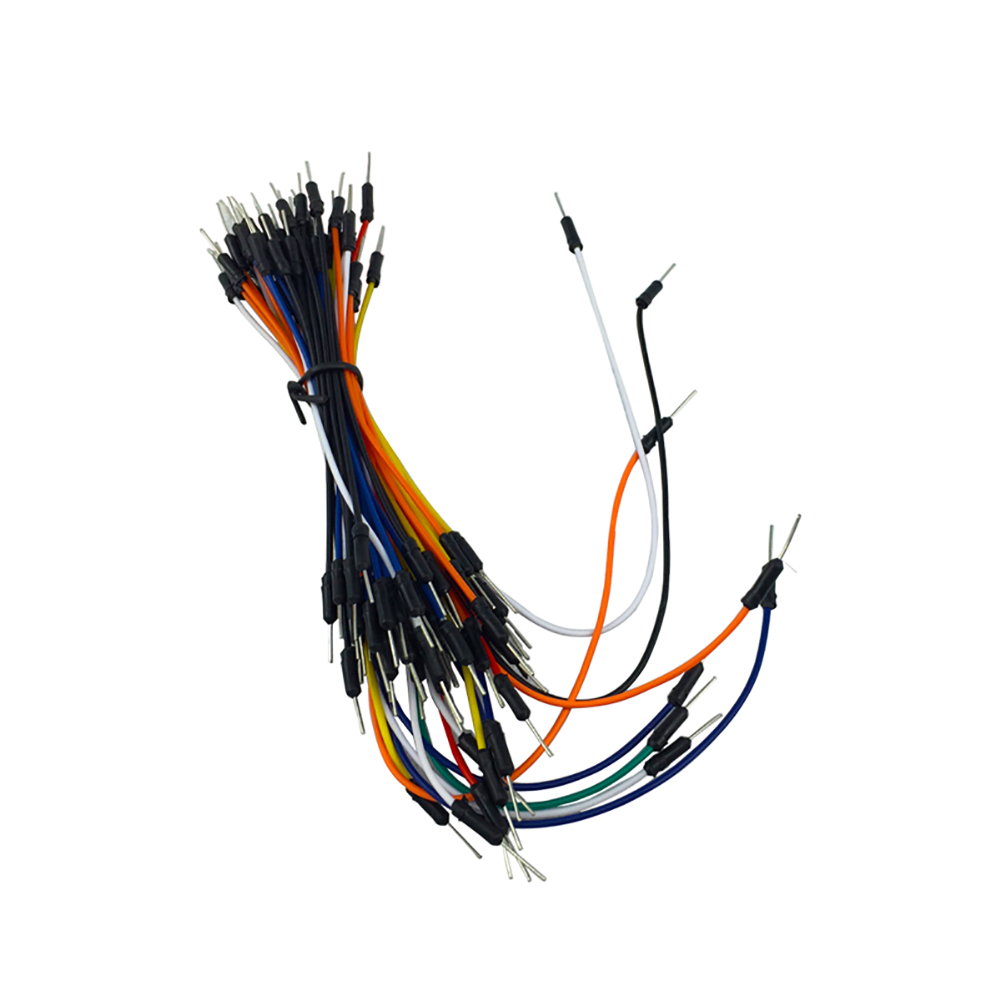

Jumper Cables:
10.5cm: 7 kinds of colors, 7 pcs per color
14cm: 4 kinds of colors, 2 pcs per color (Random Color)
18.5cm: 4 kinds of colors, 1 pcs per color (Random Color)
22.5cm: 4 kinds of colors, 1 pcs per color (Random Color)
Wire diameter: 0.8mm

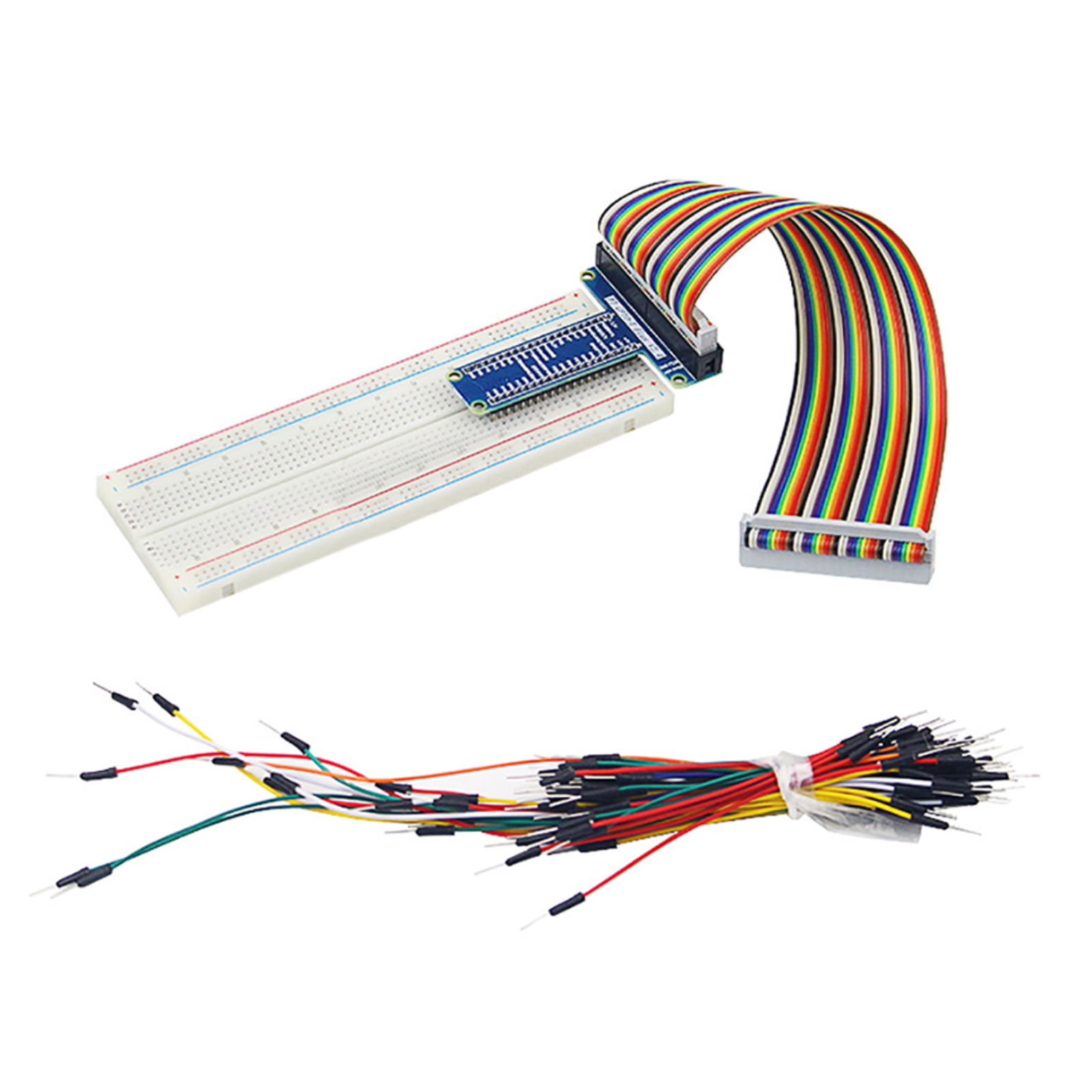

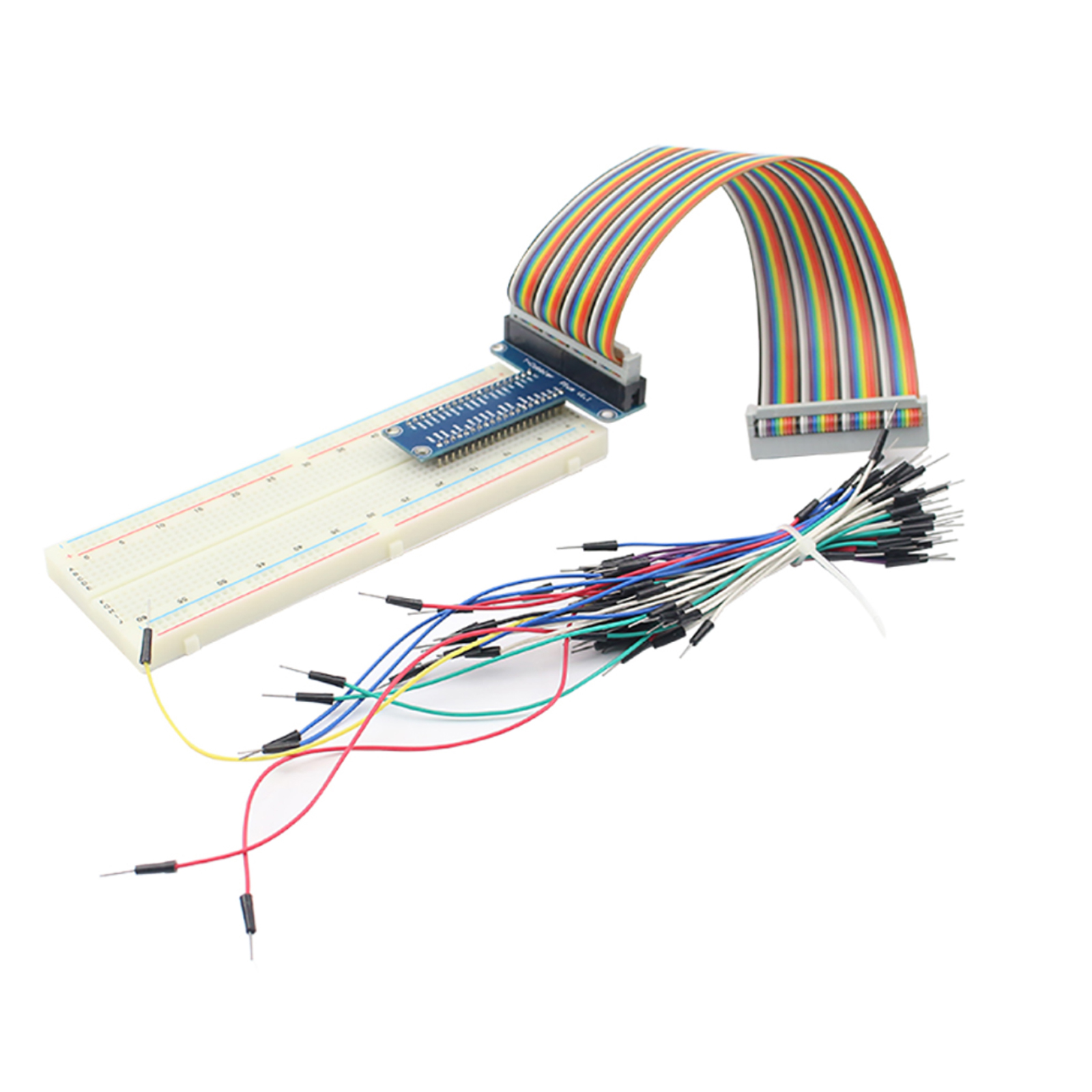

Package Content:
1 x T-type GPIO Expansion Board
1 x GPIO Cable
1 x Breadboard
65 x Jumper Cable
