Instructions:

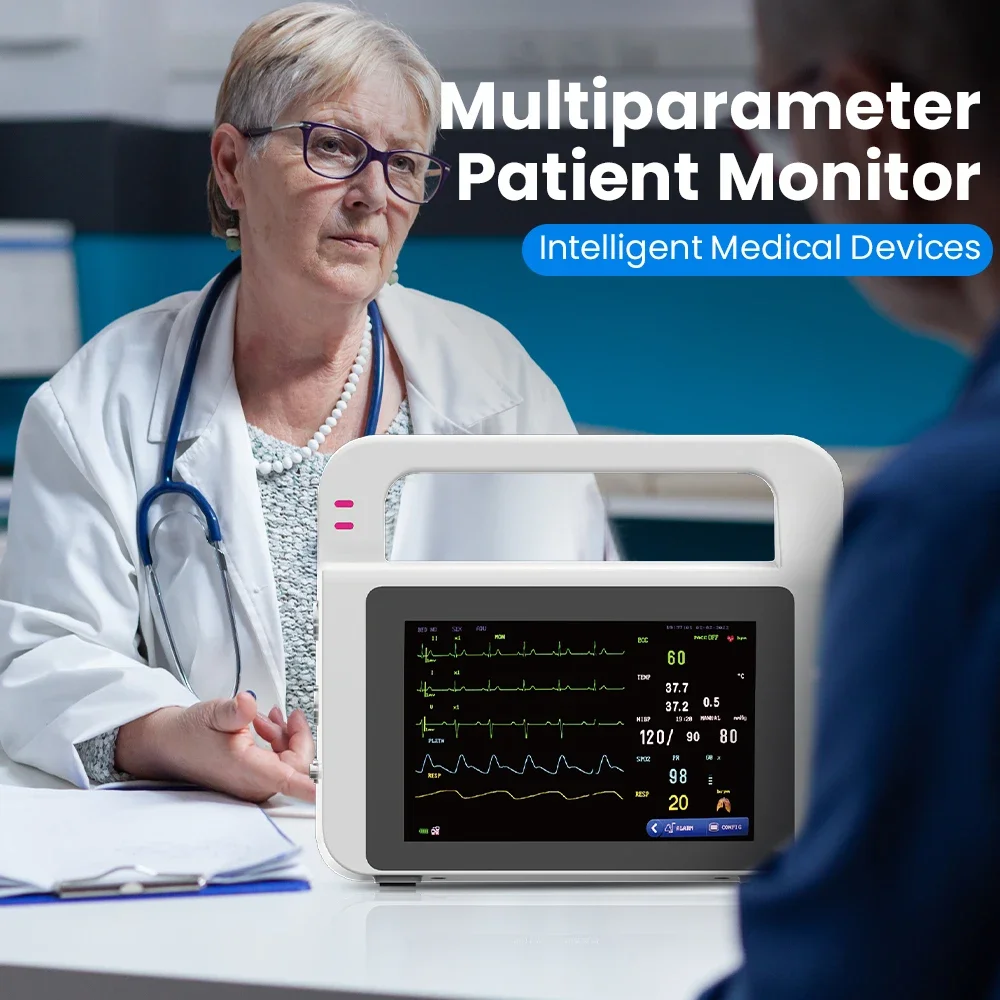

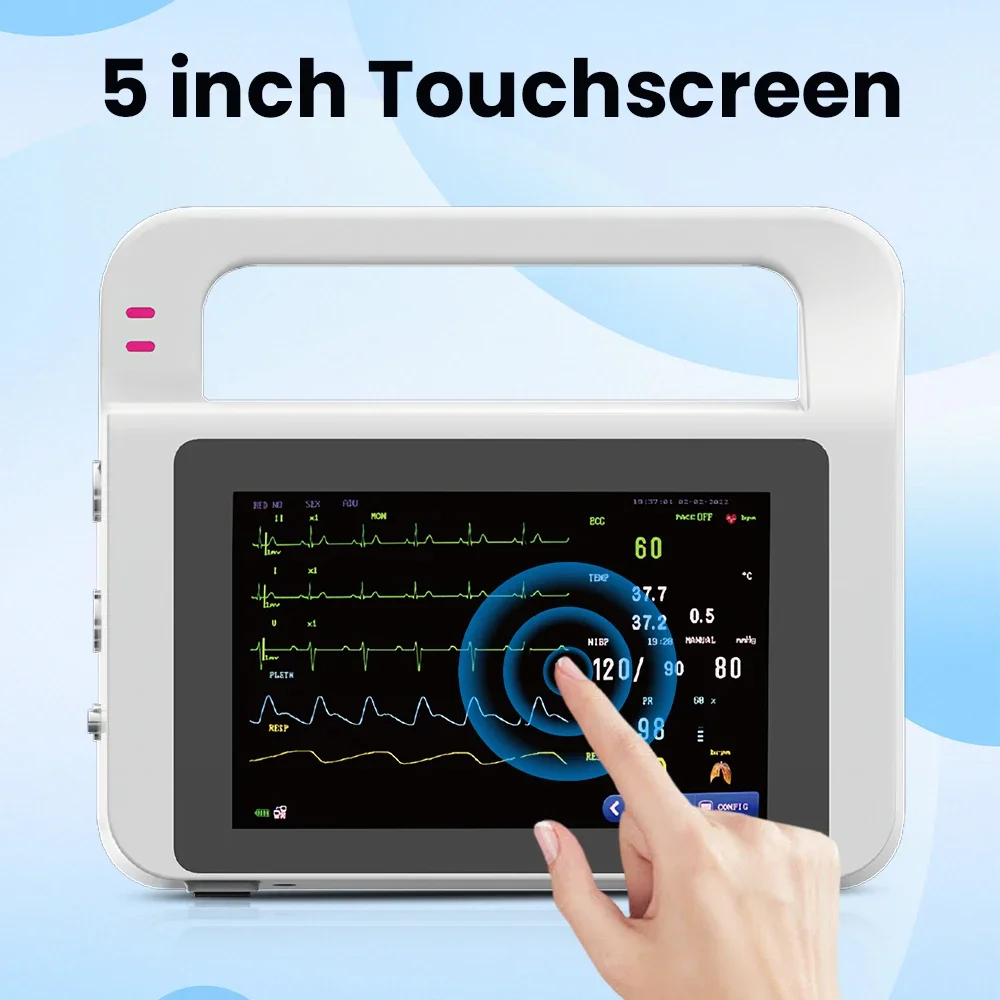

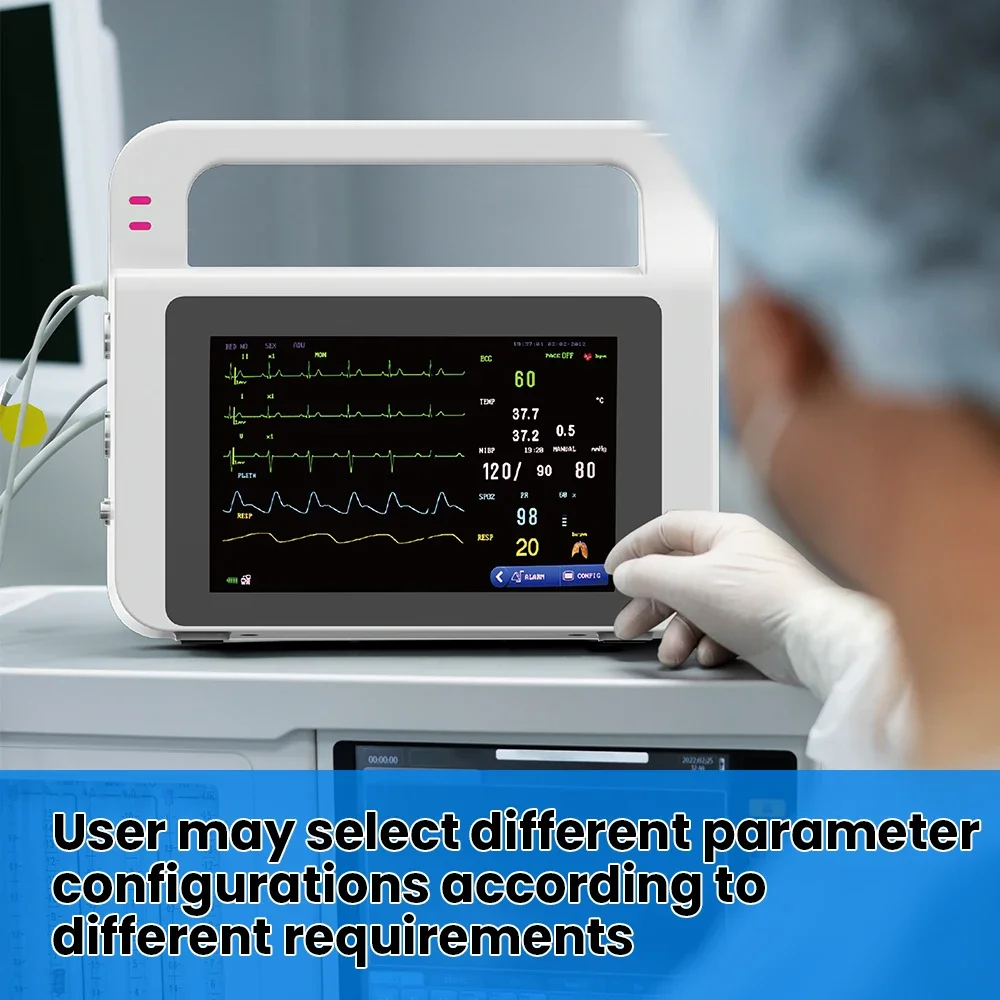

E5 Multi-parameter Human Use Medical Patient Monitor TFT 5 Inch Touch Screen Portable Vital Signs Monitor SPO2 NIBP PR TEMP ECG,This Handheld Touch Scren Patient monitor has abundant functions, which can be used for monitoring of adult, pediatric and neonate. It is powered by 100 V-240 V～ 50 Hz/60 Hz. Users may select different parameter configurations according to requirements. It displays real-time data and waveform by 5'' color TFT LCD .
It can monitor such parameters as ECG, RESP, SpO2, PR, NIBP, TEMP . It integrates parameter measurement module and display into one device to form a compact and portable monitor.
Application:E5 handheld patient monitor is suitable for patient transport, rounds, outpatient clinics, operating room and other places, suitable for neonatal, pediatric, adults, the elderly and other groups of people.
Features:

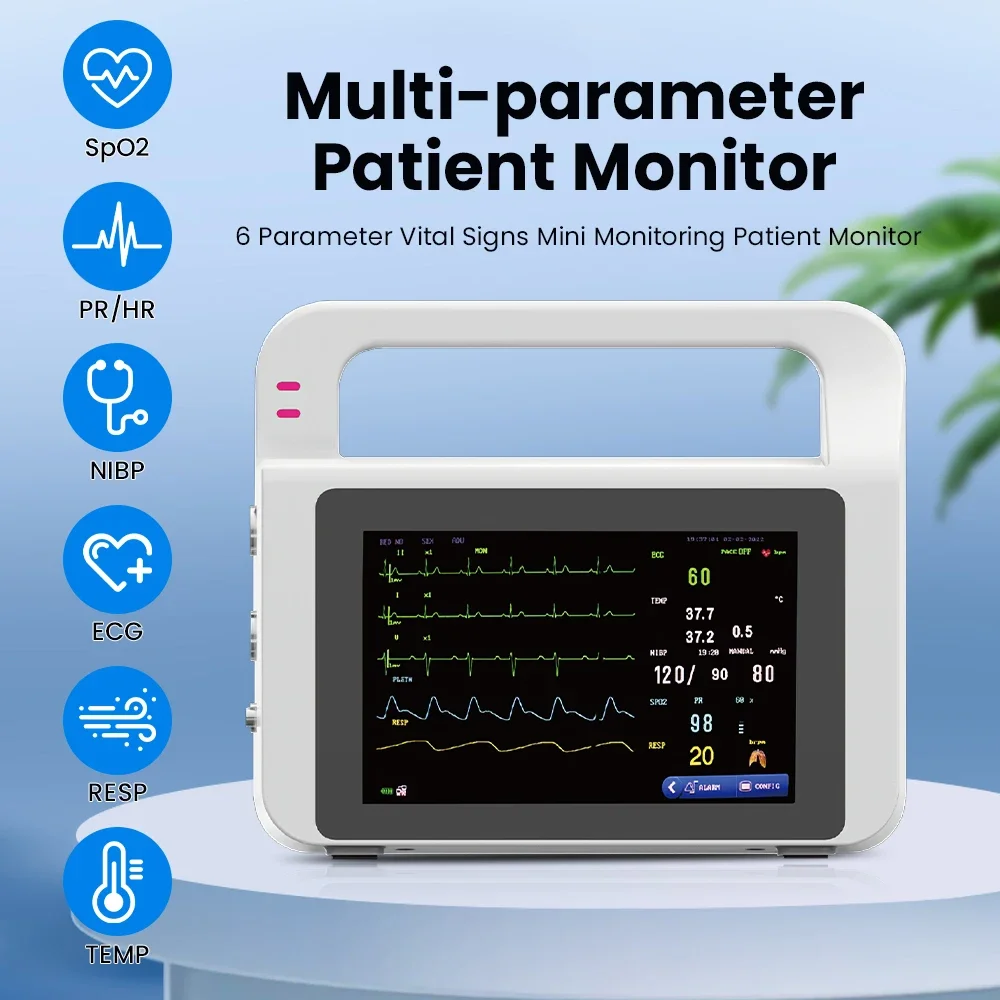

SpO2, PR/HR, NIBP, ECG, RESP,TEMP ;
-5inch color TFT LCD,rechargeable lithium battery ,both AC and DC;
-With multi-language operation interface;
-Fanless design,quite,quite energy saving and clean;
-Monitor adults,childrenand newborn;
-Simulated blood oxygen technology,anti-motion interference,anti-environmental light interference;
-Blood pressure data storage;Reviewof alarm events;
-Drug concentration calculation and titration table functions;
-The shell is made of imported ABS material which is more corrosion- resistant.;
-Multi-channel synchronous ECG algorithm,support ST and ARR analysis,abnormal ECG analysis

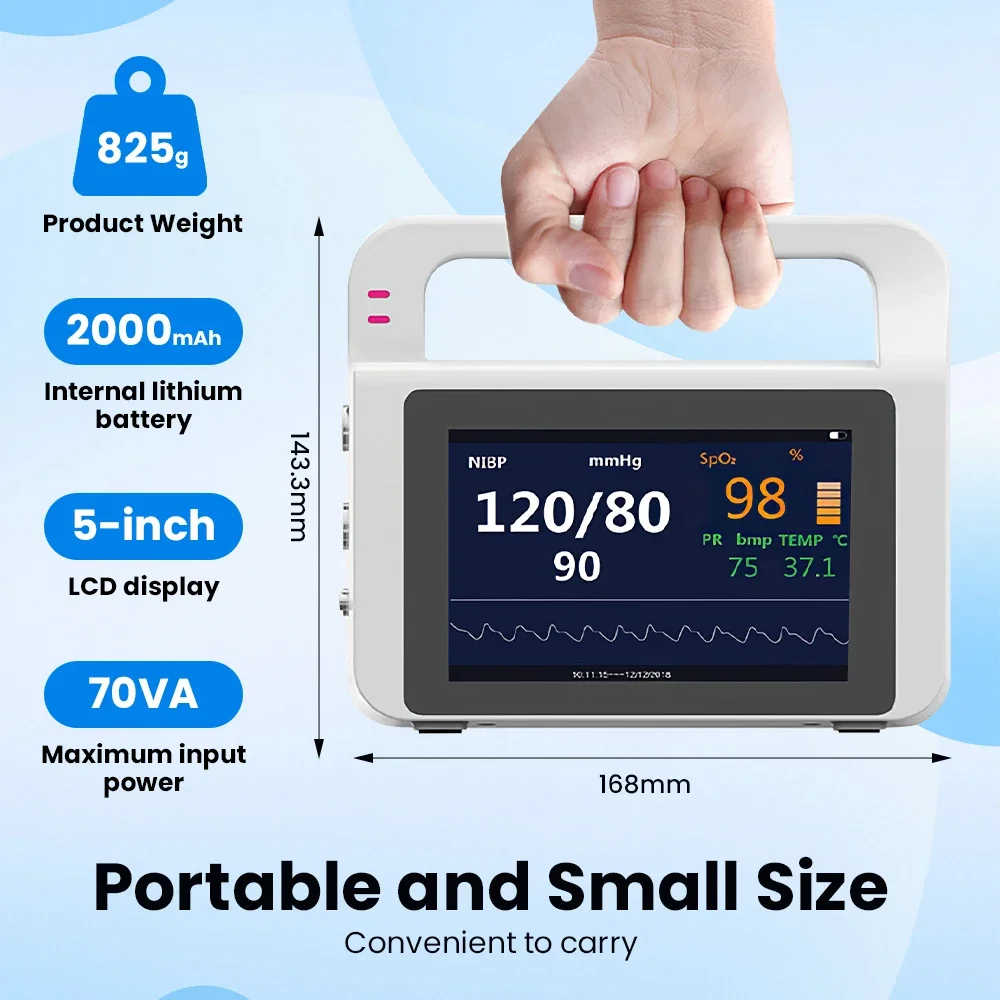

Product Size 168*143*66mm
Product weight 825g
4 hours of standby time and 3 hours of working time
Technical Specification:
ECG:
Gain: X0.25, X0.5, X1, X2, Auto
Timebaseline selection: 12.5mm/s, 25mm/s, 50mm/s
Sensitivity＞200uV (peak-to-peak)
bandwidth:
Diagnostic mode: 0.05~130Hz
Monitoring mode: 0.5~40Hz
Operation mode: 1~20Hz
Common Mode Rejection Ratio:
Diagnostic mode: >90dB
Custody mode: >100dB
Operation mode: >100dB
Electrode polarization voltage: ±300mV
Input impedance: <20%
DC bias voltage: -300mV~ 300mV
Multi-channel crosstalk: <5%
ST segment detection measurement:
Measurement range: -2.0mV~+2.0mV
Measurement accuracy: the measurement error
between-0.02 mV and + 0.8 mV is ± 0.02 mV or ± 10%.
Other scope is not defined
NIBP:
Adult systolic blood pressure: 40～270mmHg
Diastolic blood pressure: 10～210mmHg
Average pressure: 20～230mmHg
Children systolic blood pressure: 40～200mmHg
Diastolic blood pressure: 10～150mmHg
Average pressure: 20～165mmHg Neonatal systolic blood pressure: 40～135mmHg
Diastolic blood pressure: 10～95mmHg
Average pressure: 20～110mmHg
Static pressure range: 0～300mmHg
Static pressure accuracy : 3mmHg
Blood pressure accuracy:
maximum average error 5mmHg;
maximum standard deviation 8mmHg
Overvoltage Protection:
Adult mode: 300 mmHg±10mmHg
Child mode : 240mmHg±10mmHg
Neonatal mode : 150mmHg±10mmHg
SPO2:
Measuring range 0～100%
Resolution 1%
The accuracy is within the range of 70% to 100%,
and the measurement error should be ±4%;
In the range of 0% to 69%, the measurement
error is undefined
Pulse rate:
Measuring range 25～250bpm
Resolution 1bpm
Accuracy ±3bpm
Refresh time 1s
Heart rate:
15 to 300 bpm for adults (beat / min)
Newborn / child 15-350 bpm (beat / min)
Accuracy: ± 1% or ± 1 bpm, take the large one
TEMP:
Range 0～50ºC
Resolution 0.1ºC
Accuracy ±0.1ºC (without probe error)
Physical Identity:
Product Size:17*14*7cm
Product Weight:0.8kg
Package Size:30*20*14cm
Package weight:2kg
Package included:
1X E5 Handheld Patient monitor
1X Blood pressure extension tube
1X Blood pressure cuff (for Adult)
1X SPO2 Probe (for Adult)
1X ECG Cable
1XTemperature probe
1X Ground wire
1X Power cord
1X User Manual
