Feature

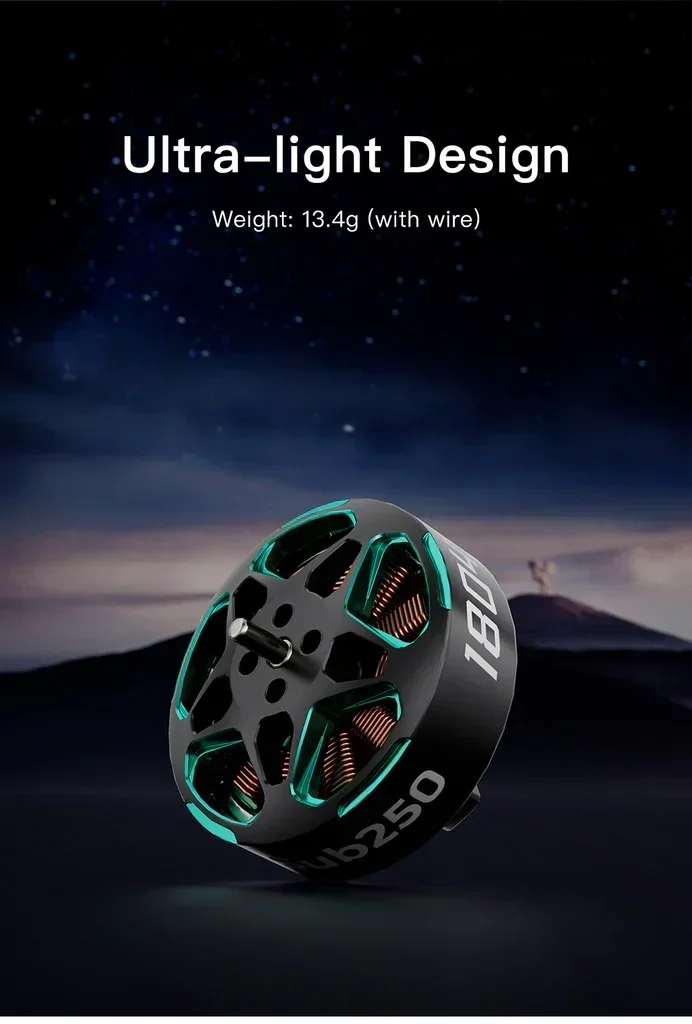

1. Lightweight design, only 13.g (13CM Wire)
2. High-quality arc magnetic steel, strong magnetic force, and more efficient flight.
3. Optimized magnetic circuit design, large motor torque, strong explosive power, and extremely fast response speed.
4. High-strength motor structure, outstanding durability.

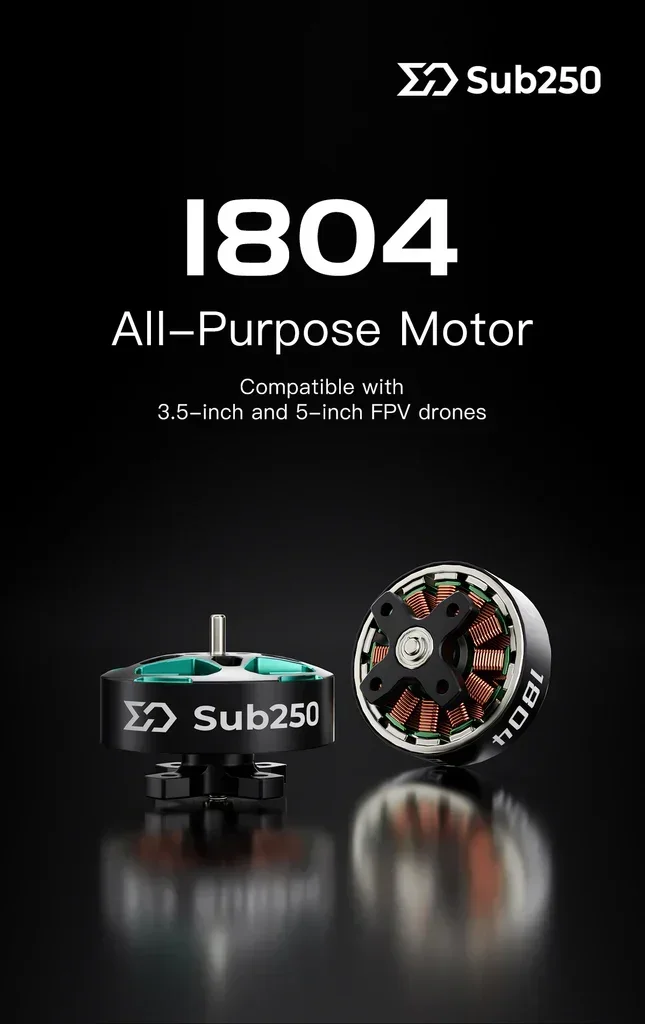

5. Compatible with 3.5-inch and 5-inch FPV drones

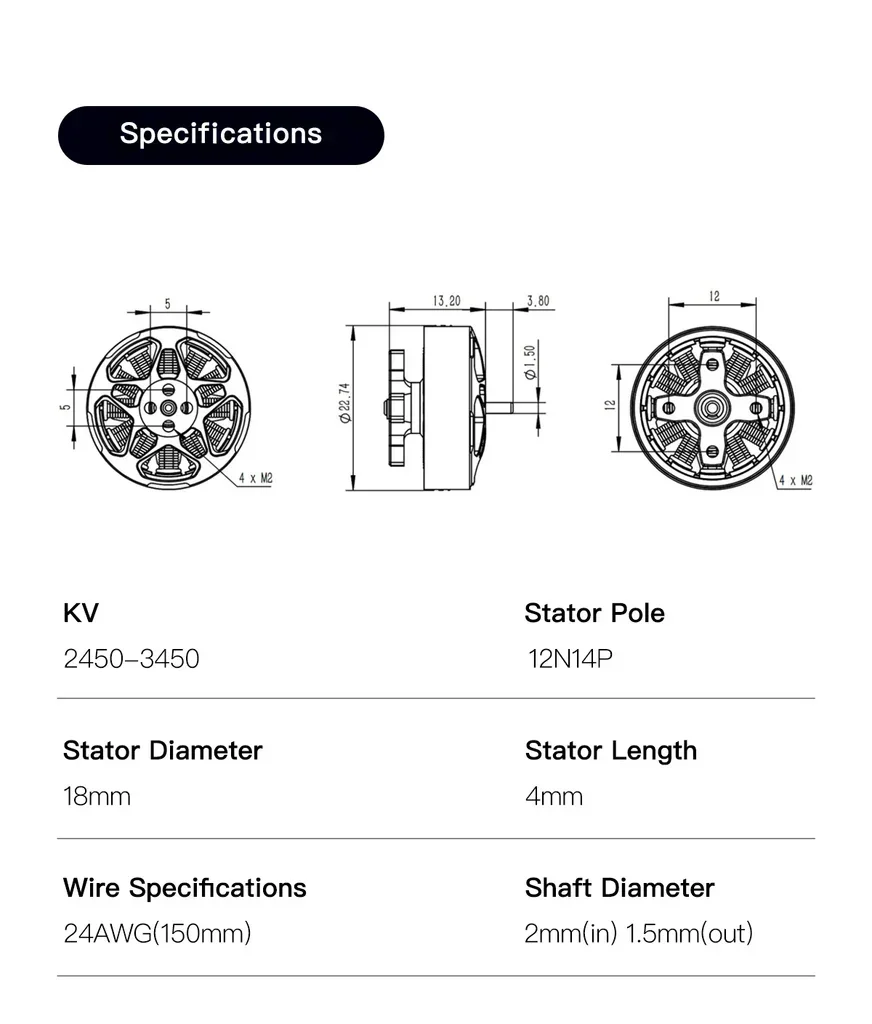

Specification：

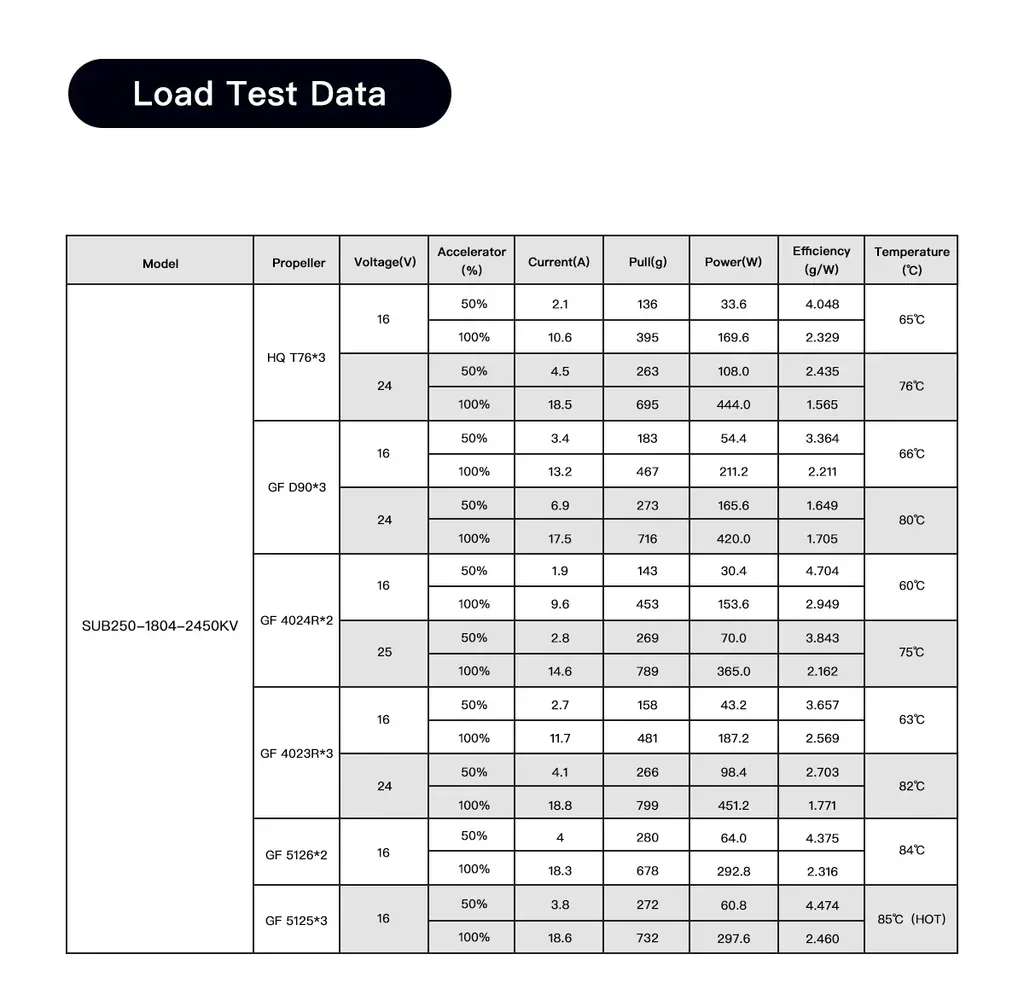

Item: Sub250 1804-2450KV
Configuration: 12N14P
Magnet: N52H ARC
Stator Diameter: 18mm
Stator Height: 4mm
Shaft Diameter: Φ2mm(in)Φ1.5mm(out)

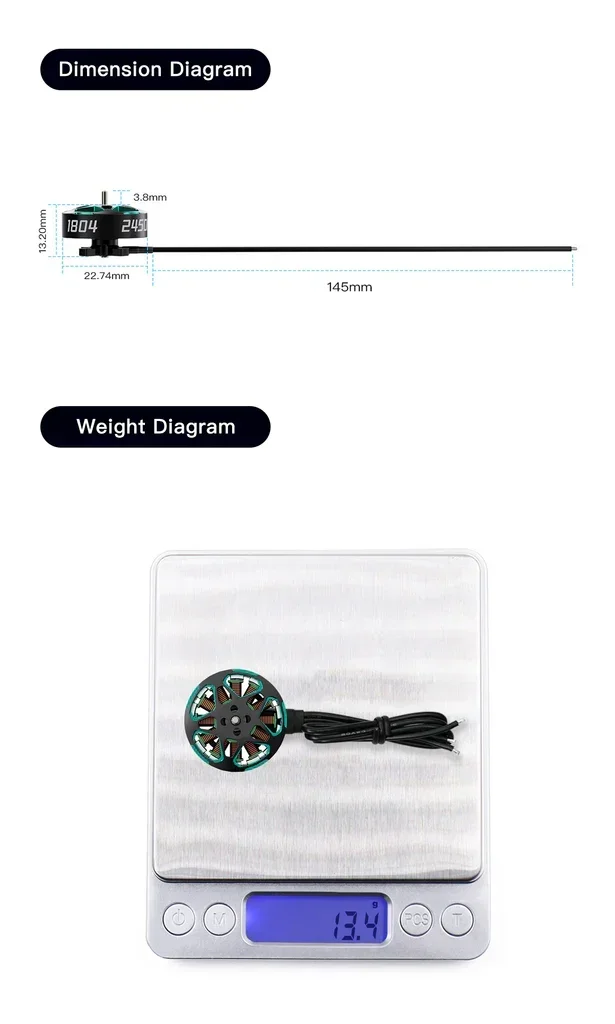

Size: Φ22.74mm*13.2mm
Lead Wires: 24#AWG 150mm
No. of Cells (LiPo) : 4-6S
Max Continuous Power(W) (3S): 452.2W
Max Current (5S) : 18.8A
Mounting Holes: 12mm x 12mm(M2 Screw)
Color: Dark + Green
Weight: 13.2 g （13CM Wire）
Suitable Quadcopter: 3″ whoop FPV, 3-5″ Freestyle & Long Range FPV

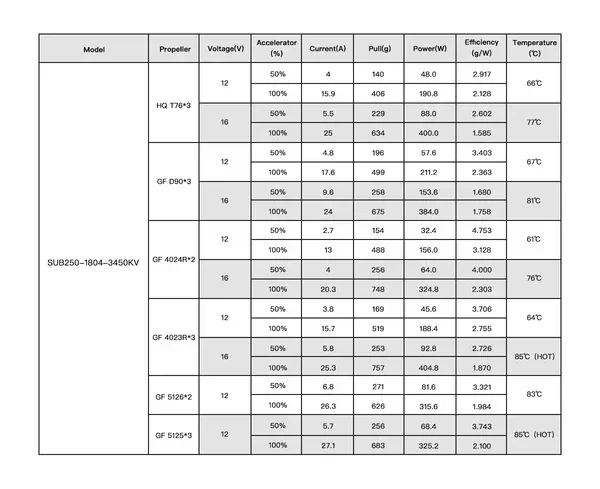

Item: Sub250 1804-3450KV
Configuration: 12N14P
Magnet: N52H ARC
Stator Diameter: 18mm
Stator Height: 4mm
Shaft Diameter: Φ2mm(in)Φ1.5mm(out)
Size: Φ22.74mm*13.2mm
Lead Wires: 24#AWG 150mm
No. of Cells (LiPo) : 2-4S
Max Continuous Power(W) (3S): 404.8W
Max Current (5S) : 25.3A
Mounting Holes: 12mm x 12mm(M2 Screw)
Color: Dark + Green
Weight: 13.2 g （13CM Wire）
Compatible with 3.5-inch and 5-inch FPV drones

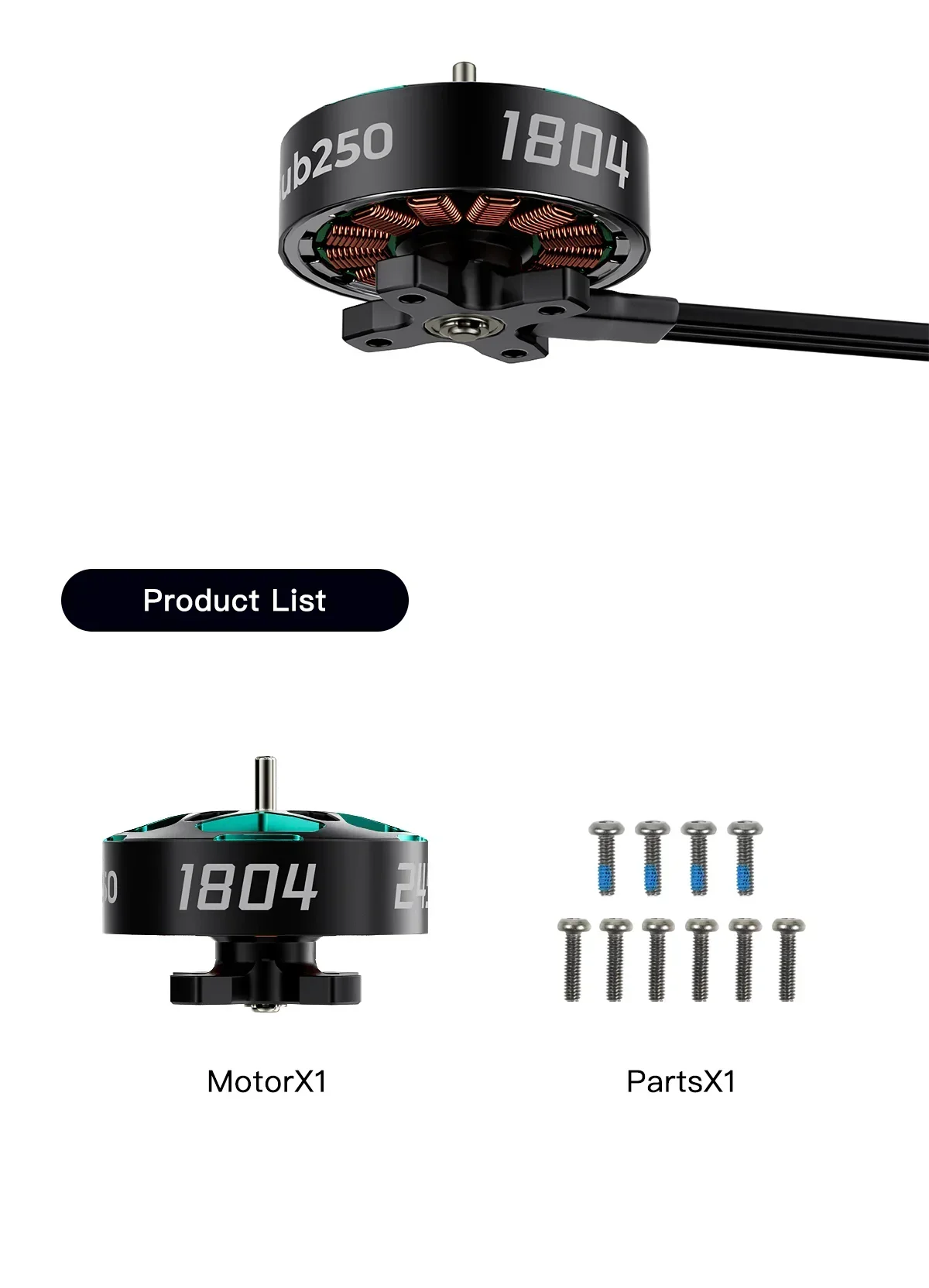

Includes
1 x Sub250 1804 Motor
5 x M2*6mm Screw
5 x M2*8mm Screw
