GSI 8100 3-Axis Cartesian Linear Translation Stage 62cm/52cm/5cm +Motors, Drives
Manufacturer: General Scanning GSI
Model: DOES NOT APPLY
Condition: Used
- Residential area?
- Dock or forklift?
- Zip code?
*Shipping to be arranged by seller
Manufacturer: General Scanning GSI
Condition: Used. This lot is in good overall cosmetic condition with lots of dusty/greasy residues especially on the ballscrews and in their grease-catching trays. The bumpers on the Z-axis are cracked and falling apart. There are a few extra cables in the cable management system in case you wanted to use them. There was a linear encoder on the Z axis but it is broken and mostly missing.
Notes: This was removed from a decommissioned GSI Lumonics 8100 Inspection System 3D scanner and not tested under power. The screws for the top and middle axes can be turned with moderate fingertip pressure directly on the screws. The Z-axis moves easily when the knob is turned. No other testing was done. No manuals, cords/cables, or additional items are included if not listed or shown.
Included:

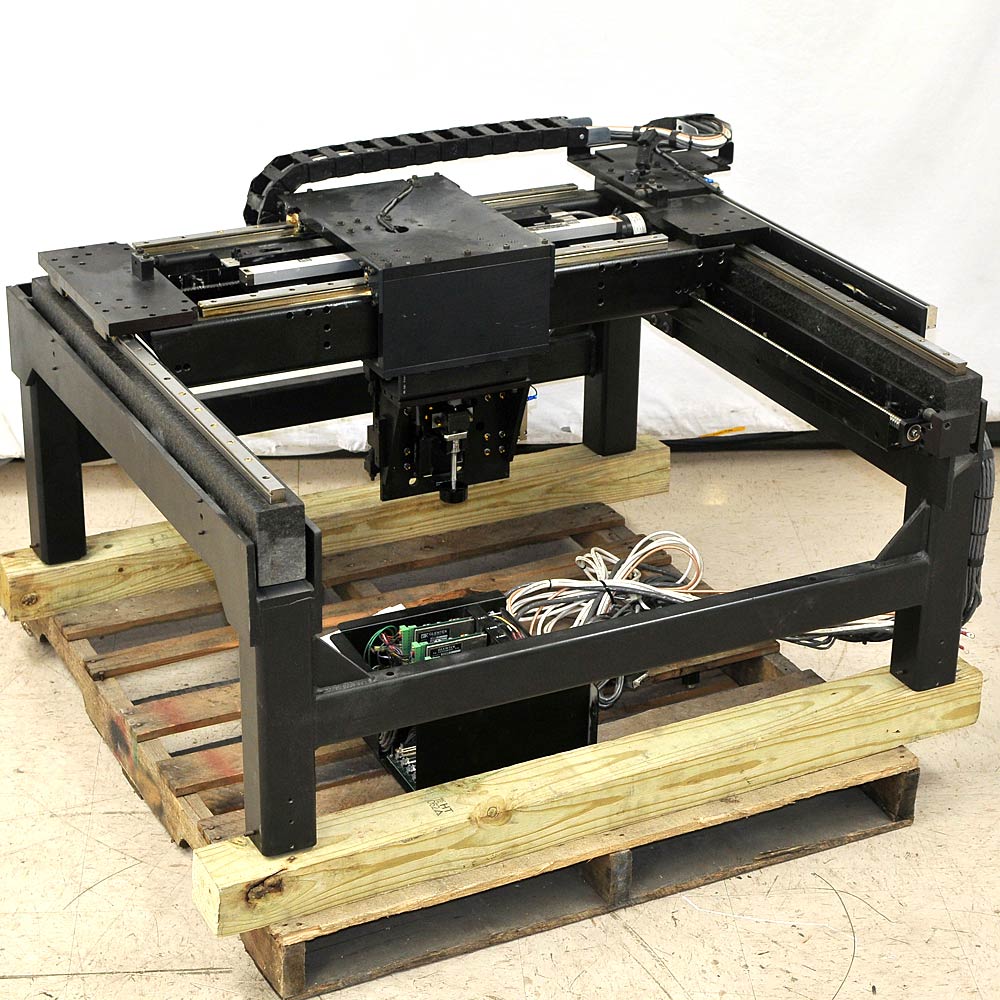

- (1) GSI 3-axis Linear Translation Stage
- (1) Motor drive/circuit boards box
- (1) Set of drawings including schematics for the stage
Specifications:
- Manufacturer: General Scanning/View Engineering
-
3-axis cartesian motion translation stage
- Horizontal travel: 62cm and 52cm
- Vertical travel: 5cm
-
Linear motion guides: NSK LY20 recirculating ball bearing type
- Guideway lengths: 92cm middle, 76cm top axis
- 4 bearing blocks per axis
- Steel frame with black granite mounting blocks for longest axis
- Z stage made by Schilling Industries
- Motorized position adjustment on X and Y axes
- Motorized or manual adjustment of Z-axis
- Ballscrew drive for all axes
- Optical limit switches
-
Main motors: Glentek GMR2325-16
- Rated speed: 6000RPM
- Tachometer: 7V/1000RPM
- RSF Elektronik MSA 6701 linear encoders, ML 620mm and 520mm on long axes
- Glentek GA365-1 motor drives
- Visible PCB model: View Engineering Energy Conversion Unit 2109385-507
- Servo amp/motors/tachometer/scale interface board has connectors to mate axis cables
