Description
FPA100-200Vpp Power Amplifier High Voltage/Bandwidth/Driving Coil PZT/Oscillator with Overload Protection for Signal Generator
Difference:
- FPA100 (120Vpp): 10X amplification, maximum output amplitude 120Vpp, maximum output current 2A, maximum output power 100W.
- FPA100 (150Vpp): 10X amplification, maximum output amplitude 150Vpp, maximum output current 1.5A, maximum output power 100W.
- FPA100 (200Vpp): 20X amplification, maximum output amplitude 200Vpp, maximum output current 1.3A, maximum output power 100W.
Features:
- FPA100 supports DC and AC signal amplification, with a maximum output power of 100Wp and a full power bandwidth of DC~50KHz with a fixed gain multiple. It is easy to operate and convenient to use.
- Overload protection, which is safer to use.
- Strong compatibility, compatible with mainstream signal generators in the market. It can be used as a standalone power amplifier in conjunction with other signal sources.
Specification:
- Model: FPA100-120Vpp/FPA100-150Vpp/FPA100-200Vpp
- Output type: single-ended output
- Bandwidth (-3dB): DC-50KHz
- Signal input impedance: 1kohms
- Maximum output voltage: 120Vpp (±60Vpp)/150Vpp/200Vpp
- Maximum output current:
DC-100Hz: 1.5Ap for FPA100-120Vpp; 1.2Ap for FPA100-150Vpp; 1Ap for FPA100-200Vpp
> 100Hz: 2Ap for FPA100-120Vpp; 1.5Ap for FPA100-150Vpp; 1.3Ap for FPA100-200Vpp
- Voltage gain: X10
- Output impedance: <0.1ohm
- Load impedance: frequency > 50Hz, load impedance ≥4ohms; DC-50Hz, load impedance ≥10ohms
- Slew rate: ≥10V/us (typical value)
- Polarity: in-phase output
- Overswing: < 10%
- Signal GND: connect with chassis shell and power cable GND
- Output protection: output over-current protection

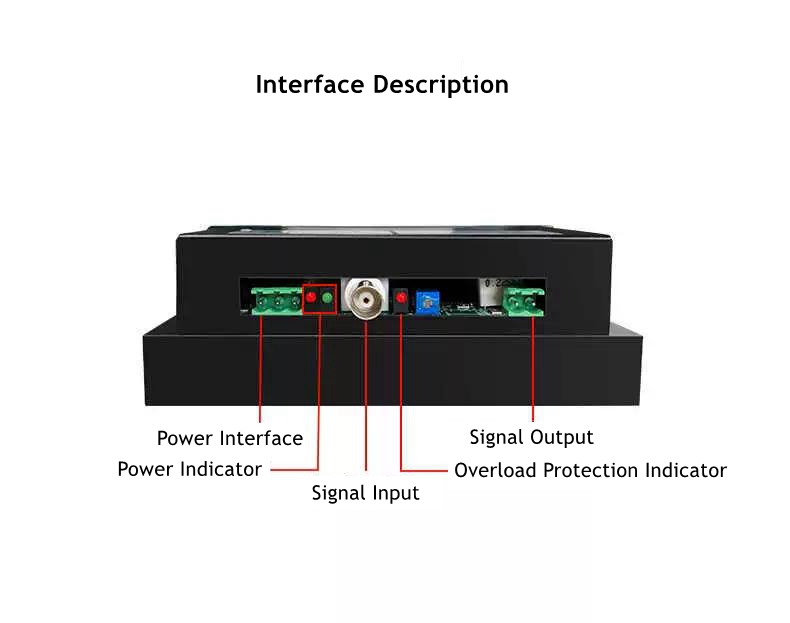

- Output interface: KF128-2P terminal
- Working temperature: 0℃ ~ 70℃
- Working humidity: < 80%, non-condensing
- Product size: 150 x 97 x 52mm
- Net weight: 480g (host)
- Packaging weight: 1060g
Package Included:
- 1 x Host
- 1 x Power Cable
- 1 x BNC to BNC Connection Cable
- 1 x Output Clip Cable
- 1 x Power Supply Module
