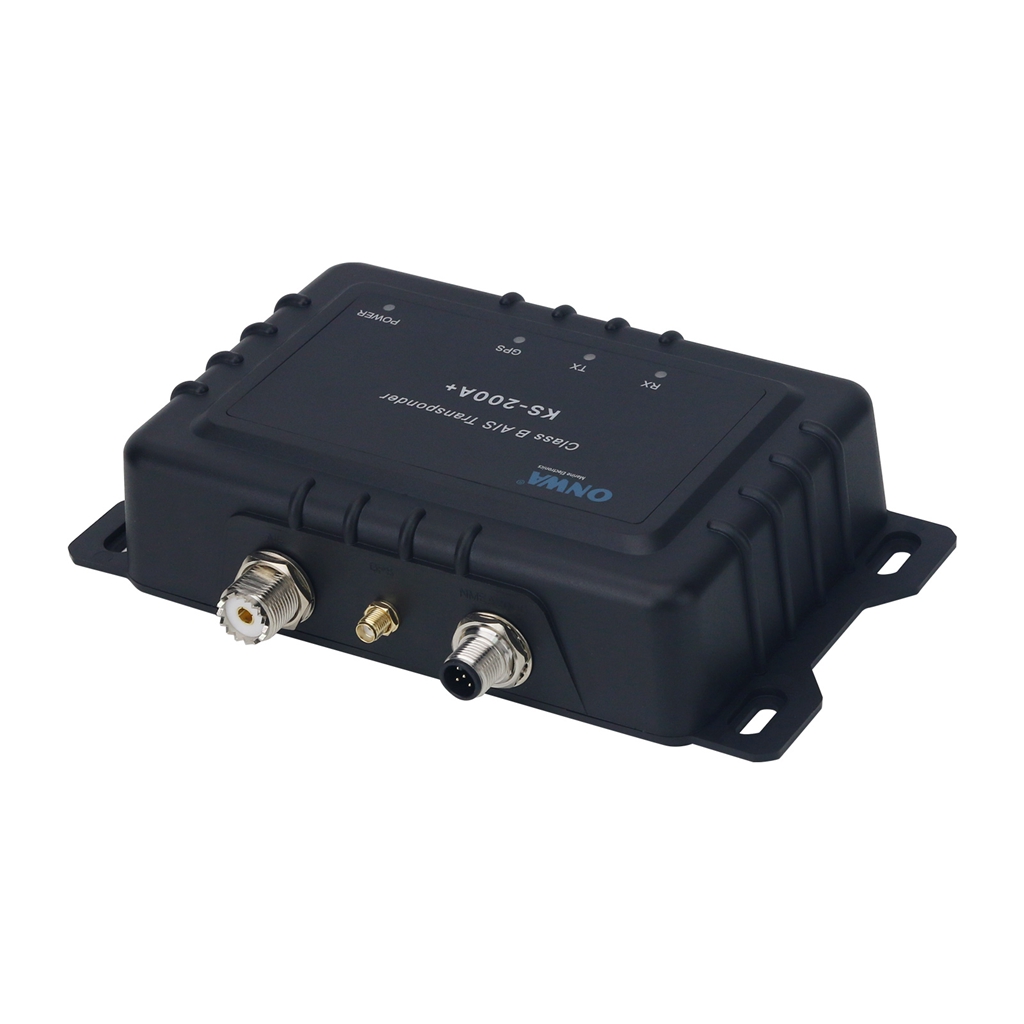

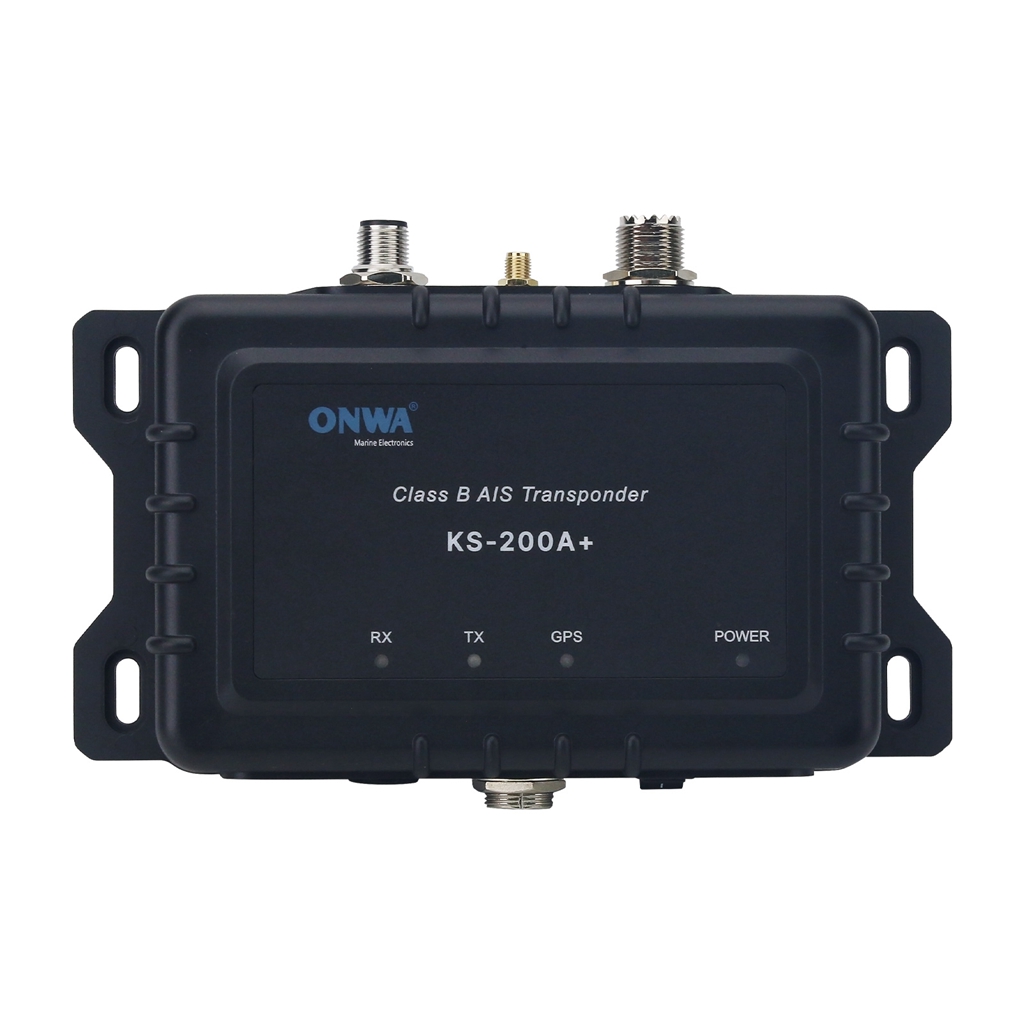

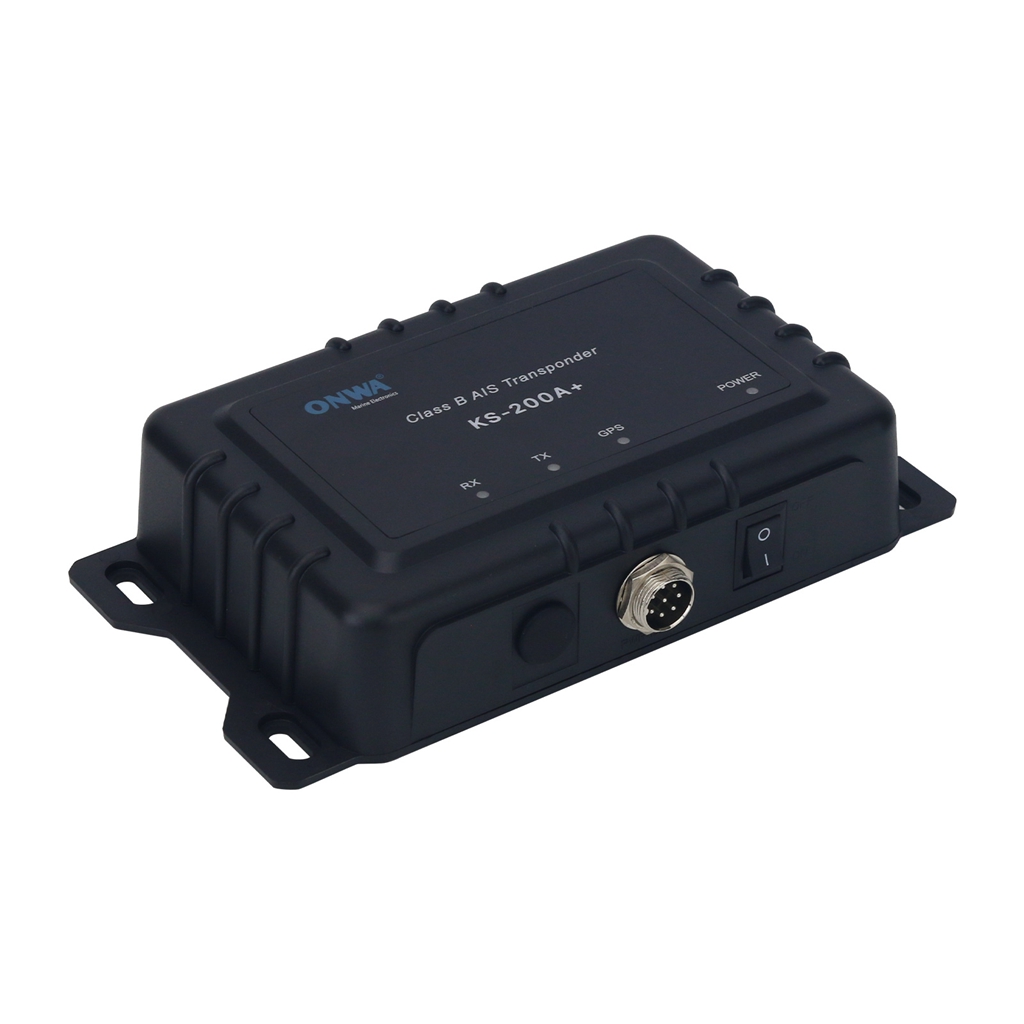

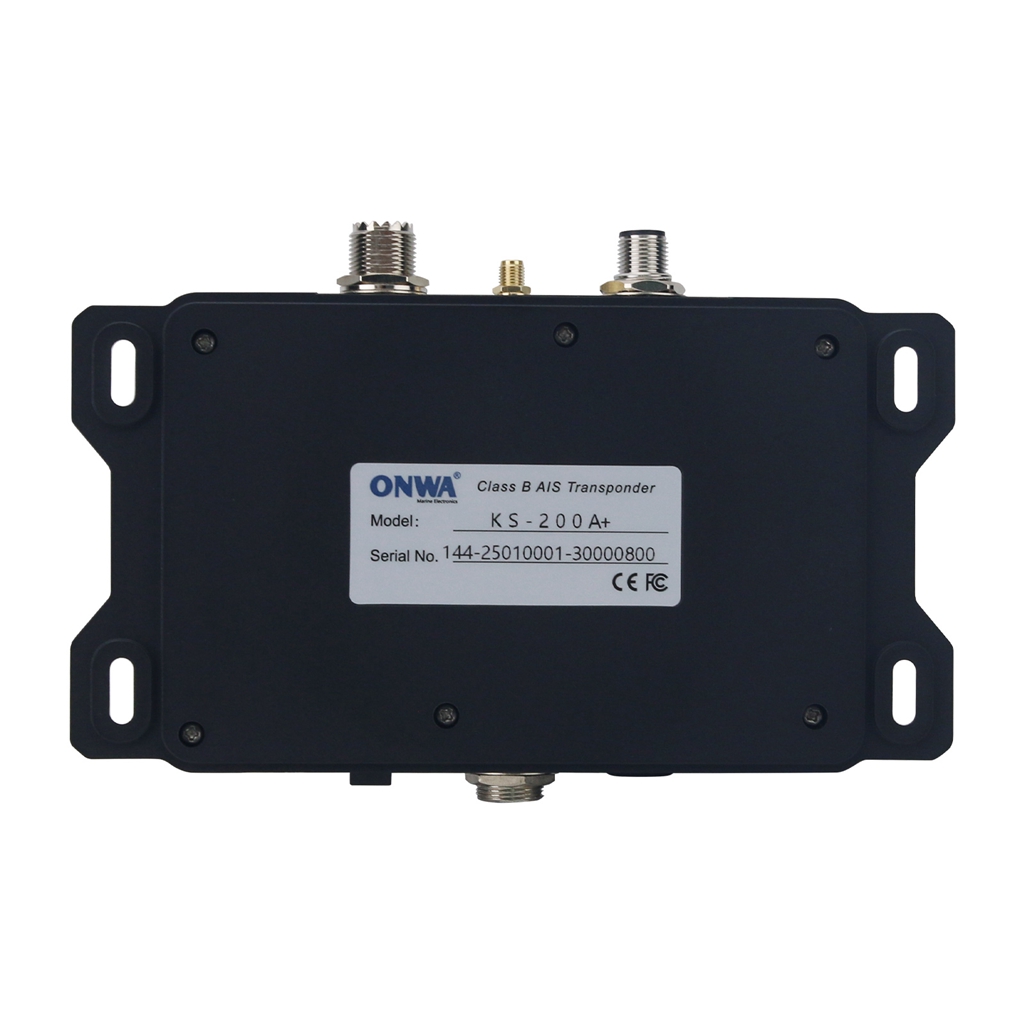

ONWA KS-200A+ Class B+ AIS Transponder 5W Transmission Marine AIS Support for NMEA2000 with WiFi

Key Features:
- Global tracking capability: enables global tracking, thanks to its satellite reception feature.
- Support for NMEA2000: seamlessly integrates with NMEA2000 for a streamlined marine experience.
- 5W transmission power: boosts visibility with a 5W transmission, ensuring your boat is seen up to 12nm away.
- For SOTDMA technology: adopting for SOTDMA, the same as Class A, for guaranteed time slot allocation.
- High temperature resistance: withstands extreme conditions at 105℃, making it a reliable choice for marine environments.

Specification:
- GPS receiver (AIS internal): IEC 61108-1 compliant

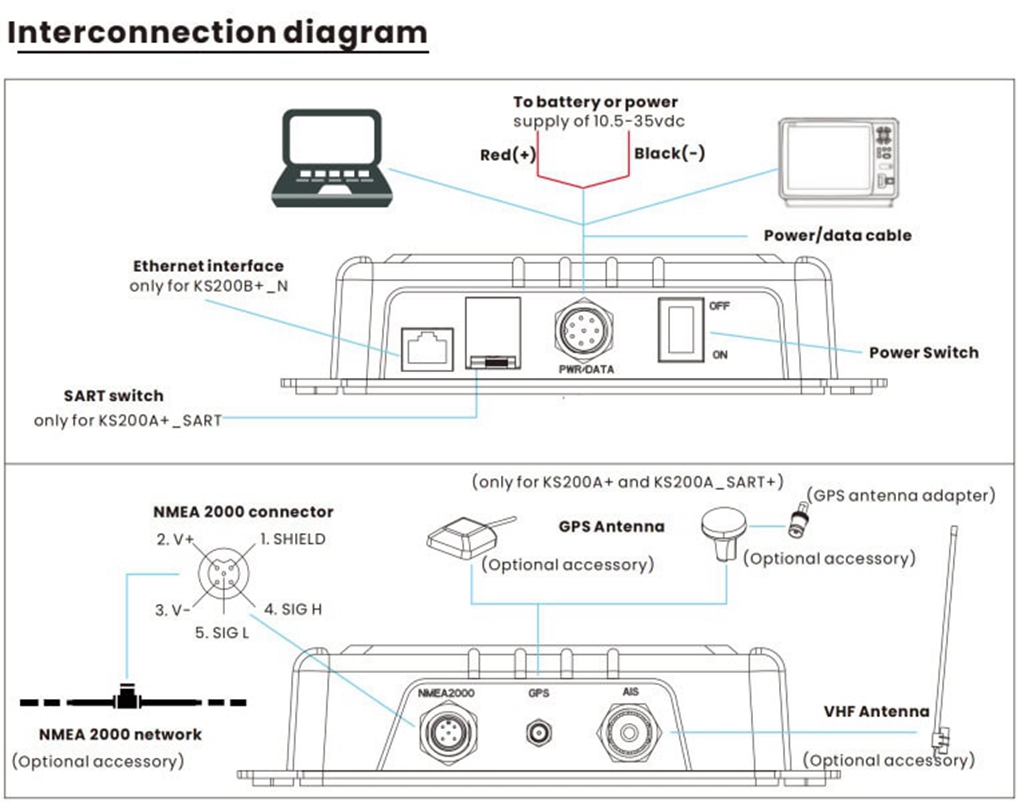

- Connectors: VHF Antenna connector PL259 female; GPS Antenna connector SMA female; NMEA 2000 Interface
- Product size: 200mm x 102mm x 45.8mm
- Net weight: 0.45kg
- Power input: 10.5 ~ 35VDC
- Power consumption: 0.20A nominal
- Electrical interface: RS232 38400 baud-rate bi-directional
- Environmental: IEC 60945 (Cat C)
- Operating temperature: -25℃ to +60℃
- NMEA sentence supported: VDM, VDO, RMC, GSV, GGA, GSA

AIS Characteristics:
- Frequency rate: 161.975MHz, 162.025MHz
- Access scheme: SOTDMA
- Channel bandwidth: 25KHz
- Modulation: AIS GMSK
- Number of AIS transmitter: 1
- Number of AIS receiver: 2
- AIS channel 1: CH 87B (161.975MHz)
- AIS channel 2: CH 88B (162.025MHz)
- Standard TX power output: 5W
- Customizable TX power output: 2W, 12.5W
- RX sensitivity: <-120dBm at 20% PER
- RX message format: AIS class A and B messages
- Comply standard: IEC-62287 IEC 62287-2 Ed. 2.0:2017

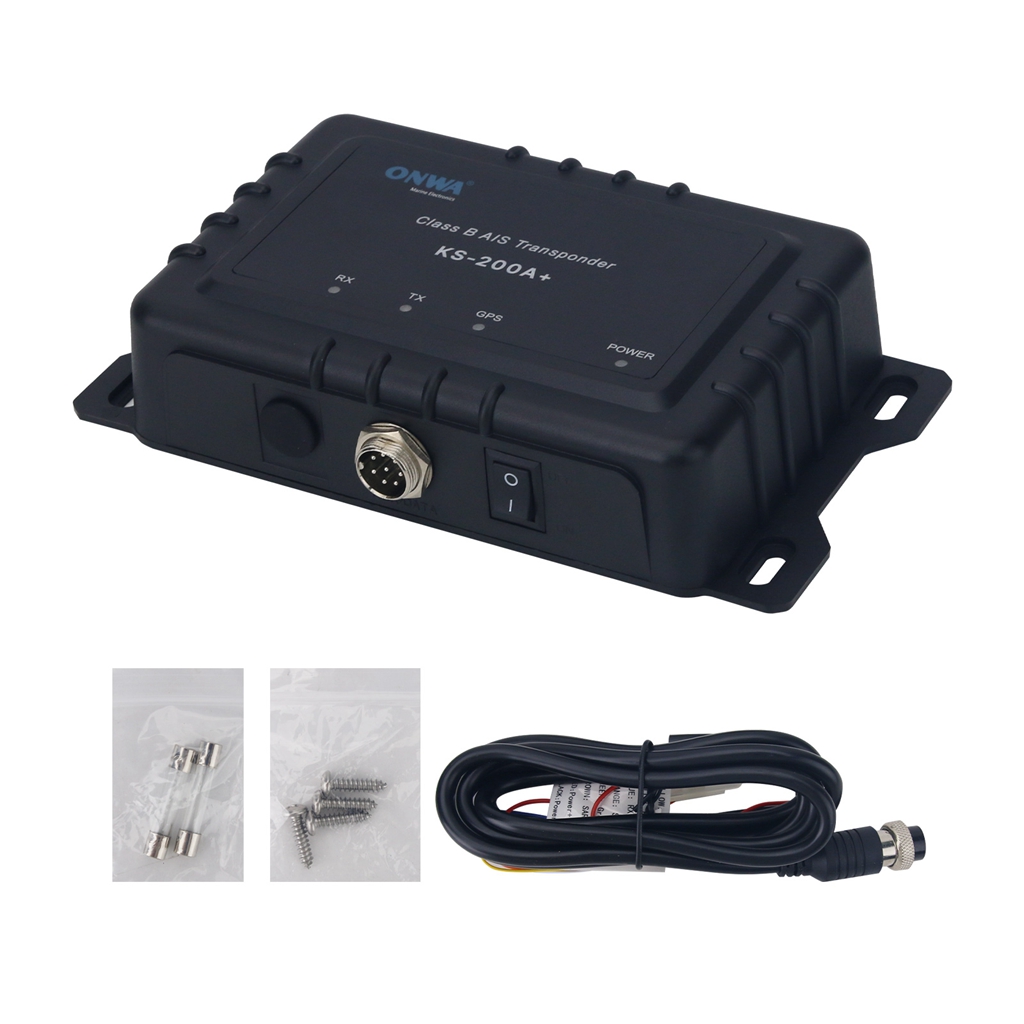

Package Included:
- 1 x AIS Transponder
