1. Technical Specifications

• Frequency Range: 1.8 - 600 MHz
• Power Handling Capacity: 1KW (Continuous Wave, CW)
• Impedance: 50 Ohms
• Voltage Standing Wave Ratio (V.S.W.R.): ≤ 1.2
• Isolation: ≥ 50 dB
• Insertion Loss: ≤ 0.2 dB
• Housing Material: Zinc Alloy
• Connector Type: UHF Female
• Switch Configuration: 2-Position (1 Input - 2 Outputs)
• Weight: 380 g

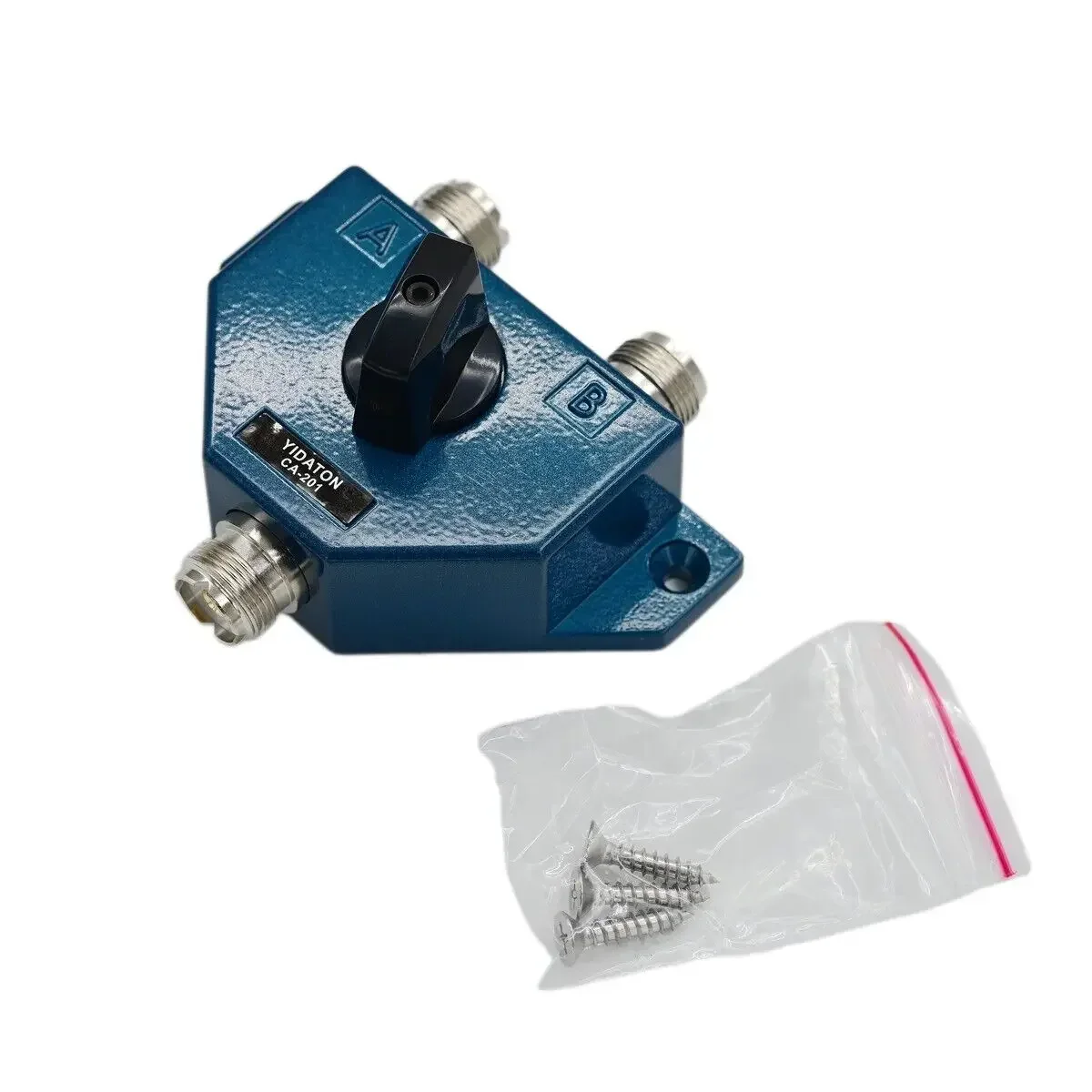

2. Packing List

• 1 x 2-Position Antenna Switch
