Description
Clearsky Column Tripod Dual Mode Gear Adjustment Support Power Supply Management for Harmonic Equatorial Mount
Key Features:
- Power supply management
- Support built-in power supply
- Rich expansion interface
- Self weight of 11kg
- All terrain leveling
- Military grade load-bearing structure
- High compatibility with plate connection
- Dual mode gear structure
- 81cm working height
Characteristics:
- The central column is 110mm in diameter, 8mm thick, and 600mm long. Three pipes with a diameter of 50mm and a thickness of 7.5mm. 80mm diameter large foot pad, combined with a tripod leveling structure, can achieve stable leveling on any ground.
- Dual mode gear: finite/infinite gear adjustment. M10 hand screws can be used to lock at any position, and gear bolts can be used for gear locking, followed by hand screws for clamp type coaxial locking.
- The bottom of the column is designed to be detachable, allowing for the placement of a small power supply inside, transforming it into an astronomical column with a built-in power supply (charging and power lines can be released through reserved small holes).
- You can input power at the bottom of the column and output 3 DC outputs on the column body. The power management has built-in TVS surge protection function, providing an extra guarantee for your electrical safety.
- 80mm diameter large foot pad, combined with a tripod leveling structure, can achieve stable leveling on any ground.
Specification:
- Column diameter: 110mm, thickness of 8mm
- Leg diameter: 50mm, thickness of 7.5mm
- Storage height: 710mm (including foot pad)
- Normal usage height: 810mm
- Maximum floor area for expansion: 850 x 850 x 850mm
- Load capacity: 100kg
- Net weight: 10.9kg
- Storage area: 400 x 400 x 710mm (including foot pad)

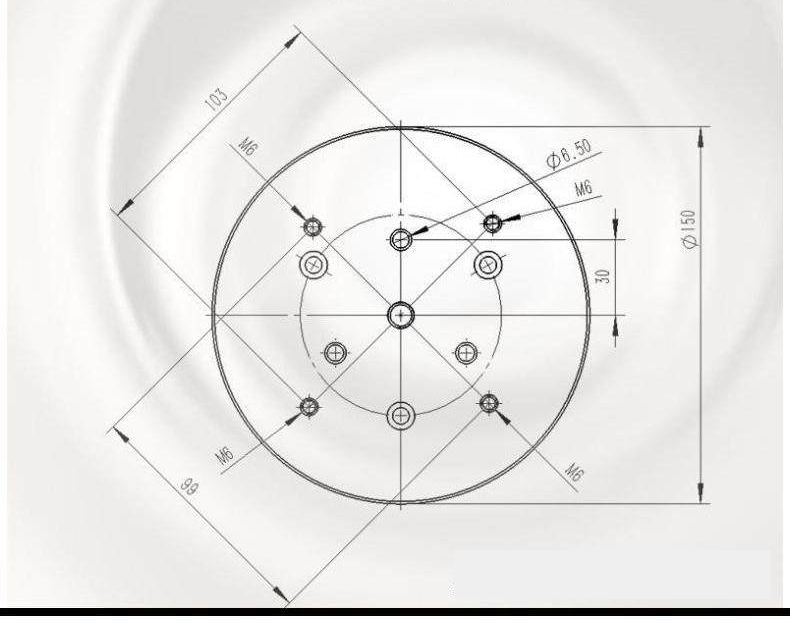

- Connection plate: compatible with the vast majority of harmonic equatorial meters on the market.
Package Included:
- 1 x Column Tripod
Key Features:
- Power supply management
- Support built-in power supply
- Rich expansion interface
- Self weight of 11kg
- All terrain leveling
- Military grade load-bearing structure
- High compatibility with plate connection
- Dual mode gear structure
- 81cm working height
Characteristics:
- The central column is 110mm in diameter, 8mm thick, and 600mm long. Three pipes with a diameter of 50mm and a thickness of 7.5mm. 80mm diameter large foot pad, combined with a tripod leveling structure, can achieve stable leveling on any ground.
- Dual mode gear: finite/infinite gear adjustment. M10 hand screws can be used to lock at any position, and gear bolts can be used for gear locking, followed by hand screws for clamp type coaxial locking.
- The bottom of the column is designed to be detachable, allowing for the placement of a small power supply inside, transforming it into an astronomical column with a built-in power supply (charging and power lines can be released through reserved small holes).
- You can input power at the bottom of the column and output 3 DC outputs on the column body. The power management has built-in TVS surge protection function, providing an extra guarantee for your electrical safety.
- 80mm diameter large foot pad, combined with a tripod leveling structure, can achieve stable leveling on any ground.
Specification:
- Column diameter: 110mm, thickness of 8mm
- Leg diameter: 50mm, thickness of 7.5mm
- Storage height: 710mm (including foot pad)
- Normal usage height: 810mm
- Maximum floor area for expansion: 850 x 850 x 850mm
- Load capacity: 100kg
- Net weight: 10.9kg
- Storage area: 400 x 400 x 710mm (including foot pad)
- Connection plate: compatible with the vast majority of harmonic equatorial meters on the market.
Package Included:
- 1 x Column Tripod
