Scootopia Lambretta DL GP 12v Electronic Kit (variable timing / D.C. output)

Scootopia Lambretta 12v Electronic Kit (for GP Crank)

Scootopia Lambretta LI SX TV DL GP  12v Electronic Kit.

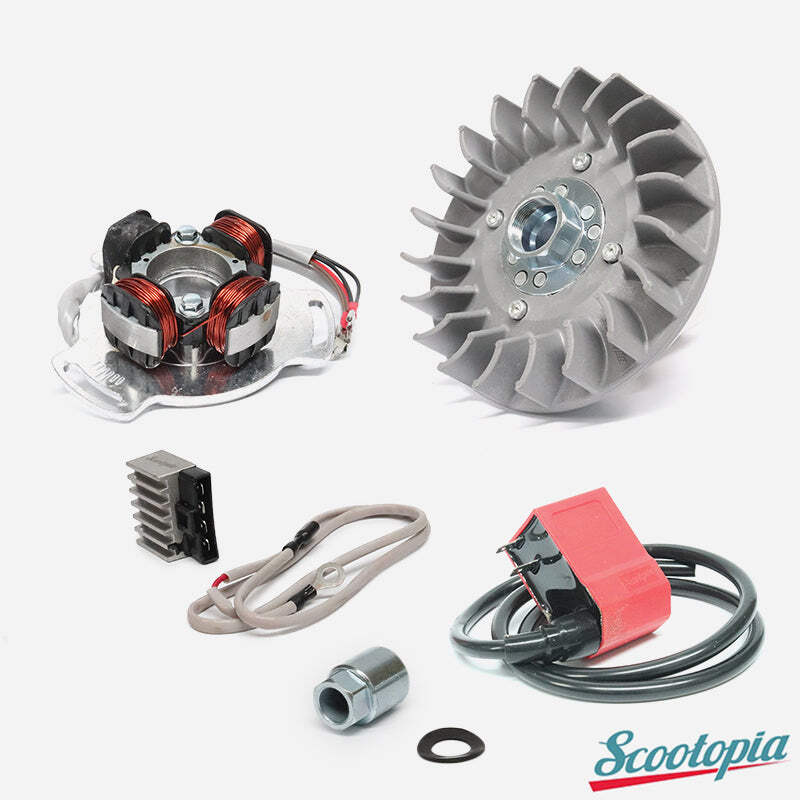

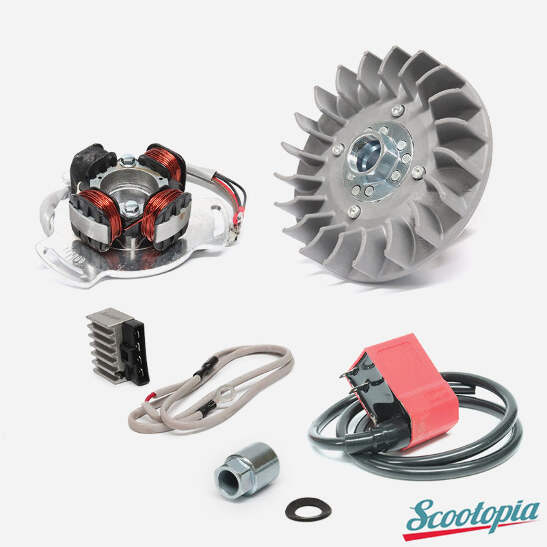

This kit consists of a Flywheel with plastic fins, Stator Plate, Flywheel Nut & Washer, CDI, Regulator, Fitting Tool & loom with connectors.

Some characteristics of the kit:

  • 2.12kg 2 Part flywheel (standard length plastic fins).
  • Optional DC output.
  • Removable HT lead from CDI.
  • 9 Stud centre boss.
  • Correct electrical connectors fitted.
  • 8 Degrees Advance or Retard (engine/barrel kit depending).
  • Set up at 25 Degrees before top dead centre.



Like both the SIP Vape kit, Casatronic & Varitronic our variable electronic kits give your engine an 8 Degree advance or retard timing set up. This allows the ignition timing to adjust at high or low revs resulting in a better performing engine. We have set a weight of approx. 2.1kg for the flywheel. For use with standard Scooters only. You also have the option of using a DC output, allowing you to charge up your phone, e cigarette or run a Sat Nav. We have also added an extra centre boss stud on the flywheel giving it 9 studs for extra strength.


SCOOTOPIA VARIABLE ELECTRONIC INSTALLATION INSTRUCTIONS



Tools Needed:

  • 8mm socket (Fan Cover Bolts).
  • 10mm socket (Stator Bolts).
  • 17mm socket (Flywheel Nut).
  • 19mm socket (most flywheel pullers).
  • Torque Wrench (for flywheel nut, 50-55 ft lbs.)
  • TDC Tool (if you want to double check timing).
  • Timing Disc (if you want to double check timing).
  • Timing Light/Strobe Gun (if you want to double check timing).



Contents of your Variable Electronic Ignition Kit box:

  • Stator attached to backing plate with wiring.
  • Rotor with Fan attached.
  • CDI with HT Lead (HT Lead can be unscrewed and changed if ever needed).
  • Regulator / Rectifier.
  • Red Battery feed wire (with Ring and Spade connector).
  • Flywheel nut with washer.
  • Spanner (extended).
  • HT Cap.
×
