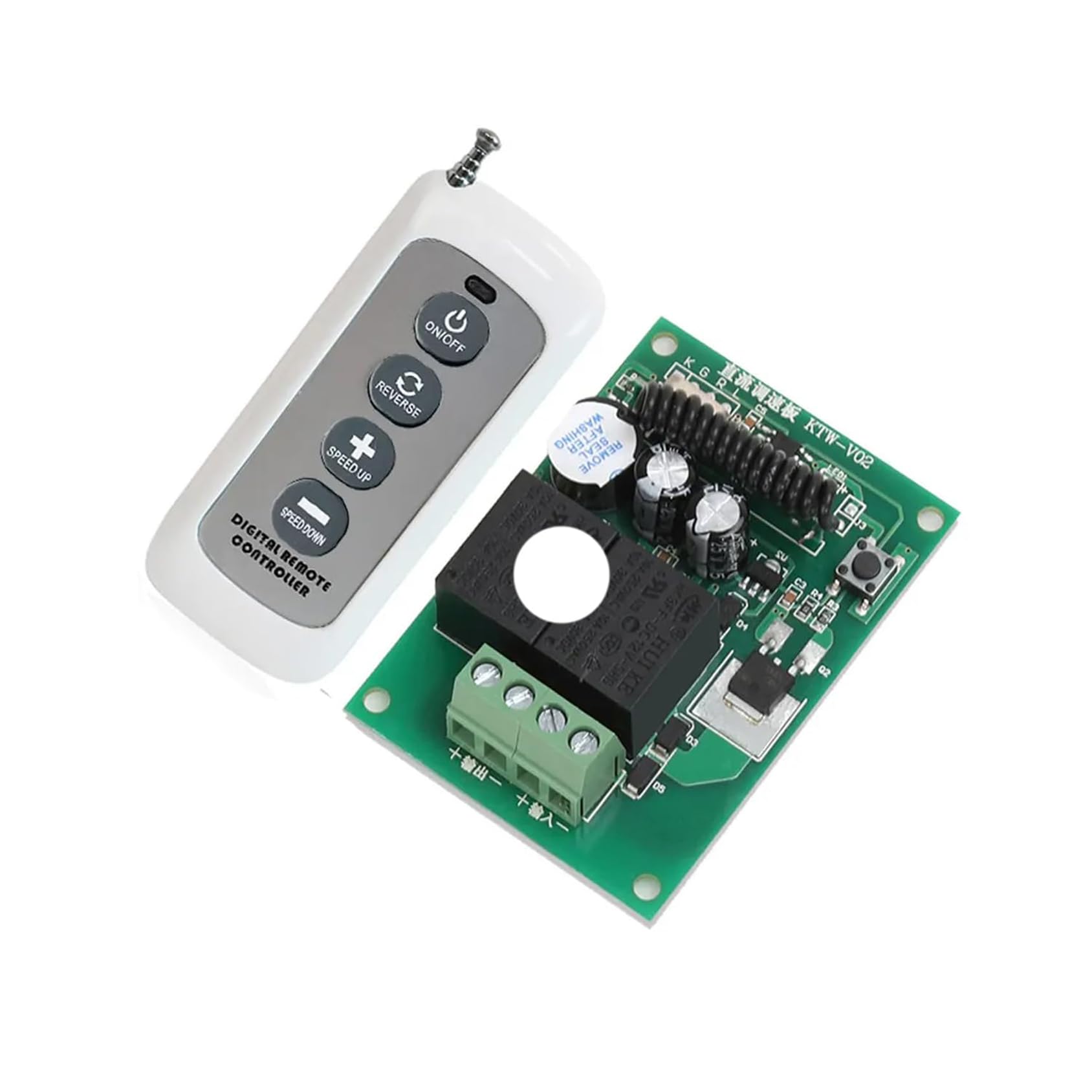

DC Motor Speed Controller with Remote Control 12V 24V PWM stepless white

Product Details

• Voltage: 12V 24V DC; Use for remote control speed and direction of motor,man can use jumper change voltage.
• Range: 50-200m in the open field
• Description about the remote control button: A: ON OFF; B:change direction; C: speed up; D: Speed Down.
• High efficiency, high torque, low heat generation. It possesses powerful function, stable performance and beautiful appearance.
• fifth gear：The product has five speed control gears, the first gear is 20%, the second gear is 40%, the third gear is 60%, the fourth gear is 80%, and the fifth gear is 60% full speed. For example, if your Motor speed is 100 RPM, the first gear speed is 20 RPM, the second gear speed is 40 RPM, and the third gear speed is 60 RPM. Fourth gear is 80 RPM, the fifth gear is 100 RPM.

delivery1 x receiver1x remote control with batteryTechnical dataWorking voltage: DC 12/24VSilent current: <10mAMaximum current: <10AFrequency: 433 MHzWorking temperature: -10~+60°CReception sensitivity: >110dbmReception range: The open space is more than 50-200 metersDescription about the remote control buttonA: ON OFFB:Change directionC: Speed UpD: Speed Downnote: 12v: It is recommended to use motors within 8A 24V: It is recommended to use motors within 5A
