Newport TRB25CC 25mm Stroke Miniature Actuator AS-IS Mangled Cable (Motor Runs)
Manufacturer: Newport
Model: TRB25CC
Condition: For Parts or Not Working
Manufacturer: Newport

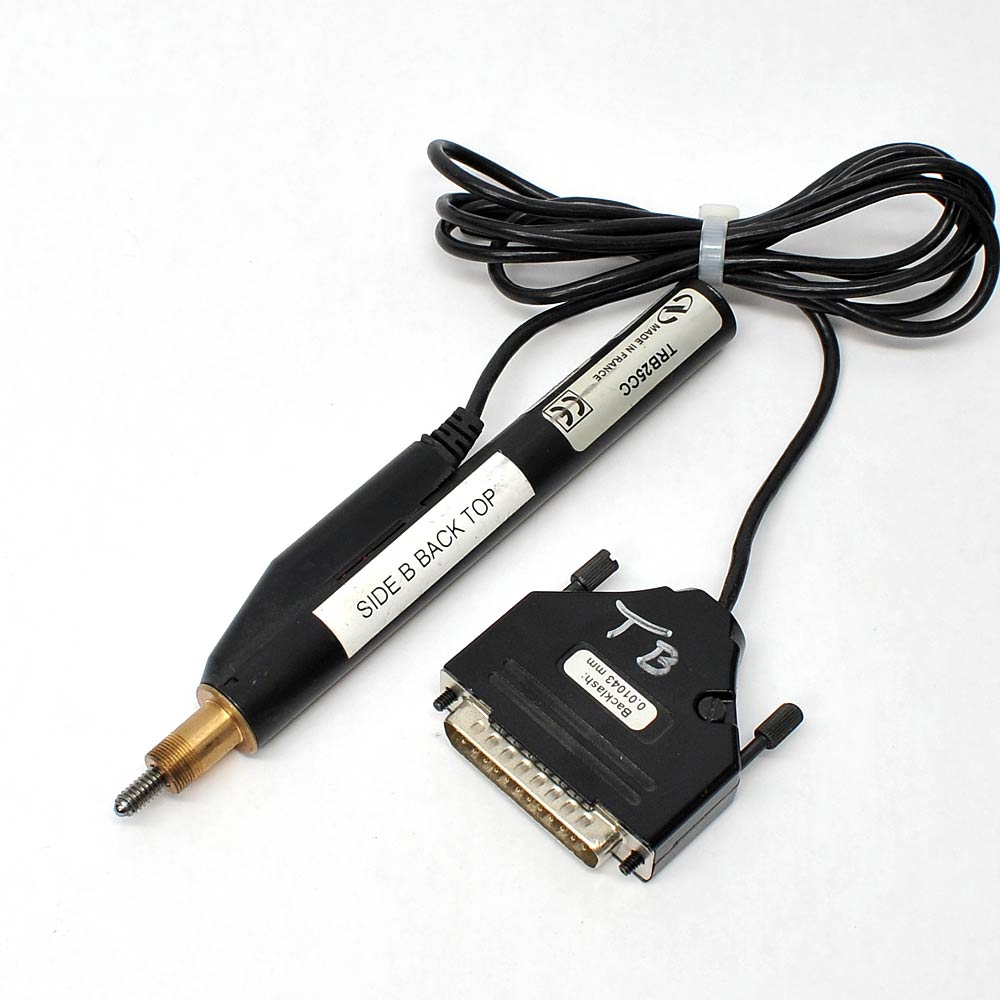

Condition: For Parts or Not Working. Comes in non-original packaging. This actuator is in fair cosmetic condition. The main blemish is in the cable, which has been squished and twisted to the point we don't trust all the conductors inside will still be in good condition. Also, the housing has been bent so the insides are viewable through a gap. There are some labels from the previous owner indicating where this used to be mounted. This is being sold AS/IS.
Notes: We were able to verify the motor rotates and extends the actuator tip, by applying DC power to the + Motor (5 & 6) and - Motor (7 & 8) pins on the connector. We are not sure how to test the encoder and end-of-run optical switches. No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Newport TRB25CC Miniature Motorized Actuator
Specifications:
- Manufacturer: Newport
- Model: TRB25CC
- Miniature Motorized Actuator
- 25 mm travel
- Minimum incremental motion: 0.1 μm
- Unidirectional repeatability, typical: +/- 0.25 μm
- Accuracy, typical: +/- 5 μm
- Maximum speed: 2 mm/s
- DC servo motor
- Rolled lead screw, 1mm pitch
- 1:67.5 reduction
- Motor-mounted rotary encoder, 1024cts/rev
- Optical limit switches both ends
- Wire is messed up, see photo!
- Sold AS-IS!
