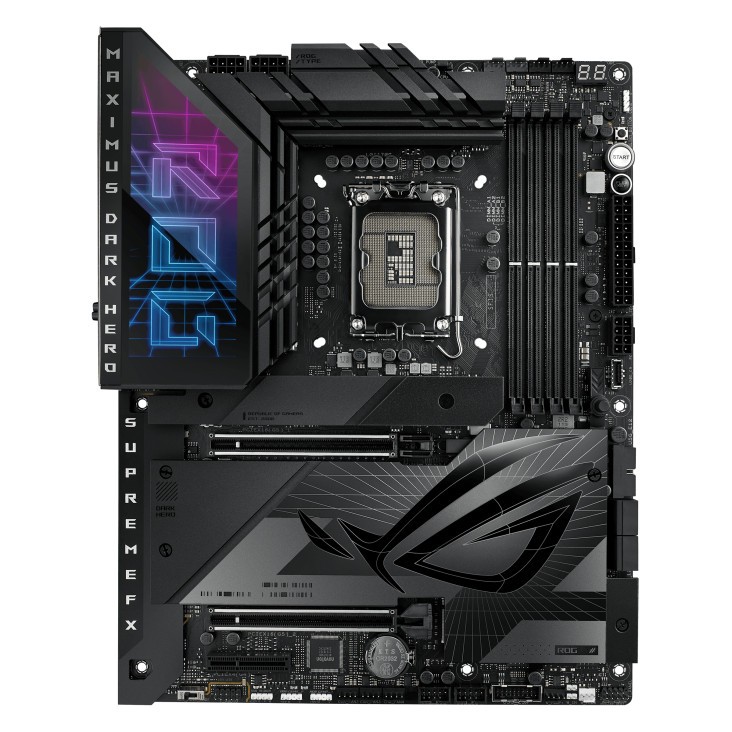

ASUS ROG MAXIMUS Z790 DARK HERO Gaming Mainboard Sockel Intel LGA 1700 ATX
processor
Intel Socket LGA1700 for Intel Core™ 14®®th & 13th Gen Processors, IntelCore™ 12® th Gen, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.®®®®®
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.®®®®®
Chipset
Intel Z790 Chipset®
memory
4 x DIMM slots, max. 192GB, DDR5
8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
Supports DIMM Flex
8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
Supports DIMM Flex
Display features
1 x HDMITM port**
2 x Intel Thunderbolt™ 4 ports (USB Type-C) support DisplayPort and Thunderbolt™ video outputs***
* Graphics specifications may vary between CPU types.
** Support 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.®®
2 x Intel Thunderbolt™ 4 ports (USB Type-C) support DisplayPort and Thunderbolt™ video outputs***
* Graphics specifications may vary between CPU types.
** Support 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.®®
Expansion slots
Intel Core®TM Processors (14th & 13th & 12th Gen)*
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
Intel Z790 Chipset®
1 x PCIe 4.0 x4 slot
** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
Intel Z790 Chipset®
1 x PCIe 4.0 x4 slot
** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
Storage device slot
Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core®TM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.) **
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.)
Intel Z790 Chipset**®
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.®
Intel Core®TM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.) **
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.)
Intel Z790 Chipset**®
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.®
Network Capabilities
1 x Intel 2.5Gb Ethernet
ASUS LANGuard®
ASUS LANGuard®
Wireless/Bluetooth
Intel Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)**
Supports 2.4/5/6GHz frequency band***
Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.
Bluetooth v5.4****
* Compatible with Windows 11 or later.
** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.
*** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
**** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.®®
2x2 Wi-Fi 7 (802.11be)**
Supports 2.4/5/6GHz frequency band***
Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.
Bluetooth v5.4****
* Compatible with Windows 11 or later.
** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.
*** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
**** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.®®
USB
Rear USB (Total 12 ports)
2 x Thunderbolt™ 4 ports (2 x USB Type-C)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports®®®
2 x Thunderbolt™ 4 ports (2 x USB Type-C)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports®®®
sound effect
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- ESS ES9218 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
*The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.®
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- ESS ES9218 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
*The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.®

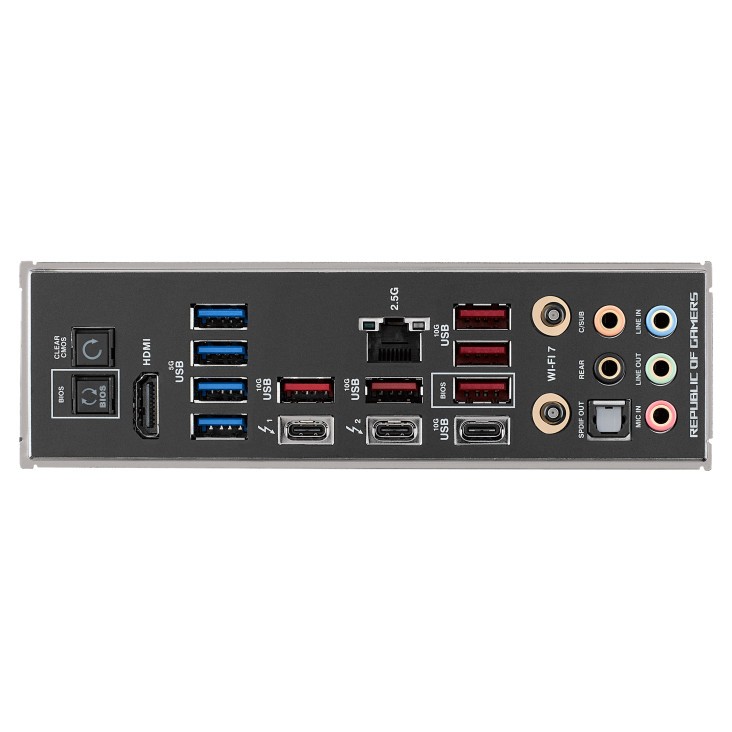

Rear panel device interface
2 x Thunderbolt™ 4 USB Type-C ports
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C)
4 x USB 5Gbps ports (4 x Type-A)
1 x HDMI®®TM port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button®
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C)
4 x USB 5Gbps ports (4 x Type-A)
1 x HDMI®®TM port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button®
Built-in I/O device interface
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin main power connector
2 x 8-pin +12V power connector
1 x 8-pin PCIe power connector
Storage related
5 x M.2 slots ( Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x ReTry button
1 x 10-1 pin system panel header
1 x Thermal sensor header
1 x CPU over voltage jumper
1 x Alternative PCIe mode switch®
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin main power connector
2 x 8-pin +12V power connector
1 x 8-pin PCIe power connector
Storage related
5 x M.2 slots ( Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x ReTry button
1 x 10-1 pin system panel header
1 x Thermal sensor header
1 x CPU over voltage jumper
1 x Alternative PCIe mode switch®
ASUS-specific features
Extreme OC Kit
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
Front Panel USB 20G with Quick Charge 4+ Support
- Support: up to 60W fast charging and USB Wattage Watcher*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to 8-pin PCIe power connector or else only 27W will be supported.
- FlexKey button
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
Front Panel USB 20G with Quick Charge 4+ Support
- Support: up to 60W fast charging and USB Wattage Watcher*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to 8-pin PCIe power connector or else only 27W will be supported.
Software Features
ROG Exclusive Software
- ROG CPU-Z
- DTS Sound Unbound
- Internet Security (1 year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- Two-Way AI Noise Cancelation
- Power Saving
- Sonic Studio
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ Power Control
- Turbo app
- PC Cleaner
MyAsus
USB Wattage Watcher
Intel Unison™
Adobe Creative Cloud (Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
MemTest86®®
- ROG CPU-Z
- DTS Sound Unbound
- Internet Security (1 year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- Two-Way AI Noise Cancelation
- Power Saving
- Sonic Studio
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ Power Control
- Turbo app
- PC Cleaner
MyAsus
USB Wattage Watcher
Intel Unison™
Adobe Creative Cloud (Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
MemTest86®®
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Management features
WOL by PME, PXE
annex
Cables
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
1 x DDR5 fan holder
Miscellaneous
1 x ASUS WiFi Q-Antenna
3 x M.2 backplate Q-Latch packages
3 x M.2 backplate Rubber Packages
1 x Q-connector
1 x ROG stickers
1 x ROG key chain
1 x M.2 rubber package
1 x ROG VIP card
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
1 x DDR5 fan holder
Miscellaneous
1 x ASUS WiFi Q-Antenna
3 x M.2 backplate Q-Latch packages
3 x M.2 backplate Rubber Packages
1 x Q-connector
1 x ROG stickers
1 x ROG key chain
1 x M.2 rubber package
1 x ROG VIP card
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide
operating system
Windows 11, Windows 10 64-bit®®
Motherboard size
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
We appreciate positive feedback . we always try our best to service our customers .
so if you have ant question ,PLEASE DON’T HESITATE TO TELL US,
we are always here to offer help .
We prefer PayPal .For purchasing multiple items , please contact us for a combined invoice .
generally we would like to receive payment thin 48 hours if .
We provide airmail service with good package . The items will be shipped within the nest
2 business days after we received the payment . when you buy multiple items ,your shipping
cost will be combined with discount .
|
SHIPPING TIME (weekends/holidays excluded) |
|||||
|
Country Name |
Shipping Time |
Country Name |
Shipping Time |
||
|
USA/Canada |
10 -15d |
Spanish/Portugue |
10-25d |
||
|
East/South Asia |
10 -15d |
France/West Asia |
10-25d |
||
|
United Kingdom |
10 -20d |
Italy |
10-30d |
||
|
Australia/New Zealand |
10 -15d |
West Asia/Middle East |
15-25d |
||
|
Most Country of West/North Europe |
10-20d |
South America and Africa |
15-30d |
||
|
East /Middle Europe/Russia |
10-25d |
||||
-
NEW, GOOD QUALITY, ORIGINAL PACKAGE
-
LARGE STORE AND THE LOWEST PRICE
-
NO-QUESTION-REFUND,
-
FOR LARGE QUANTITY ,OFFER BETTER PRICE,ORIGINALPACKING(TAPE REEL/TUBE/TRAY）
We specialize in electronic components . ICs, Capacitors, Diodes, Resistors, LEDs,
Transistors, and so on. Especially in Hard To Find Parts . we only sell
NEW , ORIGINAL parts . please buy with confidence .We offer NO-QUESTION-REFUND
On Feb 11, 2026 at 23:47:09 PST, seller added the following information:
