Michigan based company with a global presence. We ship worldwide to thousands of satisfied customers. Offering Same-Day Shipping & pickup for metro Detroit area land surveyors, civil engineers, architects, excavating & construction companies at our local store in Allen Park, MI. Our equipment is backed by exceptional customer service and support, along with a full warranty.

Offering New & Refurbished Total Stations, GPS / GNSS Base & Rovers, Radios, Antennas, Data Collectors, Grade & Pipe Lasers, Digital Levels, Magnetic Locators, Grade Control Systems, AgGPS Systems, Field Supplies, Accessories, Hand Tools & Safety Equipment!

Included Items Item Description Shipping Info Payment Info

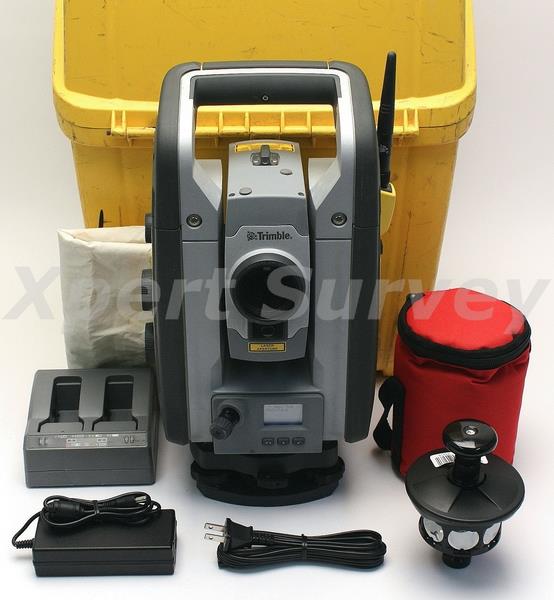

* Trimble RTS555 5" DR Robotic Total Station [ID- X3268-L/T*]
         - Robotic
         - 2.4 GHz WLAN
         - Factory Calibrated

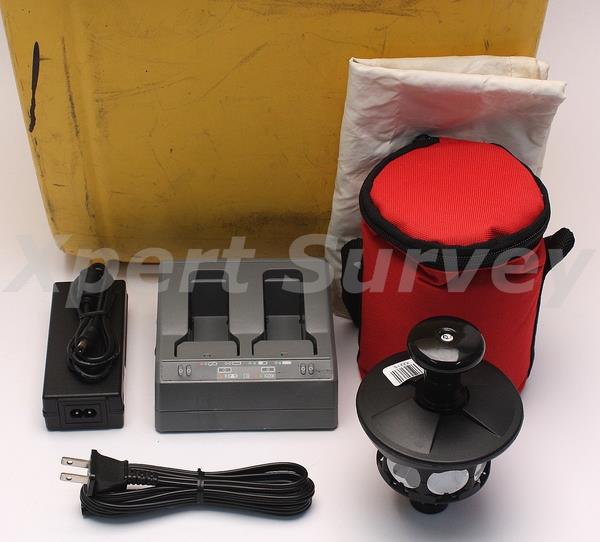

* Trimble Prism w/ Case
* Trimble Battery Charger 53018010
* Rain Cover For Unit
* Antenna
* Battery Pack
* AC adapter/Charger
*Power Cord
* User Manual On CD-ROM
* Hard Carrying Case


Condition: Refurbished


Warranty: 90 Day Exchange

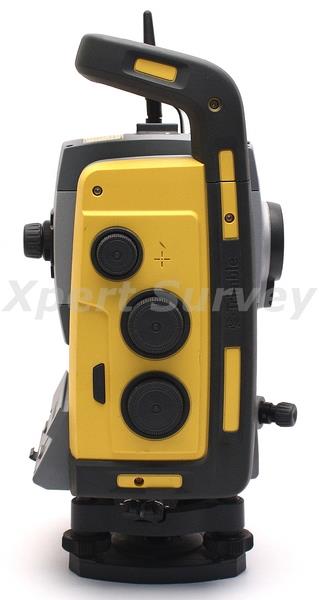

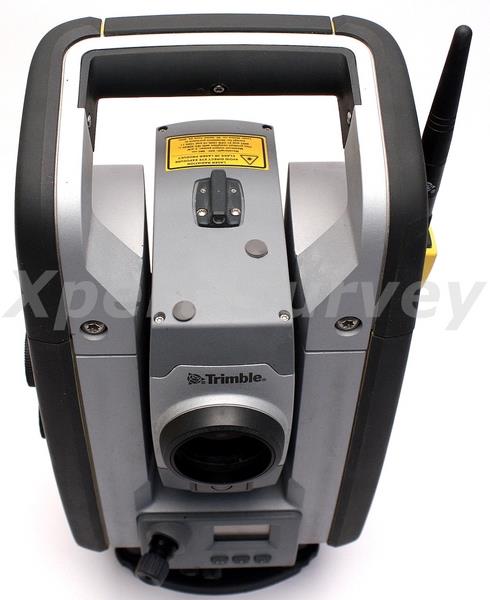

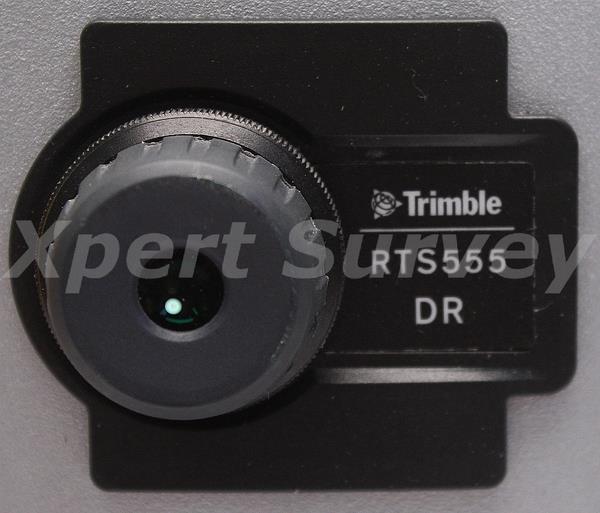

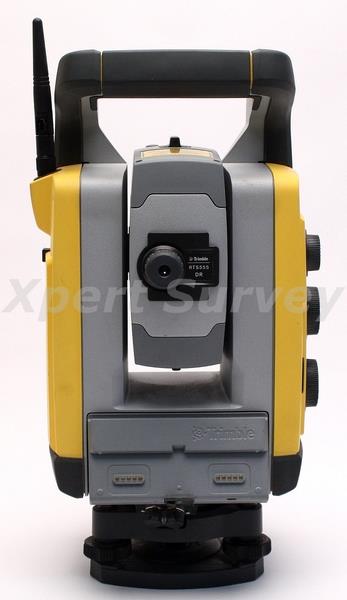

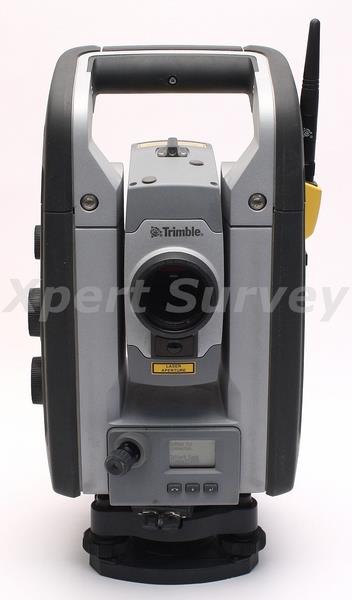

Trimble RTS555 5" DR Robotic Total Station
- Robotic
- 2.4 GHz WLAN
- Factory Calibrated





Trimble RTS555 Total Station
The Trimble® RTS Series Robotic Total Stations help contractors perform layout tasks significantly more efficiently than with conventional mechanical systems for residential and building construction. Designed specifically for concrete, MEP, and general construction contractors, the Trimble RTS Series Robotic Total Stations offer construction-specific functionality and one-person operation so you can perform all jobsite layout and measurement tasks for maximum flexibility and cost savings.

Applications:

  • Layout of control
  • Checking or typing into property boundaries
  • Layout of excavation lines
  • Layout of concrete forms and anchor
  • Layout of hangers, sleeves and underground pipe
  • Light topographical measurements

Features and benefits:

  • Set up anywhere faster and perform all jobsite layout and measurement tasks yourself
  • One-person operation
  • Easy-to-follow user interface
  • Data storage and built-in checks for all layout functions
  • Rugged design
  • Maximum flexibility and cost
  • Reduced labor costs
  • Shortens learning curve and faster operation
  • Display clearly and eliminate errors
  • Withstands tough jobsite conditions and minimizes downtime due to repair



Specifications:

Robotic Communication Type Internal 2.4 GHz WLAN Eliminates need for external radio
Robotic Communication Type < 200 m (656 ft.)
Angle Accuracy - DIN18723 Horizontal: 5" (1.5 mgon) Vertical: 5" (1.5 mgon)
Standard Measurement ± 2 mm = 2 ppm
Measurement Distance - 1 Prism < 3,000 m (9,800 ft.)
DR Range - Kodak (90% reflective) Up to 150 m (492 ft.)
Operating Temperature -20 ºC to 50 ºC (-22 ºF to 140 ºF)
Dust and Water Proofing IP55
Operating Time Approx. 6 hours on single battery





We will attempt to ship your item(s) within 24 hours after payment has been received.

Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information.

We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed.

  • Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale.

  • Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections)

  • A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment.
