TF-M10 Portable LED Universal Test Box Intelligent Automatic Scanning for 24PIN LED Modules and Digital Tubes
Description:
- The portable universal testing box adopts advanced fuzzy recognition technology, combined with high-precision AD conversion circuit, which can automatically and quickly detect the circuits of various LED modules, and scan and drive the LED modules in a constant current manner.
- This test box can replace more than 98% of specialized fixtures and even replace professional testers in many situations (such as film sticking, checking light leakage, checking brightness and chromaticity uniformity, etc.).
- Widely used for wire bonding testing, film application, light leakage inspection, brightness and color uniformity inspection, etc. It can also be used to showcase to customers, which is economical and practical.
Features:
- Intelligent automatic scanning, suitable for any circuit LED module and digital tube (VF<3.6V) within 24PIN.
- Automatic identification of lines and pins, no need for any settings, one click to fully light up.
- Group scanning lights up, supports three scanning methods (co negative, co positive, single point), used for light leak and short circuit inspection.
- Constant current drive, uniform brightness.
- The built-in lithium battery can work continuously for 6-8 hours or more.
- Lightweight in appearance and easy to carry.
Application:
- LED chips brightness and color comparison
- LED chip aging experiment
- LED module film
- LED wire bonding test
- LED product display
- LED module light leakage inspection, brightness and chromaticity uniformity inspection
- QC incoming material sampling inspection
- LED color screen repair
Specification:
- Model: TF-M10
- Product size: 120 x 76 x 23mm
- Net weight: 120g (without test socket)
- Input voltage: DC 9 - 15V
- Charging time: about 3 hours
- Power consumption: 2W at no-load; 8W at full-loaded
- Circuit recognition time: < 0.1s
- Vf recognition time: 1.2 - 3.6V
- Constant current driving current: 10mA/20mA/30mA/40mA four level can be set
- Scanning frequency: 100Hz±10%
Package Included:
- 1 x LED Test Box
- 1 x Charger

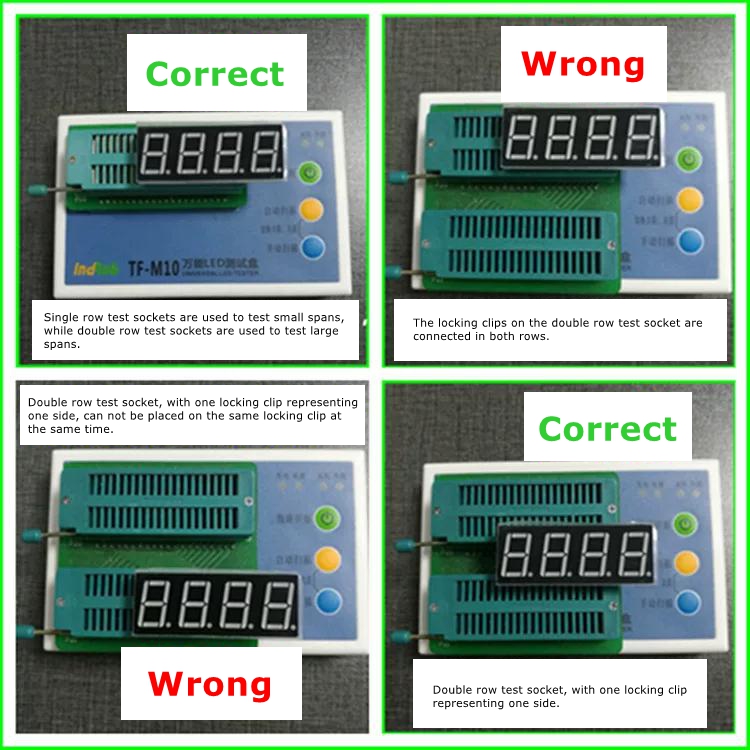

- 1 x Single-row Test Socket
- 1 x Double-row Test Socket
Description:
- The portable universal testing box adopts advanced fuzzy recognition technology, combined with high-precision AD conversion circuit, which can automatically and quickly detect the circuits of various LED modules, and scan and drive the LED modules in a constant current manner.
- This test box can replace more than 98% of specialized fixtures and even replace professional testers in many situations (such as film sticking, checking light leakage, checking brightness and chromaticity uniformity, etc.).
- Widely used for wire bonding testing, film application, light leakage inspection, brightness and color uniformity inspection, etc. It can also be used to showcase to customers, which is economical and practical.
Features:
- Intelligent automatic scanning, suitable for any circuit LED module and digital tube (VF<3.6V) within 24PIN.
- Automatic identification of lines and pins, no need for any settings, one click to fully light up.
- Group scanning lights up, supports three scanning methods (co negative, co positive, single point), used for light leak and short circuit inspection.
- Constant current drive, uniform brightness.
- The built-in lithium battery can work continuously for 6-8 hours or more.
- Lightweight in appearance and easy to carry.
Application:
- LED chips brightness and color comparison
- LED chip aging experiment
- LED module film
- LED wire bonding test
- LED product display
- LED module light leakage inspection, brightness and chromaticity uniformity inspection
- QC incoming material sampling inspection
- LED color screen repair
Specification:
- Model: TF-M10
- Product size: 120 x 76 x 23mm
- Net weight: 120g (without test socket)
- Input voltage: DC 9 - 15V
- Charging time: about 3 hours
- Power consumption: 2W at no-load; 8W at full-loaded
- Circuit recognition time: < 0.1s
- Vf recognition time: 1.2 - 3.6V
- Constant current driving current: 10mA/20mA/30mA/40mA four level can be set
- Scanning frequency: 100Hz±10%
Package Included:
- 1 x LED Test Box
- 1 x Charger
- 1 x Single-row Test Socket
- 1 x Double-row Test Socket
