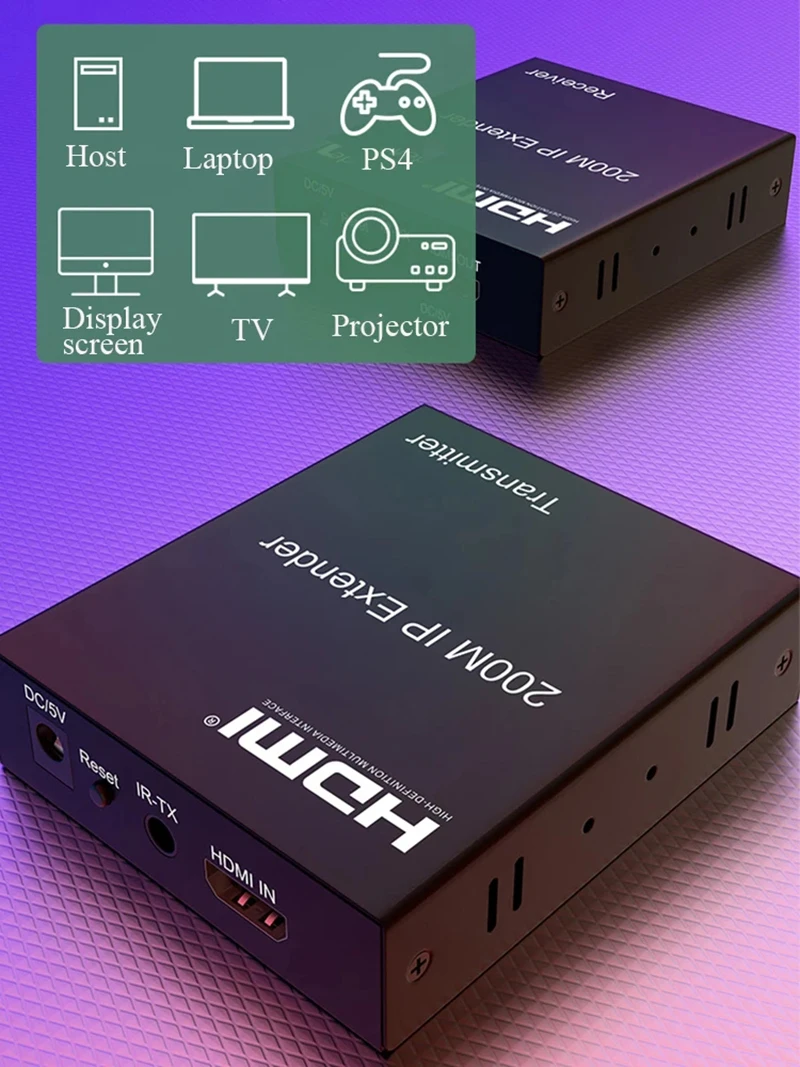

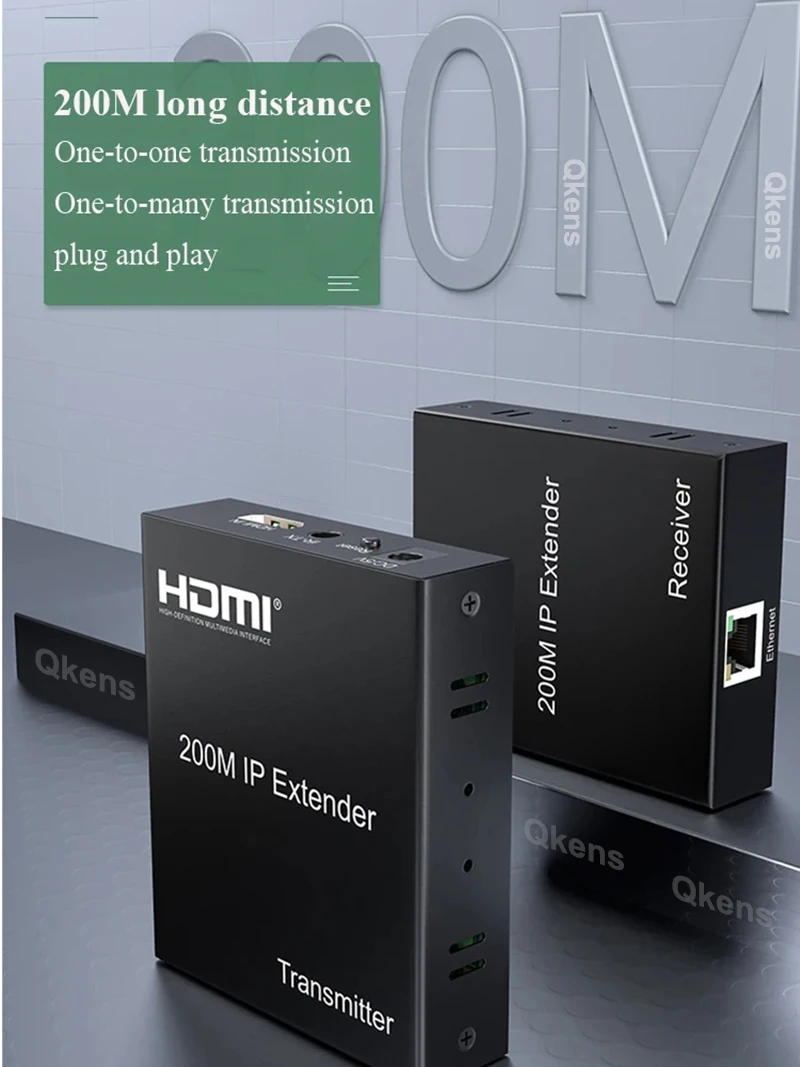

High Quality 200M HDMI IP Extender
Introduction:
Brand new and high quality,buy with confidence!
This Qkens 200M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display with the high
resolution up to 200 meters away from your DVD or computer source by using one CAT5e/6 cable.

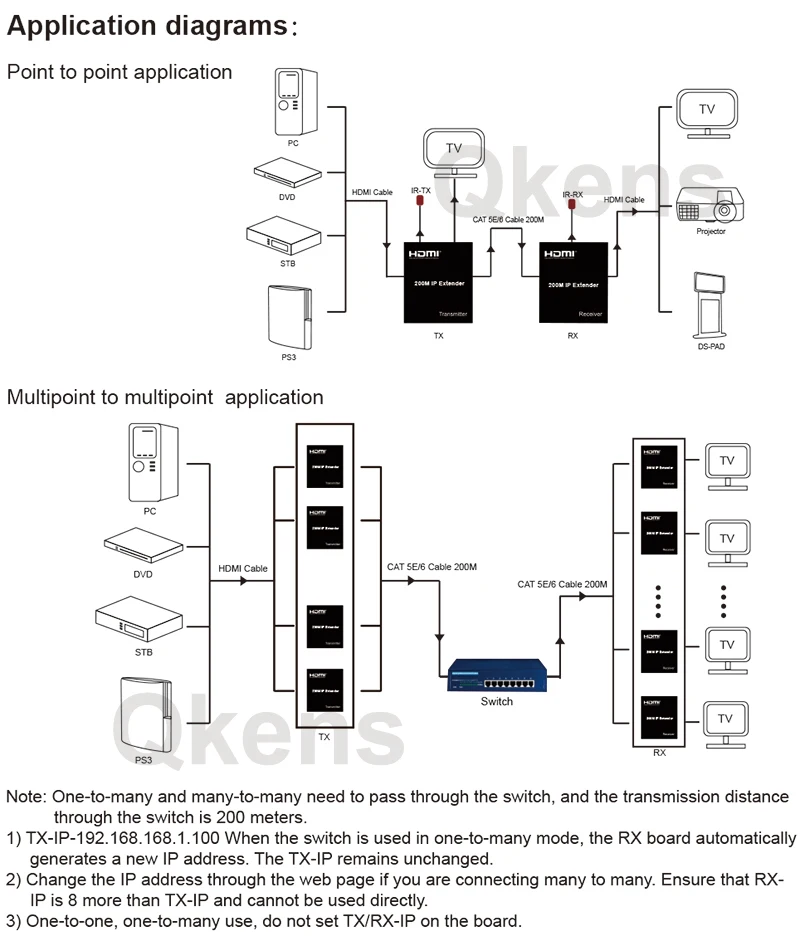

At the same time, it's convenient to transmit HDMI audio and video source by point-to-point mode,
point-to-multipoint, multipoint-to-multipoint mode and cascade connection mode .
Features:
* Support HDCP1.4

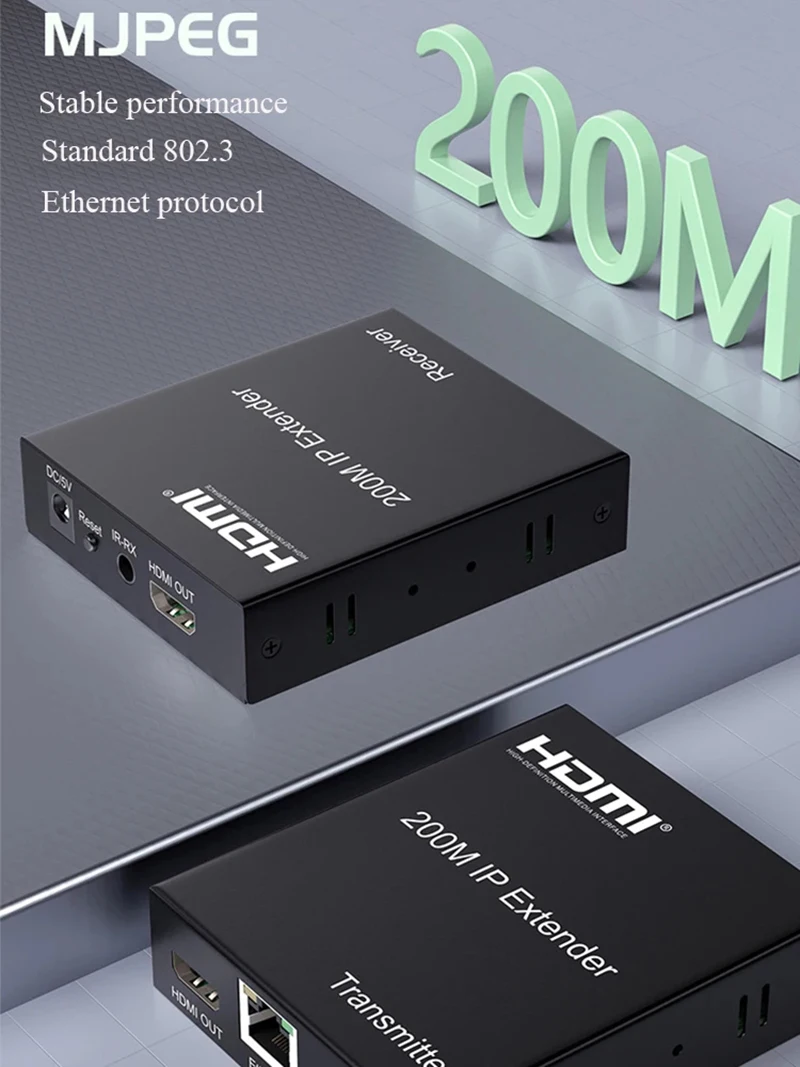

* Decoding Mode MJPEG
* Support point-to-point mode, point-to-multipoint mode, multipoint-to-multipoint mode and
cascade connection mode;
* 802.3 Ethernet standard;
* The design of pure hardware, plug and play, no need for additional software.
Specifications:
Resolutions ...................................................................................... 480P/720P/1080P
Audio .............................................................. Sample rate:32kHz,44.1kHz and 48kHz
Power adapter format .............. Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
The max working current ............................................... TX 500mA,RX 500mA
Size(L-W-H) .....................................................................................approx. 93*79*21mm
Operating Temperature/Humidity ................. 0℃-45℃/10%-80%RH(no condensation)
Storage Temperature/Humidity .................. -10℃-70℃/5%-90%RH(no condensation)

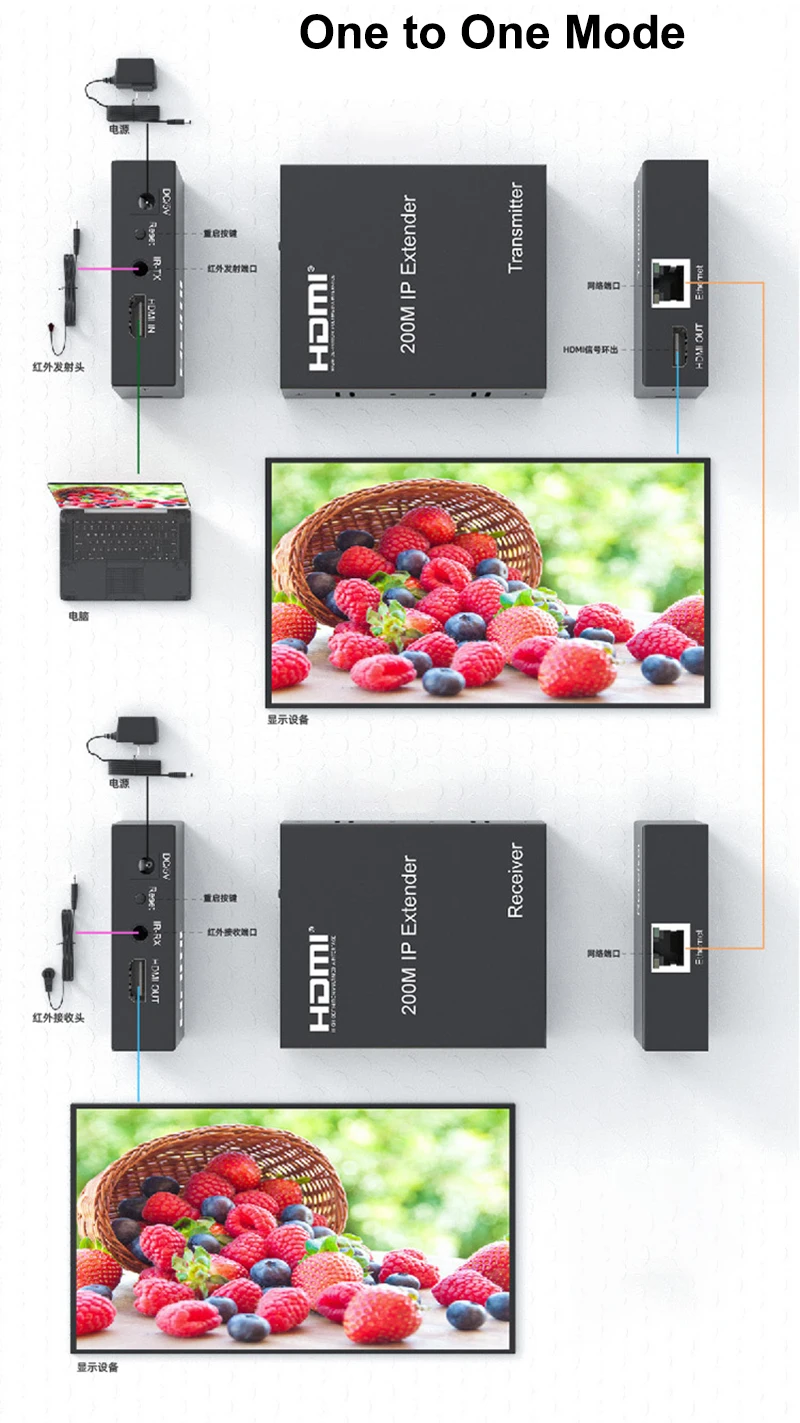

Connection and operation:
1) Connect the HDMI video source (such as DVD, PS3, PC) to the "HDMI IN" of transmitter by HDMI cable.
2) Connect the "HDMI out" of Receiver to HDTV display by HDMI cable.
3) Connect the Transmitter and Receiver with one cat6 cable.the furthest distance is 200M.
4) Connect two pieces of 5V power supply to the transmitter and receiver, and power on
the HDTV display and HDMI source.
Package Content for 1 Transmitter Only :
1. Transmitter 1PCS
2. 5V Power adapter 1PCS
3. IR cable 2PCS
Package Content for 1 Receiver Only:
1. Receiver 1PCS
2. 5V Power adapter 1PCS
3. User's Manual 1PCS
4. IR cable 1PCS

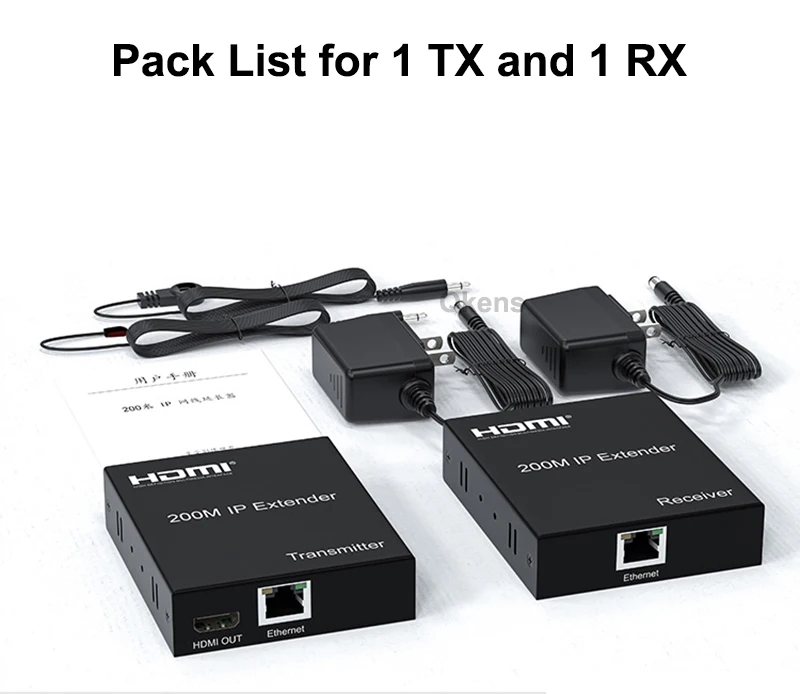

Package Content for 1 Transmitter and 1 Receiver :
1. Transmitter 1PCS
2. Receiver 1PCS
3. 5V Power adapter 2PCS
4. User's Manual 1PCS
5. IR cable 2PCS
Without retail box and other accessories,if any need,pls contact us before purchase.
Note:to different factory batches,sometimes real item may be a little different,but with same function and quality,pls understand,thanks！
