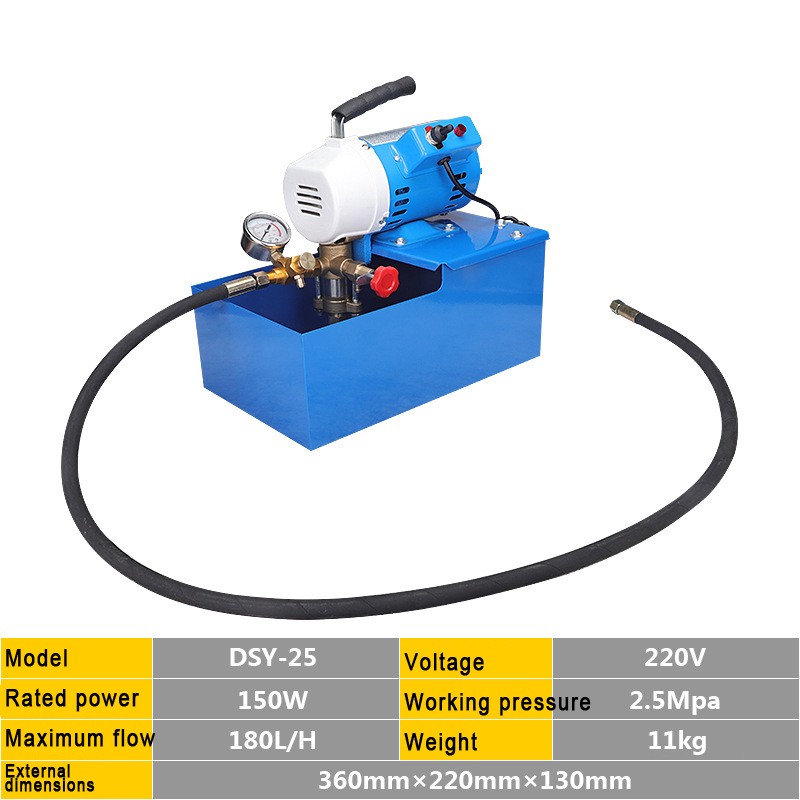

✅ KEY SPECIFICATIONS
Model: DSY-25
Max Test Pressure: 25 kg/cm² / 2.5 MPa (approx. 363 PSI)
Flow Rate: 180 L/H
Outlet Connection: G1/2 Female Thread
Power: 150W
Voltage: AC220V / 50Hz
Dimensions: 360 x 220 x 130 mm
Weight: 11 kg
✅ PRODUCT DESCRIPTION & USE
This is a robust, electric-powered hydraulic pressure test pump. It is designed for pressure testing and leak checking of pipes, valves, vessels, hydraulic systems, and other sealed components in plumbing, heating, refrigeration, and industrial maintenance applications. It provides a precise and efficient way to apply and hold pressure up to 2.5 MPa (25 bar).
✅ KEY FEATURES
HIGH PRESSURE OUTPUT: Capable of generating up to 2.5 MPa (363 PSI) for rigorous testing standards.
ELECTRIC OPERATION: 150W motor provides consistent pressure build-up, easier and faster than manual pumps.
STANDARD FITTING: Equipped with a G1/2" outlet port, compatible with many common test hoses and adapters.
DURABLE CONSTRUCTION: Heavy-duty build with a weight of 11 kg ensures stability and longevity for professional use.
VERSATILE APPLICATION: Suitable for testing water pipes, gas lines (with appropriate fluid), boilers, heat exchangers, and pressure vessels.
⚠️ IMPORTANT NOTES
Power Requirement: Requires a 220V / 50Hz AC power source.
Test Fluid: Typically uses water or oil as the pressure medium. Ensure the correct fluid is used for the system being tested.
Safety: Always follow safe pressure testing procedures. Do not exceed the rated pressure of the system under test.
📦 PACKAGE INCLUDES
1 x DSY-25 Pressure Test Pump (Main Unit)
