Suitability:




Audi models include A4 (B9/B8), A5 (F5), S5, Q3 (8U), and Q5 (8R/8W). VW models consist of Passat B7/B8, Tiguan (5N/AD1), Golf 7/7.5, Touran, Jetta (A6/A7), Sharan, and Touareg.

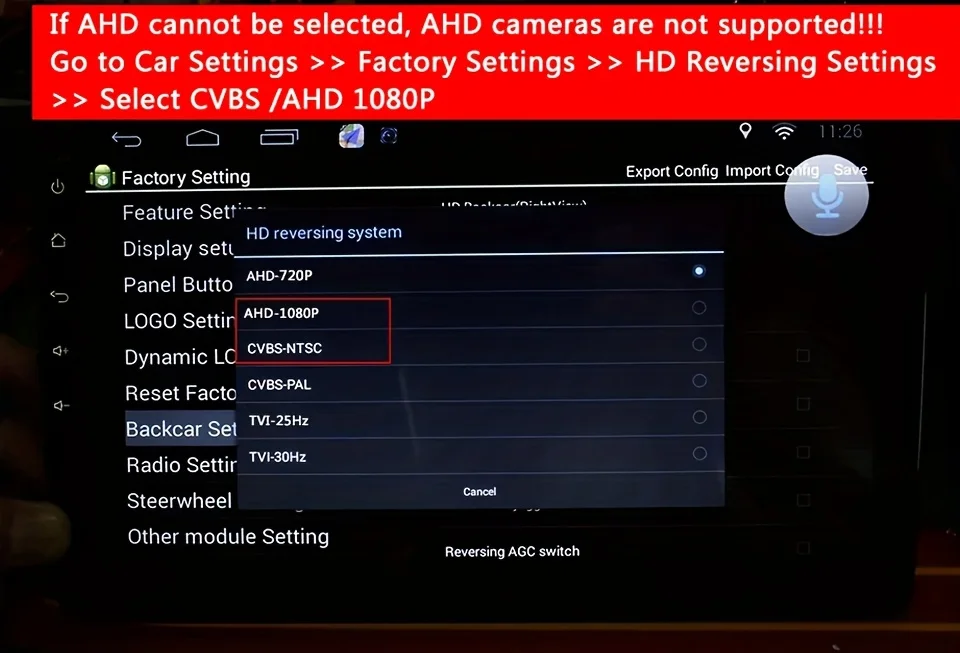

Please be aware that the AHD-1080p signal format is compatible only with AHD-1080p monitors. Ensure that your car monitor can handle the AHD-1080p signal. If it cannot, switch to CVBS and restart the camera's power.




If your vehicle's display is incompatible with the AHD-1080p camera, the AHD-1080p signal will fail to function. Please cut the orange loop to switch to CVBS signal and restart the camera's power.

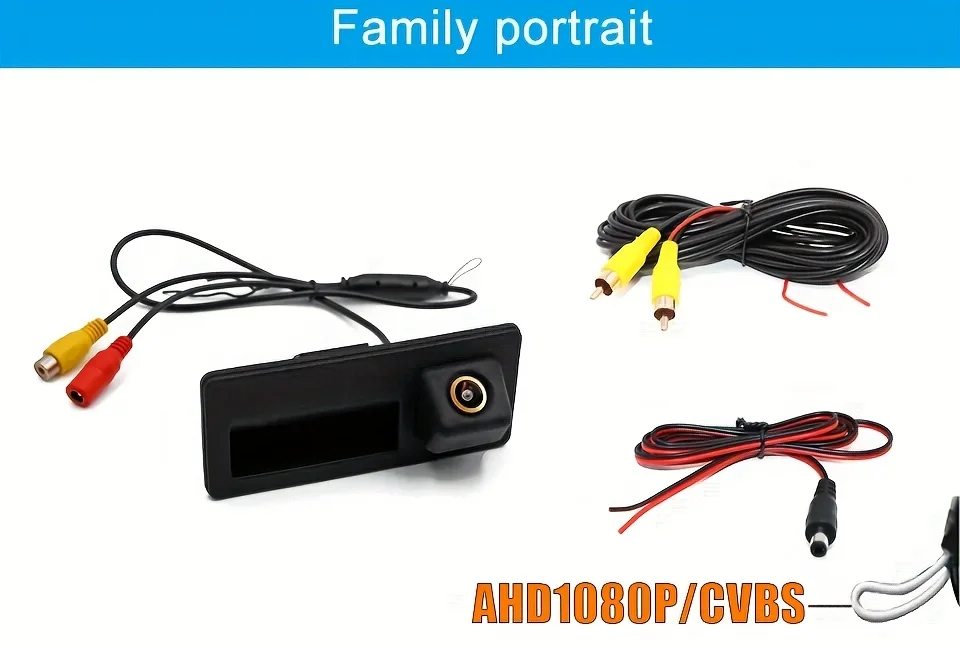

The features managed by the cable




White cable: AHD-1080p signal (default) To switch to CVBS signal (cut)




Key Features:

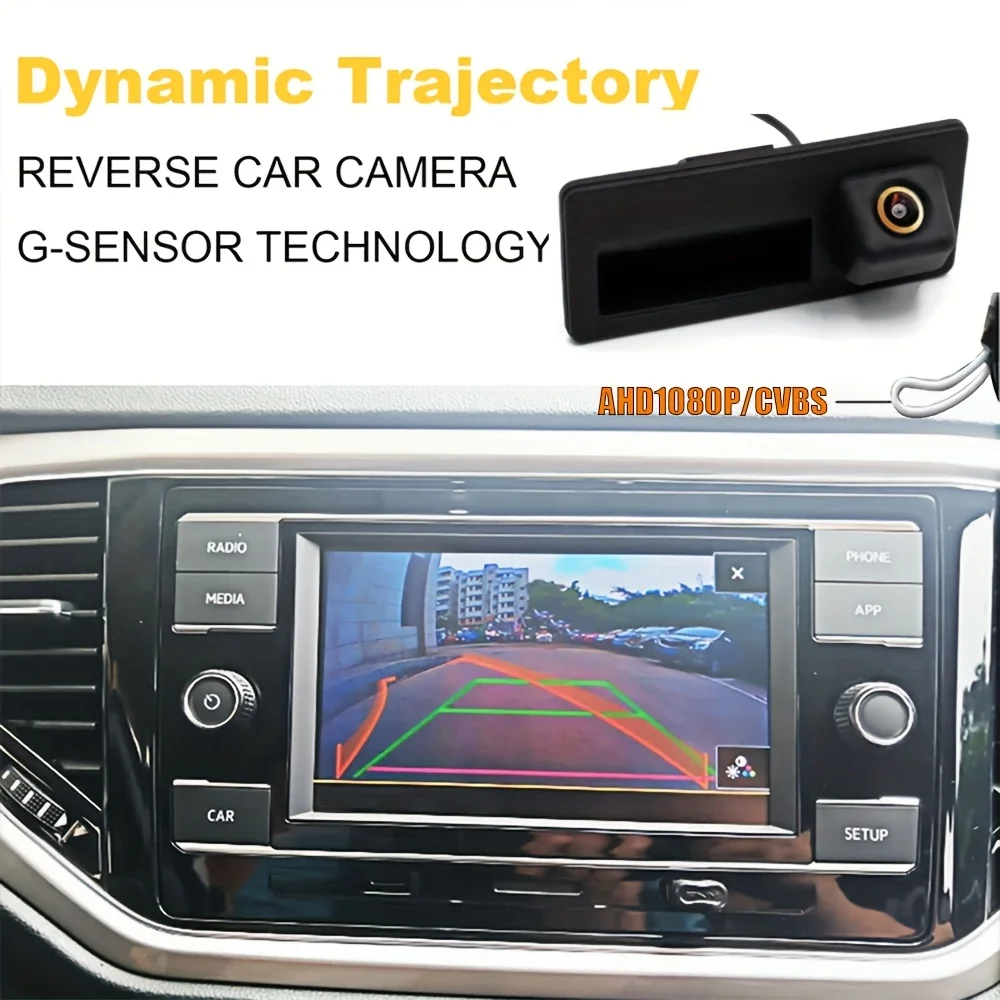

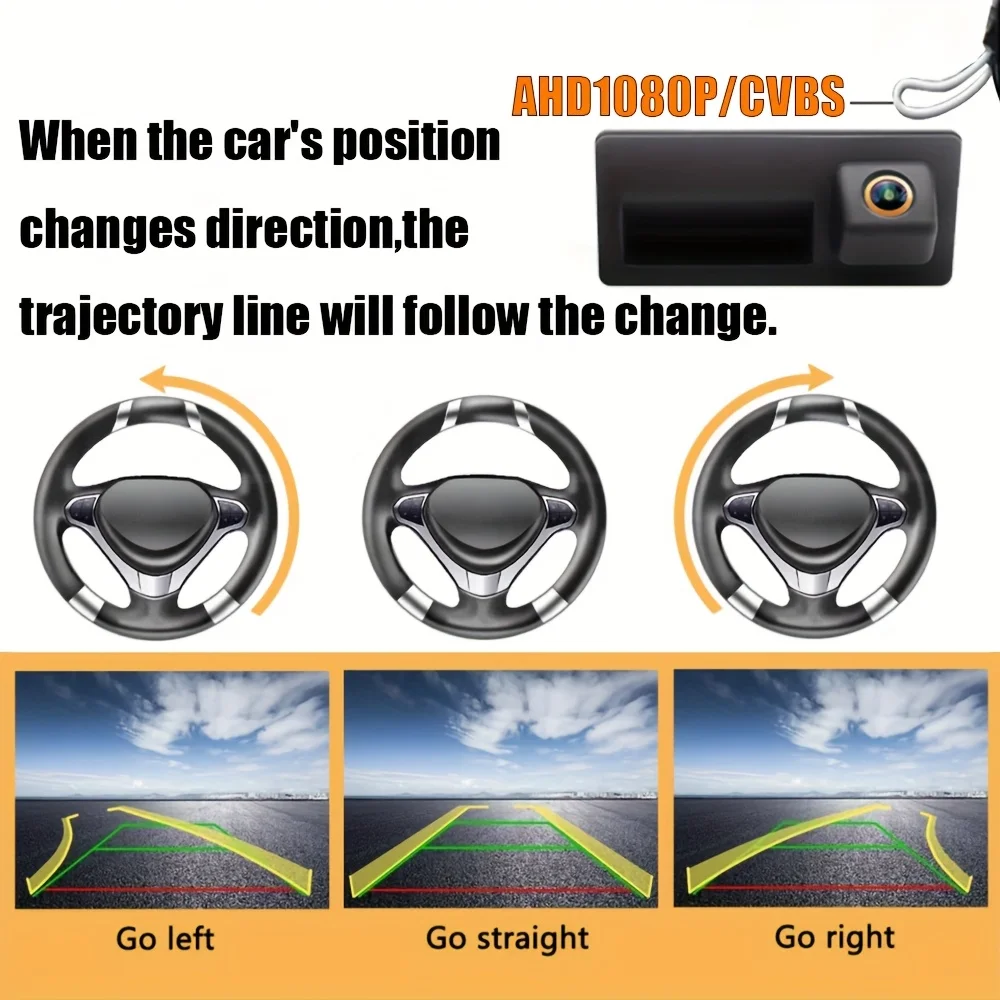

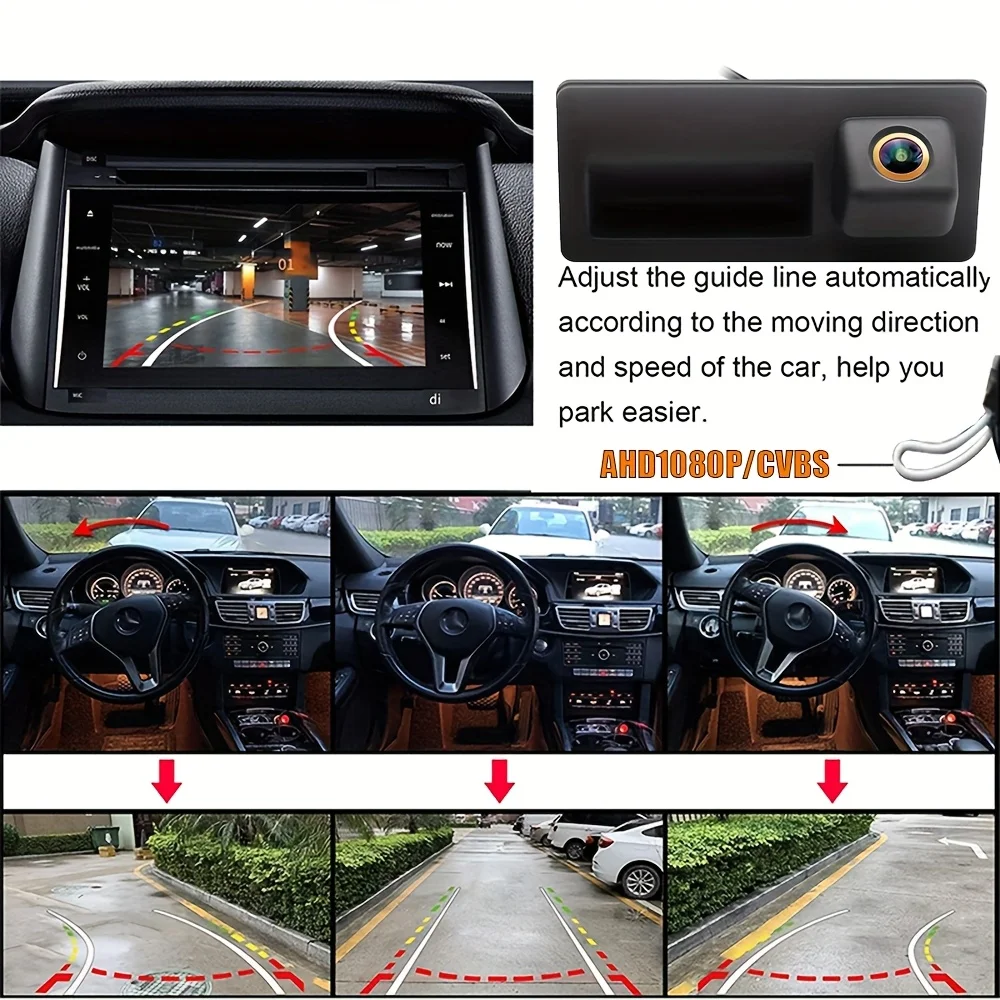

1. Smart Adaptive Route
Real-time trajectory lines modify based on steering actions, providing precise parking support.
2. 170° Extra-Wide Fisheye Lens
Eliminates blind spots with broad coverage, ensuring total rear visibility.
3. Full-Color Night Vision
A high-sensitivity CCD sensor paired with 6 infrared LEDs delivers clear visuals in extremely low light settings.

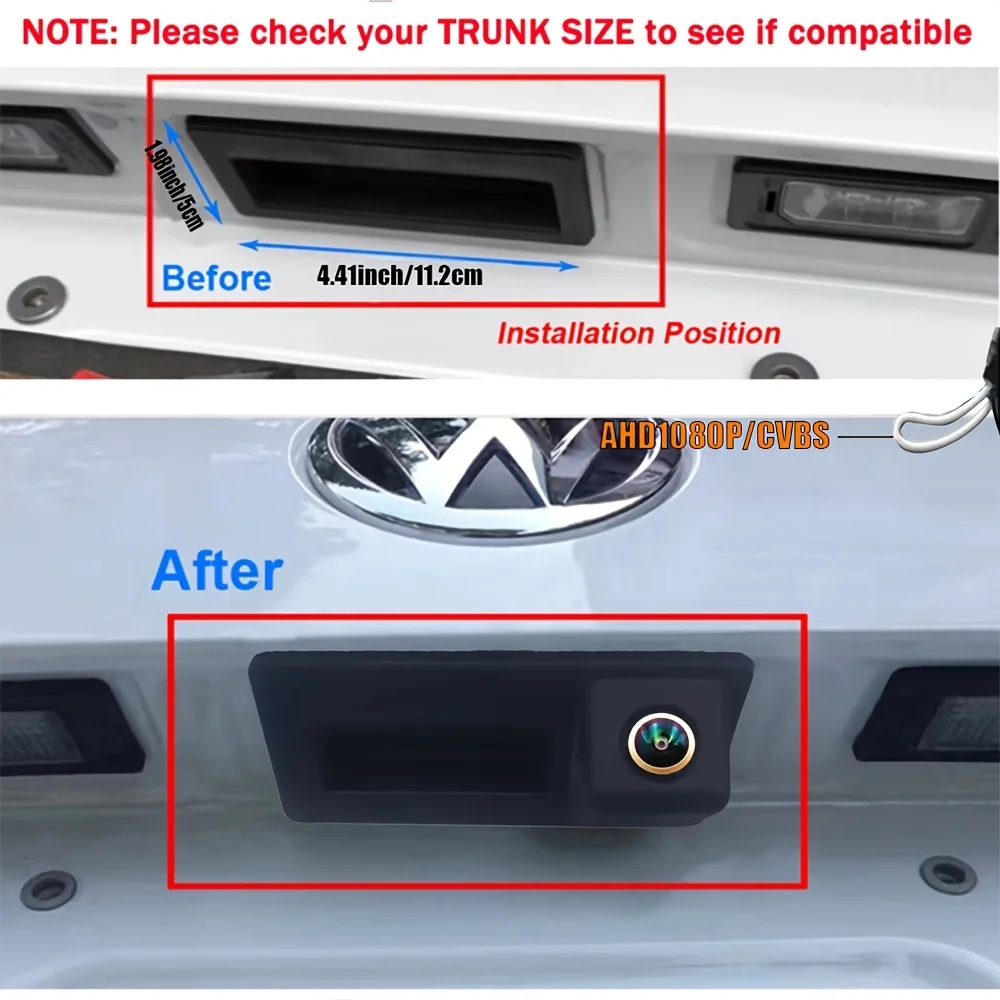

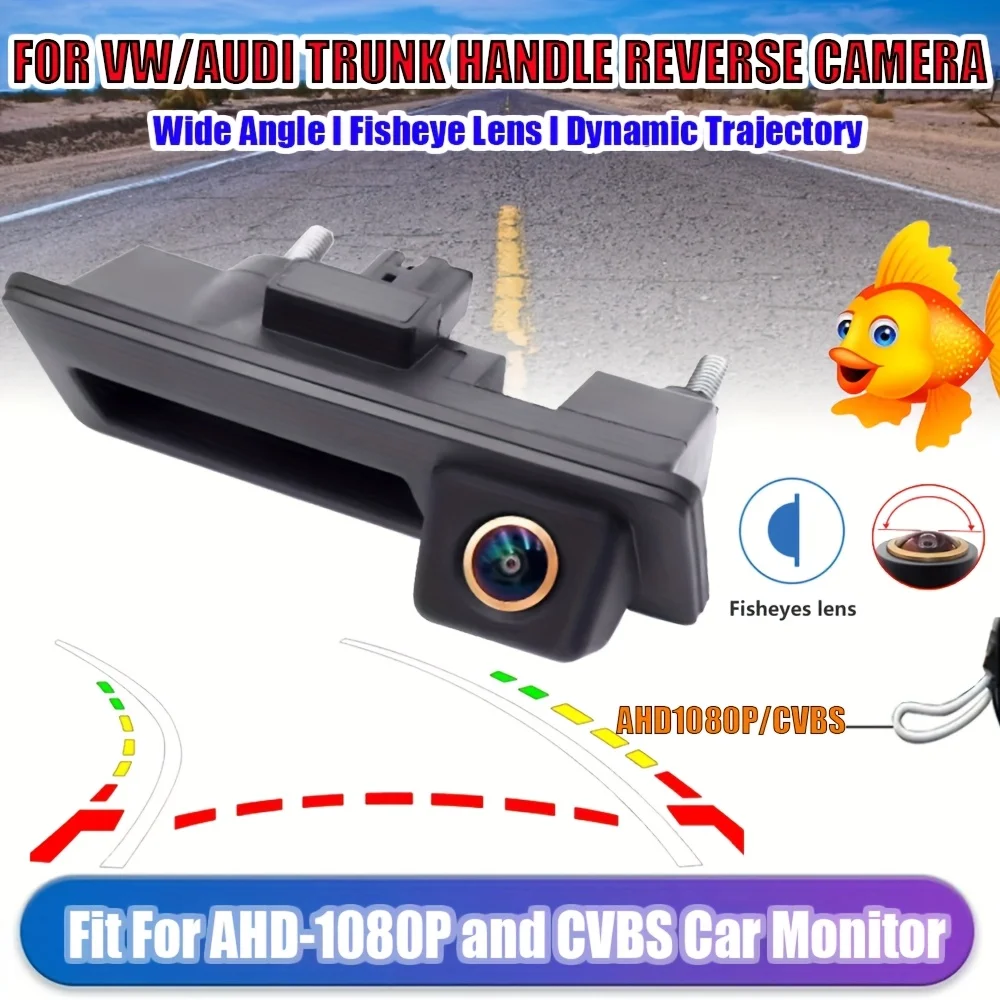

4. OEM-Style Fit
Direct replacement trunk handle design maintains the original factory appearance.




What steps should I take if the rear view camera is connected but the display shows no signal, a black screen, and no image?

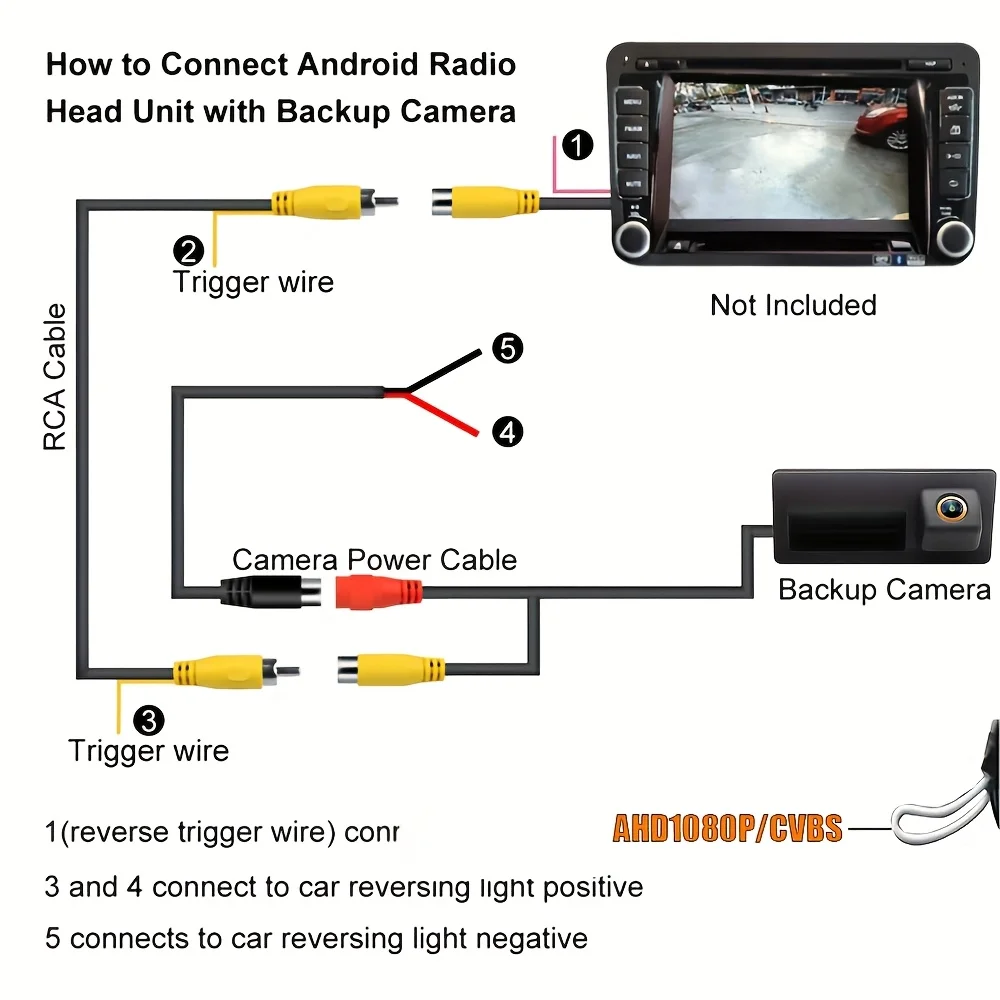

A) Verify the format of your signal (AHD-1080p/CVBS) and select the appropriate signal to operate the camera. B) Ensure your connections are correct; the red trigger wire must be linked to your reverse light and the monitor's reverse-in cable. C) If your monitor supports AUX-IN, you can connect it to the AUX-IN port.




Selecting an incorrect signal standard (like PAL or NTSC) will result in a gray and white screen. Please choose the correct signal standard to operate the camera and restart its power. The CVBS camera uses the NTSC standard, while the AHD-1080P camera follows the PAL standard.
