Description:
100% New and High Quality
Direct Replacement
1 Year Warranty

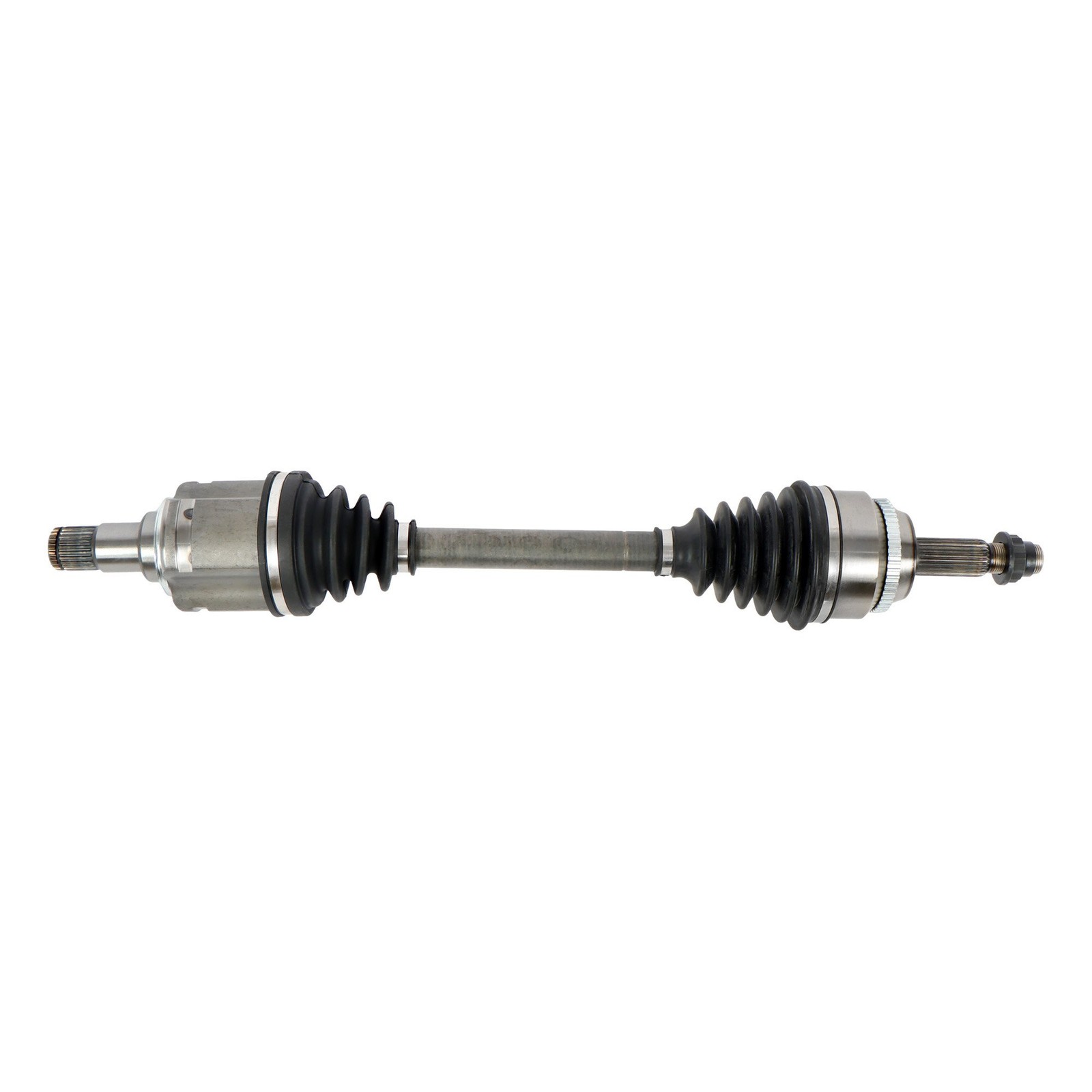

Type: CV Axle Assembly
Location: Front Driver Side
CV Axle Shaft Assembly Working Principle: Connect the wheel axle to the gearbox cv joints torque at a controlled speed to the wheels the up and down motions of the suspension system
If you suspect issues with your CV axles or have noticed symptoms like clicking noises or vibrations, don't hesitate to seek professional diagnosis and repair.Taking proactive steps to address CV axle issues can prevent more significant problems and ensure your vehicle remains reliable on the road.
Product Specifications:
ABS Ring Included: Yes
ABS Ring Tooth Count: 48T
Spindle Nut Thread Size: M22*1.5
Input Shaft Connection Style: Splined
Output Shaft Connection Style: Splined
Input Shaft Spline Count: 24
Output Shaft Spline Count: 26
Compressed Length (IN): 26.31 in
Note: The measured length is the compressed length, and the axis is extendable. When you receive it, the shaft may not fully extend, which will not affect normal installation and use. Please check the length before purchasing
OE Number:
66-5245, 665245, 4342006221, 4342006231, 4342006460, 4342006490, 4342006500
4342006600, 4342006610, 4342033250, 4342033280, 4342048090, 4342048091
434200W061, 434200W071, 434200W080, 434200W090, 434200W110, 434200W160
Fitment:
For Toyota For Camry 2002-2009 L4 2.4L Front Left GAS
For Toyota For Highlander 2001-2007 L4 2.4L Front Left FWD
For Toyota For Solara 2004-2006 L4 2.4L Front Left
For Toyota For Solara 2007-2008 L4 2.4L Front Left Manual Trans
Note-1: For Toyota Camry fits for GAS only, NOT electric models
Note-2: For Toyota Highlander fits for FWD(Front-Wheel Drive), NOT AWD(All-Wheel Drive)
Note-3: For Toyota Solara 2007-2008 fits for Manual Transmission, NOT Automatic Transmission.
Package Include:
1 × Front Left CV Axle Shaft
W/O Product Instruction
How mechanics replace CV axles:
Verify the axle shaft needs to be replaced.
Remove wheel and replace the faulty axle.
Torque all fasteners and wheels to factory specifications.
Top off any lost transmission fluid
Check tire pressure.
Perform a road test
