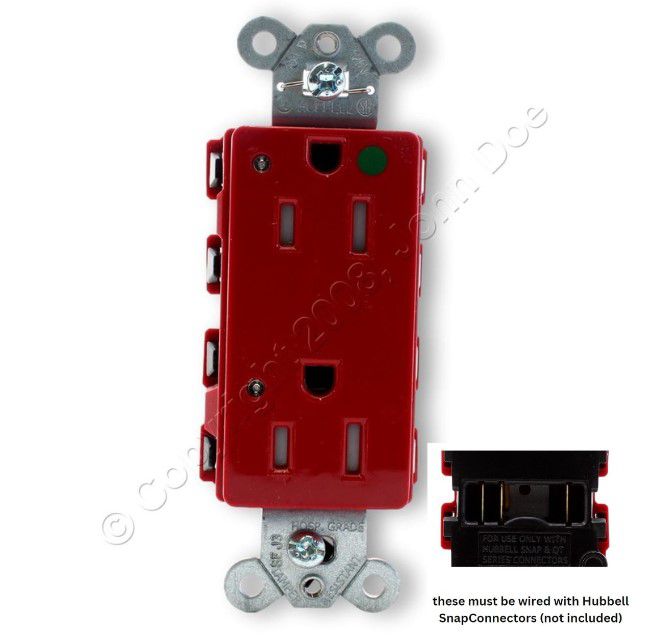

Hubbell SNAP2172RLTRA Red 15A SnapConnect Hospital TR Outlet Receptacle w/LED

Hubbell SNAP2172RLTRA red duplex SnapConnect hospital grade decorator tamper resistant receptacle with power indicating LED's on the face. The bright red color is great for locations where you want to call attention to this special outlet: workshops, garages, computer rooms, etc. Please note that these do not have screw terminals; they must be wired with Hubbell SnapConnectors (purchased separately - part numbers listed below). SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. Hospital grade, SnapConnect wired, NEMA 5-15R, 2-pole, 3-wire, grounding, rated 15A 125V. Hospital Grade devices are top of the line in their category, designed for the high-abuse environments typically found in health care facilities. Each is individually packaged; packaging may differ from photo. Features include:

• Twin LED indicators on the face to provide positive indication of power state
• Patented tamper resistant design eliminates plug-in difficulty. Provides protection that feels like it is not even there: tamper resistant...NOT plug resistant
• Abuse resistant nylon for extra heavy use applications
• SNAPConnect eliminates exposed live parts
• Stainless steel autoground clip
• 2-pole, 3-wire, rated at 15A 125V

As was mentioned, these receptacles require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:

• SNAP1RA: solid wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
• SNAP2RA: stranded wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material
• SNAP1RNA (assembled in USA): solid wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material
• SNAP2RNA (assembled in USA): stranded wire; clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, polycarbonate housing material

This is New Old Stock and is returnable for any reason. (SKU # HUBSNAP2172RLTRA-EA; Weight: 0.1500 lbs.)
