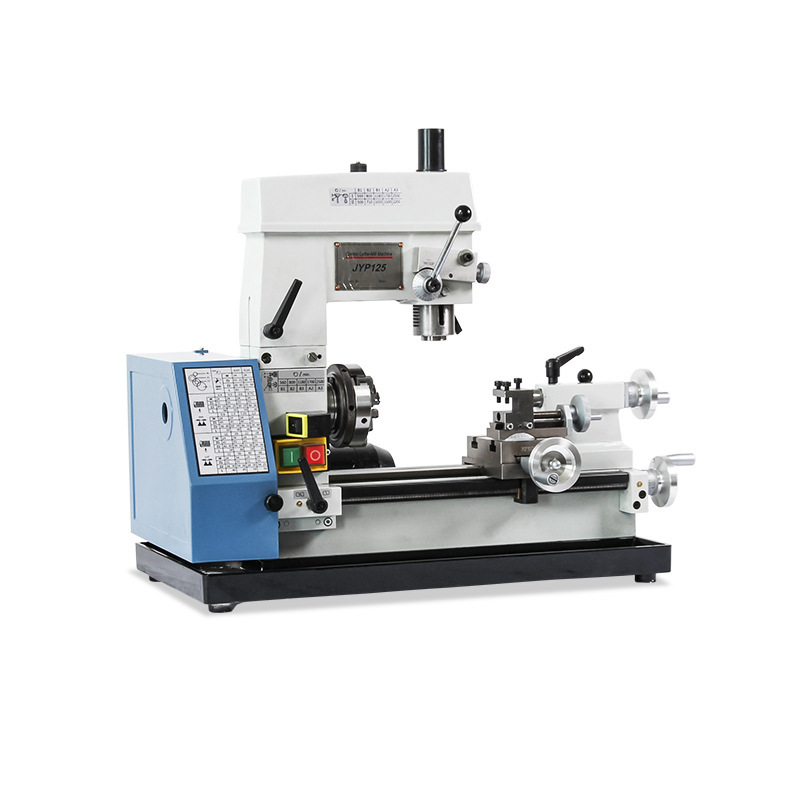

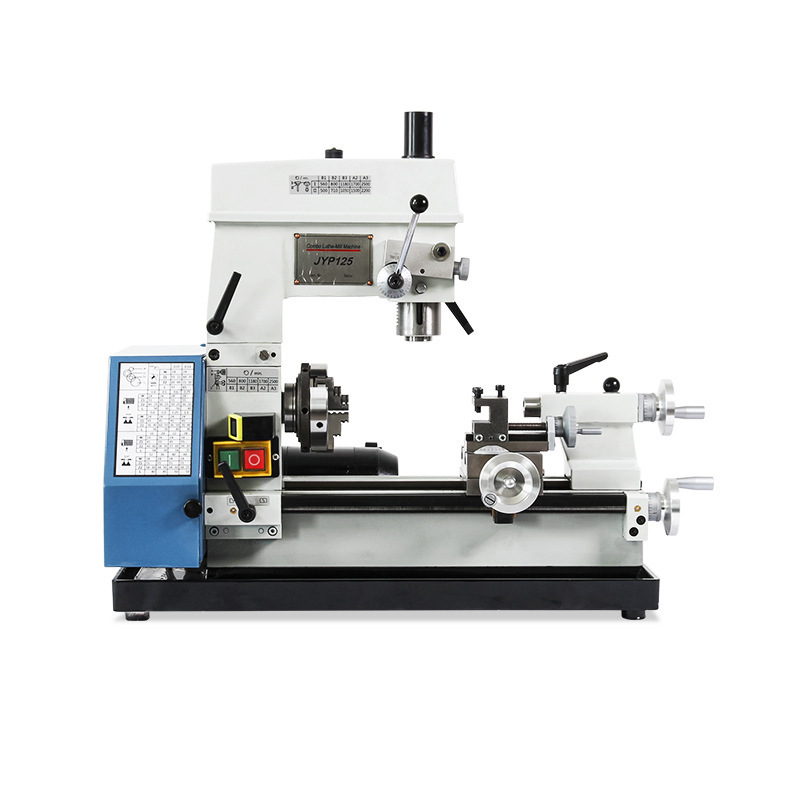

PRODUCT OVERVIEW
A compact, multi-functional mini lathe and drilling/milling machine.
Designed for precise small-scale machining, turning, drilling, and threading work.
Features a 5-speed spindle for turning and a 10-speed spindle for drilling/milling.
MACHINE DIMENSIONS & WEIGHT
Machine Size: 520 x 300 x 410 MM
Packing Size: 570 x 350 x 480 MM
Net/Gross Weight: 22 KG / 25 KG
TURNING PARAMETERS
Maximum Workpiece Rotation Diameter: 125 MM
Maximum Workpiece Length: 180 MM
Max Diameter on Tool Holder: 60 MM
Spindle Through Hole: 9 MM
Spindle Taper: MT1

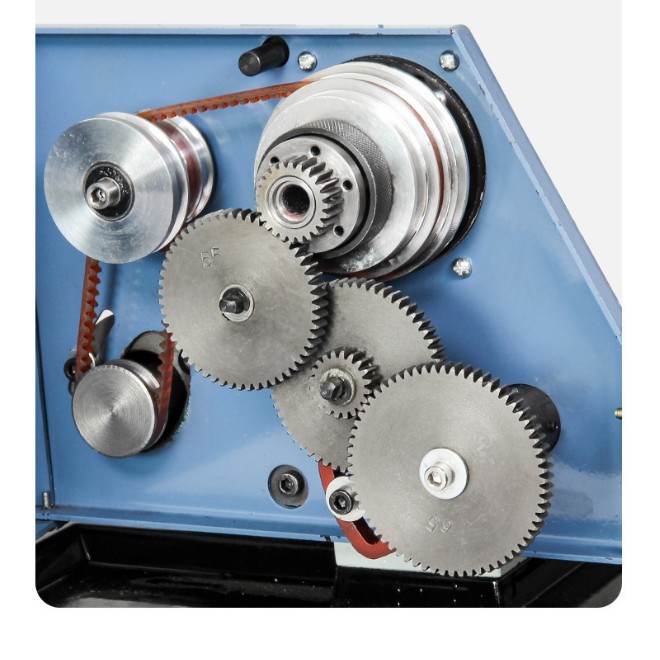

Metric Thread Types: 8
Metric Thread Pitch Range: 0.4 - 1.5 MM
Imperial Thread Types: 8
Imperial Thread Pitch Range: 0.0028 - 0.0055 1/n"
Longitudinal Feeds: 2
Feed per Spindle Revolution: 0.07 - 0.14 MM
Tailstock Sleeve Stroke: 18 MM
Tailstock Taper: MT1
Spindle Speed Range (Turning): 560 - 2500 RPM (5 Levels)
Motor Power: 120W
DRILLING & MILLING PARAMETERS
Maximum Drilling Diameter: 6 MM
Spindle End to Table Distance: 180 MM
Spindle Center to Column: 125 MM
Head Rotation: 360° around column
Spindle Speed Range (Drilling/Milling): 500 - 2500 RPM (10 Levels)
Vertical Head Lift: 60 MM
Worktable Surface: 85 x 60 MM
T-Slot Width: 8 MM
Spindle Sleeve Movement: 40 MM
CHUCK SPECIFICATIONS
Model: 80 Chuck
Diameter: 77 MM
Clamping Range:
Positive Jaw: 2 - 35 MM
Reverse Jaw: 35 - 70 MM
PACKAGE INCLUDES
1 x JYP125 Mini Lathe & Drilling/Milling Machine

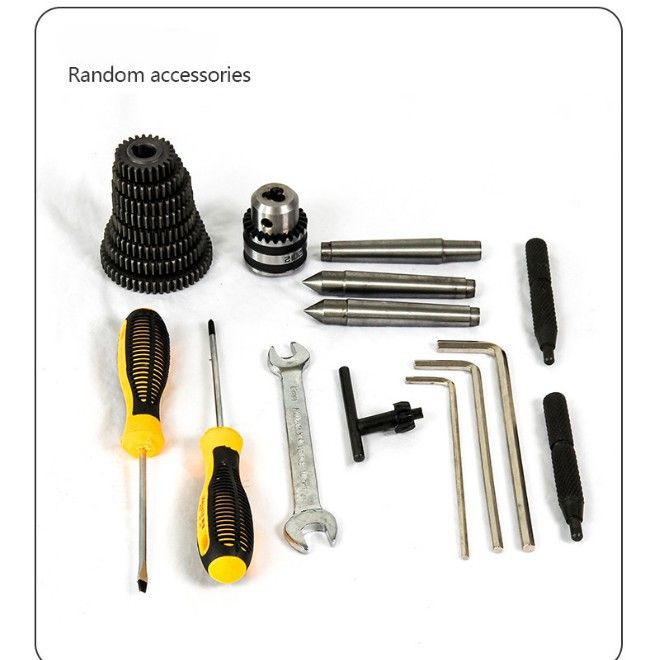

(Please confirm accessory list with seller. Standard equipment typically includes chuck, wrenches, and basic tooling.)
