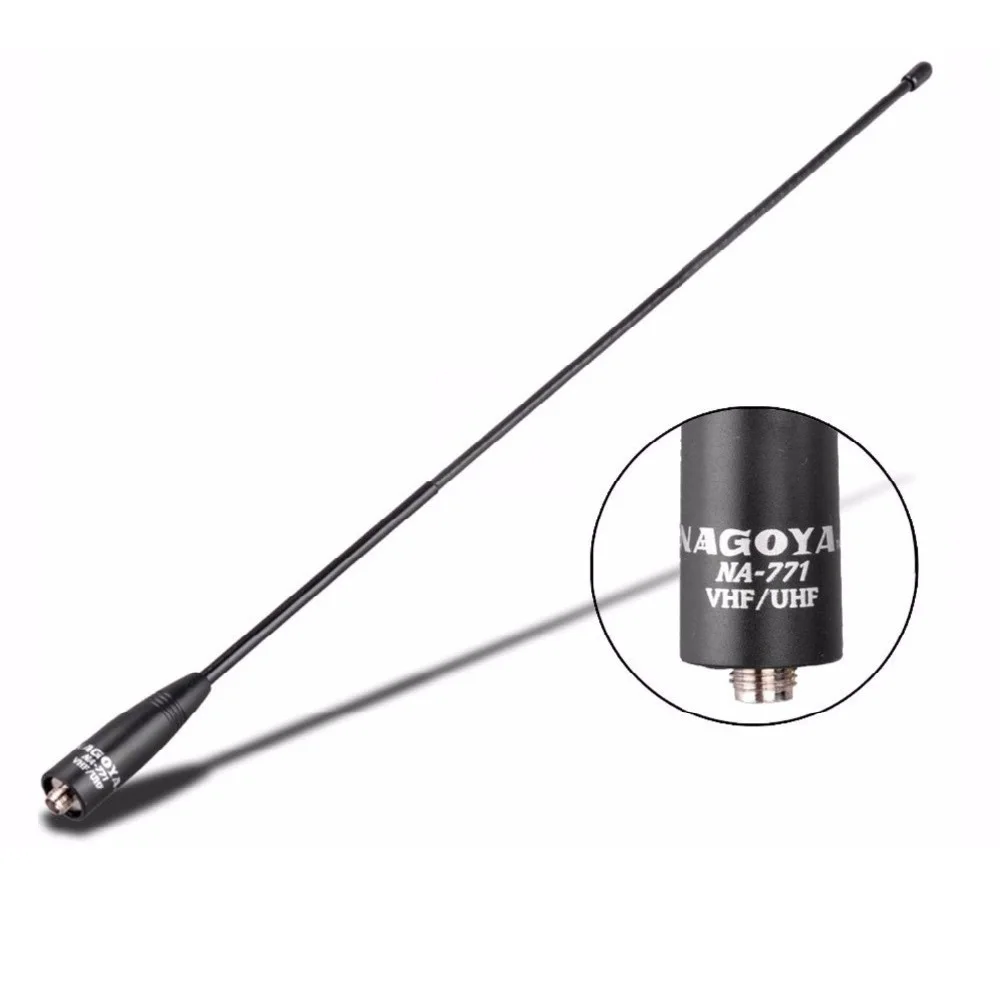

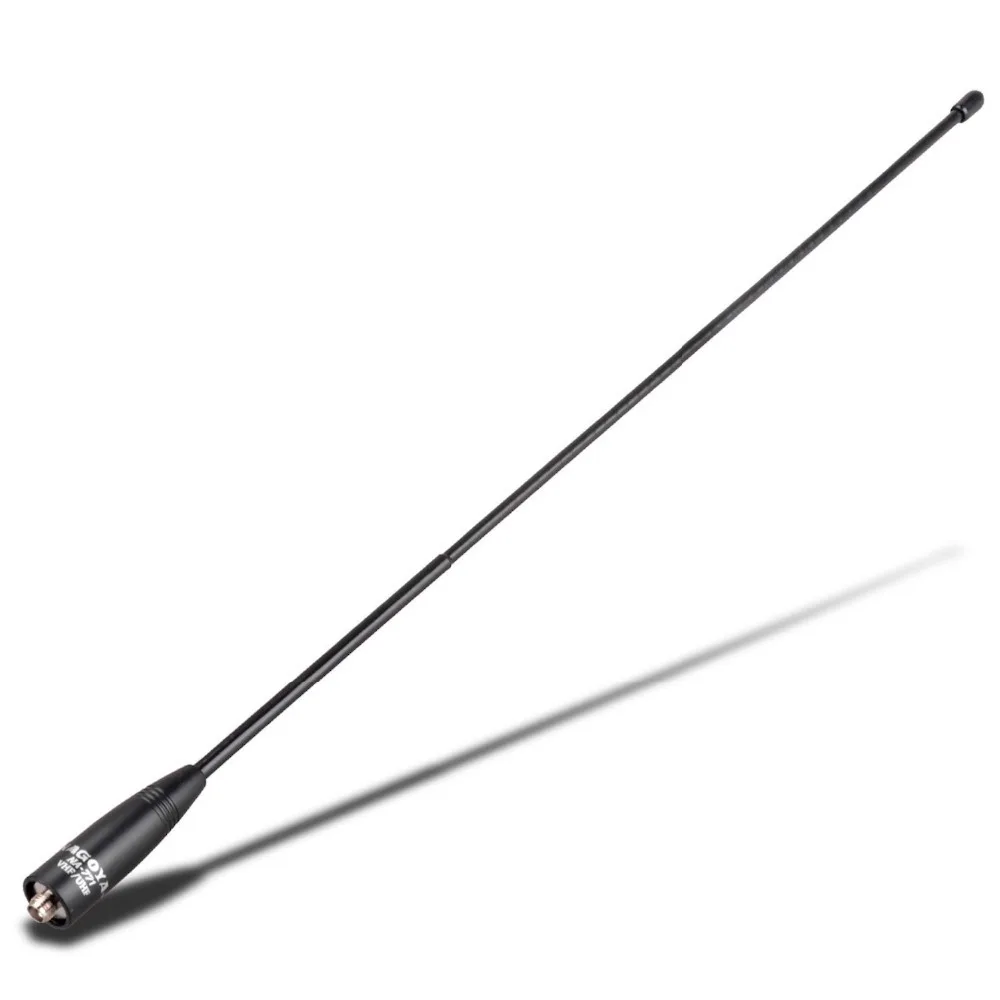

Nagoya NA-771 Antenna: Specifications & Compatibility

This document provides detailed specifications, package contents, and compatible radio models for the Nagoya NA-771 antenna, with a clear, organized layout for easy reference.

1. Product Specifications

Attribute Details
Condition Brand new & high quality
Model Nagoya NA-771
Operating Band Dual band (VHF/UHF)
Antenna Type Soft Antenna
Frequency Range 144 MHz / 430 MHz
Gain 2.15 dBi
Maximum Power 10 W
VSWR Less than 1.5
Impedance 50 Ω (ohms)
Connector Type SMA-F (Female)
Polarization Vertical
Radiation Pattern Omni-directional
Length 38 cm (≈ 14.96 inches)
Weight 46 g
Color Black

2. Package Contents

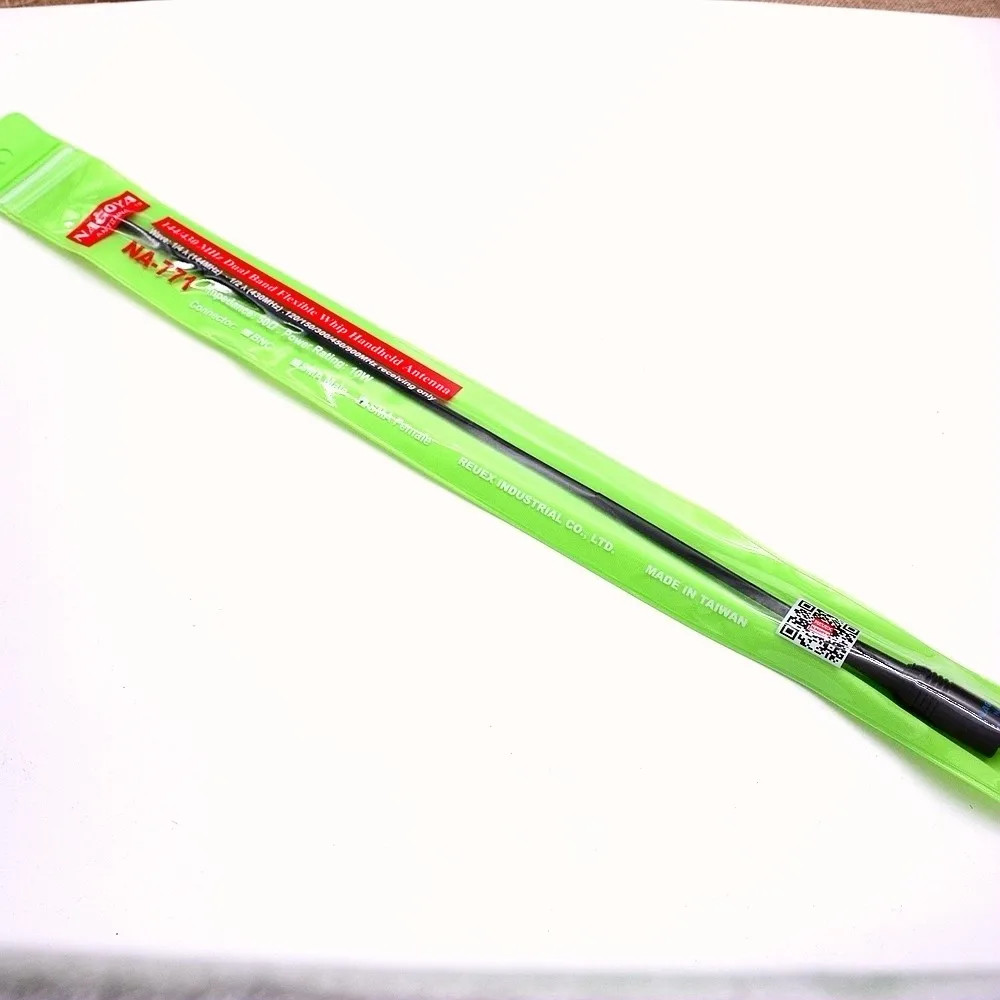

  • 1 × Nagoya NA-771 Antenna

3. Compatible Radio Models

Compatibility is categorized by connector type for quick matching with your radio.

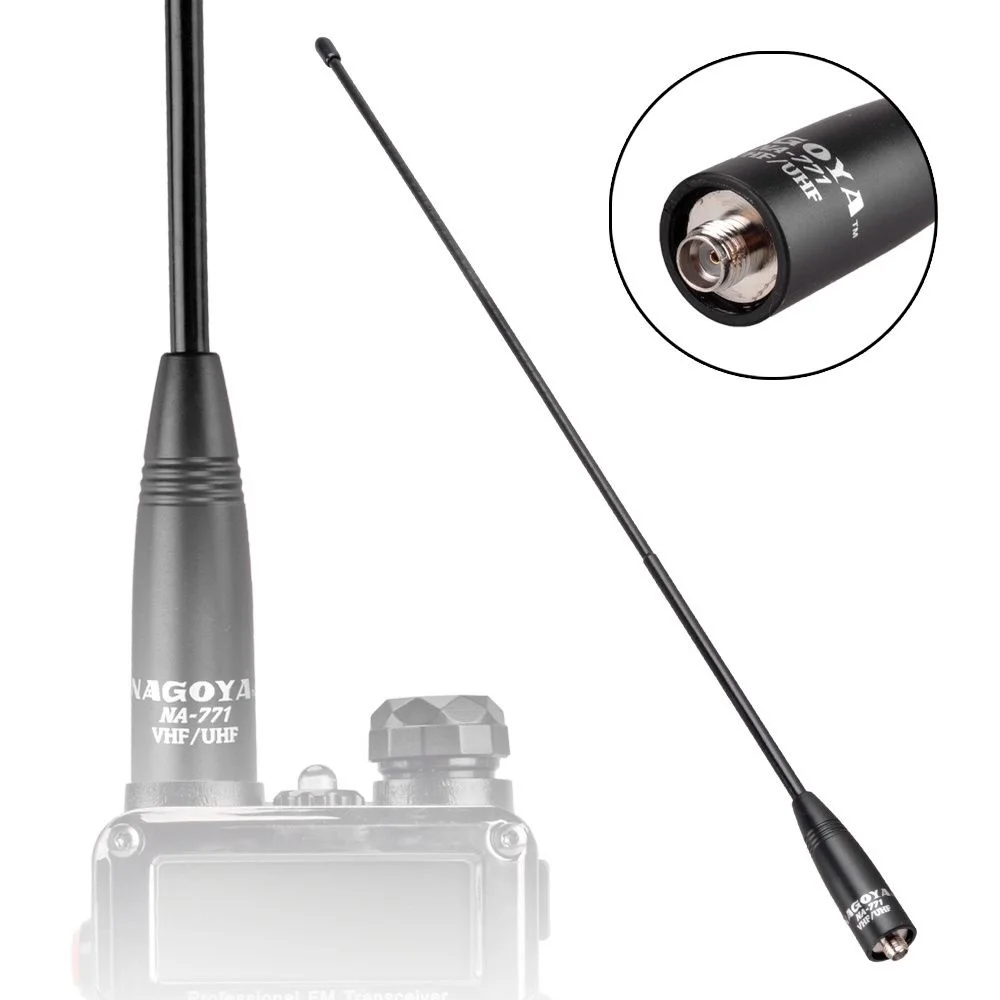

3.1 SMA-Female Connector

Suitable for the following radio brands and models:
  • Kenwood: TK-360, TK-370, TK-370G, TK-372, TK-372G, TK-3100, TK-3140, TK-3160, TK-3170, TK-3180, TK-3200, TK-3202, TK3207
  • LINTON: LT-3288, LT-6288, LT-3188, LT-2188, LT-3260, LT-3268, LT6188, LT3288
  • PUXING: PX-777, PX-777 PLUS, PX-666, PX-888, PX-888K
  • WEIERWEI: VEV-3288S, VEV-6288, VEV-3288
  • QUANSHENG: TG-K4AT, TG-2AT, TG-45AT, TG-42AT, TG-22AT, TG-25AT, TG-UV2
  • WOUXUN: KG-689, KG-689 PLUS, KG-669, KG-669 PLUS, KG-659, KG-699E, KG-UVD1P
  • HYT: TC-268, TC-268S, TC-368, TC-368S, TC-370S, TC-500, TC-500S
  • VEASU: UV-8DR
  • Retevis: Retevis H777, Retevis R888S Plus, RT-5R
  • TYT: TH-UVF1, T2, T3, F6, 300, 500, 600, 800, 900, 9900
  • BAOFENG: BF-666S, BF-777S, BF-888S, BF-320, BF-480, BF-490, BF-V6, BF-V8, BF-388A, UV-5R, UV-5RA, UV-5RB, UV-5RC, UV-5RD, UV-5RE, UV-5RE Plus, UV-5S, UV-6R, UV-5RT, BF-F8+, BF-F8HP, UV-B5, UV-B6, UV-82, UV-82HP, UV-82HX, GT-3, GT-3TP, GT-5, GT-5TP, BF-F9 V2+, DM-5R Plus

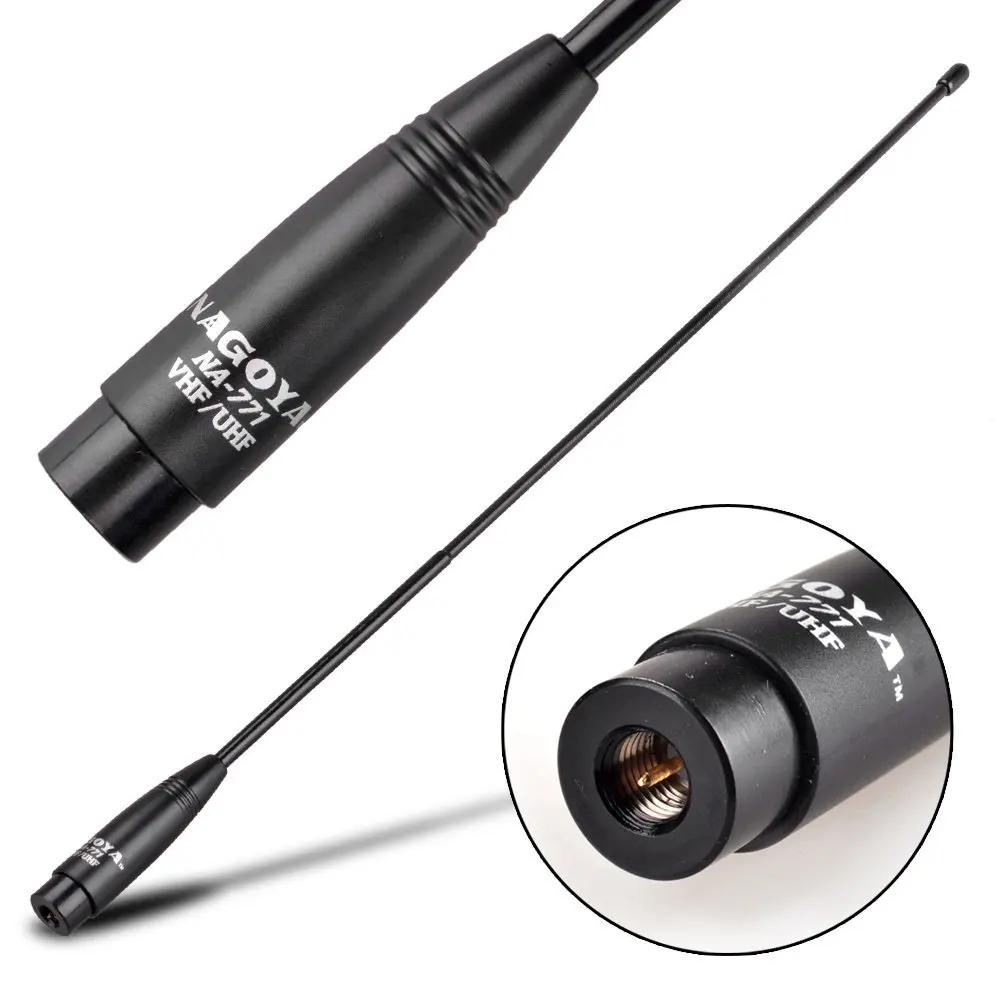

3.2 SMA-Male Connector

Suitable for the following radio brands and models:
  • YAESU/Vertex Standard: VX-1R, VX-2R, VX-3R, VX-5R, VX-6R, VX-7R, VX-8R, VX-110, VX-130, VX-131, VX-150, VX-160, VX-170, VX-177, VX-180, VX-300, VX-400, VX-410, VX-800, FT-270R, FT-250R, FT-60R, VX-230, VX-8d, VX-8DR
  • PUXING: PX-325, PX-333, PX-2R, PX-V6, PX-A6, PX-358, PX-359
  • TYT: TH-F5, TH-UVF9, TH-UV3R, TH-UVF8D, TH-UVF9D, TH-UV8000D
  • LINTON: LT-6100, LT-6188
  • TonFa: UV-985
  • WouXun: KG-UV6D, KG-UV8D, KG-UV9D
  • BaoFeng: UV-3R, UV-100, UV-200
  • Zastone: ZT-2R

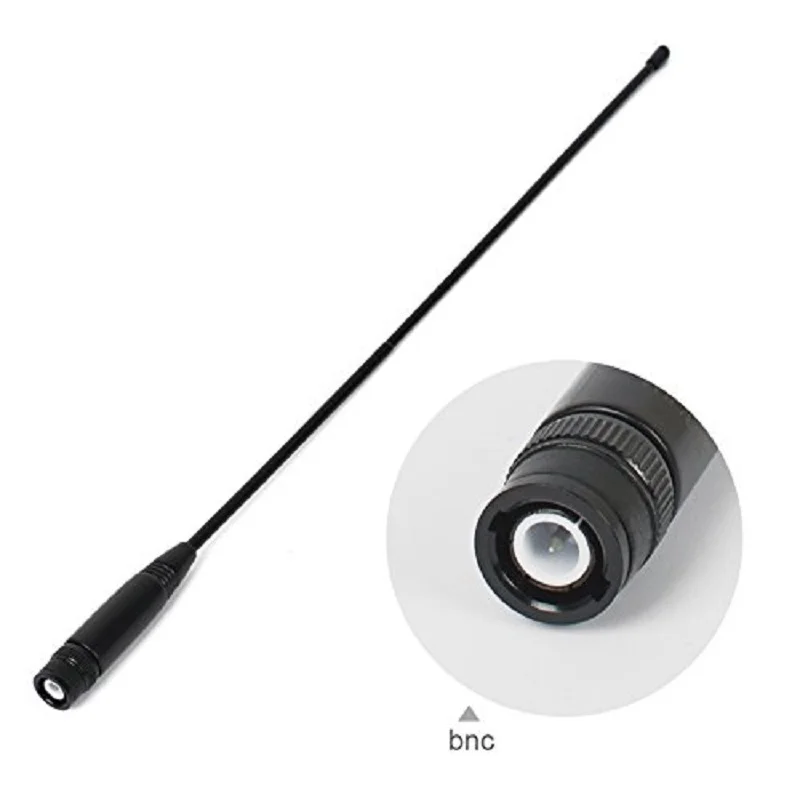

3.3 BNC Connector

Suitable for the following radio brands and models:
  • Kenwood: TK100, TK200, TK220, TK300, TK310, TK320, TK308, TH28A, TH42AT
  • Icom: IC-V8, IC-V80, IC-V82, IC-U82, IC-W32, IC-V85
  • Motorola: HT440, HT90, Maxon HR, CP500, CP520, 1015
  • EF Johnson: 577, 578
  • Vertex Standard: 734, 834, HR146, HX300, HX320, HX400, CU32, CP/CS 5015, 0420
  • Uniden: HH979
  • Wilson: HH152, HH154, HH156, HH462, HH464

4. Notice

If your radio model is not listed above (i.e., incompatible with the Nagoya NA-771), please:
  1. Browse our other antenna products, or
  2. Contact us via message or email with your radio’s model number. We will assist you in finding a suitable antenna.
