A Version Intelligent Digital Processor Jitter Reduction Oversampling XMOS216+CT7601 USB Interface

What is a digital interface?
- The digital interface is a digital signal optimizer that is connected [in the middle] between the audio source (CD, DAC) and the DAC decoder. It is used to improve the quality of the digital signal before it enters the decoder, thus improving the sound quality.
- Reminder: digital interface only has digital input and digital output, there is no analogue output. You need to prepare your own decoder and audio source.

What can this digital interface do?
- Clock regeneration: which is also called jitter reduction; Clocking the front-end digital signal back locally with high quality clock generation instead.
- DDC: Digital Direct Conversion. This machine supports up conversion and transcoding between all digital input ports and output ports, without having to buy SACD machine can convert a CD turntable 44K to DSD512. 44K/88K/96K/176K/192K/352K/384K/705K/768K/DSD64/DSD128/DSD256/DSD512 code rate can be selected.
- A total of 13 bit rates can be switched.

What have been optimized to improve sound quality?

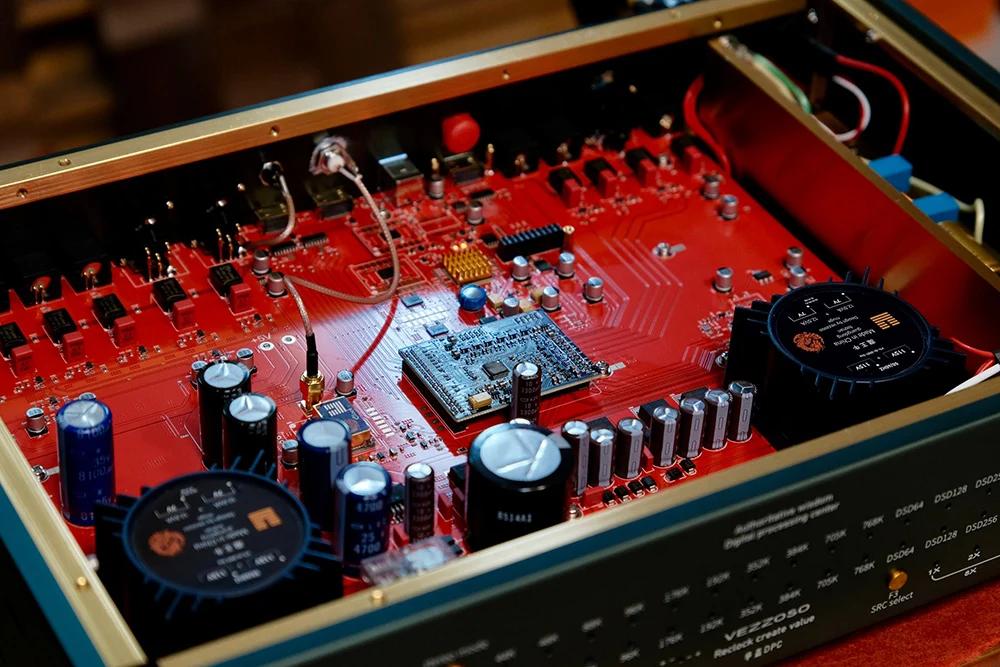

- Dual transformers to isolate input and output.
- Large filter capacitors with a total capacity of 100000uf + multiple sets of uv-level LDO for individual voltage regulation.

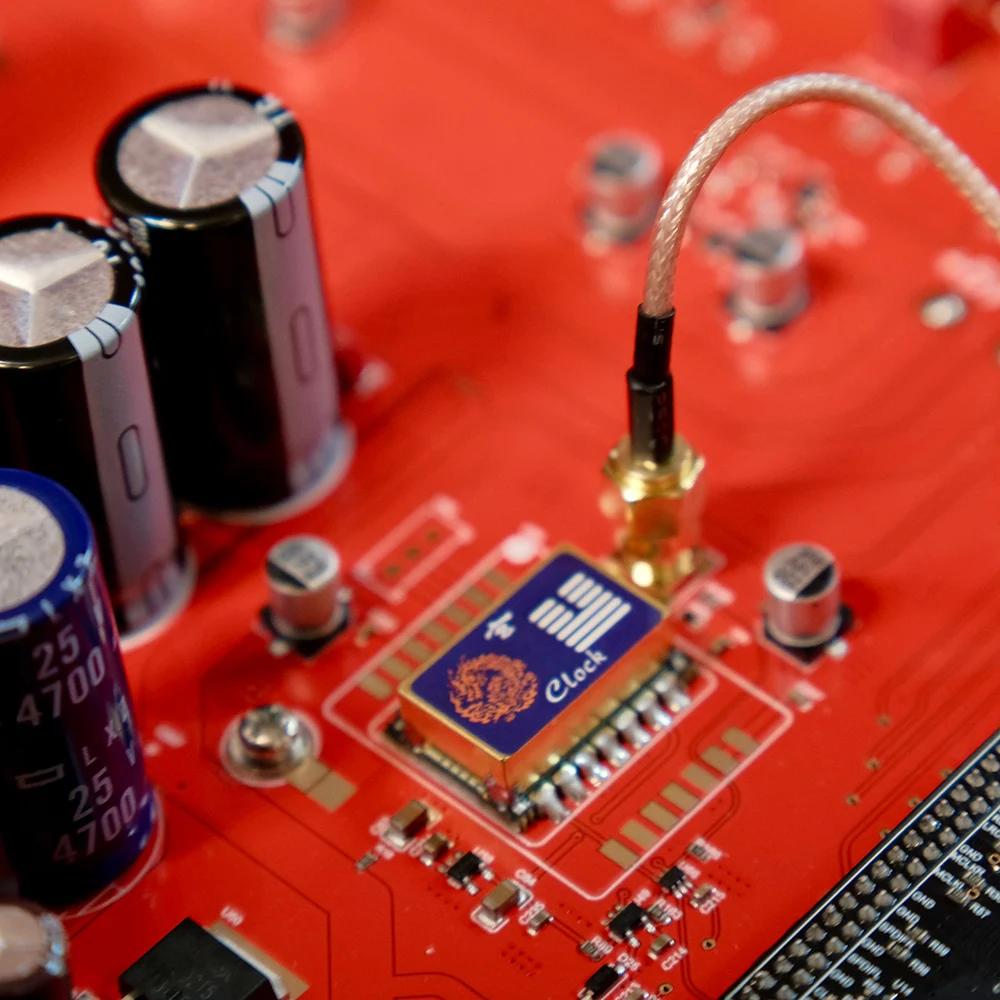

- Highly stable 0.7ppm temperature-compensated master clock, optional 0.3ppm constant temperature version.
- High performance digital DSP chip with a precision of -170dB.
- High-speed logic chip output shaping.

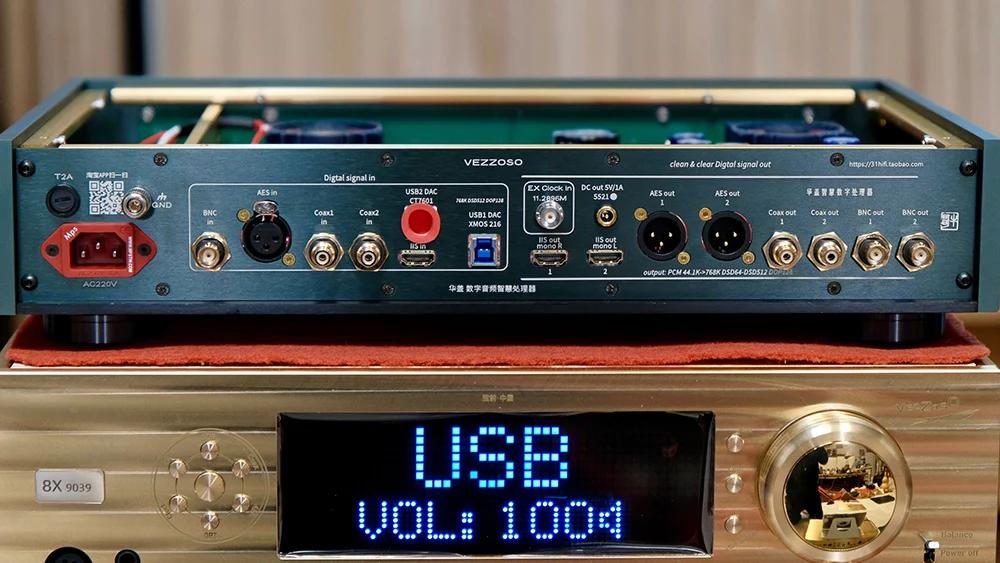

Input Interfaces:
- BNC: 1 x DSD256, PCM768
- AES: 1 x DSD256, PCM768
- COAX1: 1 x DSD256, PCM768
- COAX2: 1 x DSD256, PCM768
- IIS: 1 x DSD512 (native), PCM768
- USB1 XMOS216: 1 x genuine driver, DSD512 (native), PCM768
- USB2 CT7601 (optional): 1 x DSD512 (native), PCM768
- BNC clock interface: 1 x 11.2896M (optional), 50ohms or 75ohms adaptive

Output Interfaces:
- IIS: 2 x DSD512 (native), PCM768
- AES: 2 x DSD256, PCM768
- COAX: 2 x DSD256, PCM768
- BNC: 2 x DSD256, PCM768

Note:

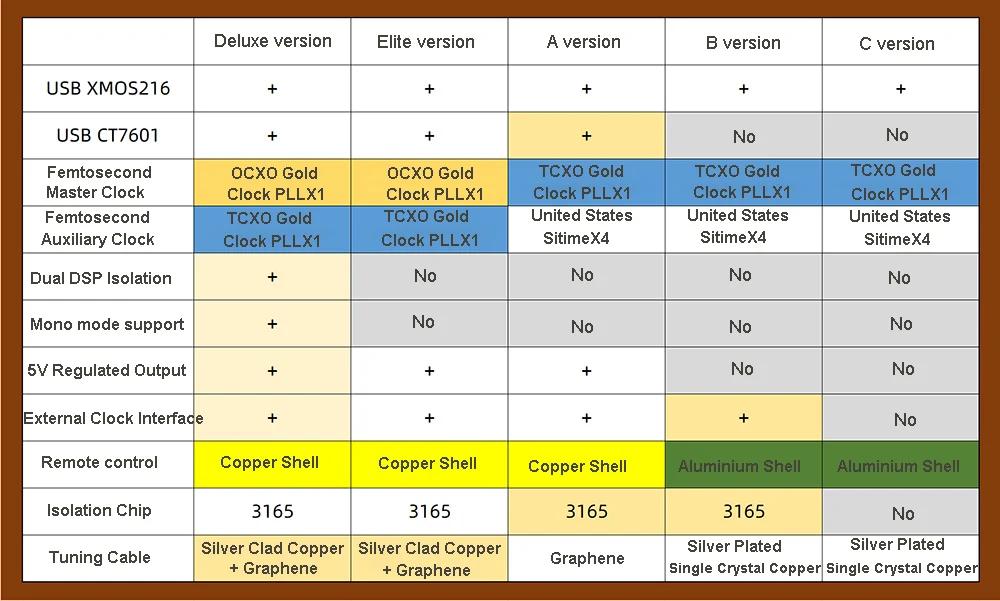

- The above interfaces default to stereo mode. Only the deluxe version can be configured with an additional mono mode, with output labeled 1 as R channel and labeled 2 as L channel.

Specification:
- Product size: 448 x 288 x 78mm
- Foot nail height: 17mm
- Net weight: 8.3kg

Driver:
- Only for WIN10 and WIN11 require the installation of USB drivers, and we provide genuine driver downloads. Other interfaces for LINUX and MAC systems do not require driver installation.
- Driver and user manual download: https://pan.baidu.com/s/1p0jYIvTia32I4HZ-ikjsAQ?pwd=8888
- Passwords: 8888

Precaution:
- Two USB ports name of ASIO driver are different.
- USB1 is the XMOS216 chip with the display name of NIUGE HiFi DAC.
- USB2 is the CT7601 chip with the display name of Vezzoso Audio Niuge DAC ASIO

Package Included:
- 1 x USB Digital Interface
