Features:

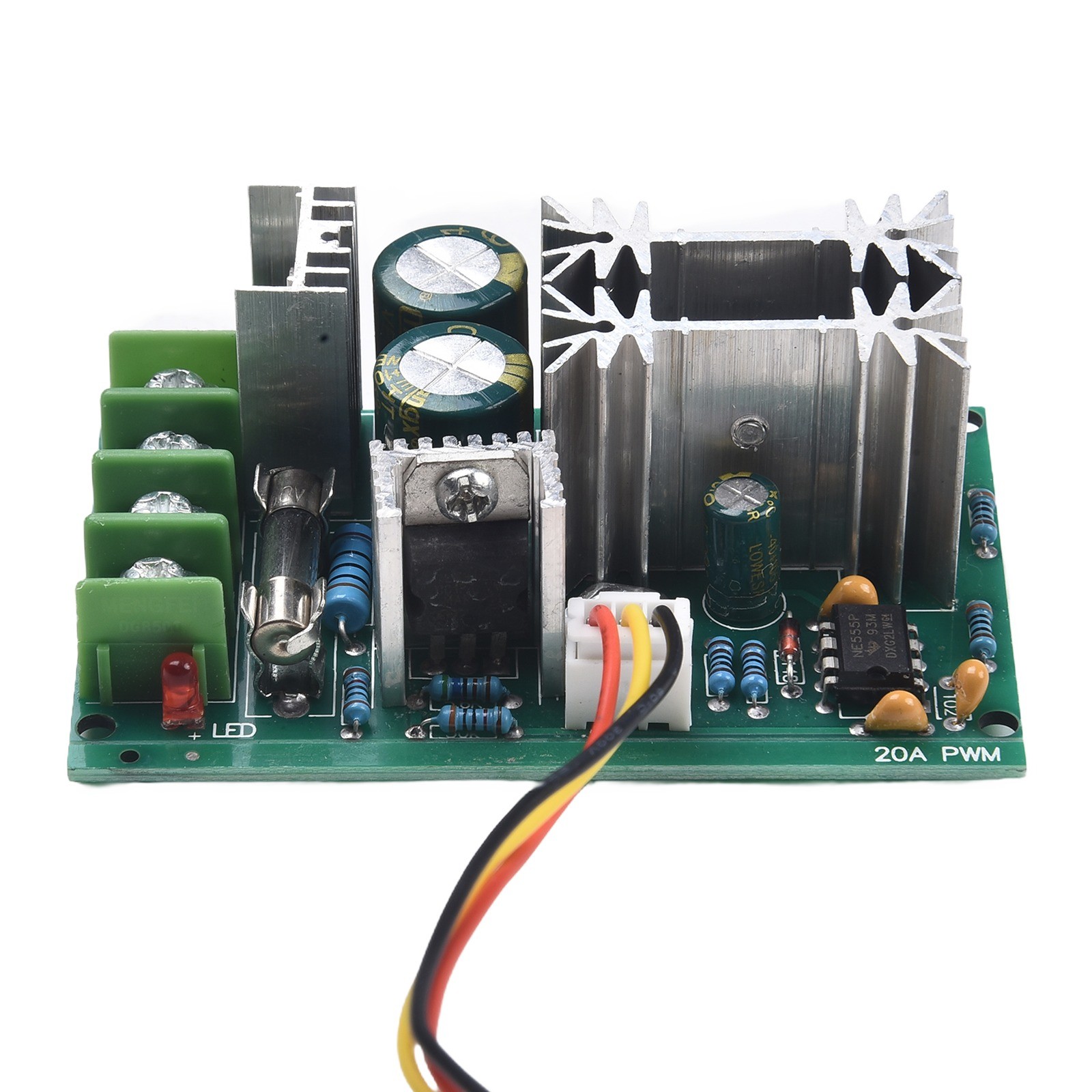

Speed controller is made with circuit board which ensures a longer service life.
This simple and easy-to-use DC motor speed controller has an stable performance.
The output current of this motor speed controller can be adjusted from 0A to 20A, and it is simple to set.
Designed with a digital display that shows the rate in percent of actual speed to maximum speed.
This motor speed controller uses screw terminals for convenient and quick wiring.
The positive and negative pole of controller must be connected correctly, otherwise, the item might be burnt.
The input voltage of controller is better to be same as rated voltage of motor.

Specifications:
Input voltage: DC10-60V
Output voltage: linear under load
Output limit current: 20A(10A for long-term use, within 450W, pay attention to maintaining smooth heat dissipation conditions of the module)
Maximum power: 1200W
Speed regulation type:discharge regulation

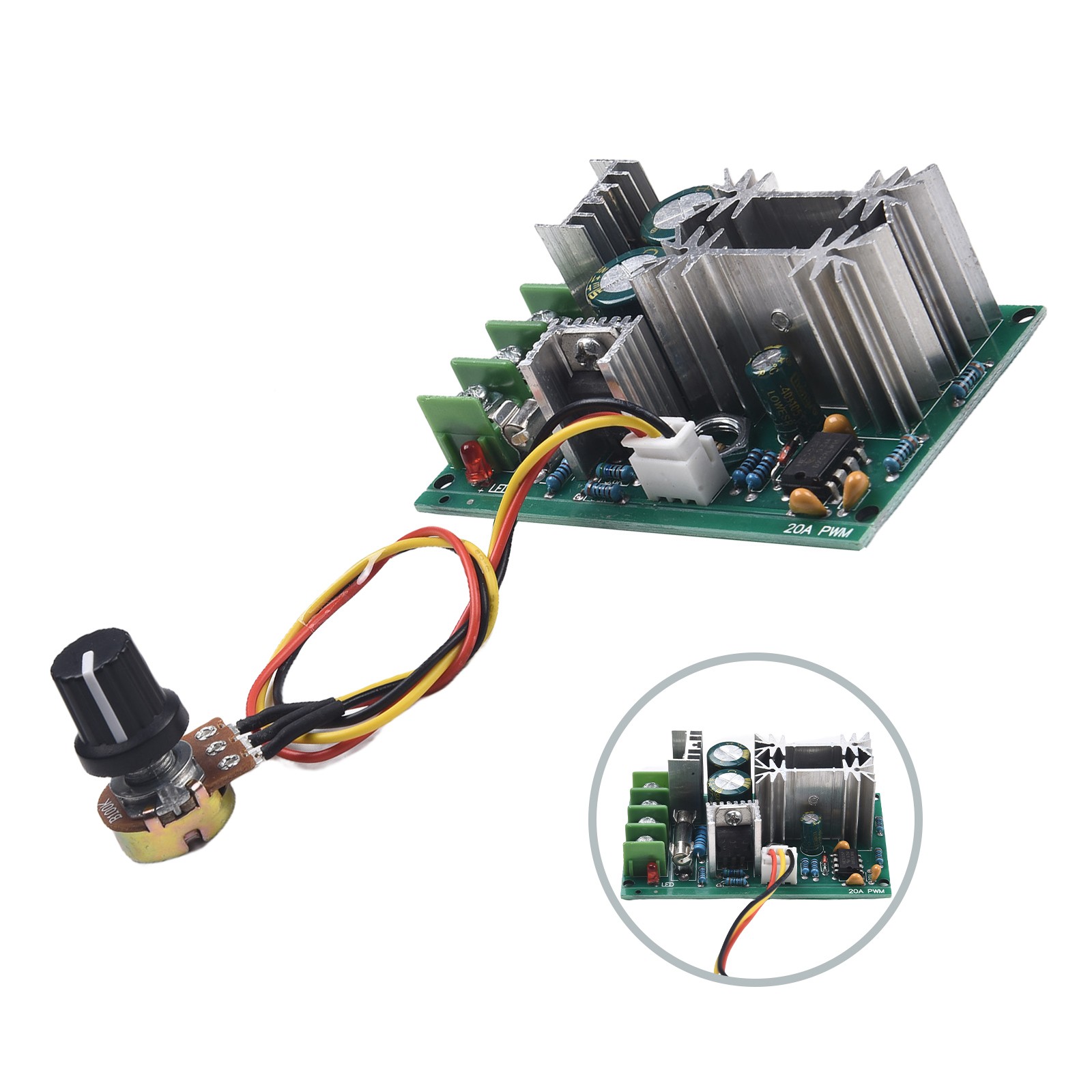

Speed adjustment: potentiometer(linear)
Speed regulation duty cycle range: 0——
Control frequency: 25KHZ
Wiring type: fence terminal knob wire length: 20CM

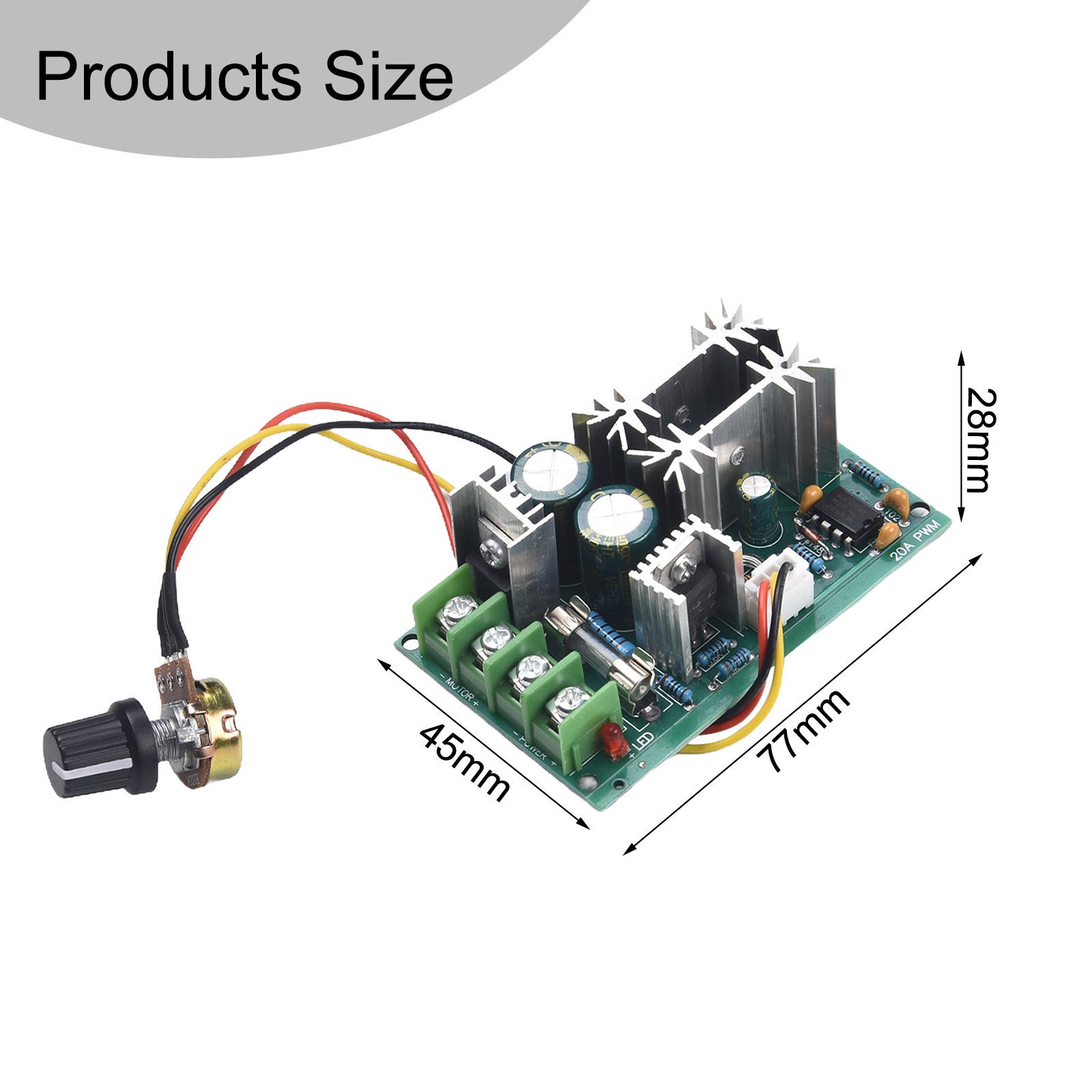

Module size: length*width*height 77MM*45MM*28MM
Product net gain: 73 grams
Motherboard installation dimensions: length*width 73MM*40MM
Potentiometer installation opening: 7MM

Wiring diagram
Make sure the positive and negative connections are correct before powering on, and do not touch the heat sink when wiring. Doing so may burn the circuit board. Note that this is not a power module and must be connected to a motor to adjust the speed. The multimeter output will not change if the motor is not connected.
The input is DC within 10-60V
Power supply: POWER+ POWRE-
Motor:MOTOR+ MOTOR-

Package Contents:
1*Speed Controller


Note:
1. This speed regulator is used for DC brush motors
2. It is not suitable for speed regulation of brushless DC motors; nor can it be used as a voltage regulator or voltage for stabilizer!
