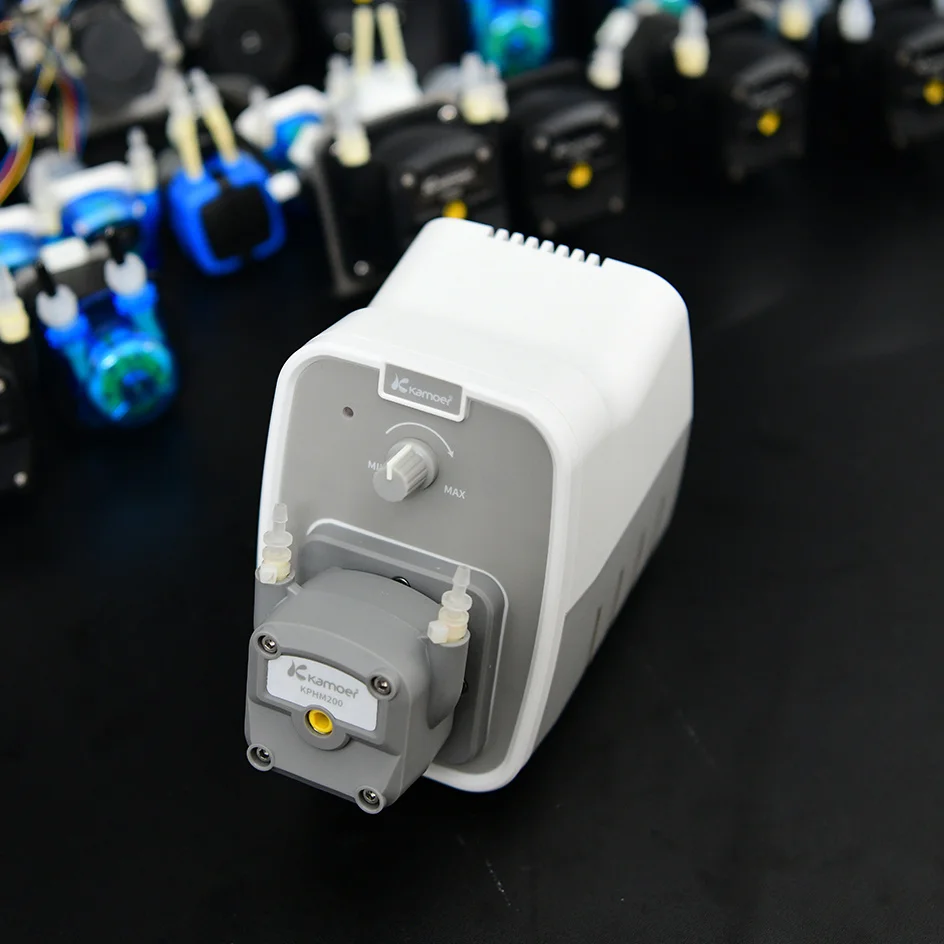

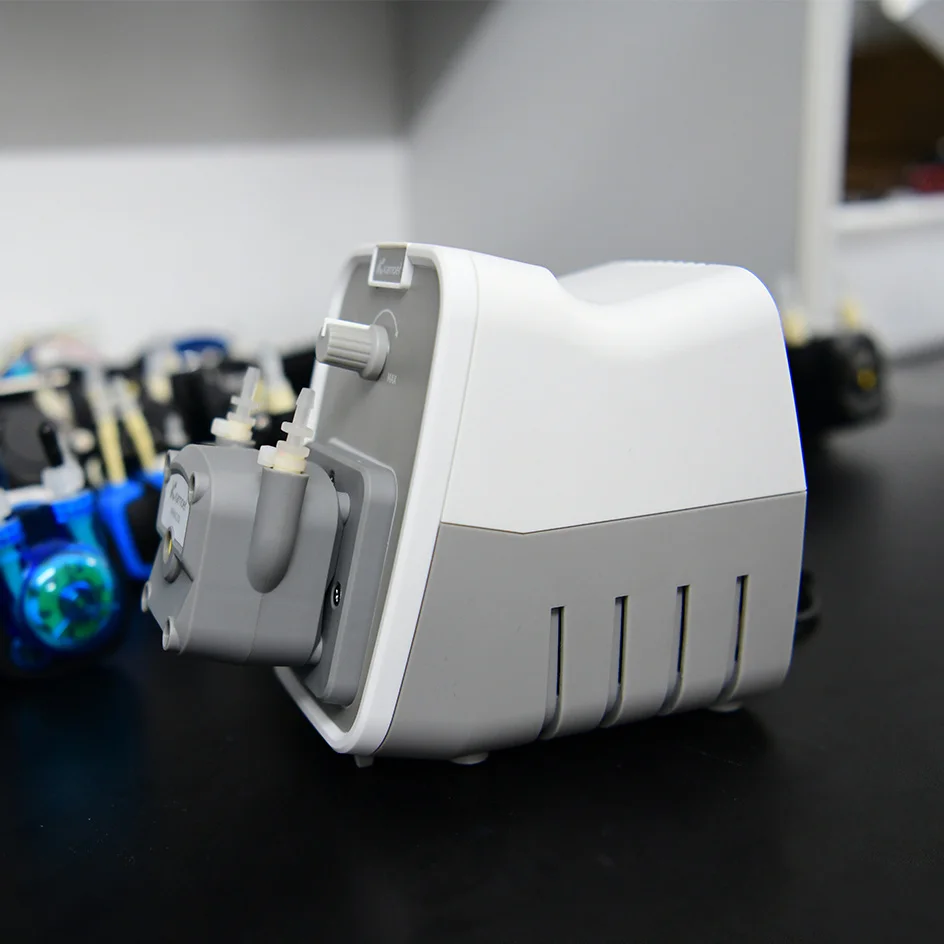

Kamoer 100 ~ 200ml / min kcp200 automatic circulating flow pump
Linkage pump

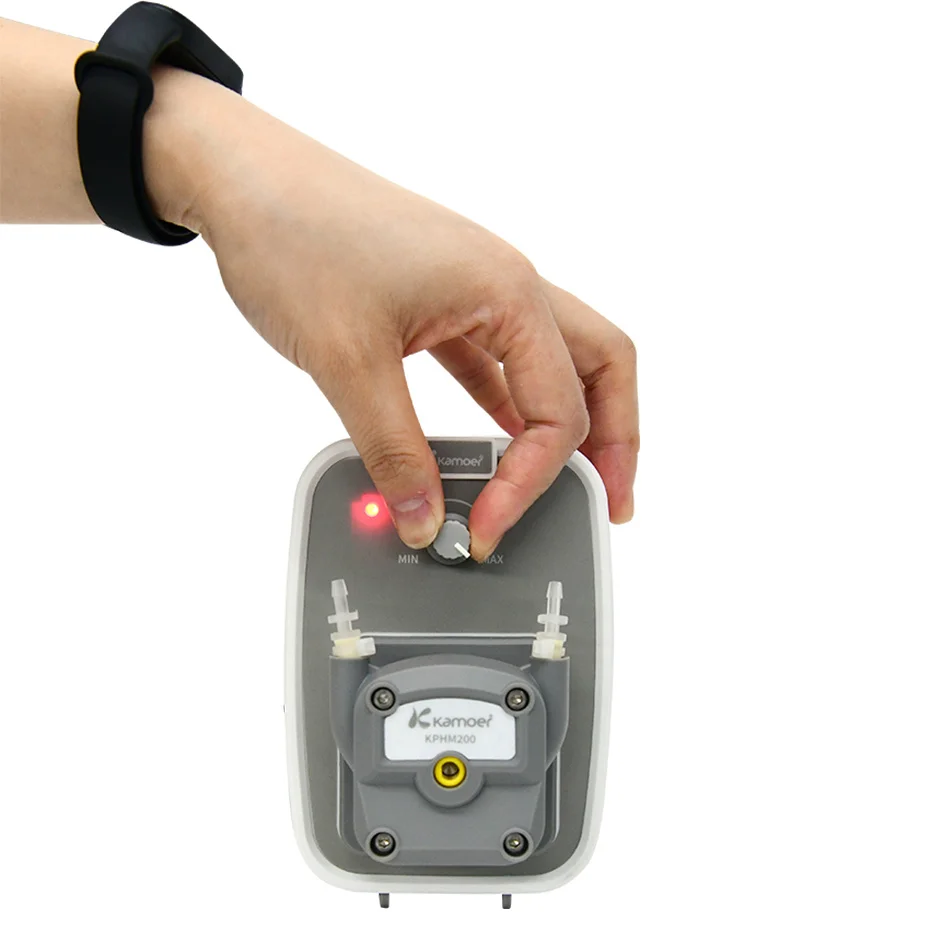

#Adjustable flow rate (100 ~ 200 ml / min)
#Gear pump
#Stable performance (not easy to cut lifebuoy)
Basic parameters
Flow rate: max. 100 ~ 200 ml / min

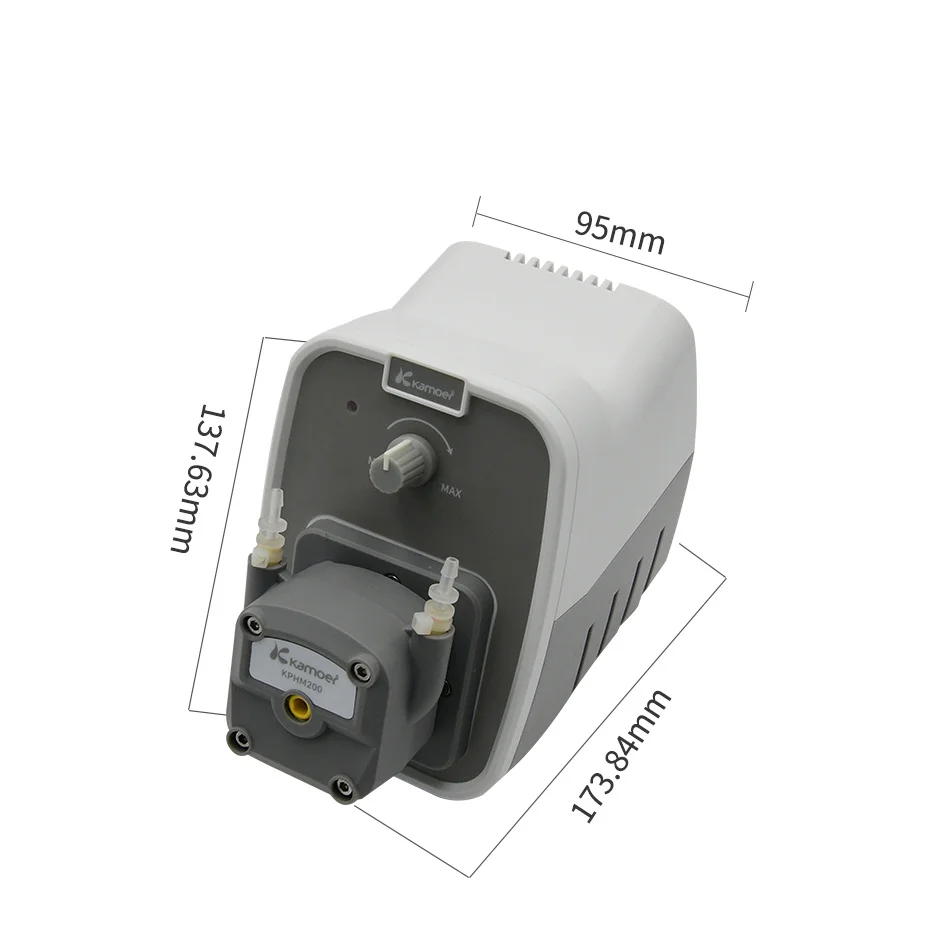

Size: 95 * 173.84 * 137.63mm (L * w * h)
Weight: 520g without any parts
Power supply: input 100ac-240ac; Output DC24V
Pump pipe: bpt-b16 3.2 * 6.4mm 1000h
Pump head: kphm 2003 rotating body
Pipe length: 110mm
Connector: 1 / 8

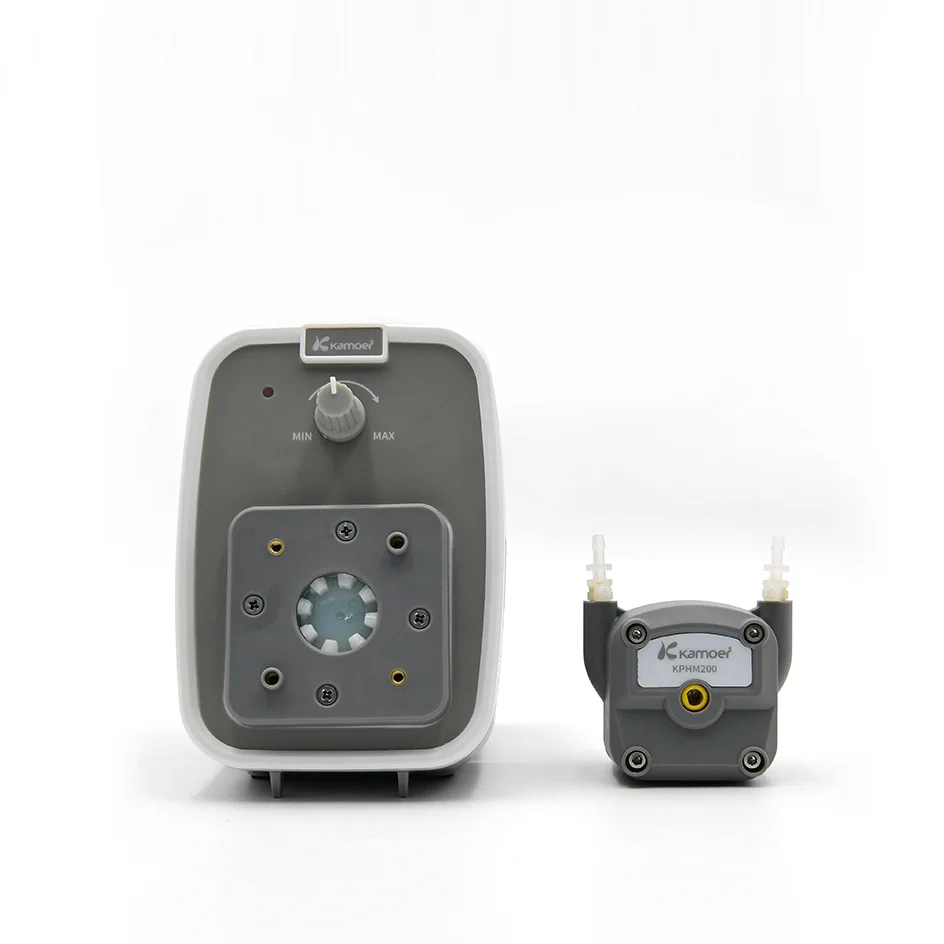

Kphm 200 pump head-3 rotor
Simple use and stable performance
Strength & cost effectiveness
Water pump & vacuum pump
Kamoer is the best choice!
Multiple applications
Automatic collection machine
Laboratory liquid transfer
Add pipe liquid
Potted irrigation

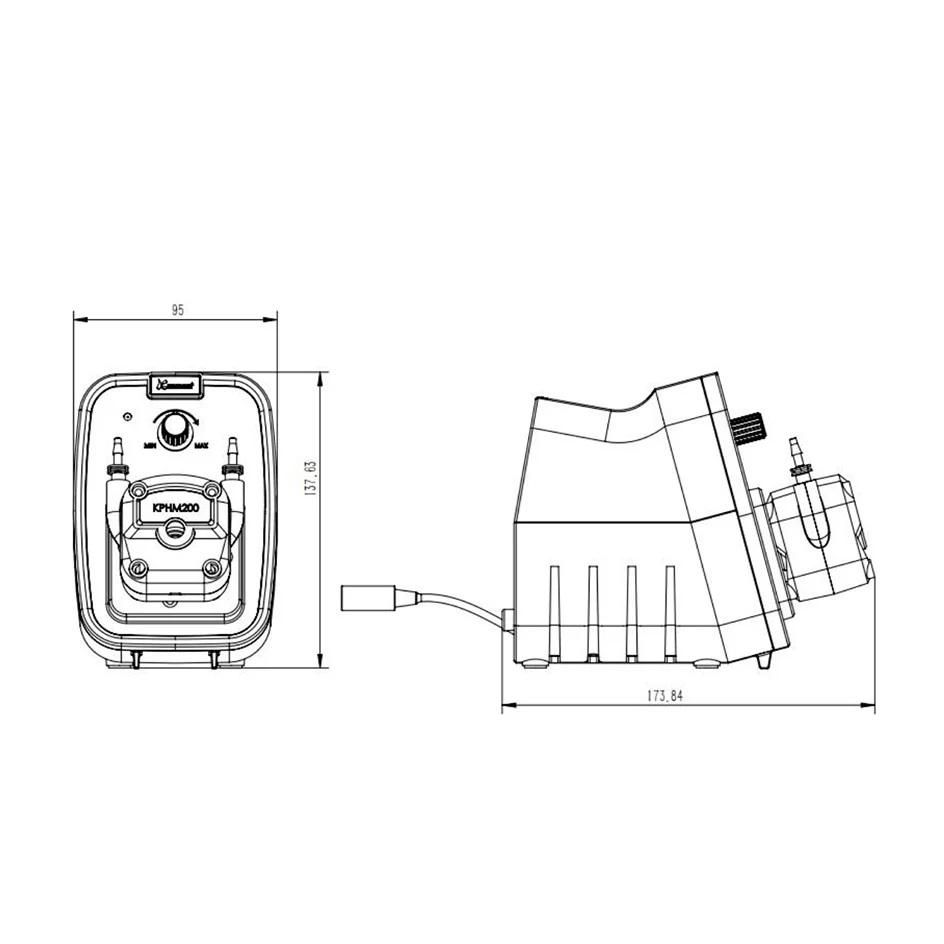

Technical dimensions

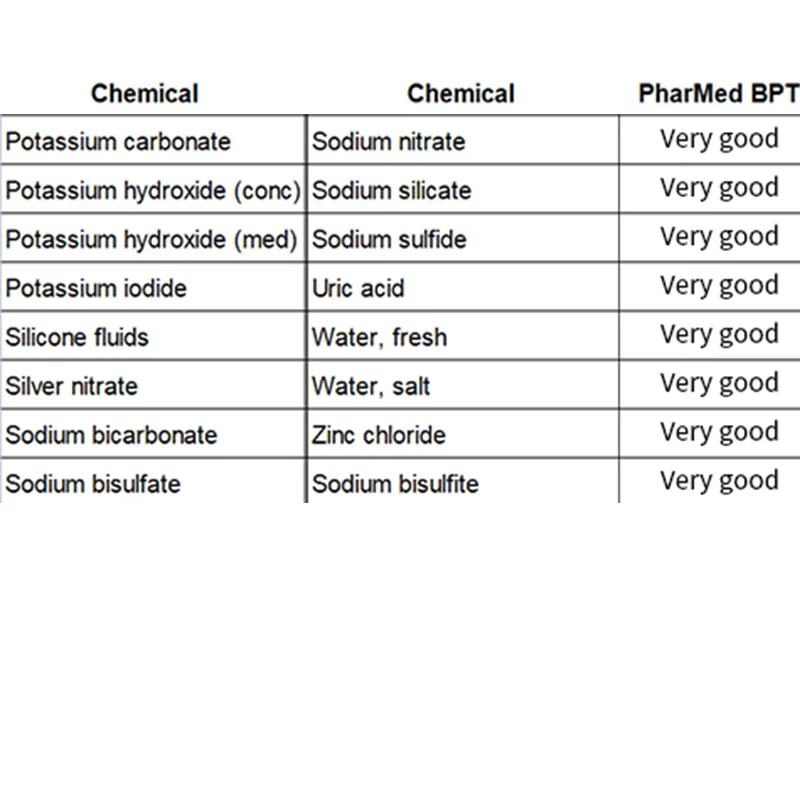

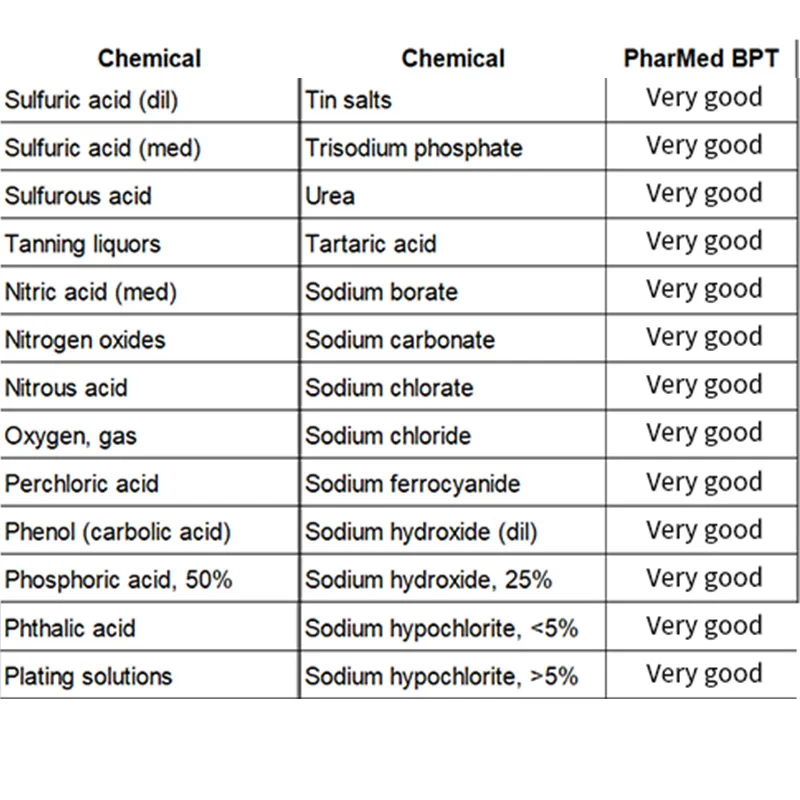

Inlet pipe BPT
N / A. attention
1. The harsh working environment will cause premature damage to the water pump or shorten the service time due to high heat, high humidity and dust.
2. Imper operating voltage is easy to damage the duct
3. Frequent start dates can easily lead to the heating of reduced ducts in pump life.
4. The use of highly corrosive medium may cause damage to internal rubber parts

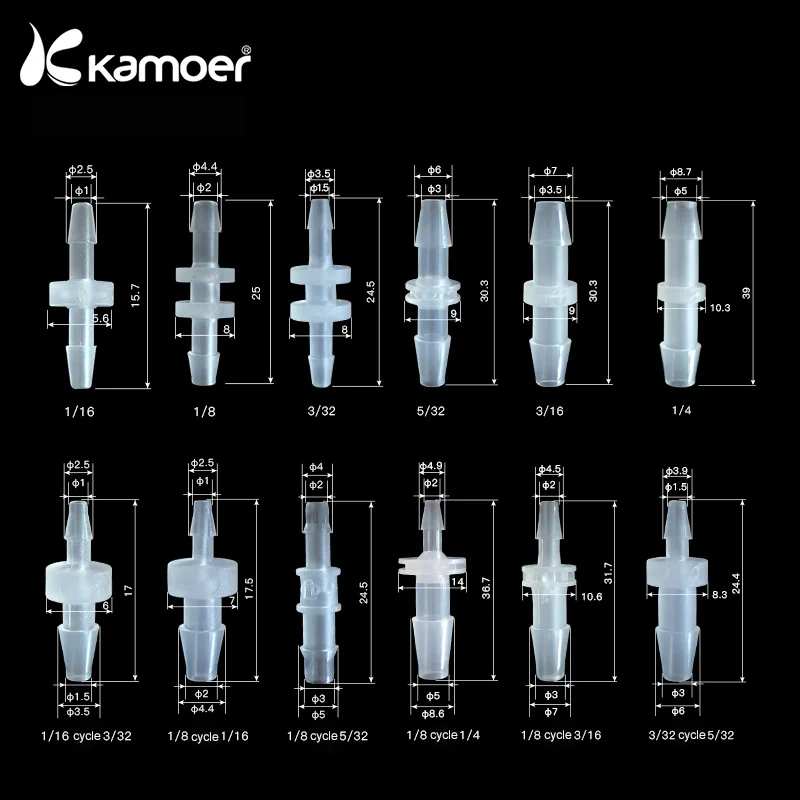

Accessories
