Overview

Quescan M10TTL GNSS receiver features the ubx M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition time for all L1 GNSS signals.M10TTL supports a maximum positioning update rate of 25Hz (need to be configured in high-performance mode).M10TTL is a highly cost-effective GNSS L1 solution. The M10 platform supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou) with QZSS SBAS enable. The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. UBX Super-S (Super-Signal) technology oﬀers great RF sensitivity and can improve the dynamic position accuracy with small antennas or in non-line-of-sight scenarios. M10TTL GNSS receiver supports NMEA and UBX protocol input and output. It is recommended to use UBX-NAV-PVT statement under UBX protocol, which is widely used in various controllers. M10TTL GNSS receiver has built-in Flash memory and supports customization of various configurations of the receiver.

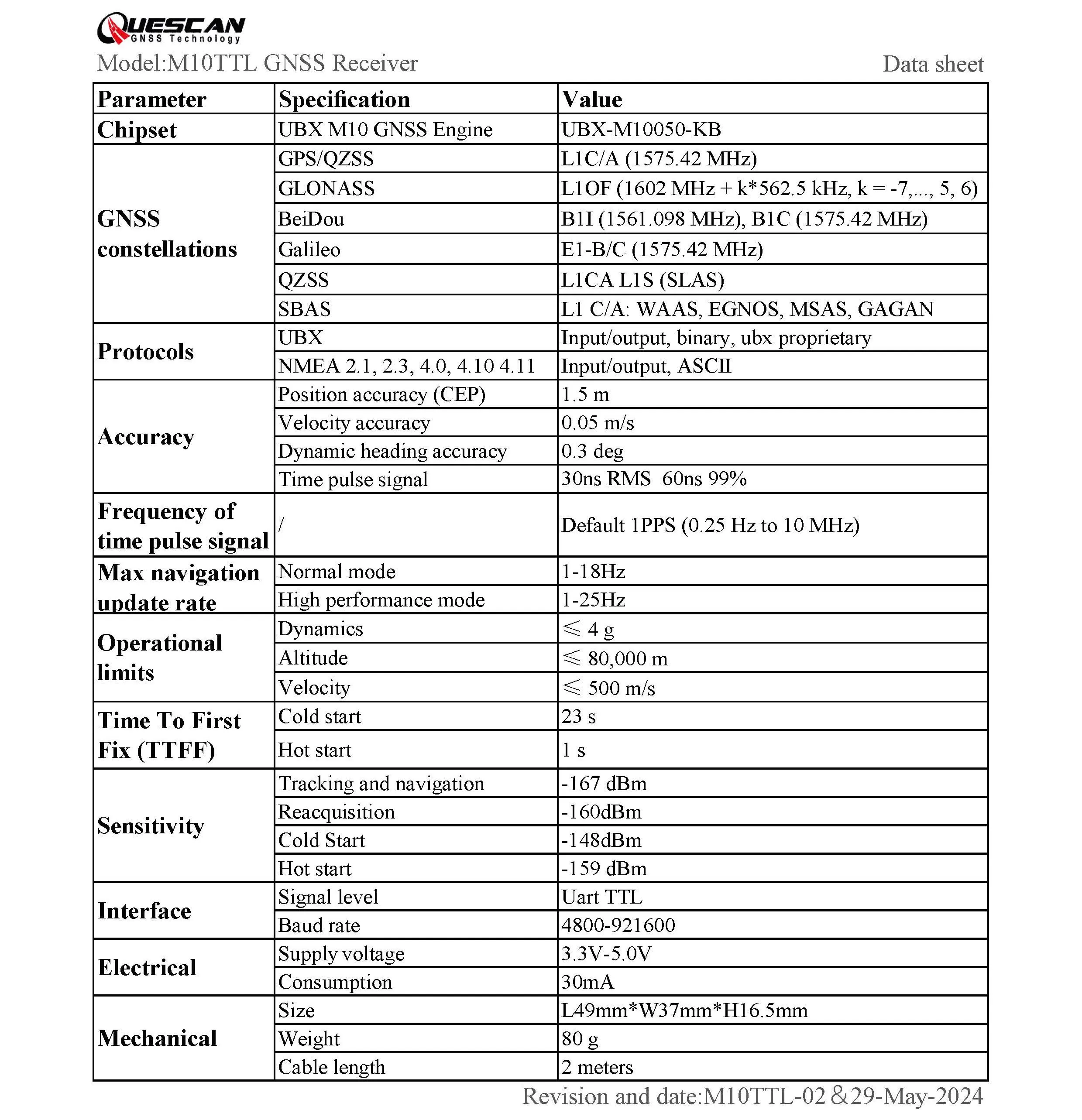

Performance

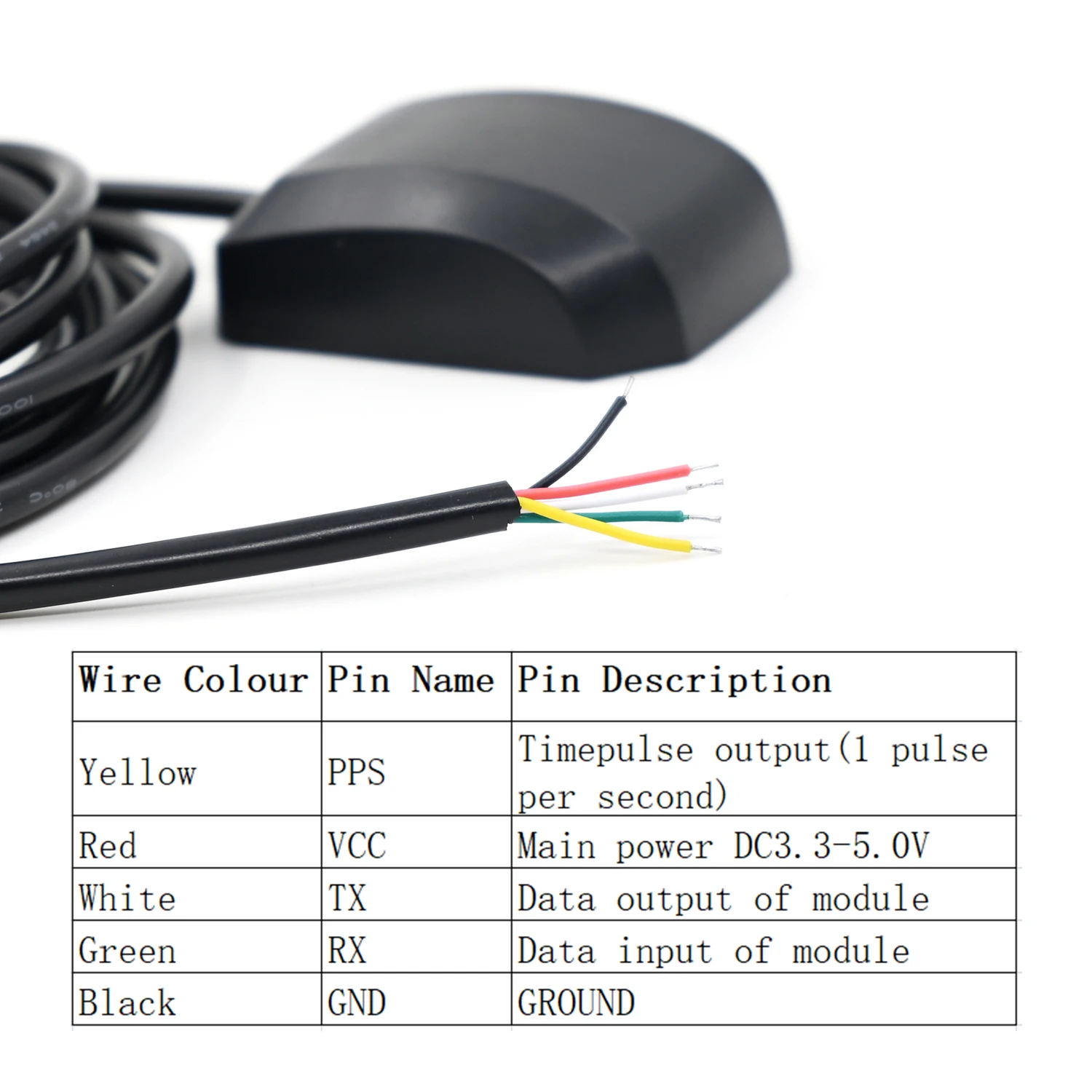

Pin Definition

Supported GNSS constellations

M10TTL is a concurrent GNSS receiver that can receive and track multiple GNSS systems. The single RF front-end architecture enables concurrent reception of multiple GNSS constellations. The receiver can be conﬁgured for a subset of GNSS constellations to achieve lower power consumption. The factory conﬁguration on M10TTL is concurrent reception of GPS,Galileo,GLONASS and BeiDou B1C with QZSS and SBAS enabled. The following GNSS and their signals are supported:

The following augmentation systems are supported:

1.BeiDou B1I cannot be enabled simultaneously with BeiDou B1C or GLONASS L1OF. 2.The augmentation systems SBAS and QZSS can be enabled only if GPS operation is also enabled.

Supported protocols

For more details, please refer to official documents.

Factory Settings

•GPS+Galileo+GLONASS+BeiDou+QZSS+SBAS. •38400 baud, 8 bits, no parity bit, 1 stop bit. •1Hz navigation update rate. •1PPS time pulse •NMEA version 4.11. •Input messages: NMEA and UBX. •Output messages: NMEA GGA, GLL, GSA, GSV, RMC, VTG and TXT.

The main talker ID includes: GP-GPS/BD or GB-Beidou/GA-Galileo/GL-GLONASS/GQ-QZSS/GN-More than one constellation

Software

Official GNSS evaluation software for Windows: U-center 2

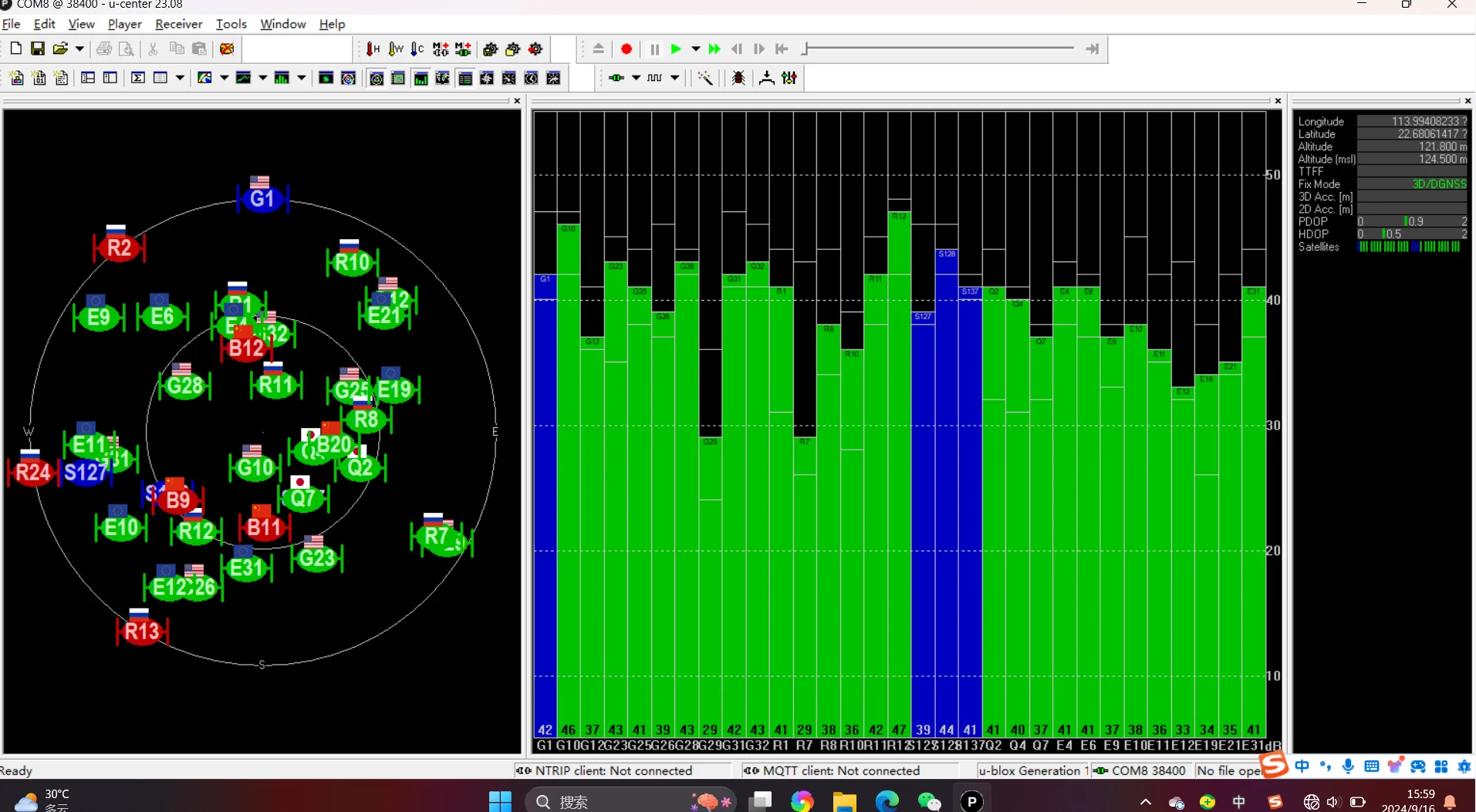

Performance

GPS+Galileo+GLONASS+Bediou(B1C)

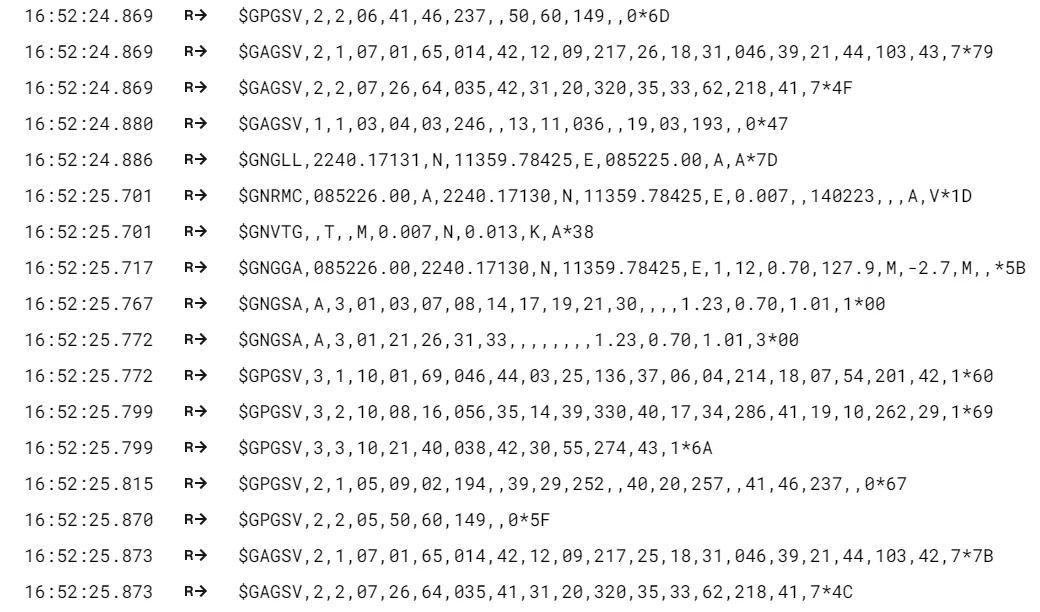

Output Text

NMEA0183 protocol Enable GGA GLL GSA GSV RMC VTG

This GNSS receiver supports custom configuration. Through software Ucenter2, you can configure the receiver's GNSS, baud rate, NMEA output, rate, and other parameters.You can tell us the configuration requirements before shipping.
