Description

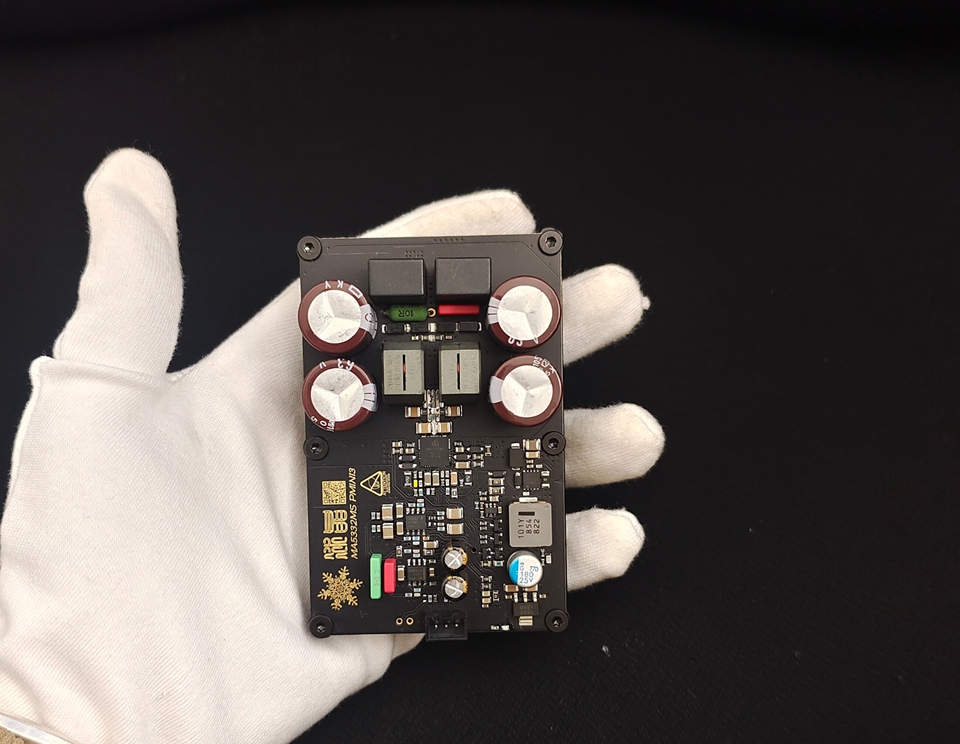

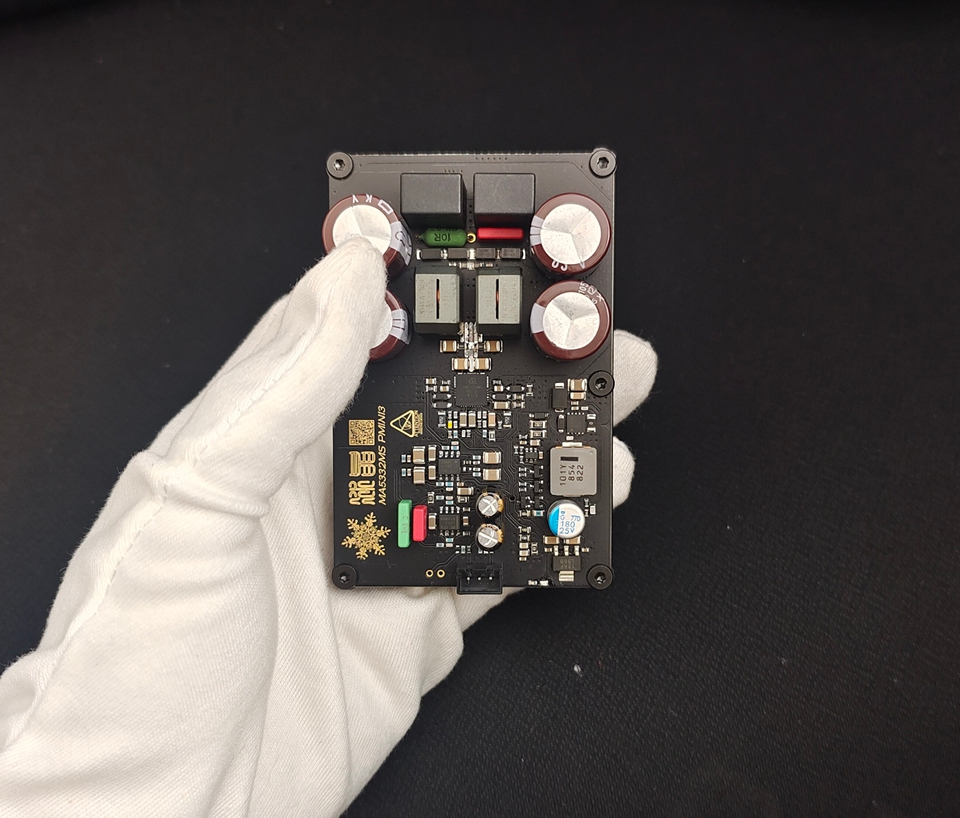

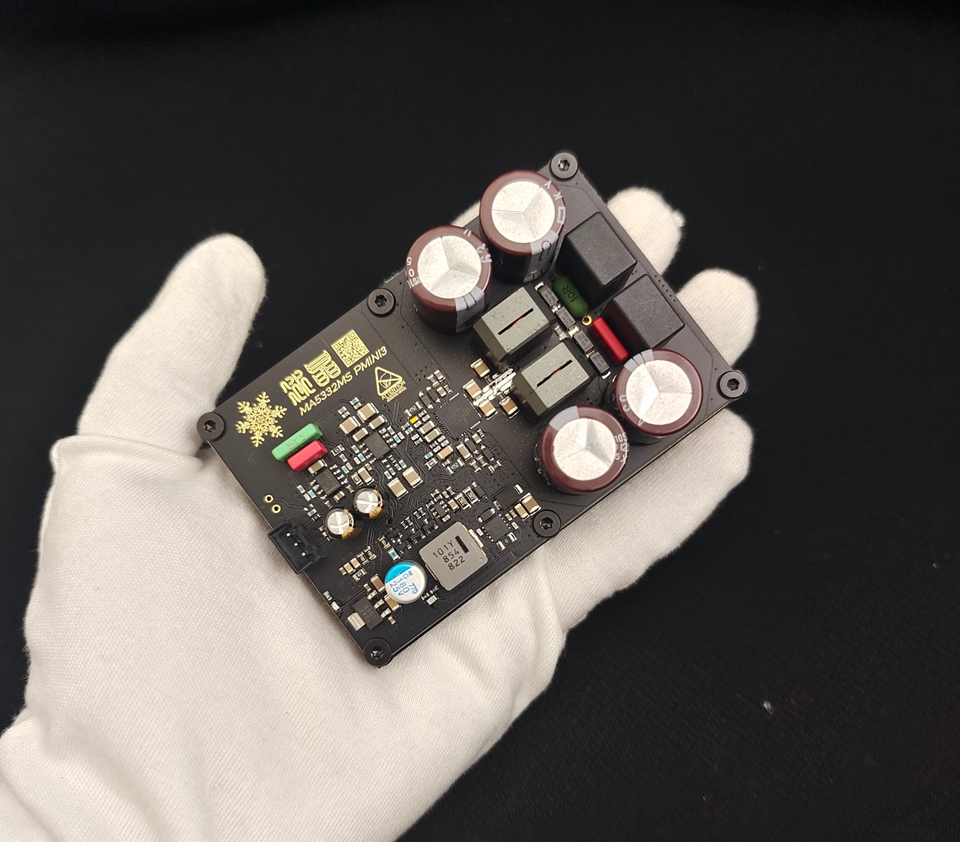

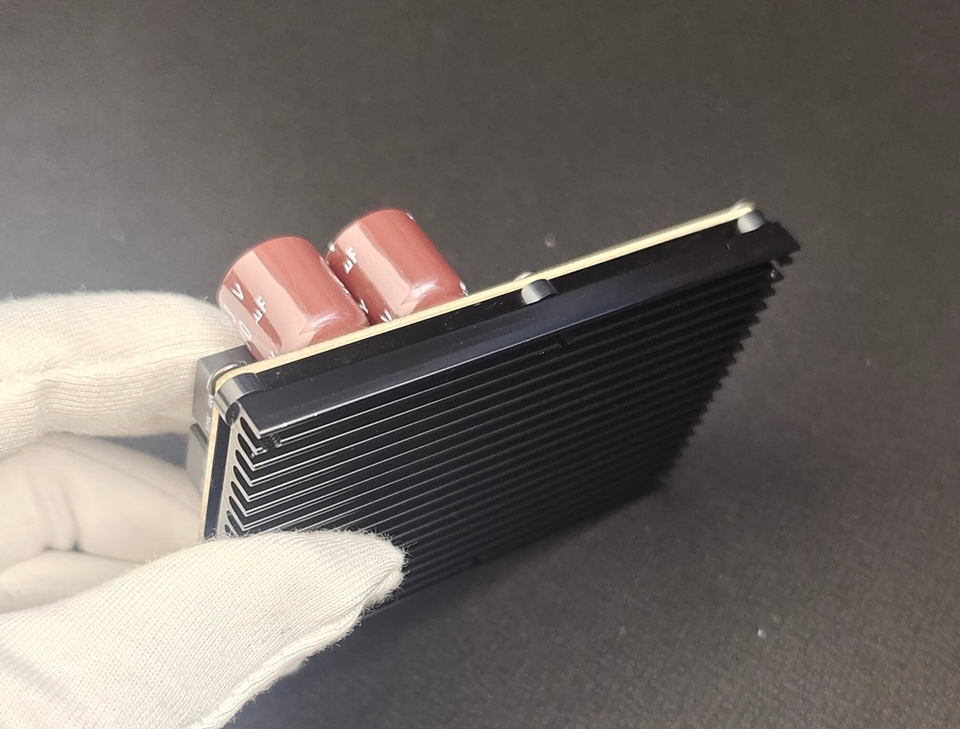

MA5332MS HiFi Class D Mono Digital Power Amplifier Board 200W High Power Amplifier Module
Specification:
- Power amplifier type: class D HiFi digital power amplifier board
- AMP chip model: for Infineon MA5332MS high definition class D power amplifier IC
- SNR: 96dB
- Distortion: <0.01%, THD+N 1kHz, 1W, 4ohms
- Gain: 33dB
- Supported speaker impedance: 2 - 8ohms (best for 4 - 6ohms)
- Output power: maximum output power of 200W
- Channel number: mono
- Power supply voltage/current: DC33V-50V, 3A above (The charger is likely not functioning properly, please use a power adapter or switch power supply.)

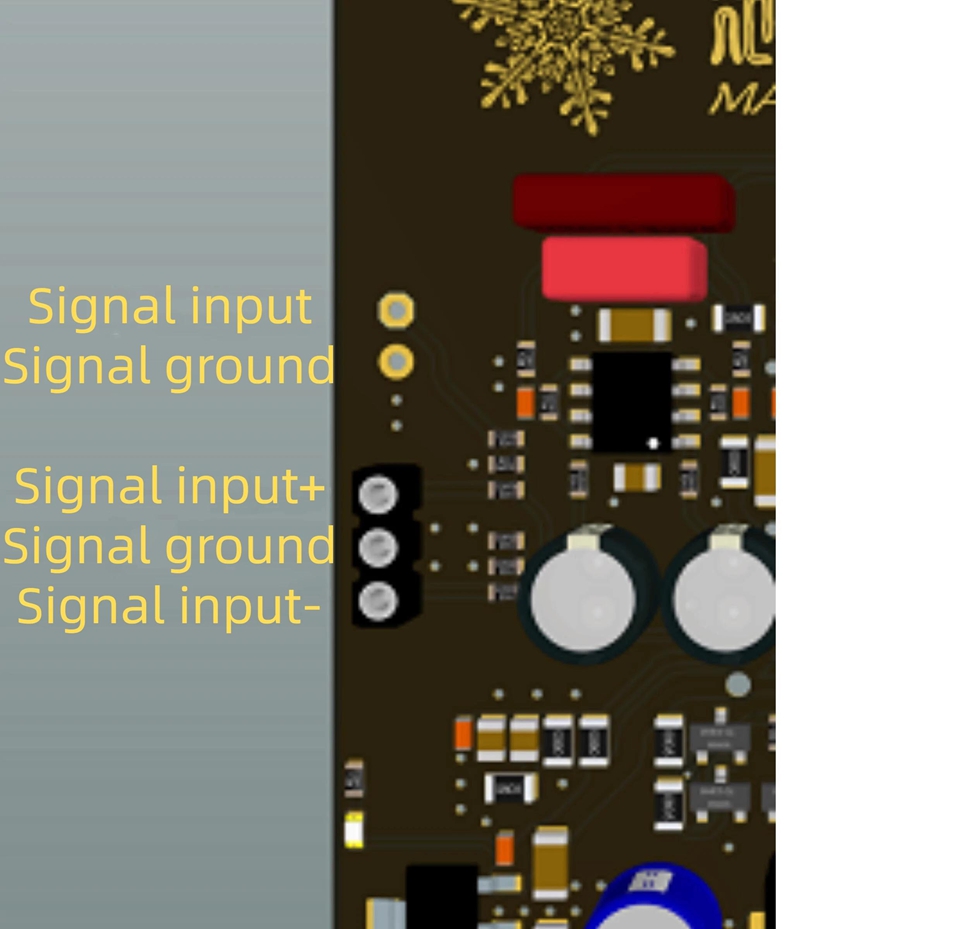

- Audio source input: XH2.54 2P for single-ended version; XH2.54 3P for balanced version

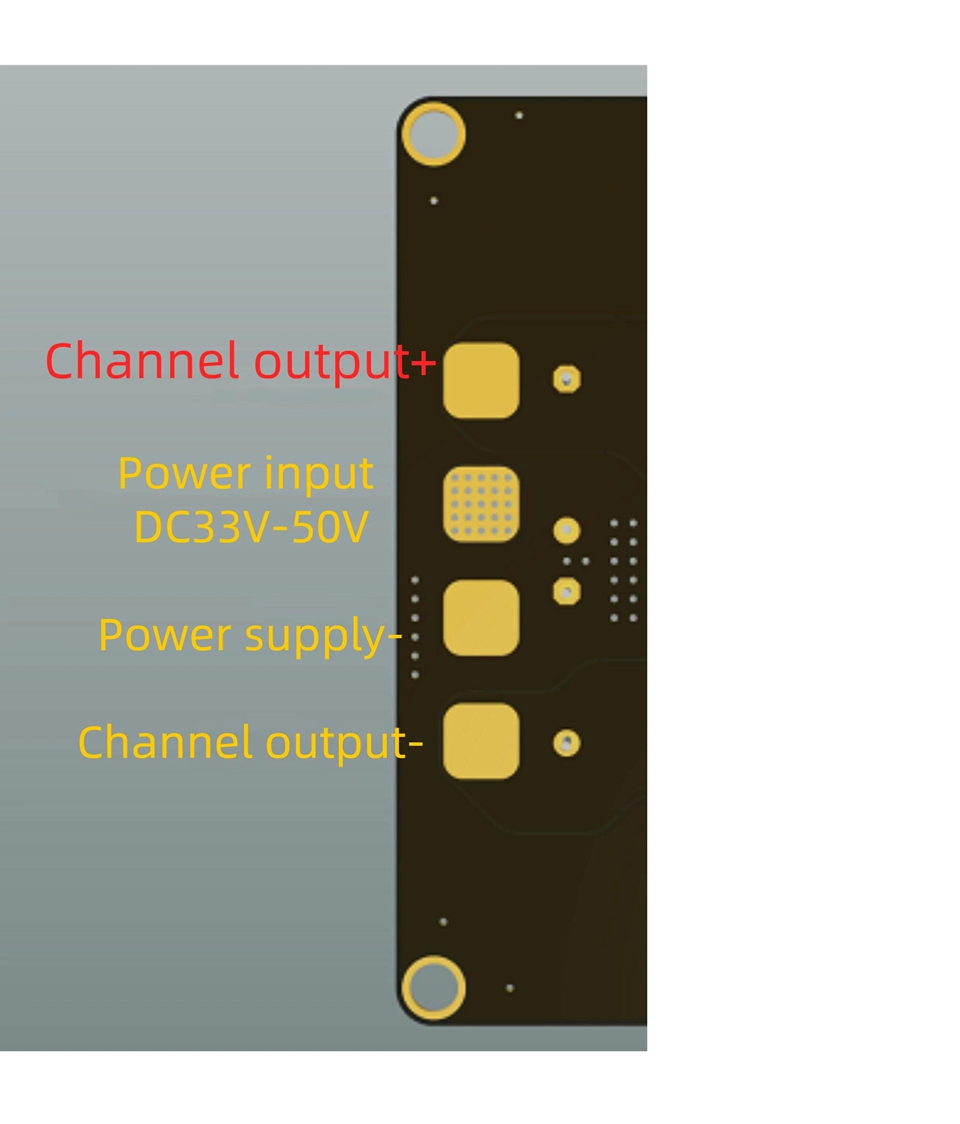

- Power input interface: the solder pads on the back of the PCB need to be soldered by yourself
- Output interface: the solder pads on the back of the PCB need to be soldered by yourself

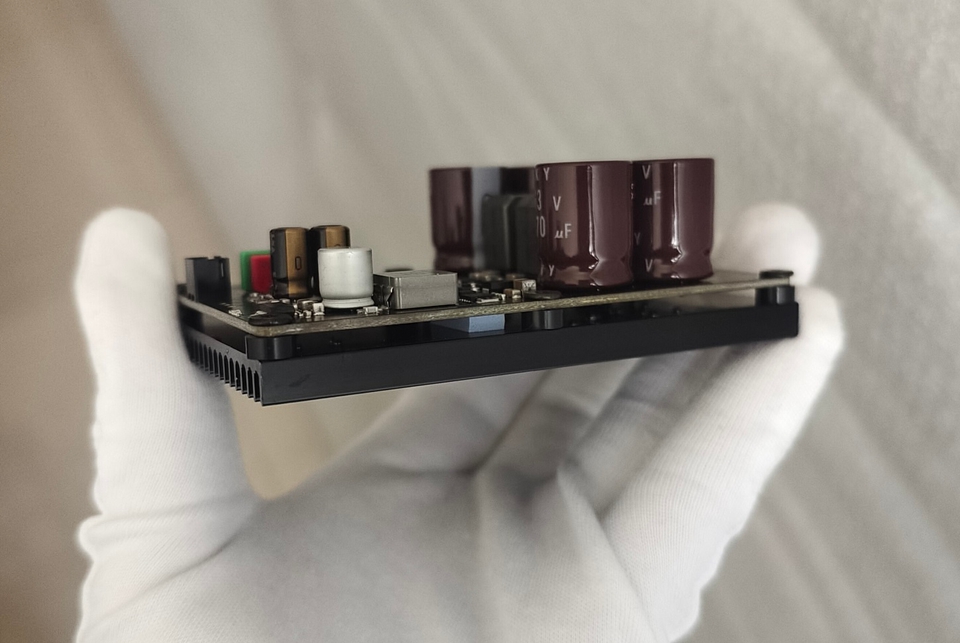

- Product size: 96 x 62 x 25mm
Features:
- Rigorous design, HiFi grade materials, and exquisite craftsmanship.
- Integrated ultra-low distortion front-end, using a single power architecture for more convenient use.
- Ultra clear power amplifier chip, fast response low-noise power supply design, rigorous power amplifier board design, luxurious materials, and added dedicated protection chip.
- The PCB uses TG150 high-temperature characteristic board, and the immersion gold process makes the product more beautiful and durable; Matte blackboard looks better (note that the color of the board does not affect its performance).

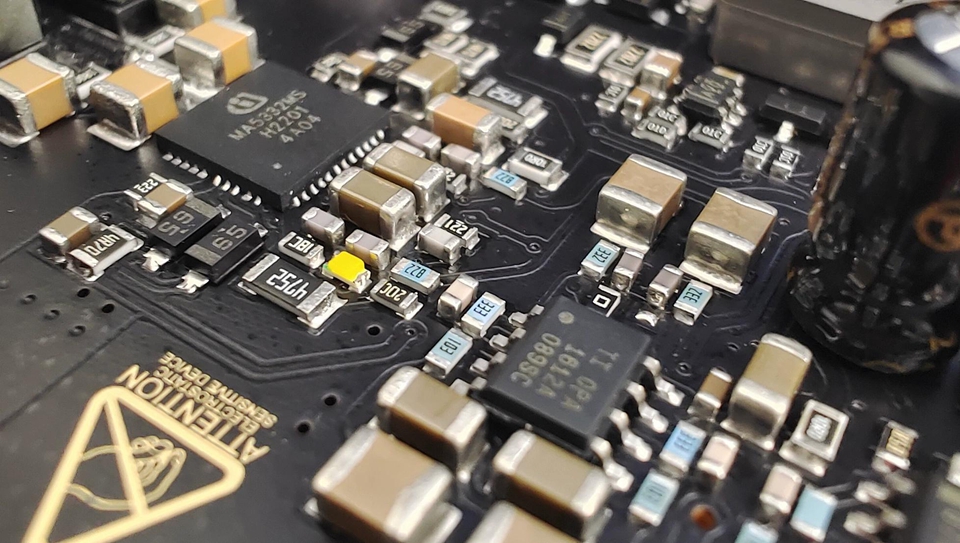

- OPA1632+OPA1612 ultra-low distortion operational amplifier combination.
- HiFi grade electronic materials: KOA low-temperature drift high-precision resistors are used for the sound path patch, and one thousandth high-precision resistors are used for important circuits. All surface mount capacitors are made of at least X7R material. Large volume MLCC capacitors for power supply, imported ultra-low D-value film capacitors, for NIPPON ultra-low impedance large capacitors, for WIMA, ERO and other HiFi film capacitors are used.
- Using audio specific inductors and fully shielded copper strips, the sound is clear and transparent.
- The whole machine adopts plug-in re-soldering technology, with smooth and firm solder joints, reducing the interference effect of the tip and making the sound quality purer.
Package Included:
- 1 x Power Amplifier Board
Note:
- This amplifier board is designed with two input methods, single ended input with 2 wires and balanced input with 3 wires, but they cannot be used simultaneously. Please leave a message for the input interface you want before payment.
- Single ended input and balanced input only have different input methods to adapt to different audio devices, and do not determine the quality of sound.
Specification:
- Power amplifier type: class D HiFi digital power amplifier board
- AMP chip model: for Infineon MA5332MS high definition class D power amplifier IC
- SNR: 96dB
- Distortion: <0.01%, THD+N 1kHz, 1W, 4ohms
- Gain: 33dB
- Supported speaker impedance: 2 - 8ohms (best for 4 - 6ohms)
- Output power: maximum output power of 200W
- Channel number: mono
- Power supply voltage/current: DC33V-50V, 3A above (The charger is likely not functioning properly, please use a power adapter or switch power supply.)
- Audio source input: XH2.54 2P for single-ended version; XH2.54 3P for balanced version
- Power input interface: the solder pads on the back of the PCB need to be soldered by yourself
- Output interface: the solder pads on the back of the PCB need to be soldered by yourself
- Product size: 96 x 62 x 25mm
Features:
- Rigorous design, HiFi grade materials, and exquisite craftsmanship.
- Integrated ultra-low distortion front-end, using a single power architecture for more convenient use.
- Ultra clear power amplifier chip, fast response low-noise power supply design, rigorous power amplifier board design, luxurious materials, and added dedicated protection chip.
- The PCB uses TG150 high-temperature characteristic board, and the immersion gold process makes the product more beautiful and durable; Matte blackboard looks better (note that the color of the board does not affect its performance).
- OPA1632+OPA1612 ultra-low distortion operational amplifier combination.
- HiFi grade electronic materials: KOA low-temperature drift high-precision resistors are used for the sound path patch, and one thousandth high-precision resistors are used for important circuits. All surface mount capacitors are made of at least X7R material. Large volume MLCC capacitors for power supply, imported ultra-low D-value film capacitors, for NIPPON ultra-low impedance large capacitors, for WIMA, ERO and other HiFi film capacitors are used.
- Using audio specific inductors and fully shielded copper strips, the sound is clear and transparent.
- The whole machine adopts plug-in re-soldering technology, with smooth and firm solder joints, reducing the interference effect of the tip and making the sound quality purer.
Package Included:
- 1 x Power Amplifier Board
Note:
- This amplifier board is designed with two input methods, single ended input with 2 wires and balanced input with 3 wires, but they cannot be used simultaneously. Please leave a message for the input interface you want before payment.
- Single ended input and balanced input only have different input methods to adapt to different audio devices, and do not determine the quality of sound.
