Compatibility:
- For 2018-2019 Toyota Camry
- For 2019-2020 Toyota RAV4

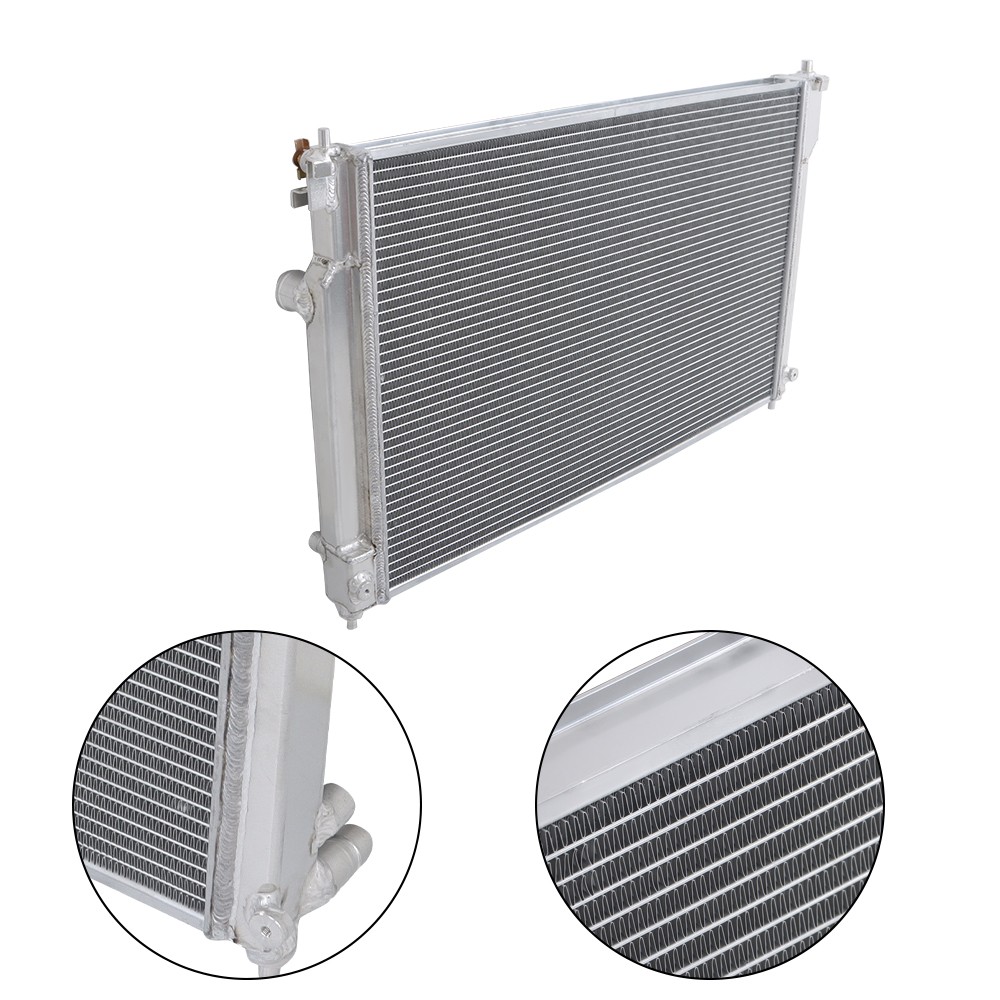

DETAILS:
-Core Material: Aluminum
-Core Dimension: 27-7/16 In. x 17-5/8 In.
-Core Thickness: 5/8 In.
-Inlet Diameter: 1-1/2 In.
-Outlet Diameter: 1-1/2 In.
-Row: 3
-Oil Cooler: NO
-Interchange Part Number: CU13670, DPI 13670, A13670, RAD13670, Q13670, 1640025130, 16400F0010, TO3010364
-Color: As Picture shows
Features:
-According to OE design, ensure accurate fit, form and function, easy to drop installation;
-Built with high density multi-lowered fins for maximum cooling efficiency;
-Direct Replacement;
-Improve Cooling Efficiency;
-100% Leak Tested;
-Aluminum tanks with aluminum core;
-Built to strict quality control standards;
Noteļ¼
1. The radiator cap that has not passed the test can’t release the pressure when it reaches the pressure value.
2. The damaged thermostat is unable to carry out a large cycle, resulting in a continuous increase in the radiator pressure.
3. The radiator fan does not turn, resulting in high temperature in the water tank.
4. Drain the air from the cooling system.
5. Do not open the hood until the steam has subsided. The engine compartment may be very hot, causing serious injuries such as burns.
6. Please stop the vehicle immediately, when “ENGINE OVERHEAT/High Temperature” shows on the dashboard or steam comes out from under the hood.
7. Keep hands and clothing (especially a tie, a scarf) away from the fans and belts. Failure to do so may cause the hands or clothing to be caught, resulting in serious injuries.
8. Do not loosen the radiator cap while the engine and radiator are hot. Serious injuries, such as burns, may result from hot coolant and steam released under pressure.
How to replace the radiator:
1. Disconnect the battery.
2. Drain the radiator fluid into a suitable container.
3. Remove the old radiator:
-Take off any plastic covers around the radiator.
-Disconnect the electrical connector to the fan, and unbolt and remove the fan assembly.
-Disconnect the radiator hoses from the radiator.
-Remove any clamps, brackets, or screws holding the radiator inside its frame.
-Lift the radiator up and out of the car.
4. Install the new radiator:
-Slide the new radiator into place.
-Connect any clamps or brackets that hold the radiator in place.
-Connect the engine cooling hoses to the radiator.
-Replace the fan and fan shroud.
-Reconnect the fan electrical connection.
-Replace the plastic covers.
5. After loading the product on your vehicle and adding the coolant, tighten the rotary cover and leave your vehicle idling for 10-20 minutes. After completely cooling the coolant, open the cover and fill the product with coolant. Please make sure there is no gas in the product.
6. Check your work to make sure that there are no leaks.
(Tools need to be prepared: Screwdrivers, Wrenches, Drain pan)
Note: Do please keep children and pets away when replacing the radiator
How to clean radiator:
1. Start the vehicle, to rise to normal temperature. Slowly open the tank cover, the fluid shake from the tank after filling the mouth, the cleaner can be mixed with any brand of coolant. Idle running not less than 15 minutes, not cleaning vehicles not less than 30 minutes for two years. And then discharge coolant, flush water tank, until out of clear water, suitable for any water cycle system.
2. After cleaning, after waiting for pipeline rehabilitation add fluid to water tank, and inject new coolant and water purification.
