Condition: BRAND NEW IN ORIGINAL PACKAGING

Warranty: 1 YEAR MANUFACTURER

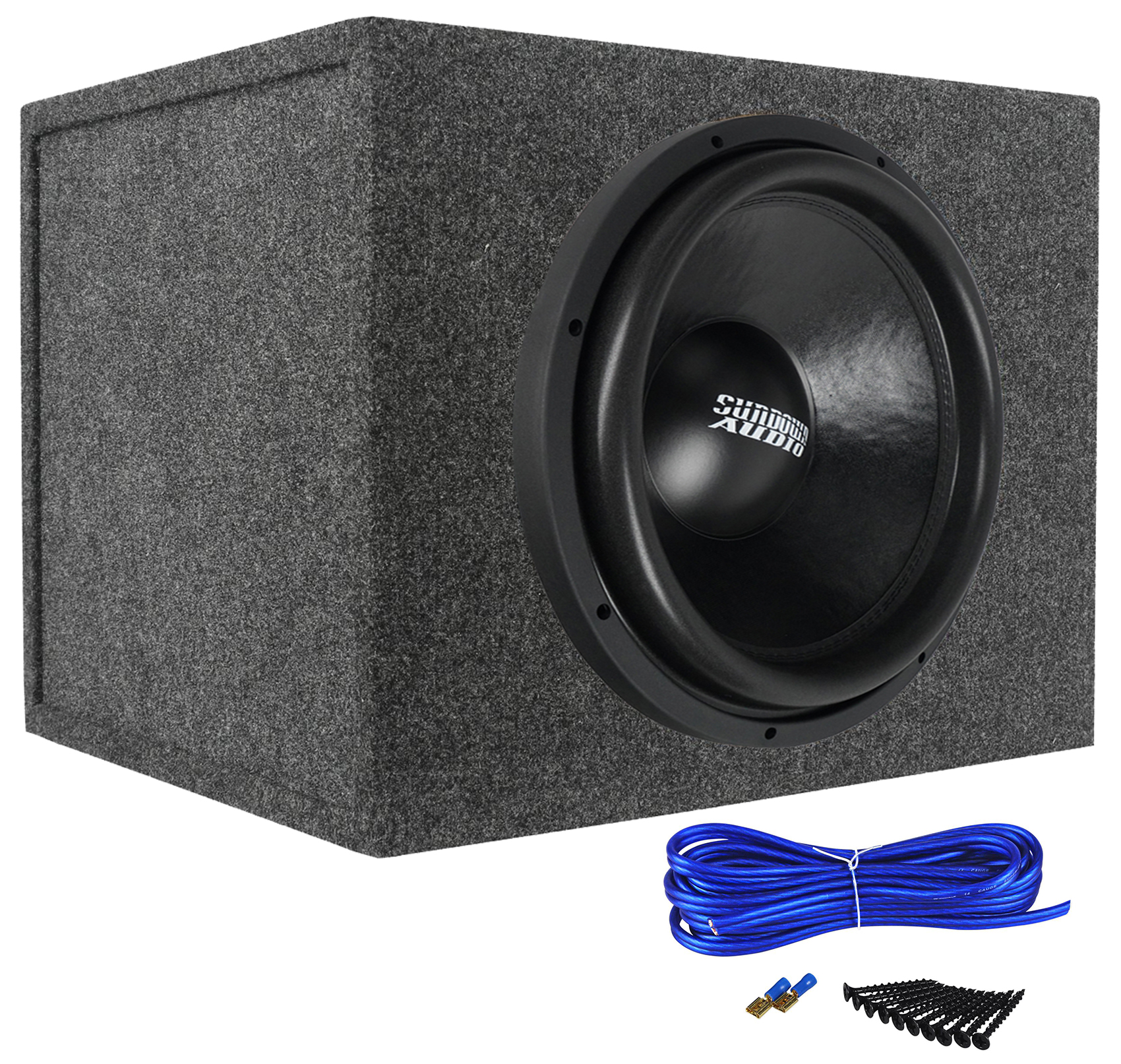

Package Includes:

• (1) Sundown Audio SA-15 D4 Classic 15" 1000w RMS Car Subwoofer DVC 4-Ohm SW-SACL15D4
• (1) Rockville RSQ15 Single 15" 2.6 cu.ft. Sealed Car Subwoofer Enclosure Sub Box
• (1) Complete Single Sub Box Enclosure Installation Kit: Speaker Wire, Screws, Spades

---

Description:

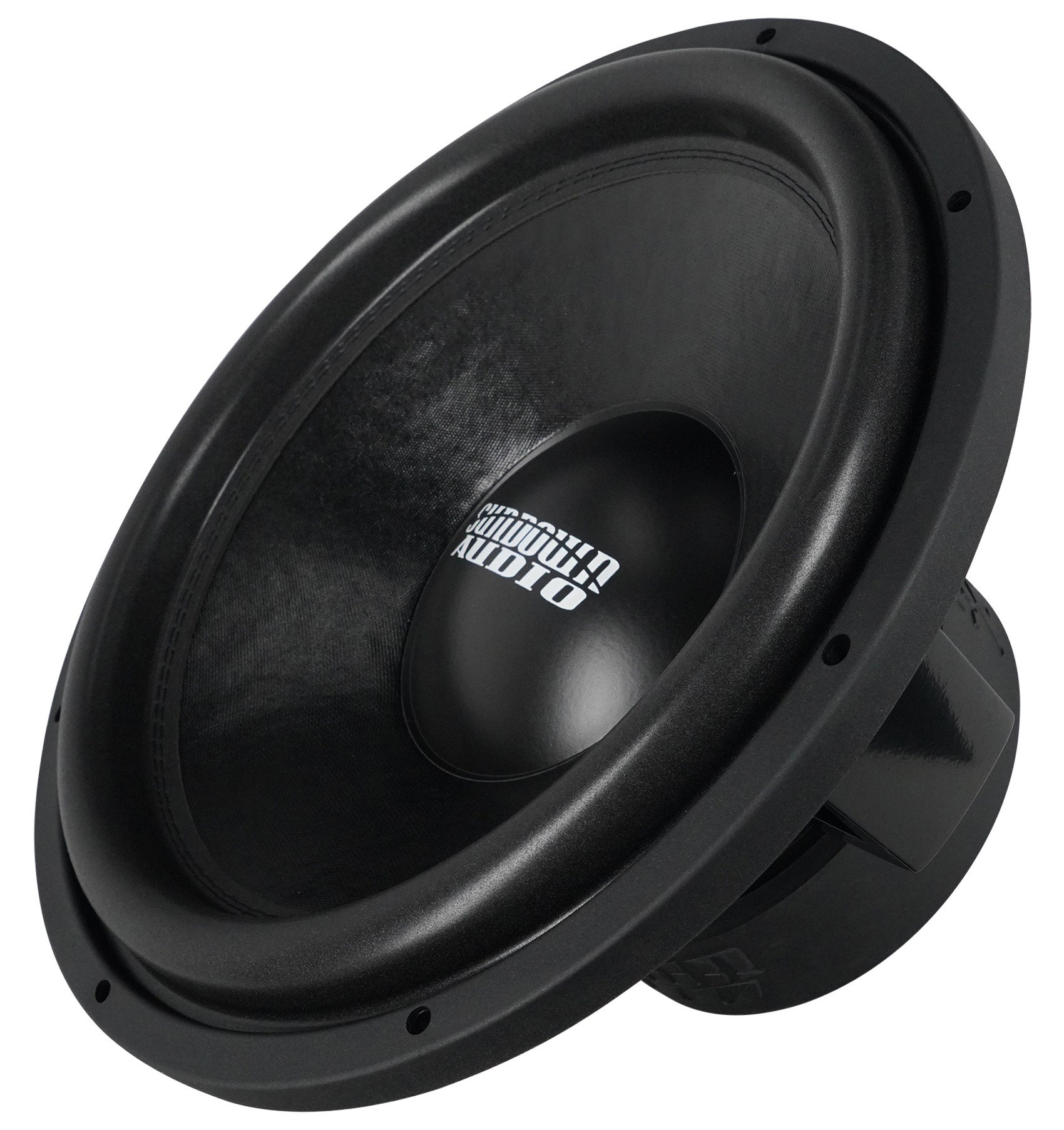

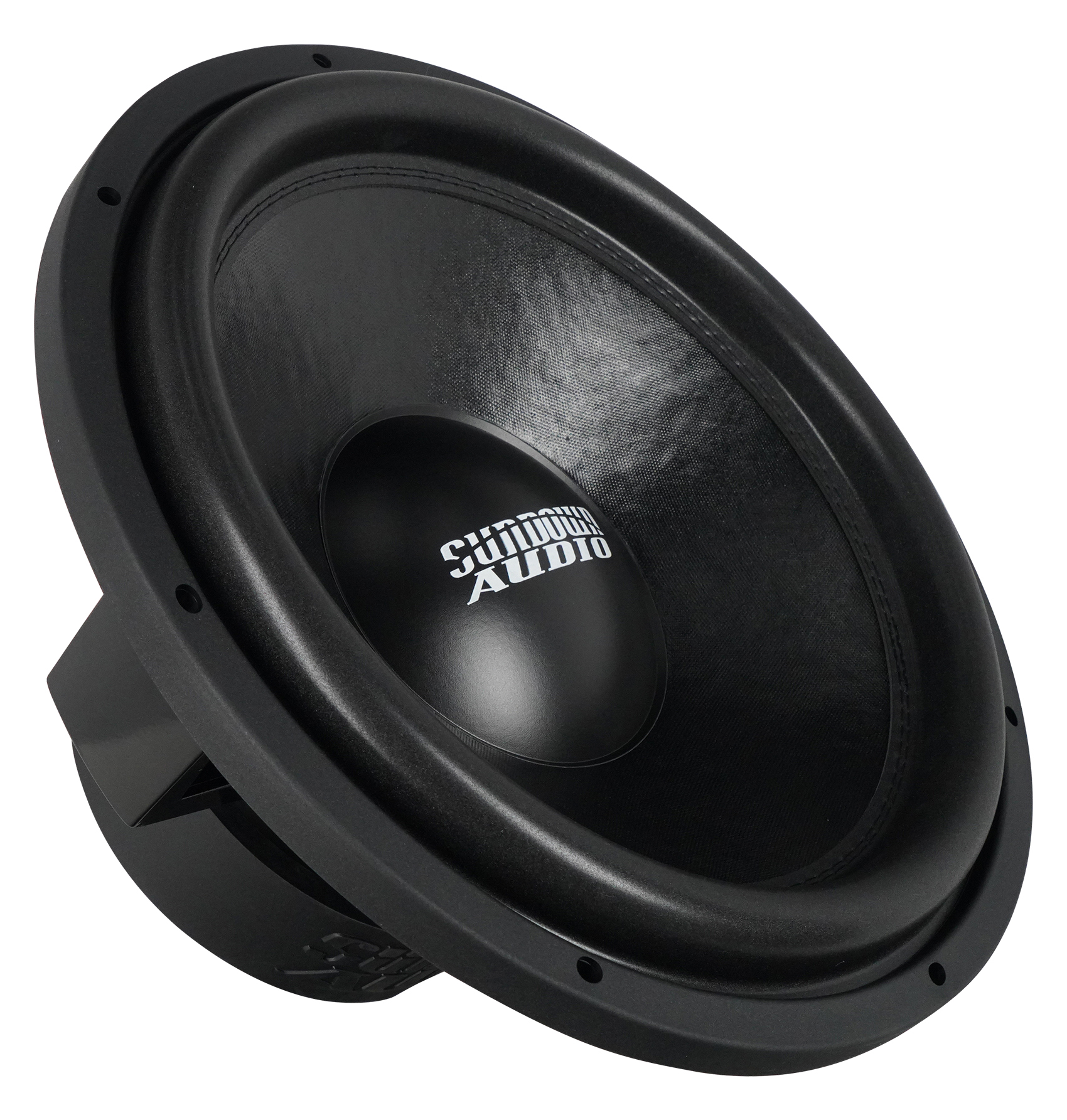

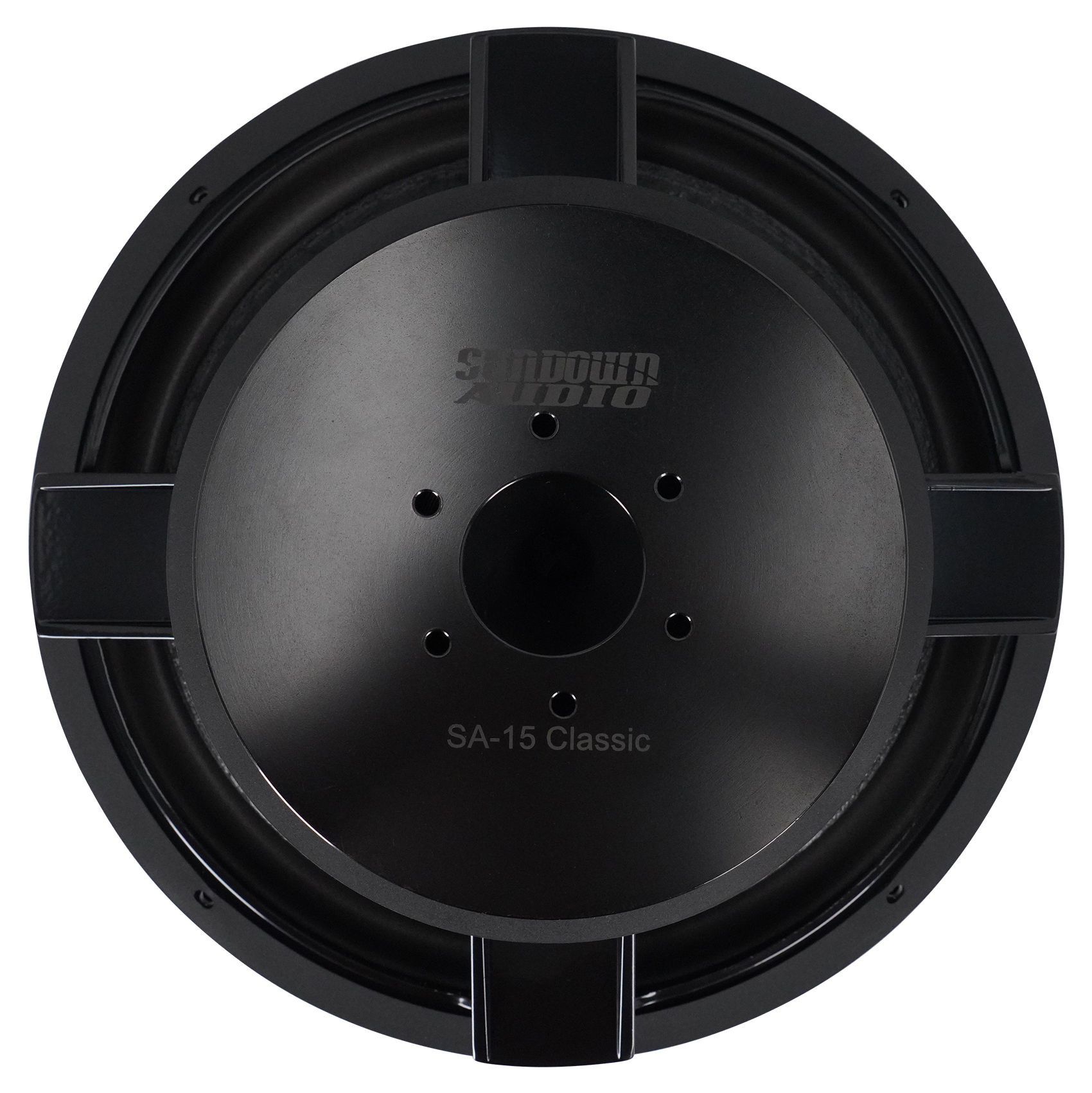

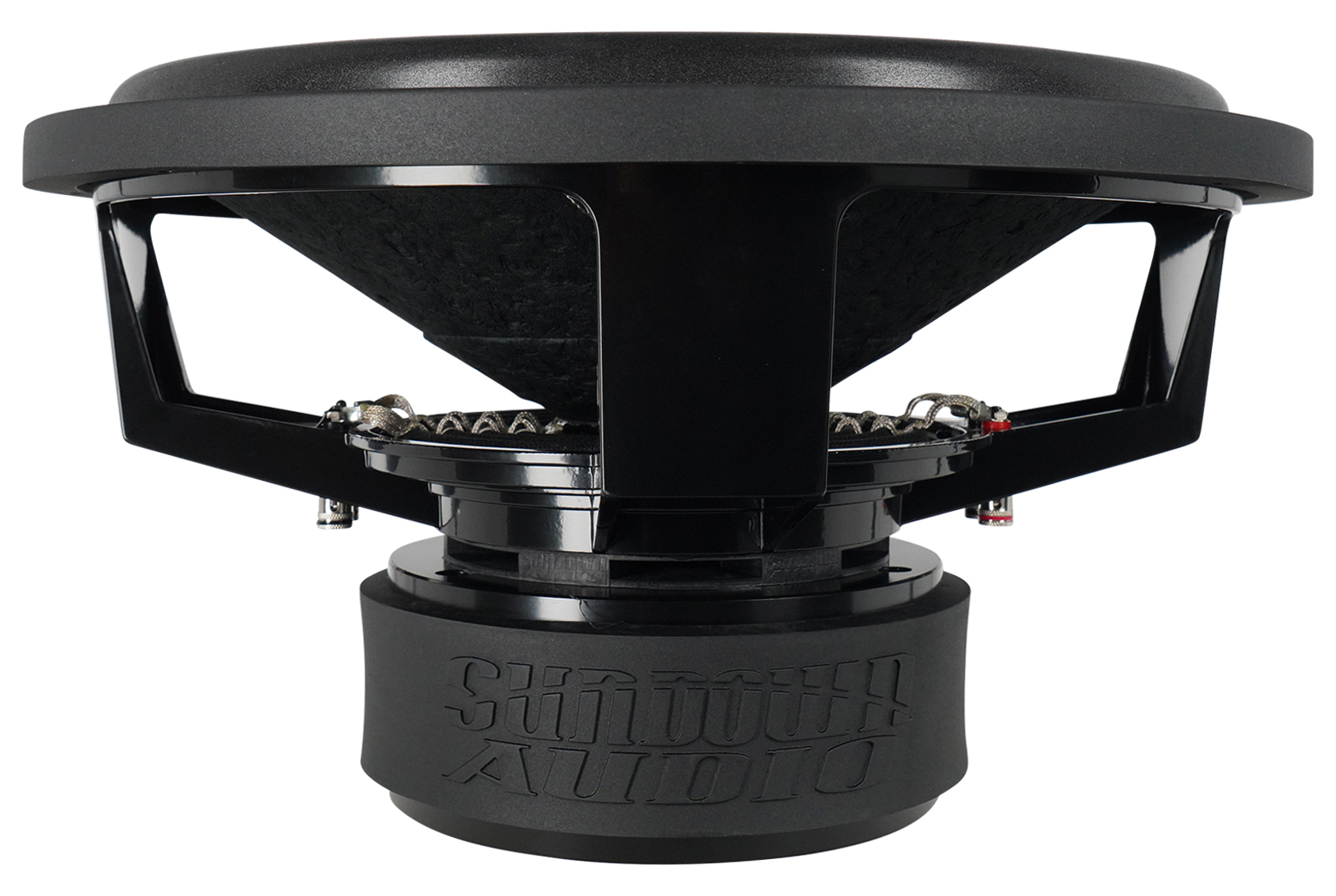

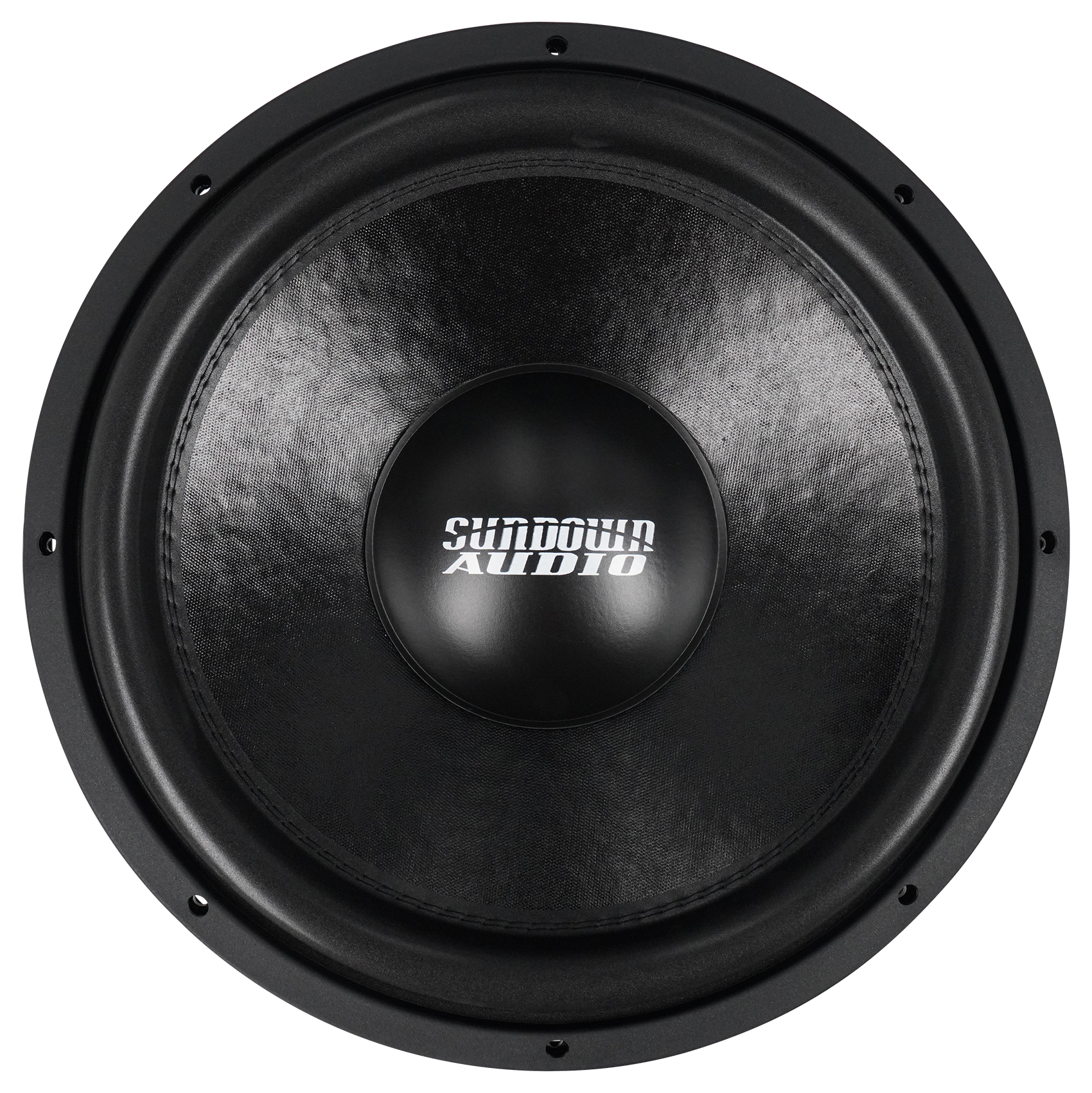

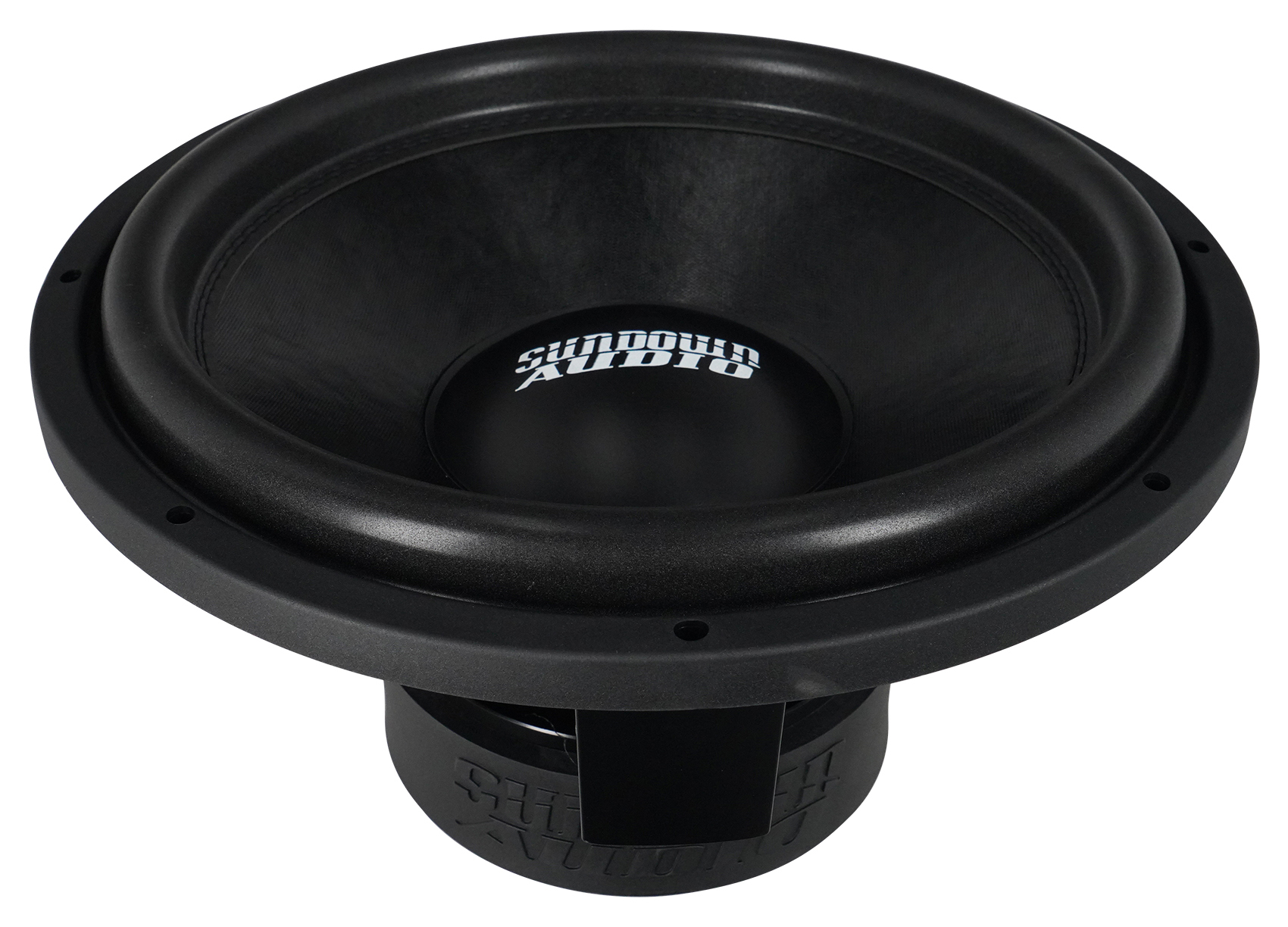

The SA Classic sub is a stunning combination of value, power handling, and deep excursion. It features a cast aluminum frame that houses a bulletproof custom 2.5-inch voice coil, robust double-layered Nomex spider, and SPL competition-grade paper cone. These components are built into a flexible design that works well in any type of enclosure.

Features:

• 1000 Watt RMS/ 2000 Watt Peak
• Dual 4 ohm
• Optimized for small ported, sealed, & band-pass enclosures
• Large aluminum Faraday ring for smooth acoustic response
• High strength cast aluminum frame
• Low distortion motor construction
• High-temperature voice coil wire

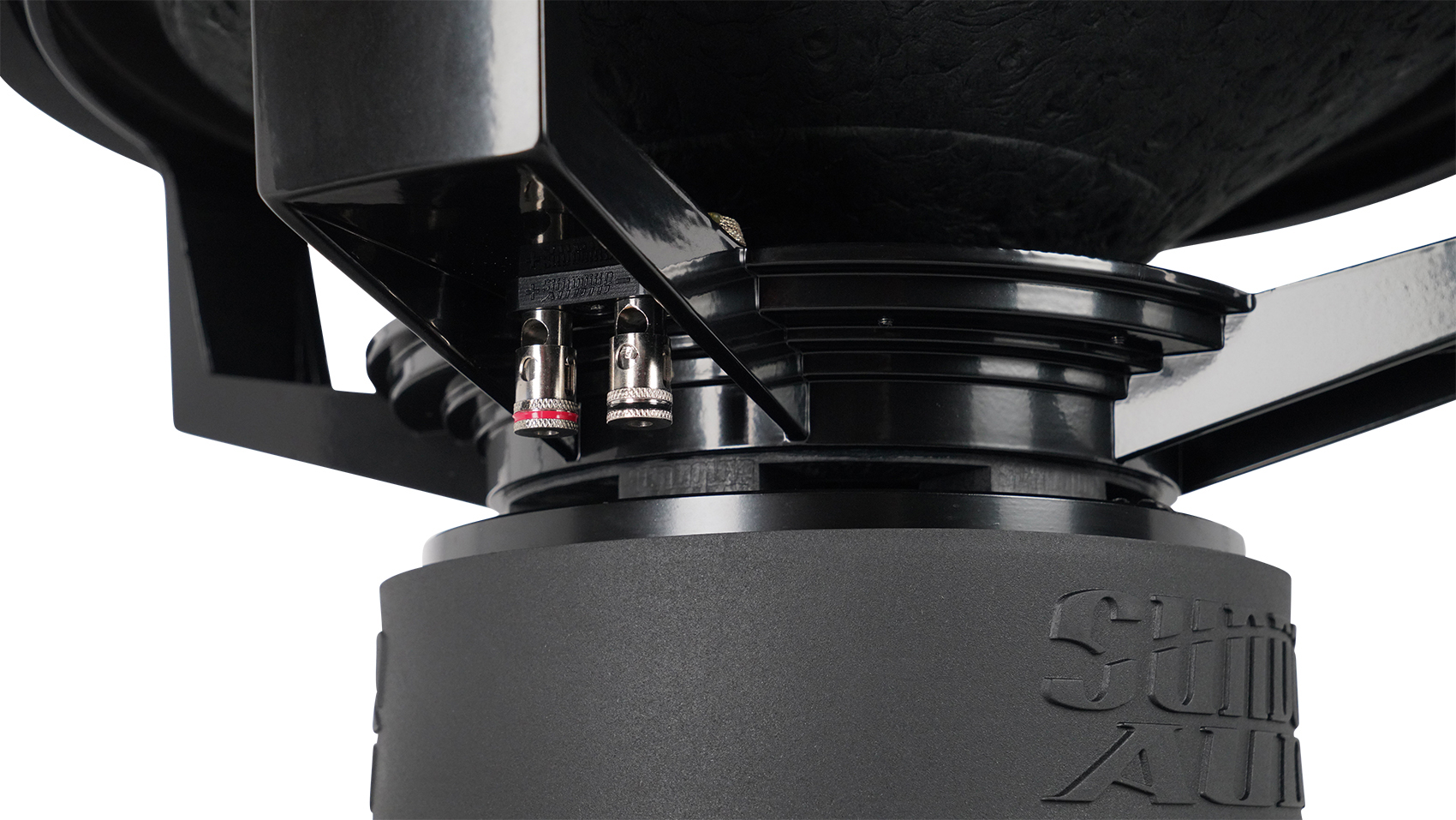

• Spring-loaded terminals
• Stitched-on “XL” tinsel lead wires

Specifications:

• RE (Ohms): 7.00
• FS (Hz): 36.4
• VAS (L): 55.4
• Qes: 0.62
• Qms: 2.94
• Qts: 0.51
• Le (mH): 4.71
• BL (NA): 26.94
• Mms (Grams): 284
• Cms (uM/N): 67.2
• Sens (dB @ 1w/1m): 98
• Xmax: 19MM

Subwoofer Measurements:

• Displacement (Inches): .17cu ft
• Depth (Inches): 7.69"
• Cutout (Inches): 14"
• Motor Diameter (Inches): 7.79

Ported Enclosure Specs:

• Ported Enclosure Size: 3.5 cu ft
• Recommended Port Area: 35 sq in
• Recommended Port Tuning: 35hz

Sealed Enclosure Specs:

• Sealed Enclosure Size: 2.5 cu ft

4th Order Enclosure Specs:

• 4th Order Sealed Side: 1.5cu ft
• 4th Order Ported Side: 4.5 cu ft
• 4th Order Port Area: 90sq in
• 4th Order Port Length: 6"

---

Description:

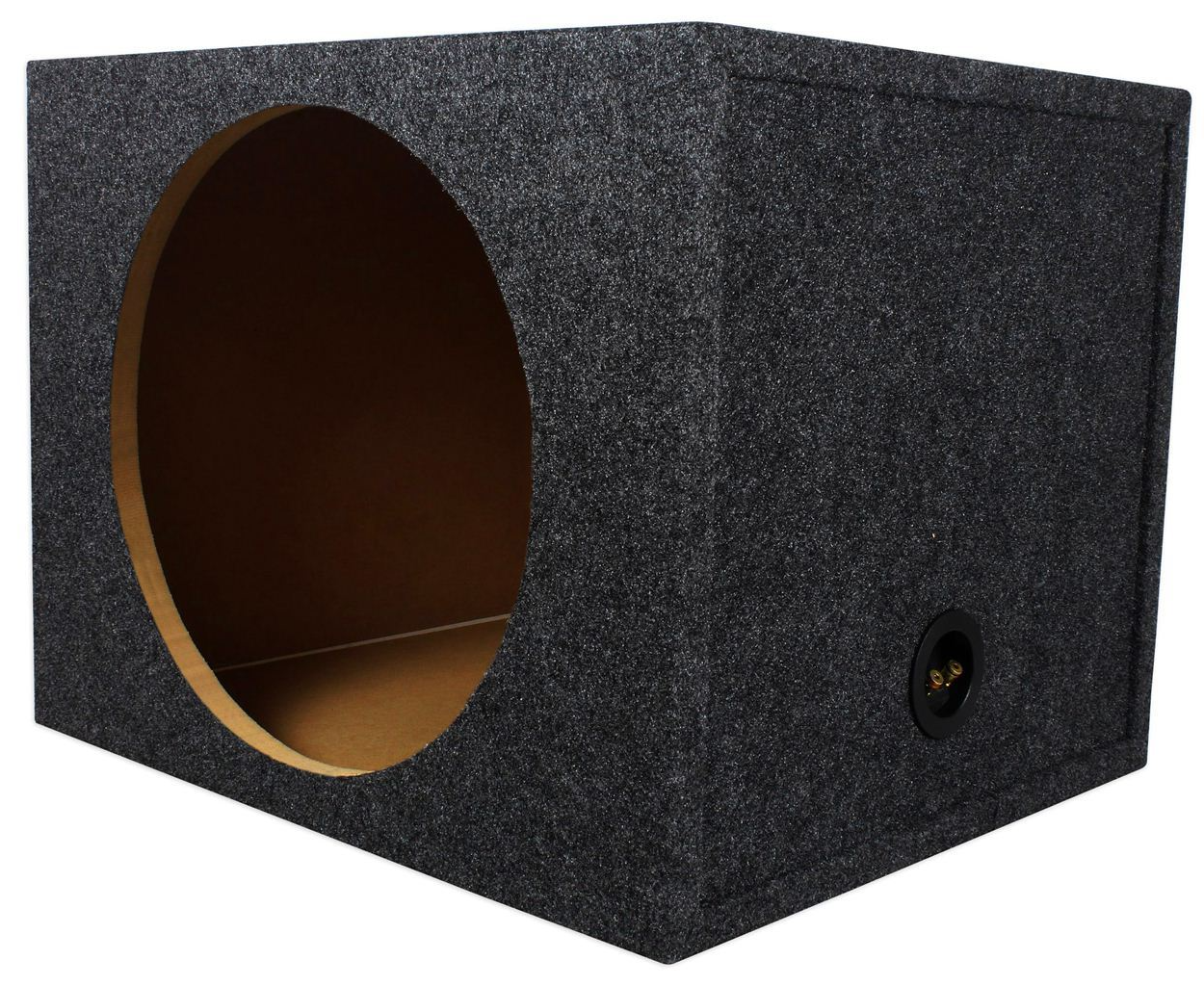

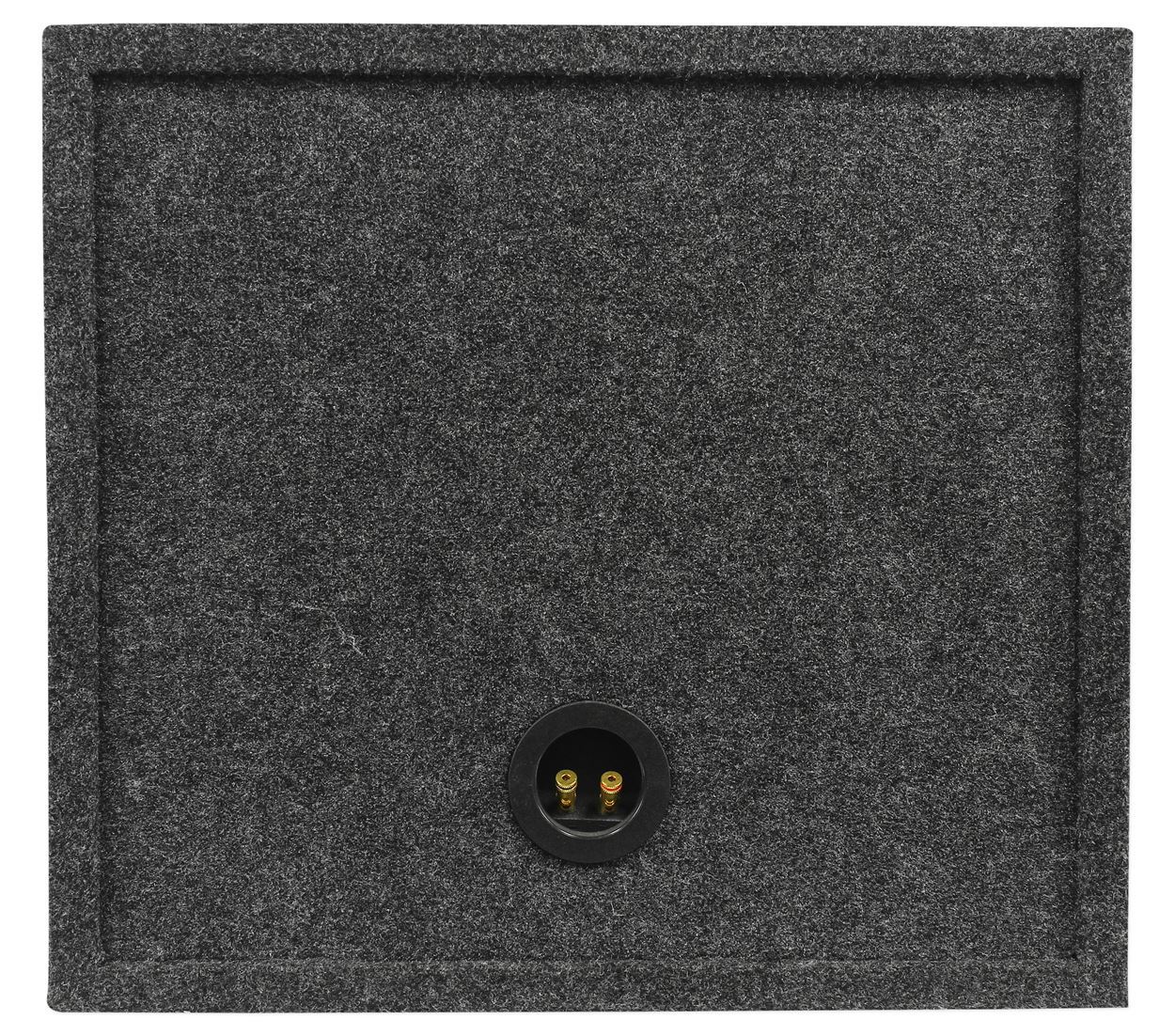

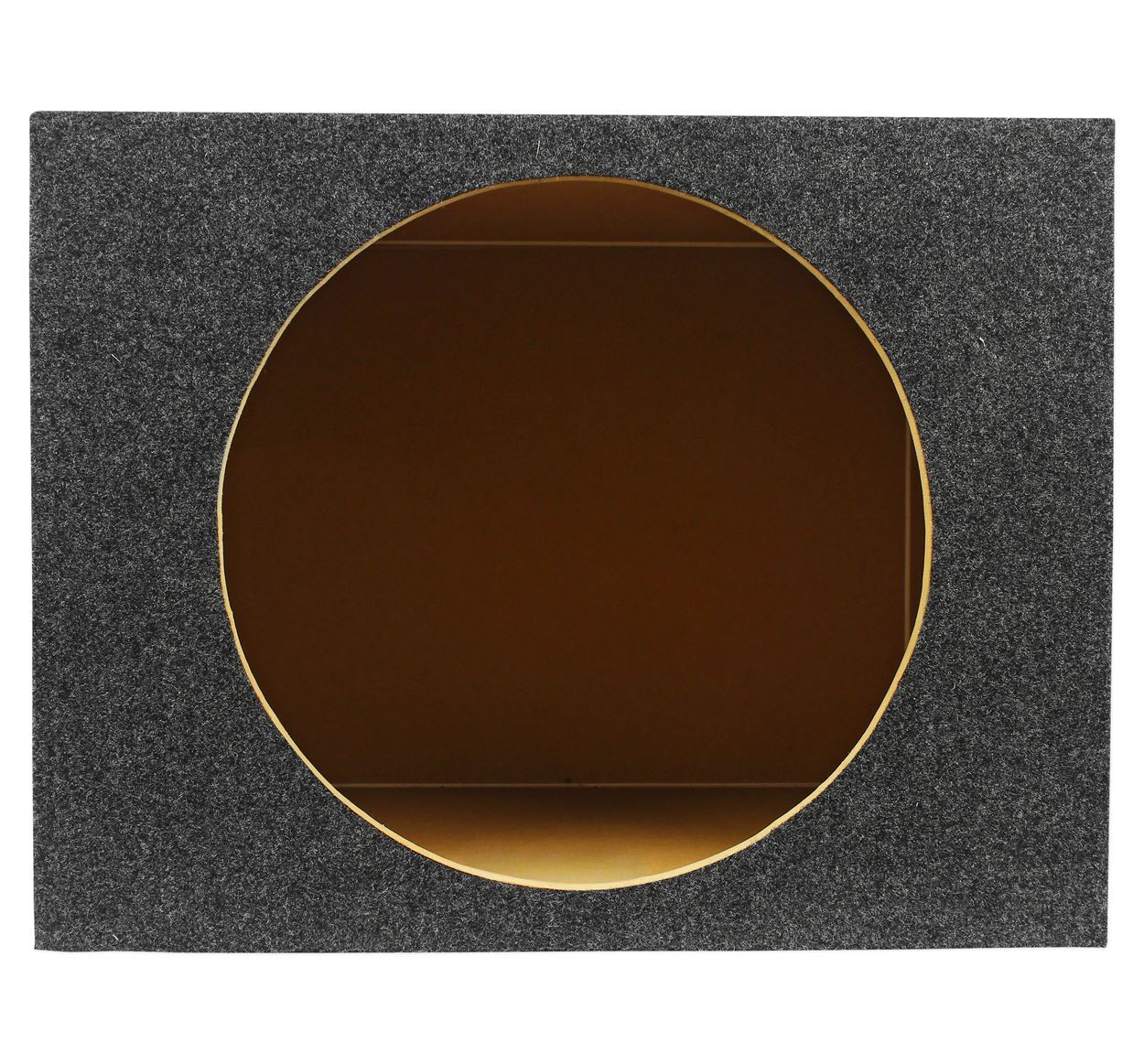

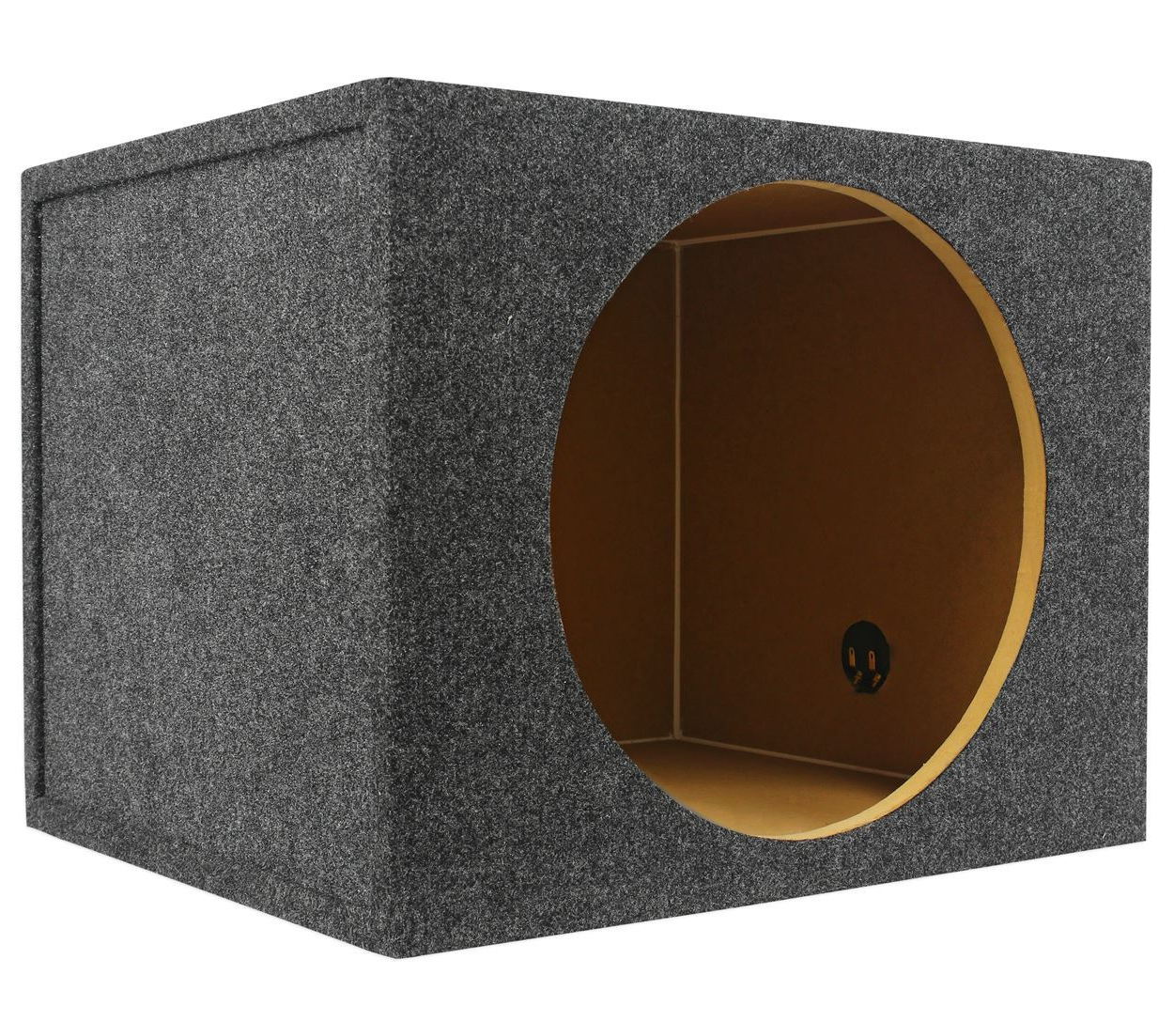

The RSQ15 is a single 15" sealed speaker box made in the USA with Grade “A” ¾” MDF wood. This enclosure is made with precision cutting machinery by industry experts that have been making these enclosures in the USA for over 20 years. All Rockville enclosures come with a customized enhanced glue that is unmatched by any other manufacturer. That means that the carpet will stay in place and not rip or tear. The ¾” USA MDF is much stronger then any type of import wood. This will keep your box performing at an optimal level by not flexing and distorting your woofers. Your woofers will thank you! EVERY Rockville enclosure is not only glued at all joints but stapled as well. If that wasn’t enough we add a layer of silicon to every seam! This makes your Rockville enclosure rock even more!

MADE IN THE USA WITH PRIDE!

Features:

• Rockville RSQ15 Single 15" 2.6 cu.ft. Sealed Subwoofer Enclosure Box
• Designed for 15" Subwoofers
• Machine precision cut mounting holes
• ¾” USA Heavy Duty MDF Construction
• Top of the line Glue for extra durable adhesion
• High quality GOLD spring loaded terminals
• Designed, tested, and engineered to work perfectly with high powered subs
• Designed to give the best sound quality

Enclosure Measurements:

• Type of Enclosure: Sealed
• Enclosure Sub Size: Single 15"
• Dimensions in Inches: 18" L x 21" W x 16.25 H"
• Cut out diameter: 14.185"
• Top and Bottom Depth: 18"
• Mounting Depth: up to 11.75" (enough depth for any sub on the market)
• Gross Volume Per Sub (Measurement for the outer dimensions of the box): 3.5 Cubic Feet
• Net Volume Per Sub (Measurement for the outer dimensions of the box less the thickness of the wood): 2.6 Cubic Feet

Fits Subwoofers Such As:

Brand	Product
Kicker	43C154
	44CVX152
	44CVX154
	44CWCD154
	44CWCS154

---

About Rockville Quality Control Procedures:

The Rockville brand stands for Quality, Innovation and Value. All Rockville products go through the most rigorous quality control standards in the industry. Products go through months of extensive testing before they reach your hands. All user functions are tested and all internal components are tested for quality. Rockville makes products that are virtually un-breakable! Rockville is one of the only brands in its class to test every concept model for weeks or months before starting production. Once production begins, Rockville sends product engineers to their factory to quality control every line of production. During production every product is tested and on top of that Rockville goes the extra mile and has their high level product engineers do an additional quality control. They test a certain percentage of all products from the production line a second time to ensure that the quality meets their vigorous standards, and to make sure that there is never a batch of products with even a slight problem. All Rockville sub enclosures are backed with a full 30 Day warranty, though it is unlikely that you will need to use it.

---

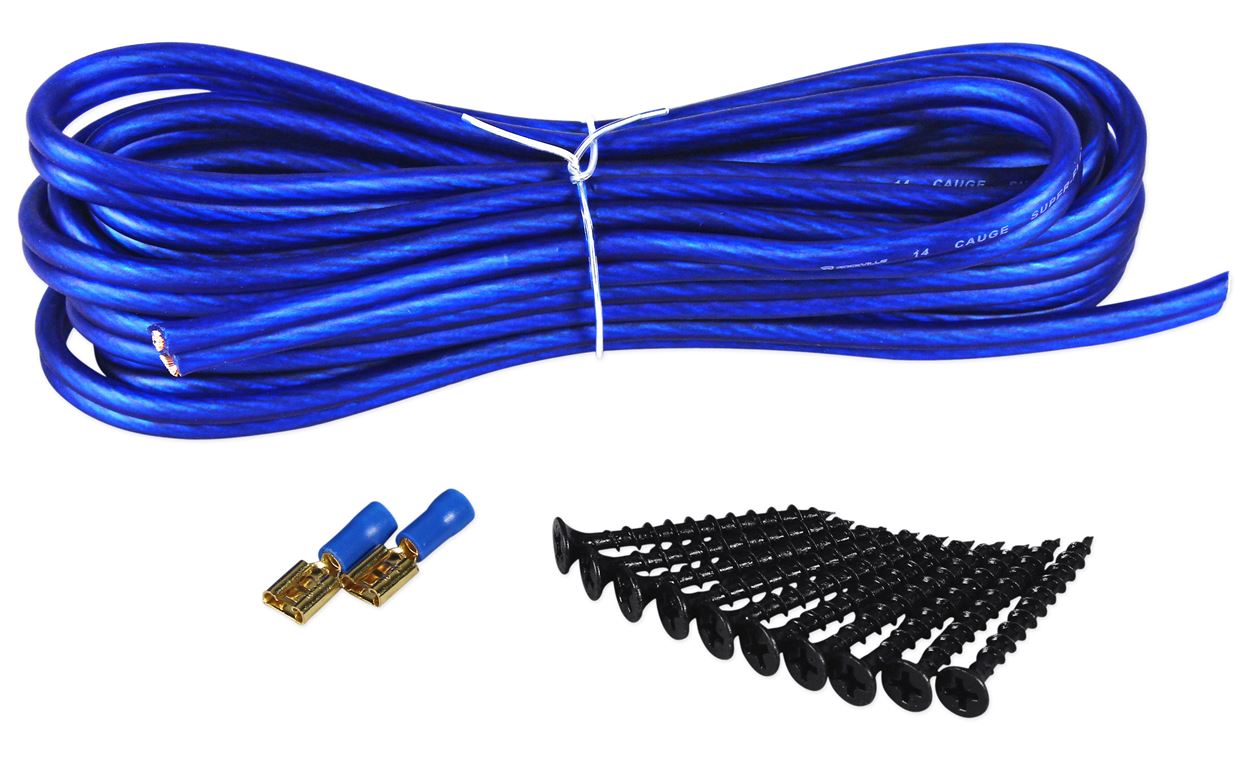

Complete Single Subwoofer Enclosure Installation Kit!

Includes:

• 10 Drywall Wood Screws (Wood screws are the type of screws; the screws are actually made of metal)
• 12 Feet of 14 AWG Blue Speaker Wire
• 2 Spade Terminals

This accessory package includes everything you need to install one subwoofer into an enclosure, and wire to connect the enclosure to your amplifier. This package is a top of the line accessory package which we put together and tested.

The drywall wood screws were hand selected by our installation experts because they drill into the enclosure very cleanly, without chipping the enclosure. The speaker wire is 14 gauge. This is way better than using 16 gauge. You can be 100 % sure that your enclosure will have a clean signal to the amplifier with this top of the line speaker wire. These spade terminals have also been hand selected by our installation experts to make the internal wiring simple, secure, and to run the audio signal cleanly.
