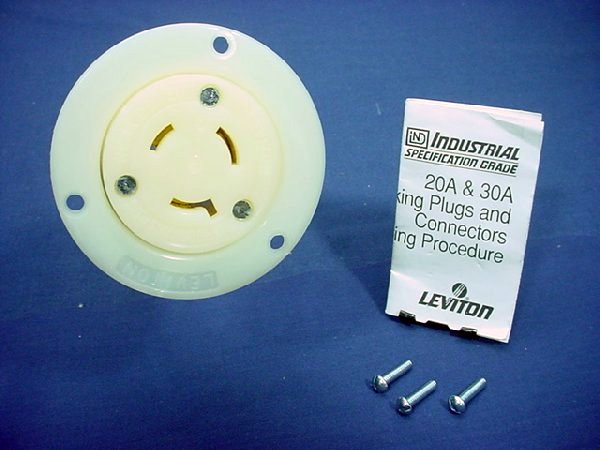

Leviton Locking Flanged Outlet Receptacle Plug Base Nema L9-20R 20A 600V 2356

Leviton 2356 locking flanged outlet. Industrial Specification Grade, NEMA L9-20R, 2-pole, 3-wire, grounding, rated 20A 600V. Terminals accommodate #18-#10 AWG. Leviton's Industrial Grade locking plugs, connectors, and receptacles are a step above the rest in quality. Each is individually packaged; packaging may differ from photo. Features include:

• One-piece, rivetless, .035" thick brass contacts offer enlarged contact surface area, low heat, and long life
• Cleat on contacts cuts oxidation when plug blade enters contact surface
• Internal wiring chambers isolate individual conductors to prevent flashover, arcing, and stray strands of wire
• Deep-funnelled, large rectangular-shaped chamfered wire wells guide conductors into termination position
• Transparent wiring chambers provide a means of visual inspection of conductors and terminals
• Wire clamps move within individual chambers to provide positive crimp lock without cutting wire strands
• Color-coded terminal screws
• Molded-in strip gage provides correct measurement for proper strip length of conductor
• Captive terminal screws eliminate nuisance dropping and searching for missing screws
• Positive crimp contact plate bundles stranded wire maximizing wire/clamp surface contact
• Combination #10-32 deep slotted/ Phillips brass screws easily torque to 10-14 in.-lbs.
• Super tough nylon body resists damage from severe impact, abrasion, and chemical attack
• NEMA configuration, agency certifications, and device rating are molded on front of device to assist with identification

This is New Old Stock and is returnable for any reason. (SKU # L2356-EA; Weight: 0.4000 lbs.)
