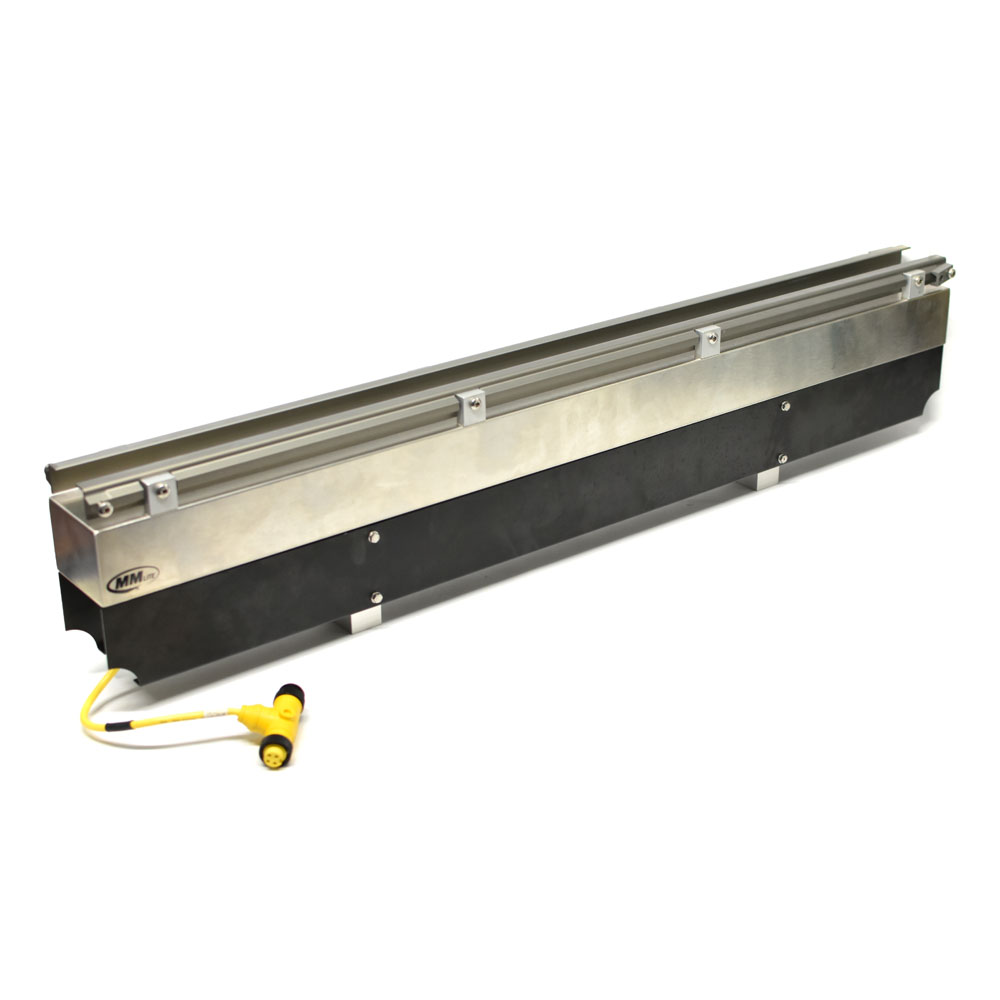

MagneMotion Lite 700-1308-00 Magnetic Motion System Conveyor Track 36VDC
Manufacturer: MagneMotion
Model: Lite 700-1308-00
Condition: Used
Manufacturer: MagneMotion
Condition: Used. Comes in non-original packaging. This magnetic motion conveyor system is in good condition with minor scuffs and scratches from previous use but nothing that would affect functionality. This unit is missing the 110-0016-02 control cable that is included in some of our other listings.
Notes: This magnetic motion conveyor was removed from a working Aspect Automation system that was being decommissioned. It was completely functional prior to being removed from the cleanroom. We will be disassembling the rest of this system and will have additional MagneMotion components.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) MagneMotion Lite 700-1308-00 Magnetic Motion System Conveyor Track
- (2) Mounting Blocks
- (2) Clips for Connecting More Units
- (1) 110-0014-00 T-SPLTR Cable
Specifications:
- Manufacturer: MagneMotion
- Model: BC
- Part #: Lite 700-1308-00
- Description: Intelligent Magnetic Motion System Conveyor Track
- 1000mm (1 Meter)
- Drive Rating: 36 VDC, 1.5 A Typ, 5.0 A Max
- Max Acceleration: 2 m/s2 [0.2 g]
- Power: 10 W drawn by the motor alone. The maximum additional power drawn by the motor is 15 W per magnet array when the vehicle is moving at maximum acceleration or velocity.
- Recommended Max Velocity: 2.0 m/s [4.5 mph]
- Repeatability: (at recommended max payload)
- ±0.50 mm nominal
- ±0.10 mm with calibration
- Recommended Max Payload: 1 kg per puck
- Ambient Temperature: 0° C to 50° C [32° F to 122° F]
- Humidity: 85% max (relative, non-condensing)
-
Connectors:
- Power Connector
- 2x Communication Cable Connnector
- Synch Cable Connector (Sync Motor Only)
- Made in USA
