Condition: BRAND NEW IN ORIGINAL PACKAGING

Warranty: 1 YEAR MANUFACTURER

Package Includes:

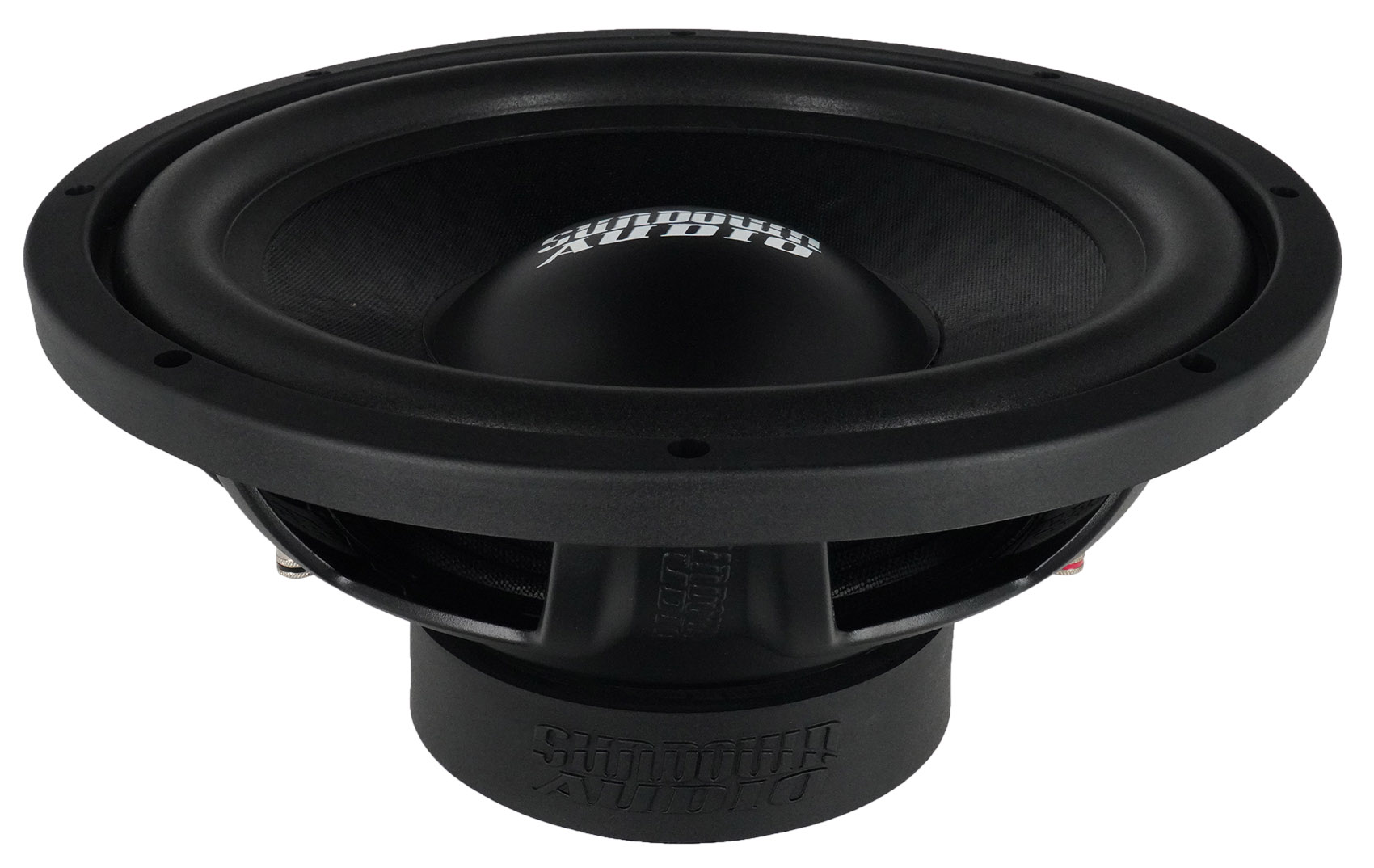

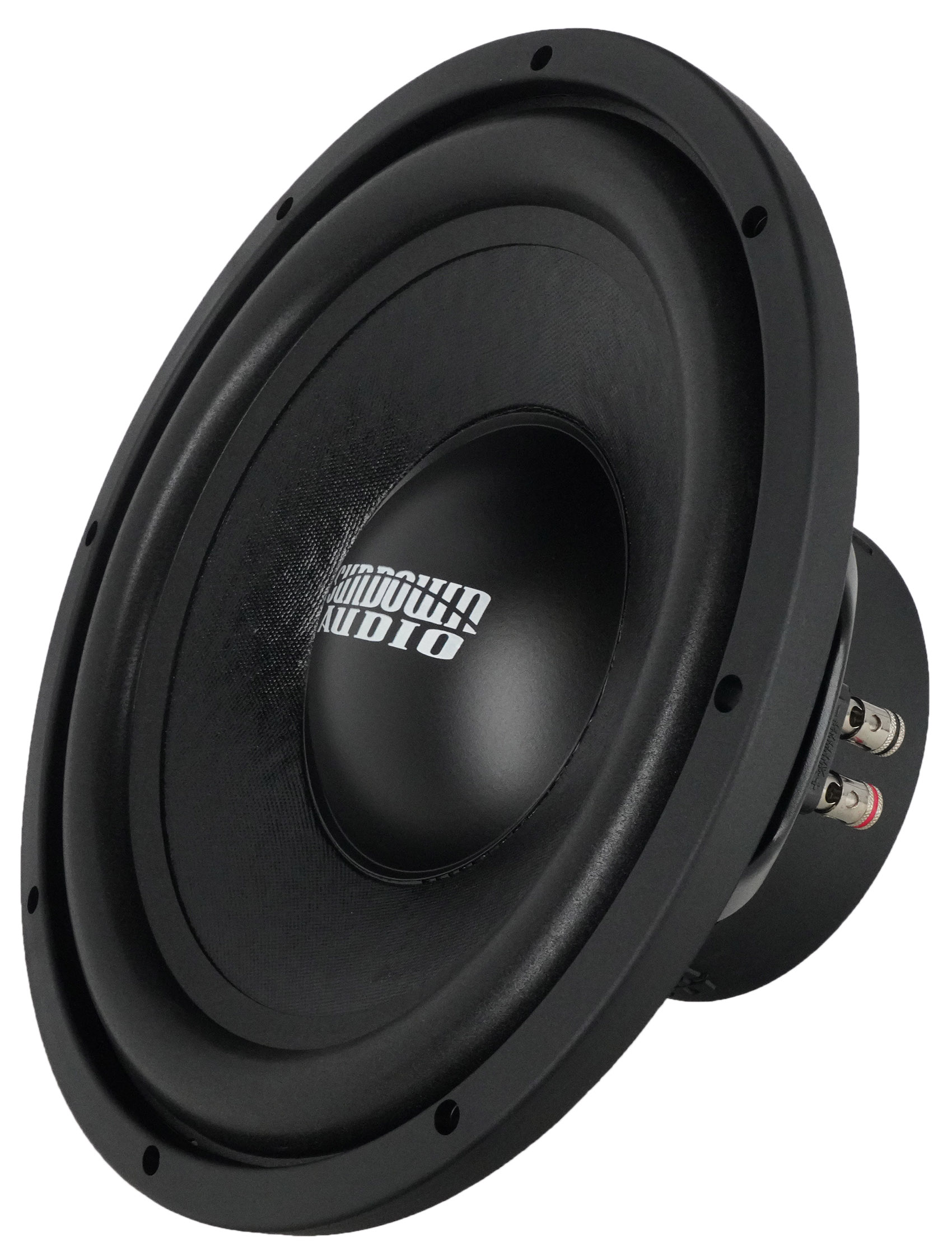

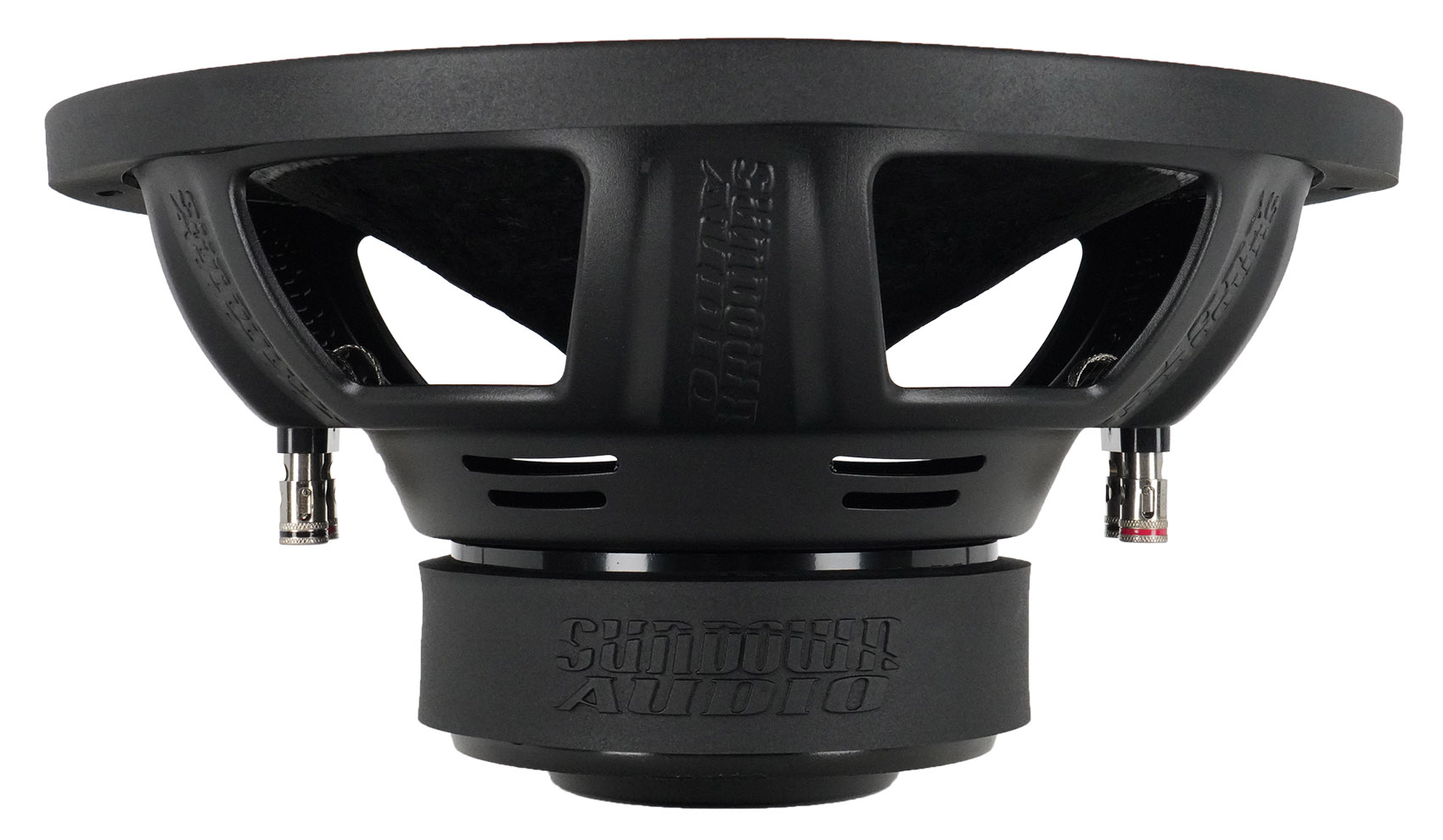

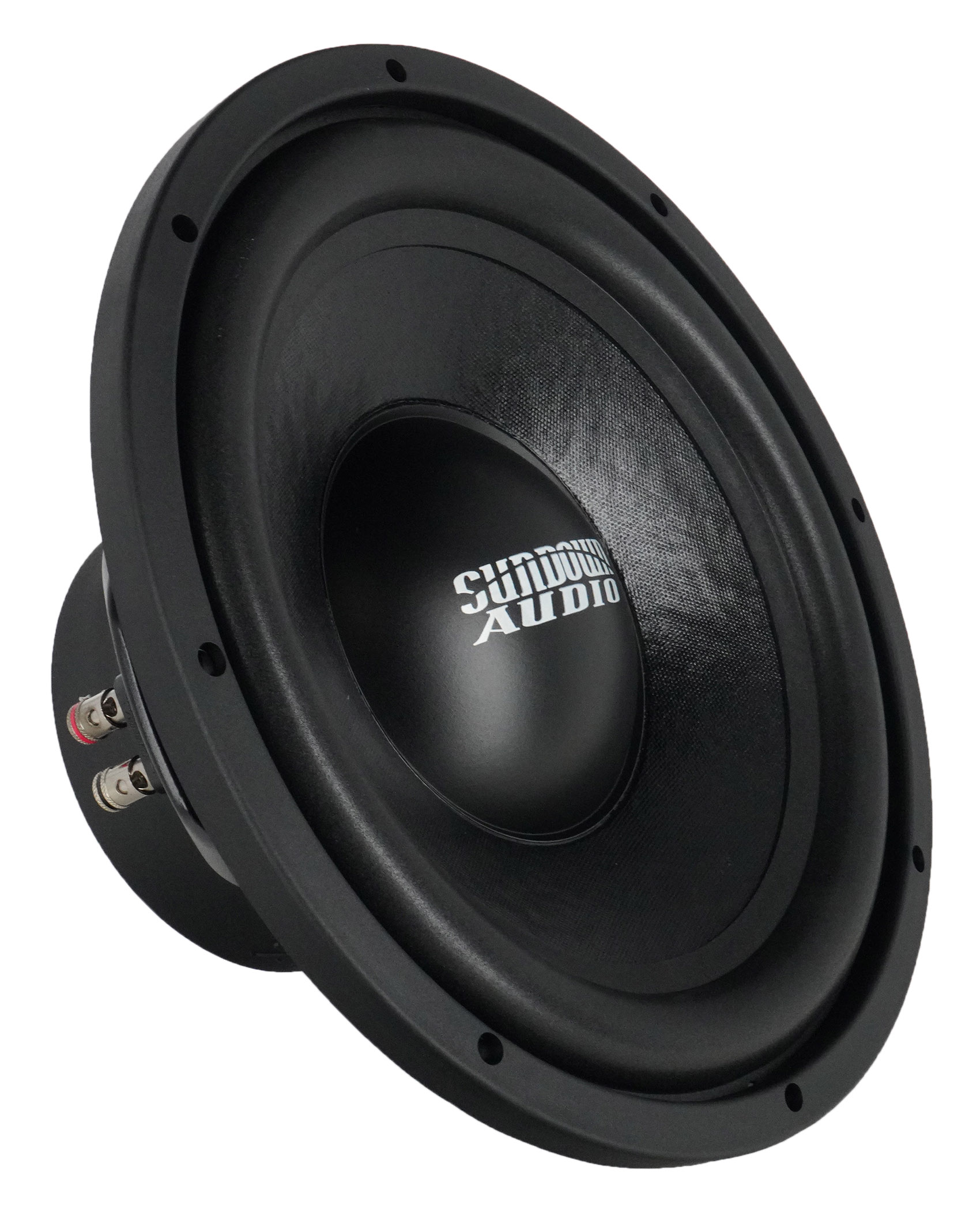

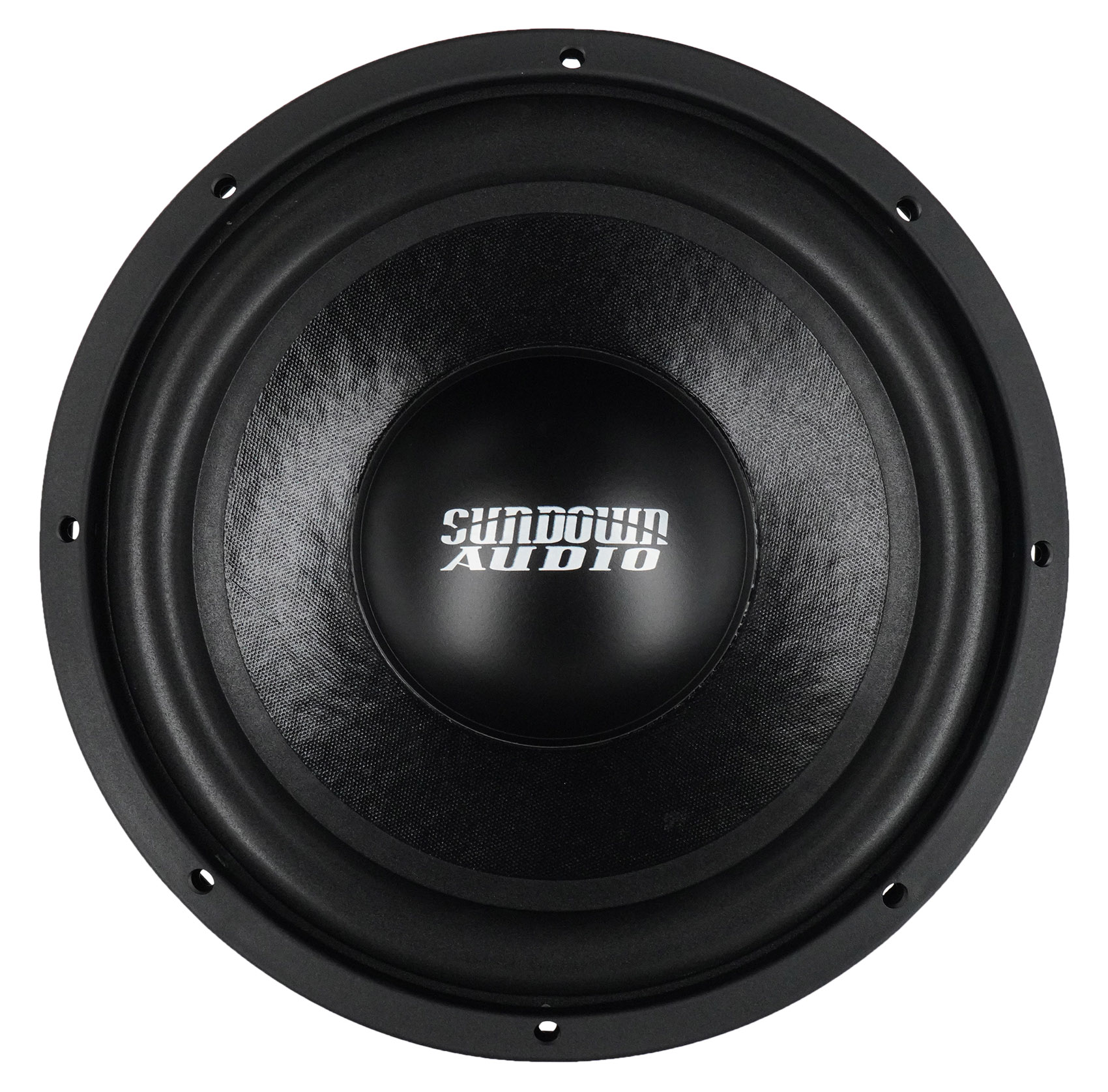

• (2) Sundown Audio LCS-12 v.2 D4 12" 500w RMS Car Subwoofer DVC 4-Ohm Sub

Description:

Find the ideal balance of power, deep bass, and affordability with Sundown LCS subs.

Sundown LCS woofers are known for their impressive bass response and high dependability. Typical entry-level woofers are limited in terms of excursion, mechanical ruggedness, and thermal performance. The v.2 update added an all-new, custom-tooled frame, push terminals, a rubber mounting gasket, and upgraded tinsel leads.

Features:

• 500 Watts RMS / 1000 Watts Peak
• Dual 4-ohm voice coils
• Optimized for small, ported enclosures
• Class-leading 14mm Xmax
• Double-stacked magnet
• Vented coil gap & pole for superior cooling
• Extra thick stamped steel frame
• High temp 4-layer copper voice coil

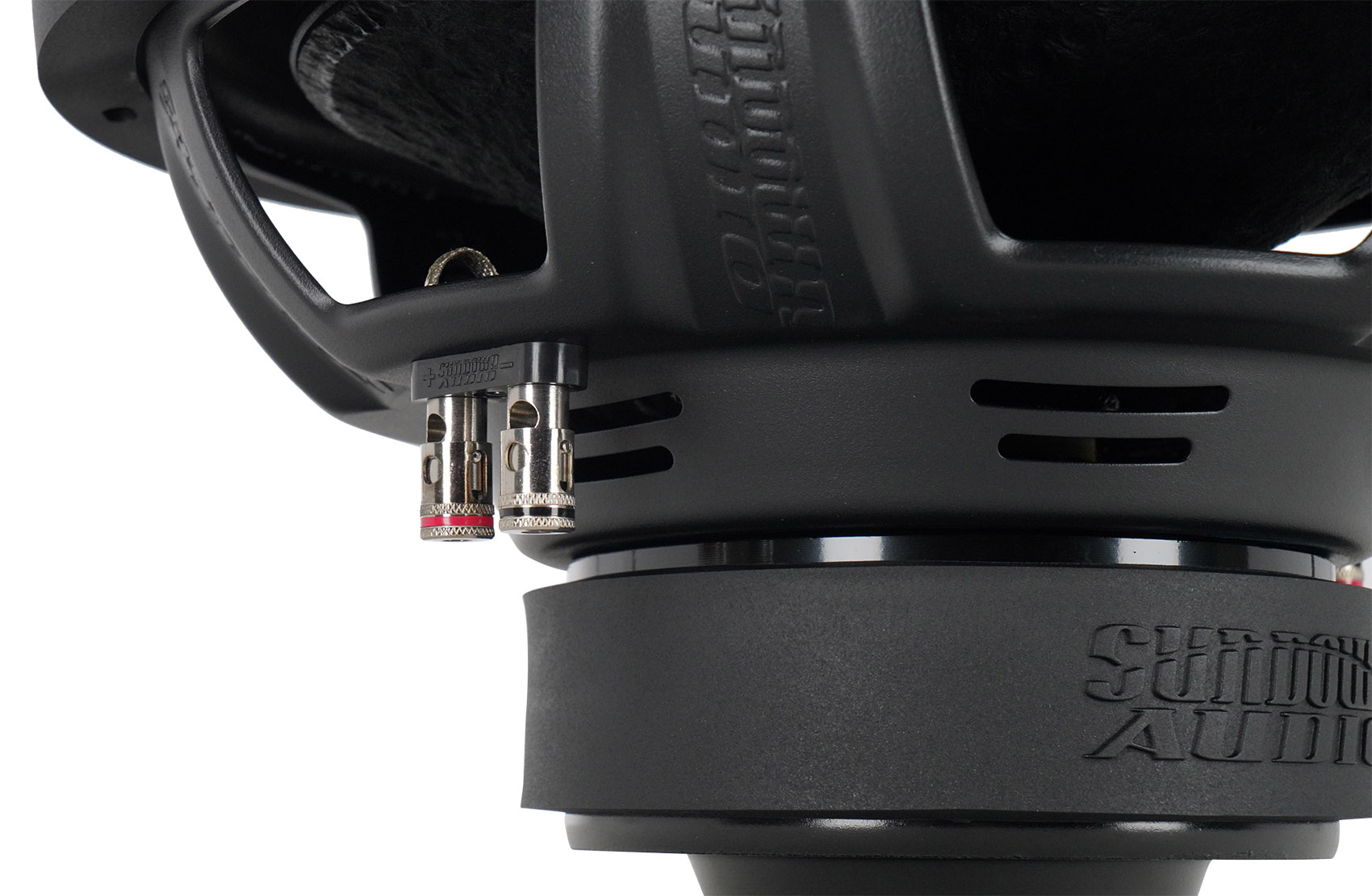

• High-quality push terminals
• Stitched-on flat tinsel leads
• Extremely low resonant frequency (Fs)

Specifications:

• RE (Ohms): 6.9

• FS (Hz): 33.442

• VAS (L): 48.7754

• Qes: 0.5731

• Qms: 5.4179

• Qts: 0.5183

• Le (mH): 4.8307

• BL (NA): 19.4373

• Mms (Grams): 154.5741

• Cms (uM/N): 164.1827

• Sens (dB @ 1w/1m): 86.0346

• Xmax: 14mm

Subwoofer Measurements:

• Displacement (Inches): .07cu ft
• Displacement (Inches): .05cu ft
• Depth (Inches): 5.250"
• Outside Diameter (Inches): 12.27
• Cutout (Inches): 9.375"
• Cutout (Inches): 11.12"
• Motor Diameter (Inches): 5.74
• Motor Diameter (Inches): 5.74

Ported Enclosure Specs:

• Ported Enclosure Size: 1.75 cu ft
• Recommended Port Area: 26 sq in
• Recommended Port Area: 26 sq in
• Recommended Port Tuning: 35hz

Sealed Enclosure Specs:

• Sealed Enclosure Size: 1.0 cu ft

4th Order Enclosure Specs:

• 4th Order Sealed Side: .4cu ft
• 4th Order Sealed Side: .75cu ft
• 4th Order Ported Side: 1.2cu ft
• 4th Order Ported Side: 2.25cu ft
• 4th Order Port Area: 24sq in
• 4th Order Port Area: 45sq in
• 4th Order Port Length: 6"
• 4th Order Port Length: 6"
