3'' DC 36V 400W Solar Submersible Water Pump, Deep Well Pump w/ MPPT Controller

3'' DC 36V 400W Solar Submersible Water Pump Deep Well Pump w/ MPPT Controller

Key Features

High-quality Material: the Solar Water Pump Is Made of Stainless Steel and the Controller Is Made of Stretched Aluminum Which Is Sturdy and Durable. It Extends Its Service Life.

Intelligent Water Shortage Sensors: Our Solar Water Pump Is Equipped with Five Intelligent Water Shortage Sensors. with Sensors Installed, the Water Pump Will Switch off If the Header Tank Is Full or If the Water Source Has Fallen Below the Pump Intake.

Outstanding Pump: with a High Head and a High Flow Rate of 1.6 M³/H the Pumps Help You to Work More Conveniently and Quickly.

Dual Power Supply: We Recommend the Solar Water Pump to Be Powered by Solar Energy, Which Is Energy Saving, Environmentally Friendly. in Addition, It Can Also Be Powered by Batteries to Work on Cloudy Days or at Night.

Soft Start: When the Solar Water Pump Is Started, the Pump Can Preserve the Pump Motor from Inrush Current.

Easy to Install: the Solar Water Pump Comes with Detailed English Instructions Which Can Help You Step by Step. in Addition, the Package Contains the Necessary Accessories for Installation, Which You Do Not Need to Buy.

Digital Display: the Controller of This Pump Can Display Power, Voltage, and Fault Code and Can Adjust the Speed Which Is Very Intuitive and Clear.



Details

Lanyard Holes: This Solar Water Pump Has Two Lanyard Holes, Which Can Facilitate Your Use.

Superior Motor: the Motor of This Solar Water Pump Is a Permanent Magnet Brushless Dc Synchronous Motor, Which Can save Energy While Running Efficiently, and Reduce Solar Panels. This Is More Convenient for You to Use.

Application

It’s Suitable for Agricultural Irrigation, Water Tower Filling, Desertification Prevention, Large Water Supply Systems, Campervan Water Supply, Fountain, Gardens, Homes, and Pools.

Specification

Power Source: Solar Power, Storage Battery (Not Included)

Storage Battery Specification: 36v (Three)

Gross Weight: 9kg/19.84lbs

Packing Size: 32*45*14cm/12.6*17.72*5.51inch

Water Pump

Model: 3ssh1.6/80-D36/400

Style: Submersible, Solar Water Pump

Motor: Full Oil Permanent Magnet Brushless Dc Motor (Without Hall)

Material: 304 Stainless Steel

Cable: 3 Cores /2 Meters /2.0mm²

Rated Voltage: 36v

Rated Power: 400 W

Water Pump Size: 7.6*46cm/3*18.1inch

Maximum Flow: 1.6 M3/H

Maximum Head: 80m/262.47ft

Outline Size: 7.6cm/3 Inch

Controller

Rated Voltage: 36v

Mosfet Voltage: 100 V

Under Protection Voltage: 18v

Over Protection Voltage: 60 V

Rated Current: 15 a

Over Protection Current: 18 a

Peak Protection Current: 20 a

Mcu and Controller Mode: 32bit Mcu / Foc / Sine Wave Current / Mppt

Shell: Stretching Aluminum

Weight: 1.8kg/3.97lbs

Controller Size: 17*18*7.5cm/6.7*7.1*3inch

Overall Height of Controller: 21cm/8.3inch

Cooling Mode: Natural Heat Dissipation

Operating Temperature: -10℃ - +80℃(Suggest 0℃ - +60℃)

Storage Conditions: -20℃ - +80℃/5～85%Rh(No Condensation)

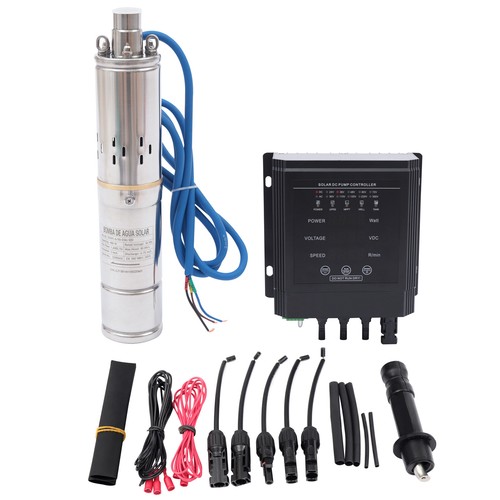

Package Included

1*Water Pump

1*Controller

1*English Manual

All Accessories for Assembly

Notes

  • Please Note That the Positive and Negative Polarity of the Solar Energy Cannot Be Reversed, Otherwise the Controller Is Automatically Protected and Cannot Be Started.
  • Please Note That the Correct Use of the Pump's Working State Should Be Under the Entire Horizontal Plane. the Water Pump Is Partially Beyond the Horizontal Line, Which Is Wrong and May Cause the Pump to Burn out.
  • Please Be Aware Solar Panel Is Not Included in the Package, You Need to Prepare Them Yourself.
  • Please Allow the Slight Color Difference Caused by the Shooting Light and 1-3 Cm Error Due to Manual Measurement, and Make Sure You Do Not Mind Before Ordering.
