Key Features

Three Cleaning Modes: It Includes Sweep(28khz), Turbo(40khz), and Degas Modes. the Dual Working Frequency Can Be Used to Clean Different Items for Energy-saving. the 40khz Can Be Used to Clean Objects with Complex Shapes&Surfaces and Blind Holes, and 28khz Is Used for Small or Simple Projects. the Degassing Cleaning Mode Can Penetrate More Tiny Cracks with Greater Force and Better Effect. It Can Help Remove the Oxide on the Metal Surface so That It Is Not Easy to Oxidize and Can Be Stored for a Long Time.

Adjustable Temperature&Work Time: You Can Freely Adjust the Liquid Heating Temperature (0-176℉) and the Working Time Within 30 Minutes. Ultrasonic Cleaning and Heating Can Be Carried out at the Same Time to Turn Your Items into a New State. Meanwhile, the Led Display Screen Can Display Them, Allowing You to Grasp the Usage Status of the Product. After Stopping Work, It Will Automatically Display "0000" for the Time.

Large Tank Capacity: the Large Tank (2.64gal) Can Wash Lots of Items at a Time to Improve Efficiency.

Convenient to Use: the Waterproof Switch Allows You to Easily Start the Machine While Ensuring Great Safety. Meanwhile, the Clear Keys Make It Convenient for Operation. Even Novices Can Get Started Quickly.

Constant Temperature&Memory Function: When the Temperature Is Higher than the Preset Value, the Machine Will Automatically Stop Heating. Besides, It Will Automatically Remember the Last Working Time and Temperature to Avoid Frequent Settings.

Details

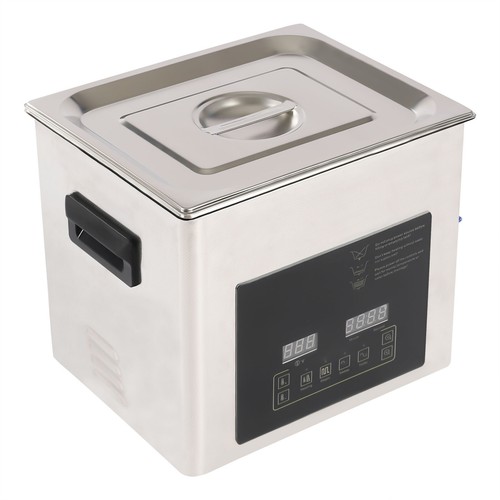

Top Lid: It Can Well Seal the Machine to Reduce Heat Loss and Noise. Meanwhile, the Handle on the Top Allows You to Easily Pick up the Lid.

Recessed Handles: the Recessed Handles on Both Sides Make It Convenient to Move the Machine.

Support Feet: the Four Rubber Support Feet at the Bottom Are Abrasion-resistant, Non-slip, and Can Ensure the Stable Placement of the Product.

Application

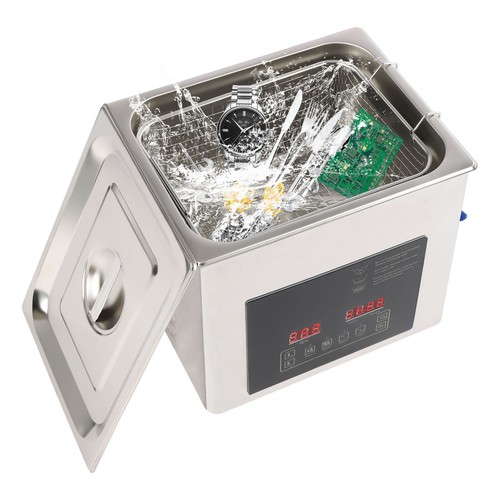

It Is Suitable for Cleaning Jewelry, Watches, Glasses, Tableware, Dental Equipment, Milk Bottles, Circuit Boards, Hardware Parts, Razors, Laboratory Equipment, Etc. It Can Be Used to Clean the Long Holes, Cracks, and Shields of the Workpiece and Is Mainly Used in the Laboratory, Food Industry, Biology Industry, Agriculture Industry, or Daily Necessities Industry.

Specification

Model: TH-40A

Color: Silver

Material: 201&304 Stainless Steel, Rubber

Shape: Rectangular

Style: Modern

Tank Thickness: 1.1mm/0.04inch

Surface Treatment: Electrolytic Process, Integrated Stamping, Stainless Steel Embossing Process

Voltage: AC100-120V, 60Hz

Ultrasonic Frequency: 28/40KHz

Ultrasonic Power: 240W

Heating Power: 250W

Power Type: Plug-in

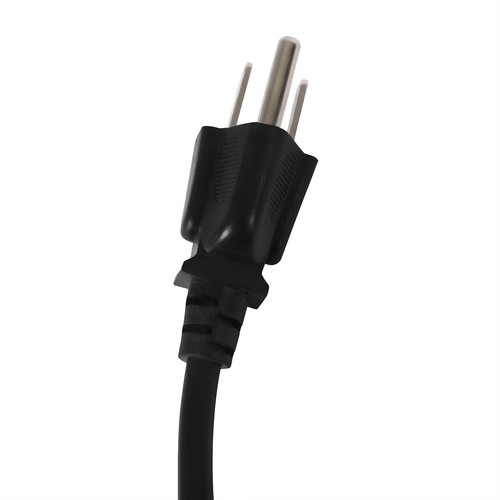

Plug: American Standard

Number of Transducers: 8

Tank Capacity: 10L/2.64gal

Heating Temperature: 0-80℃/0-176℉

Working Time: 0-30min

Noise: About 100dB

Screen: LED Display Screen

Mounting Type: Desktop Placement, Freestanding

Net Weight: 7kg/15lbs

Gross Weight: 7.6kg/16lbs

Package Size: 42*38*37cm/16*14.9*14.5inch

Product Size: 33*25.4*25.4cm/13*10*10inch

Principle

It Outputs the Ultrasonic Frequency Oscillation Electrical Signal, Which Is Converted into High-frequency Mechanical Vibration Through the Transducer. This Vibration Is Introduced into the Cleaning Fluid and Produces an Ultrasonic Cavitation Effect. It Produces Tens of Thousands of Tiny Bubbles, Which Are Formed at Negative Pressure, and the Positive Pressure Zone Closes Rapidly. the Bubble Closes to Form an Instantaneous High Pressure of Thousands of Atmospheres. the Continuous Instantaneous High Pressure Is like a Series of Small "Explosions" Impacting the Surface Gap of the Object, Peeling off All Kinds of Dirt Stuck in the Surface Gap of the Object, Thus Realizing Thorough Cleaning.

Package Included

1* Ultrasonic Washing Machine

1* Cleaning Basket

1* Ball-shaped Basket

1* Lid

1* Hose

1* Power Cord

1* English Manual

Notes

• Since the machine's bottom is curved, the actual capacity may be smaller than 2.64 gal.
• It is recommended to use a cleaning temperature of 104-140 ℉ to improve cleaning performance.
• Please note that the machine can only work under 110V voltage with good grounding.
• Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
