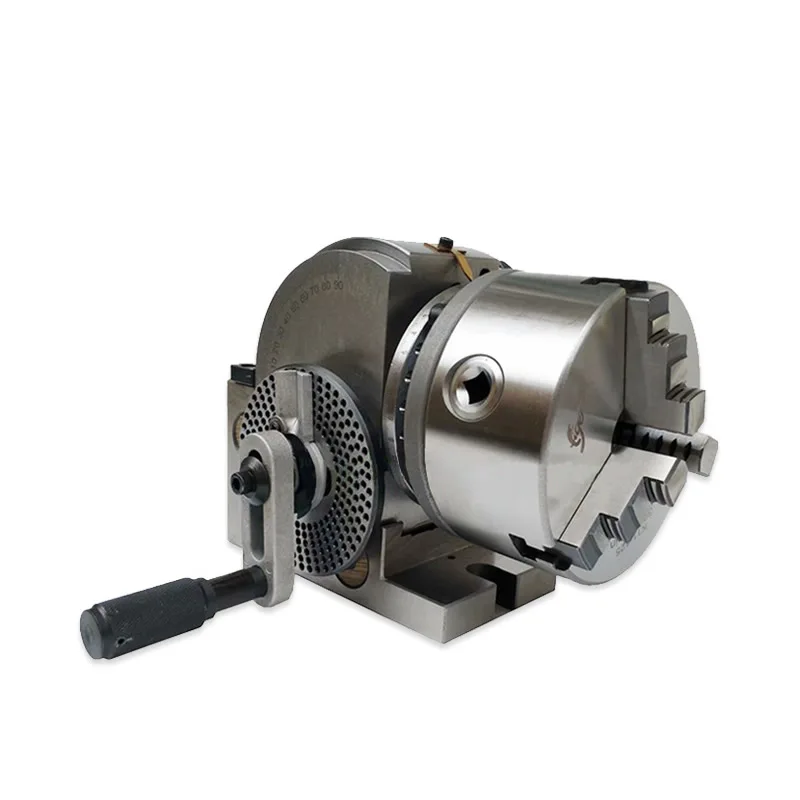

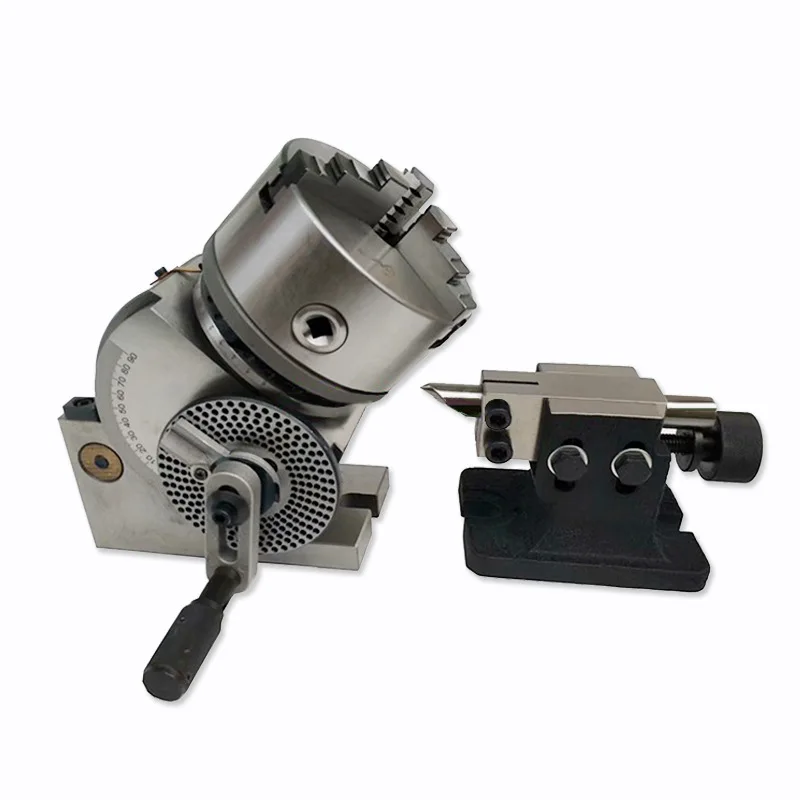

Universal Dividing Head BS-0 4 Inches 5 Inch CNC Rotary Axis 3 Jaw Chuck with 100mm 125mm Chuck and Tailstock for CNC Milling Machine Rotary Table

Description

This is our semi-universal dividing head by

using dividing scale ring, vernier, locating pin, index plate and change gear,

workpieces placed can be divided into equal partitions according to your

demand. It able to complete gear, face and flute processing without need of

accessories. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8,

12, 24 division indexing. 3 dividing plates are attached along with

the dividing head for indirect dividing in any division indexing 2-50, 51-380

except prime numbers and certain other numbers.

Features

•User-Friendly Machine

•Direct and Indirect Dividing

•Professional Precise Division

•Semi-Universal Dividing Head

•100% Brand New with Good Quality

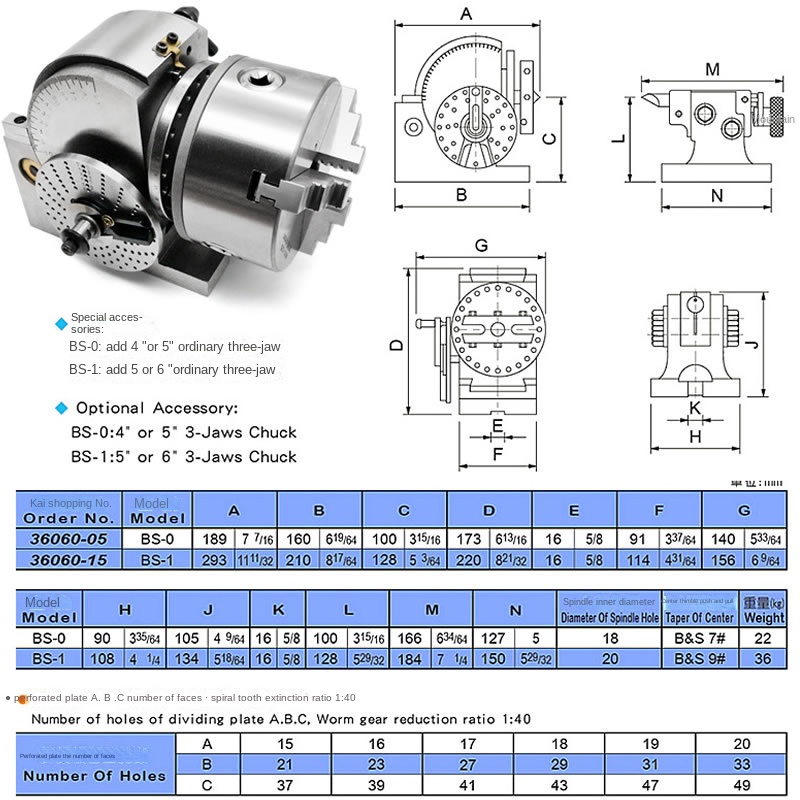

Technical

•Swing: 6-1/2"

•Center Height: 100mm(BS-0)

•Headstock Taper: 7 B&S

•Weight: 23kg (50.7lbs)

•Package Dimensions: 410*235*205mm (16*9*8 inch)

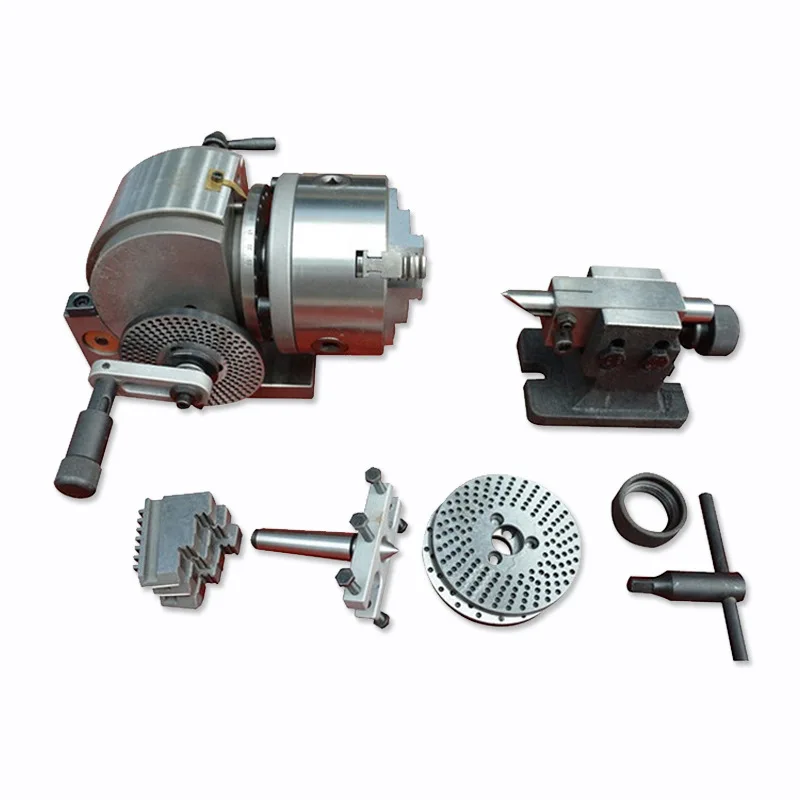

Package Included

1 x Head Stock

1 x Tail Stock

1 x Dividing Plates A

1 x Dividing Plates B

1 x Dividing Plates C

1 x 3 Jaw Chuck (4 Inch or 5 Inch)
