Features & Details
Overall Height: 30.60mm
Discard Thickness: 8.50mm

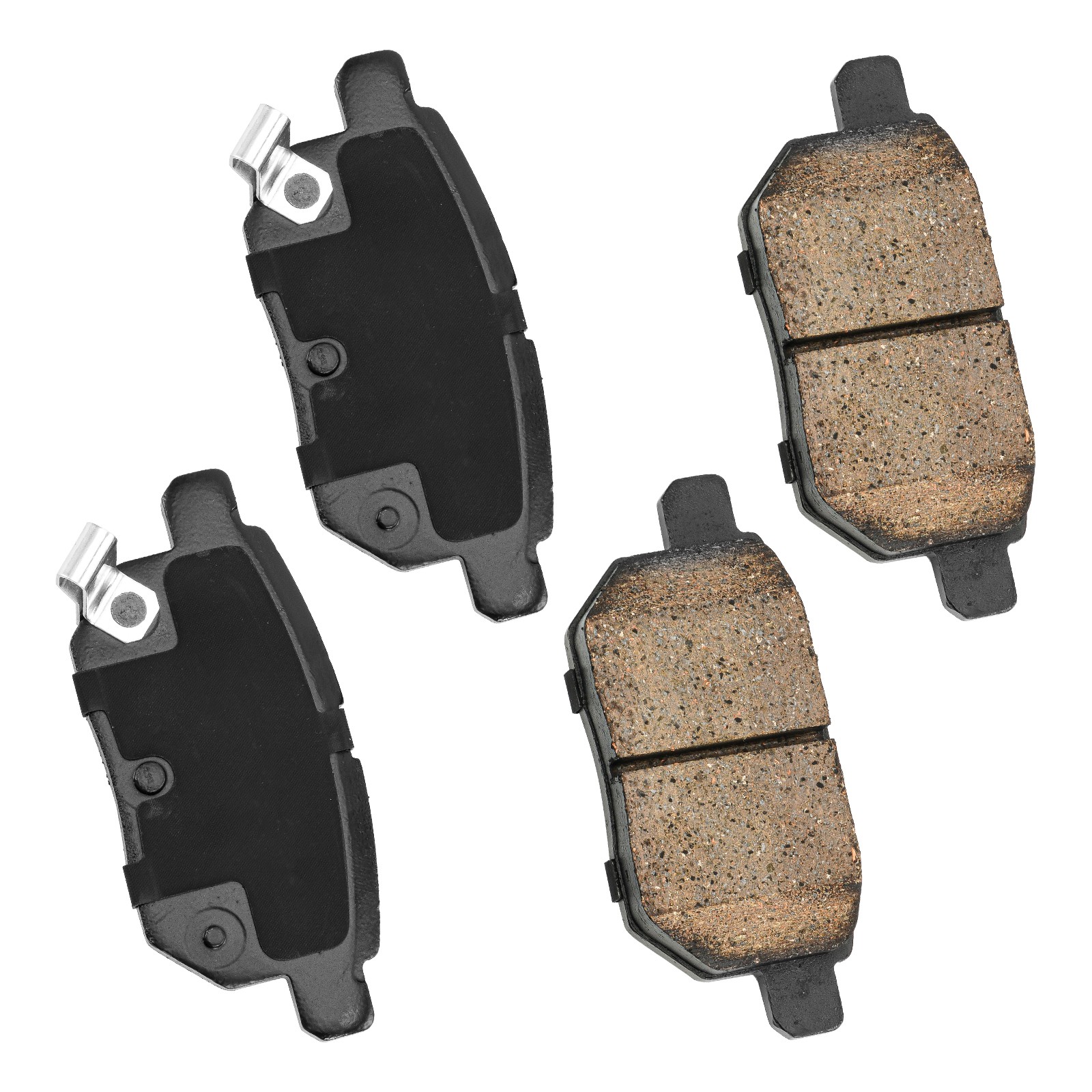

Items Included: 2x Rear brake rotors - 31508,4x Rear brake pads - D1354
Rotor Outside Diameter: 10.99 inch (279mm)
Material: Steel,G3000

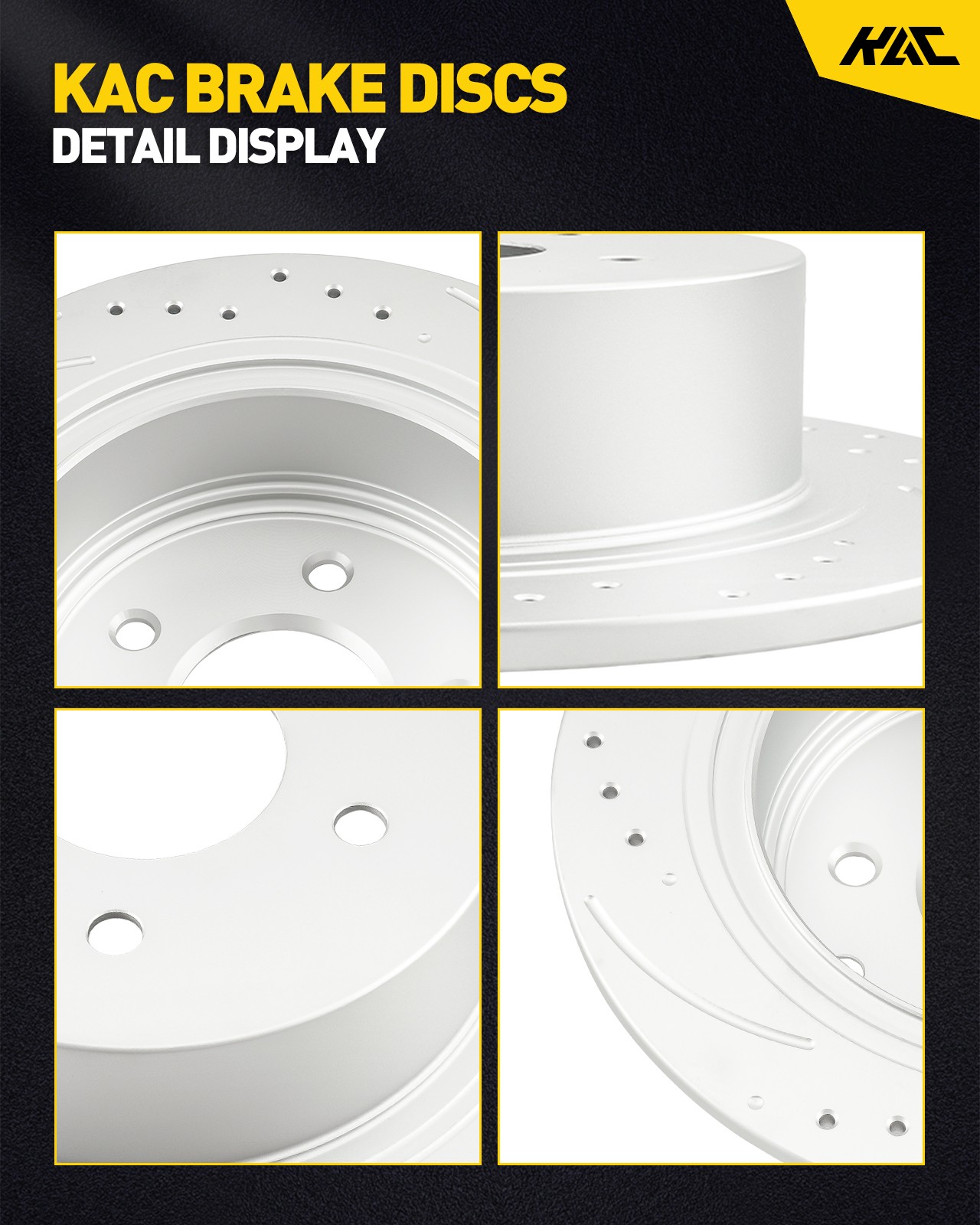

Rotor Style: Drilled & Slotted
Placement on Vehicle: Rear, Left, Right
Center Hole Diameter: 62.00mm
Brand: KAC
Formula: No copper
Type: Disc Brake Rotors & Pads Kit
Mounting Bolt Hole Circle Diameter: 114.30mm
Manufacturer Warranty: 5 Years
OE/OEM Part Number: DA1012BF,DA1018BC,P-1354,S-31508
Number in Pack: 6
Features: Noiseless,Durable
Finish: Geomet/Zinc Plated
Nominal Thickness: 10.00mm
Item Width: 42.60mm
Vented or Solid Rotor: Solid
Stud Hole Quantity: 5+2
Key Benefits
- Designed for an optimal fit, these brake rotors and pads ensure superior performance for improved braking efficiency and control.
- Constructed from high-quality G3000 steel for enhanced durability and longevity under diverse driving conditions.
- The drilled and slotted rotor style enhances heat dissipation and reduces brake fade, ensuring consistent braking performance.
- Featuring a Geomet/Zinc plated finish to resist corrosion and extend the lifespan of the product.
- Comes with a 5-year manufacturer warranty, providing peace of mind in terms of quality and reliability.
- Noiseless operation for a smoother, more comfortable driving experience.
- The solid rotor design supports robust performance and reliability on the road.
What's Included
2x Rear brake rotors - 31508
,4x Rear brake pads - D1354
Fitment for
For Scion:Scion xB 2008-2015 All engine
Scion iM 2016 All engine
For Toyota:Toyota Corolla iM 2017-2018 All engine
Toyota Matrix 2009-2010 L4 2.4L (DriveType:FWD, SubModel:S)
Toyota Matrix 2011 L4 2.4L (DriveType:FWD)
Toyota Matrix 2013 L4 2.4L (DriveType:FWD)
For Pontiac:Pontiac Vibe 2009-2010 L4 2.4L (SubModel:Base)
Installation Guide
- Ensure the vehicle is parked on a flat surface and the parking brake is engaged.
- Remove the wheel from the appropriate end of the vehicle where the new brake setup will be installed.
- Carefully remove the old brake components, ensuring to keep all hardware safe for reinstallation.
- Place the new brake rotor and secure it using existing mounting bolts.
- Install the new brake pads into the caliper, ensuring they are properly aligned.
- Reinstall the caliper over the new rotor and pads, securing with original hardware.
- Reattach the wheel and lower the vehicle to the ground. Ensure all components are tightly secured.
- Test the brake pedal to ensure proper pressure before taking the vehicle for a test drive.
Important Notes
- Fits for 2008-2015 Scion xB All engine models.
- Fit for 2017-2018 Toyota Corolla iM All engine models.
- Suitable for the 2016 Scion iM All engine models.
- Ensure compatibility by checking the OE numbers: DA1012BF, DA1018BC, P-1354, S-31508.
- Installation should be conducted by a professional mechanic to ensure vehicle safety and part longevity.
- Always refer to the vehicle's owner manual for additional installation guidelines or torque specifications.
- Check all components for any signs of wear before installation to ensure optimal performance.
