CCR-Z150 Electric Descender 10.5-11mm Rope Climbing Lift Retarder Support 90-150NM Electric Hand Drills

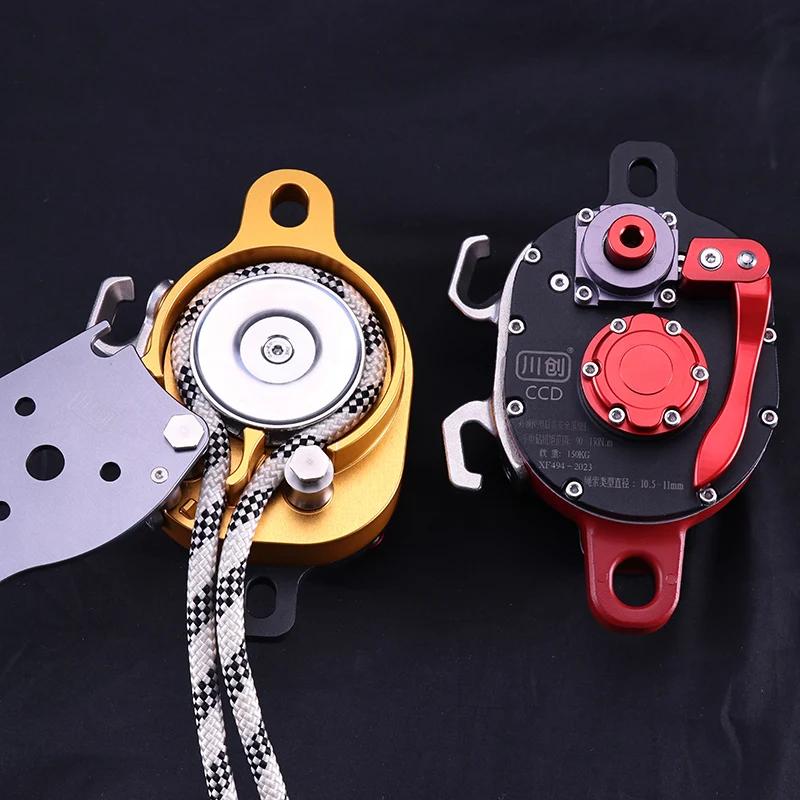

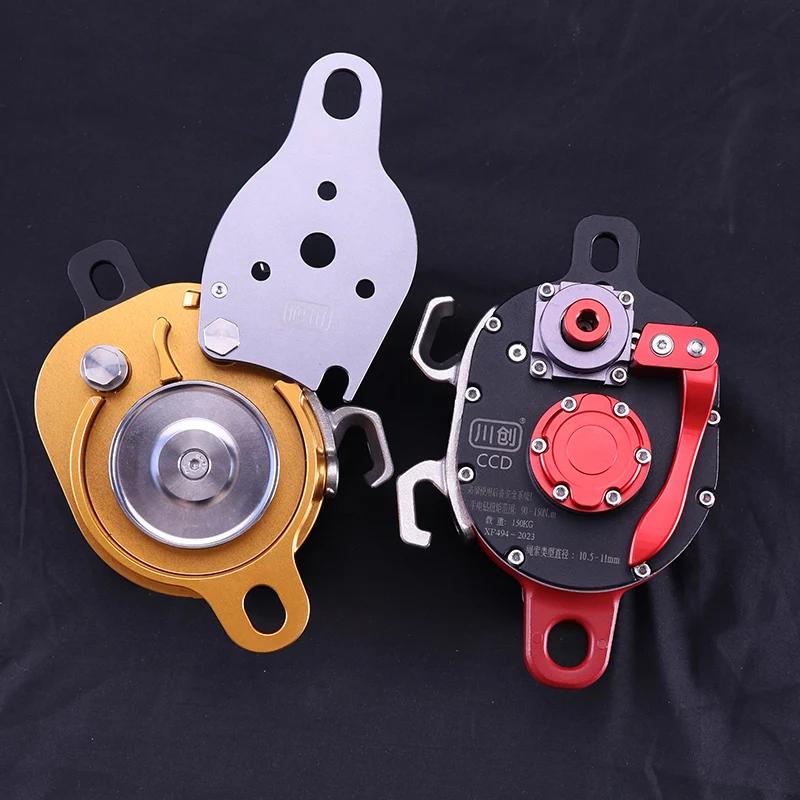

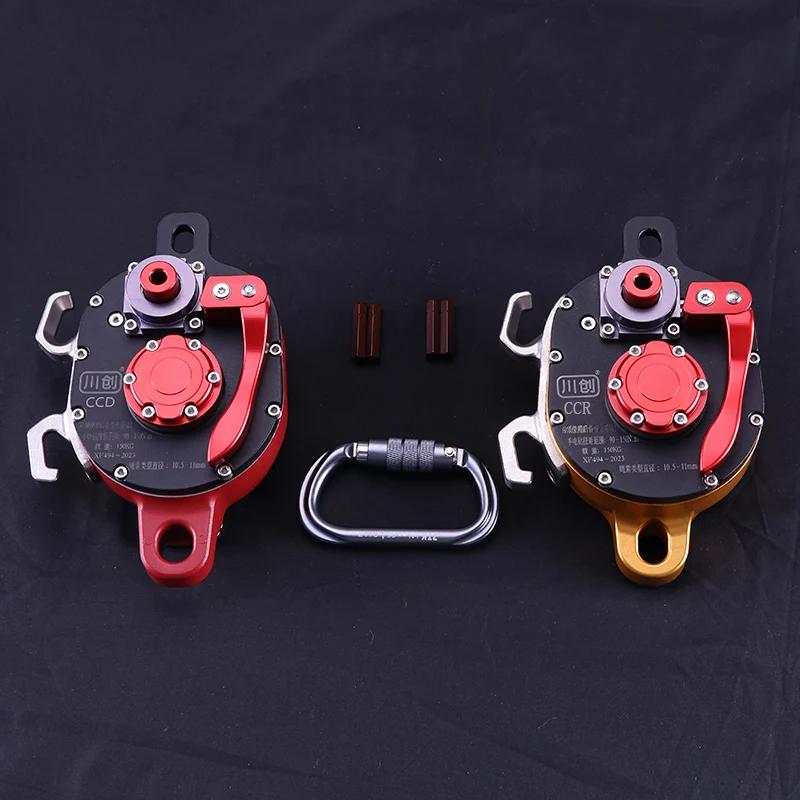

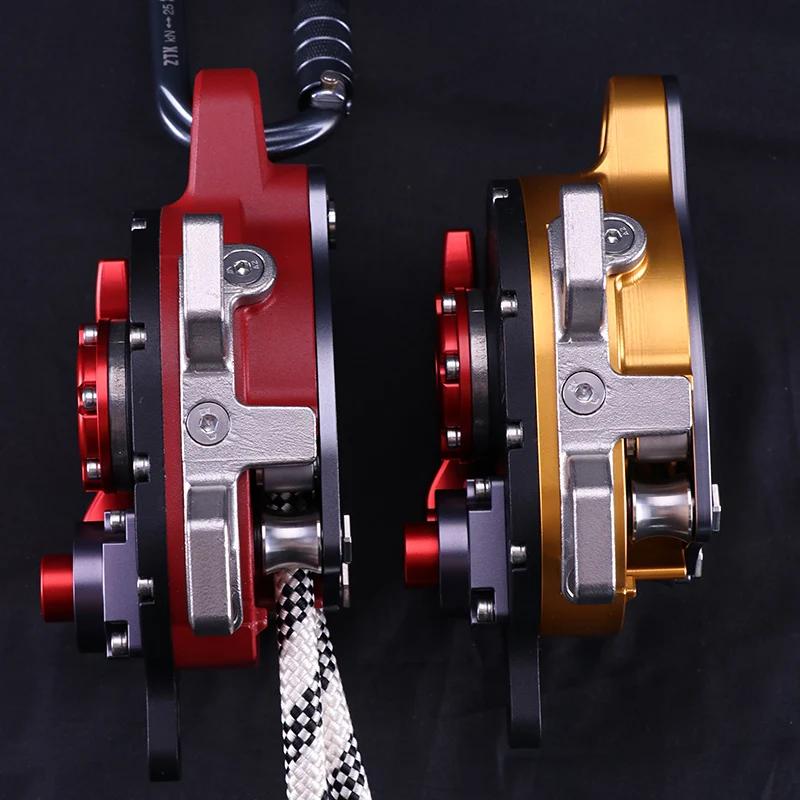

Difference:
- CCD rope replacement does not require detachment from the main lock.
- CCR rope replacement requires detachment from the main lock.

Description:
- This is a pulley driven by an electric drill, which integrates a unidirectional pulley, a variable speed gearbox, and a gentle friction hook. When used in conjunction with the backup safety system, a handheld drill can be connected to provide lifting power for efficient assistance in lifting and lowering cargo or personnel.

Key Features:
- Drill Powered Efficiency: The CCD/CCR Z150 Anti-drop Rope Climber is powered by a drill, enhancing climbing speed and efficiency.
- Eight-Ring Design: Features eight rings for optimal rope grip, ensuring a secure ascent in various climbing scenarios.
- Compact and Lightweight: Designed for portability, this drill-powered rope ascender is lightweight, making it ideal for outdoor adventures.
- Anti-drop Feature: Equipped with an anti-drop mechanism, the CCD/CCR Z150 prevents accidental drops during climbs.
- Durable Construction: Crafted for resilience, this climbing pulley drill withstands the rigors of extreme climbing conditions.

Application:

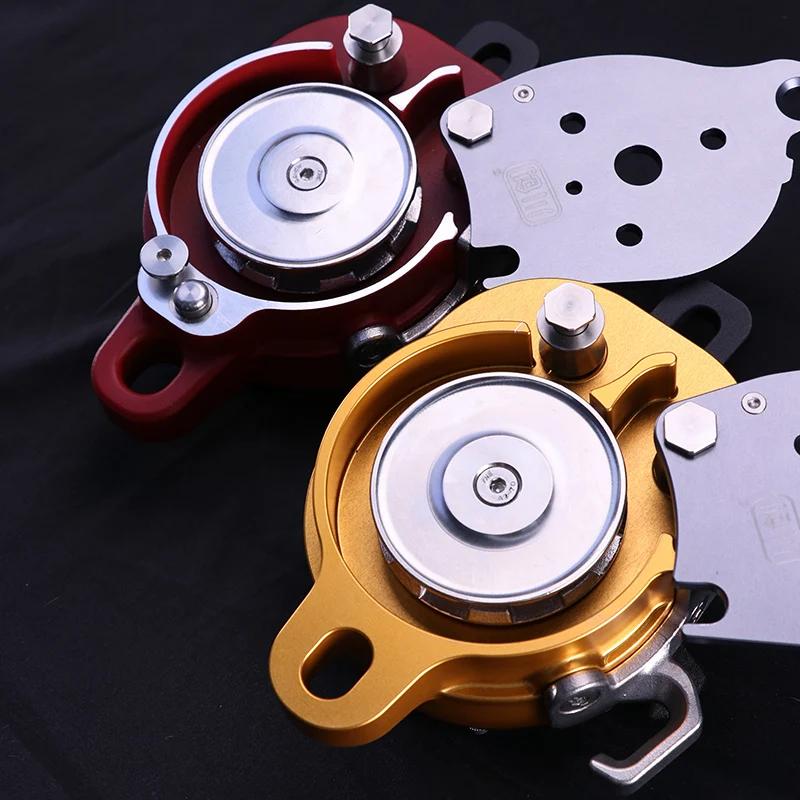

- This product is mainly used for lifting or lowering goods or personnel. The core component of this product is a detachable unidirectional pulley, which can be used as a fixed pulley alone or combined with additional pulleys (groups) to form an appropriate proportion of labor-saving system.
- This product is equipped with a hexagonal interface and an adapter shaft (8mm or 5/16 inch), which can be lifted by using a handheld drill to rotate counterclockwise and input power; This product only supports manual descent and does not support input power descent with an electric drill.
- This product is only suitable for use in dry environments and does not have waterproof or dustproof functions. The use of this product in environments with seawater, corrosive liquids, or corrosive gases can lead to a reduced lifespan that is difficult to predict, resulting in safety hazards. If this product has been used in such environments, it should be promptly scrapped.

Specification:
- Execution standards: XF494-2004
- Product type: pulley, ascender, descender
- Net weight: 2kg
- Load capacity: 30kg - 200kg
- Secondary hanging hole: yes
- Handle accessory: yes
- Gear ratio: 95:10
- Applicable rope type: for 9 - 10.5mm ropes
- Electric drill torque: 50 - 150N.m without impact (it is recommended to use brushless hand drills)
- Descending speed: 0.5m/s (maximum load capacity) - 2.0m/s (minimum load capacity)
- Lifting lifespan: ≤20000m
- Descending lifespan: ≤20000m
- Anti-fall height: ≤1m
- Using temperature: -15℃ to 45℃
- Dustproof and waterproof: no
- Lifespan: 6 years after production, either ascend or descend 30000 meters; Whichever condition comes first.

Precaution:
- The rope is not included, and the rope needs to be matched by oneself. Applicable rope model standard: static rope with a diameter of 10.5-11mm.
- The electric drill is not included, applicable electric drill torque range: 50-150N.M (note that the electric drill is driven in reverse to rise). Do not operate forward rotation. The gear should be adjusted to the screw tightening gear, not to the impact gear, as it may cause intermittent shutdown.
- When descending, manually wrap the rope and make sure to wrap it around the external rope groove before descending. Do not descend directly, otherwise you will not be able to control the speed.
- Strict training is required before use. Non professionals are strictly prohibited from using it. It is strictly prohibited to carry passengers. The company shall not be held directly or indirectly responsible for any safety consequences or property losses caused by improper use. Please carefully read the instructions on responsibilities and warnings in the manual!
- This electric lift cannot be used alone for manned lifting. With the protection of a secondary rope and the use of a movable anti fall device, it can be used for manned lifting.

Package Included:
- 1 x Set of Electric Descender
