SSA463 Portable 35MHz-6.3GHz High Precision Spectrum Analyzer 2MHz/250kHz/15kHz Switchable RBW with 4.3-inch Screen

Description:
- The SSA463 portable spectrum analyzer adopts a super heterodyne sweeping architecture, covering an RF measurement range of 35MHz to 6.3GHz, with a wide dynamic range of -110dBm to +10dBm, and supports three switchable RBWs of 2MHz/250kHz/15kHz.

- The whole machine adopts high-performance RF front-end, high linearity logarithmic amplification link, low-noise local oscillator, and advanced IF processing architecture, which can achieve signal analysis capabilities close to desktop spectrum analyzer in a portable size. Capable of performing fast and accurate frequency domain analysis on broadband, narrowband, modulated signals, spurious, harmonic, and interference sources, widely applicable to on-site maintenance, research and development debugging, EMC pre-scanning, wireless coverage testing, and RF teaching scenarios.

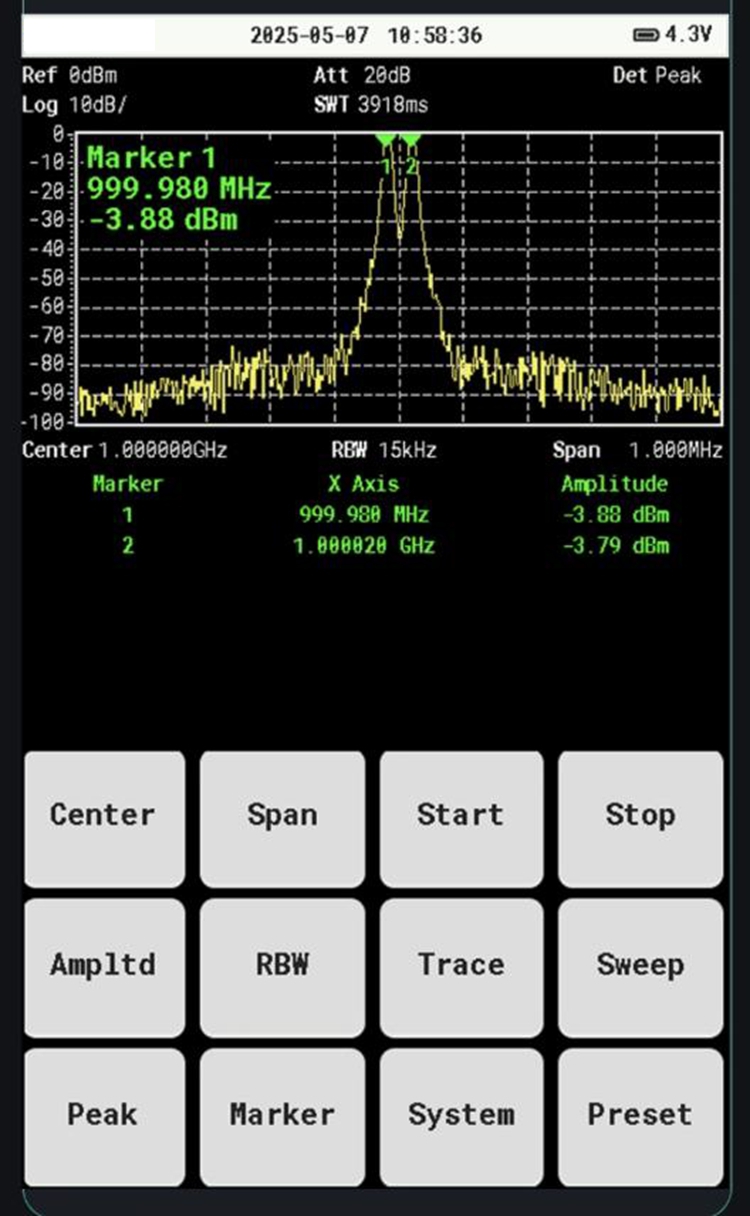

- SSA463 supports for Marker Table function, which can list the main peak frequency points, power, and relative differences in the current spectrum. Through touch operation, key information can be quickly viewed, greatly improving analysis efficiency. Support adjacent channel comparison and ΔMarker difference analysis, especially suitable for debugging requirements of multi frequency and broadband devices.

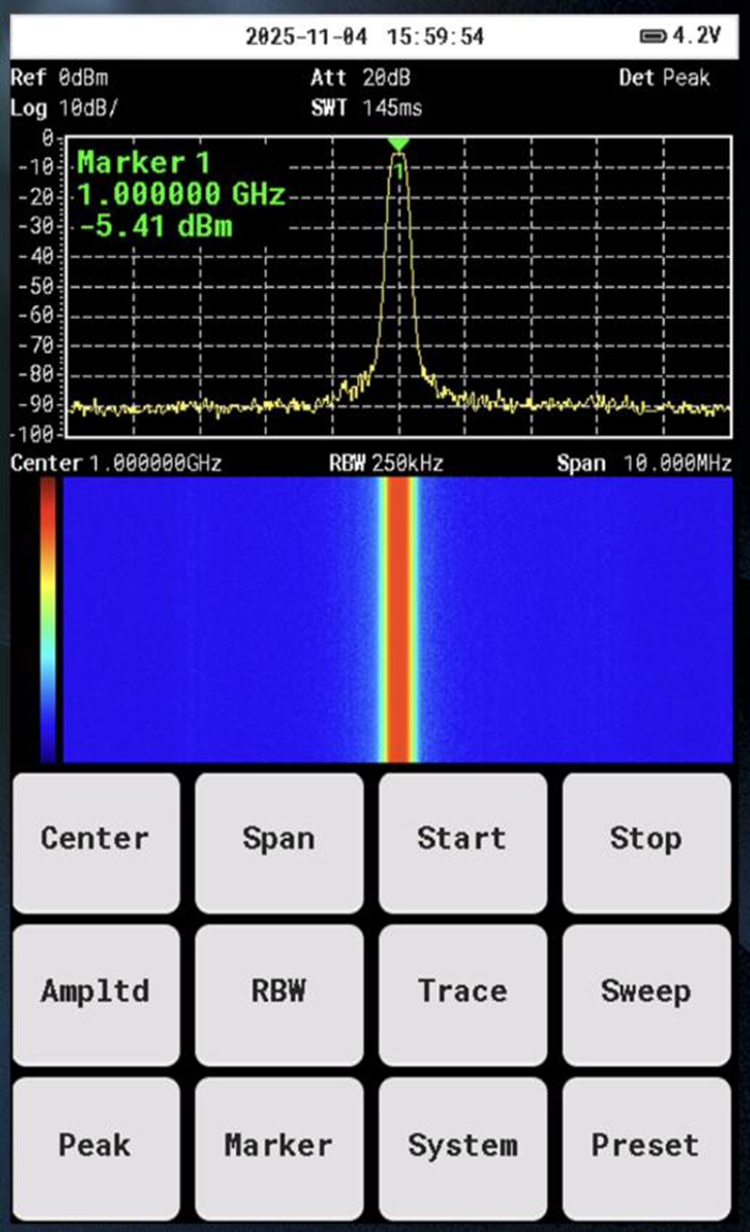

- The Waterfall mode presents the changes in frequency spectrum over time in the form of a two-dimensional color chart, allowing for intuitive monitoring of dynamic characteristics such as intermittent signals, frequency hopping behavior, frequency drift, and interference timing.

- SSA463 has a built-in 30dB precision attenuator that can withstand a maximum input power of +15dBm, effectively protecting the mixer and front-end amplifier from strong signal damage.

- In addition, SSA463 also supports a simple signal generator function, providing an output frequency range of 12.5MHz to 6.4GHz, with an output power of -40dBm to +10dBm. It can be flexibly controlled through an internal 30dB precision adjustable attenuator (0.5dB step) to meet the needs of RF link testing, module verification, and field excitation.

- Before leaving the factory, SSA463 undergoes high stability reference source frequency calibration and power calibration compensation to minimize LO frequency drift and maintain link consistency. In typical environments, the power measurement accuracy of the equipment can reach ±0.5dB (typ.), providing reliable guarantee for professional measurement applications.

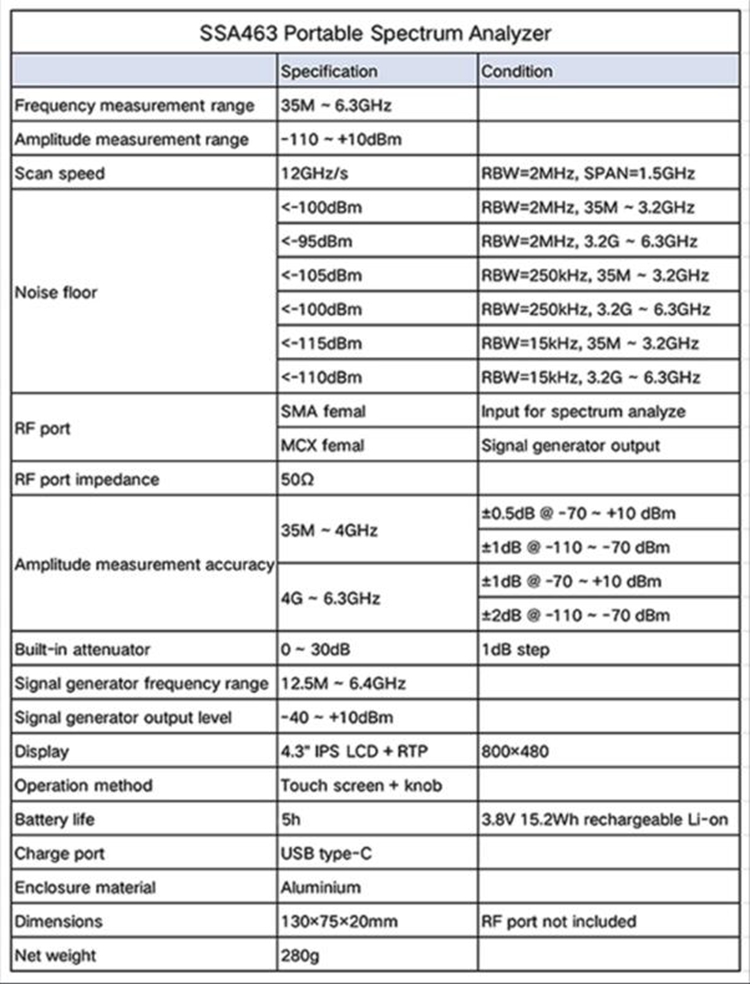

Features:
- Frequency range: 35MHz ~ 6.3GHz

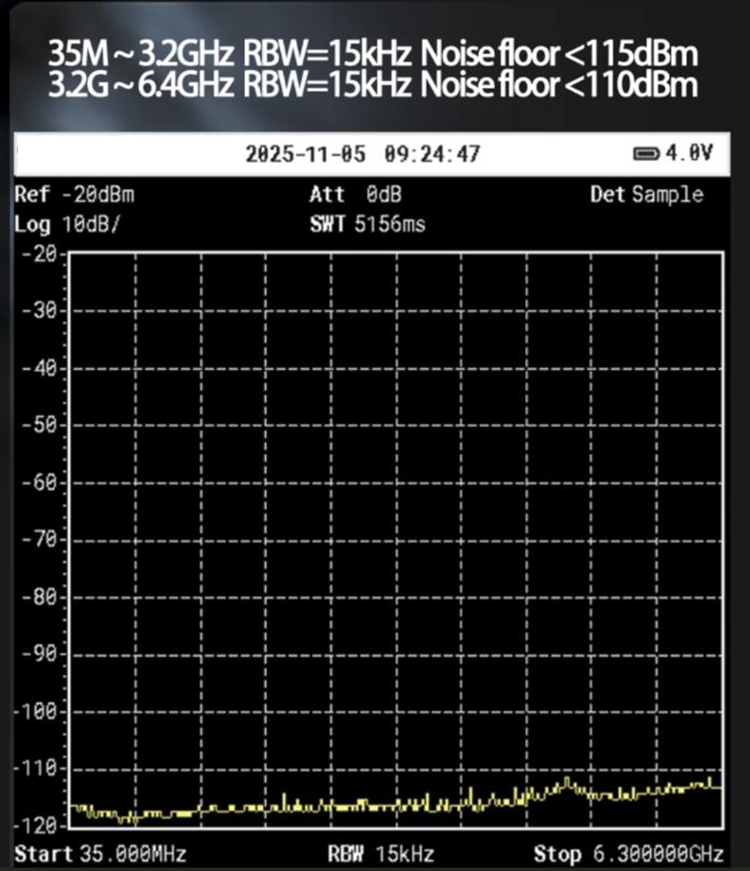

- Dynamic range: +10 ~ -110dBm
- RBW adjustable in three levels: 2MHz, 250kHz, 15kHz
- Built-in signal generator (output power 0.5dB step).
- (Marker Table) multi point marking table, key frequency points, clear at a glance.
- (Waterfall) spectrum waterfall chart, time variation, one chart mastery.
- High stability reference source for frequency calibration and power calibration compensation.
- Adopting a 4.3-inch high brightness IPS capacitive touch display screen, the screen content is clear and visible in outdoor scenes.
- The design of external metal casing and internal shielding cover effectively shields electromagnetic interference and ensures measurement accuracy.

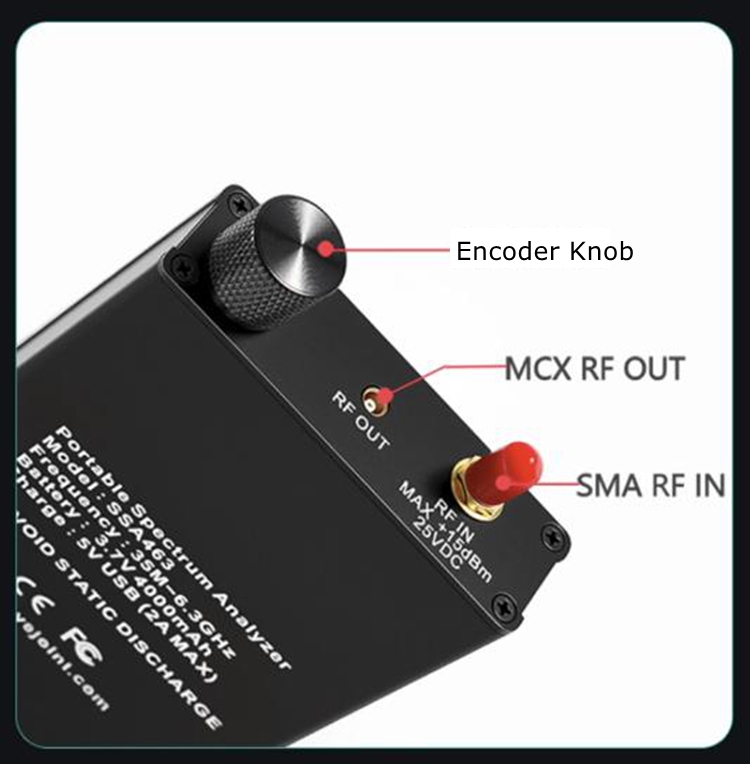

- Full touch screen + knob design, easy and smooth operation.

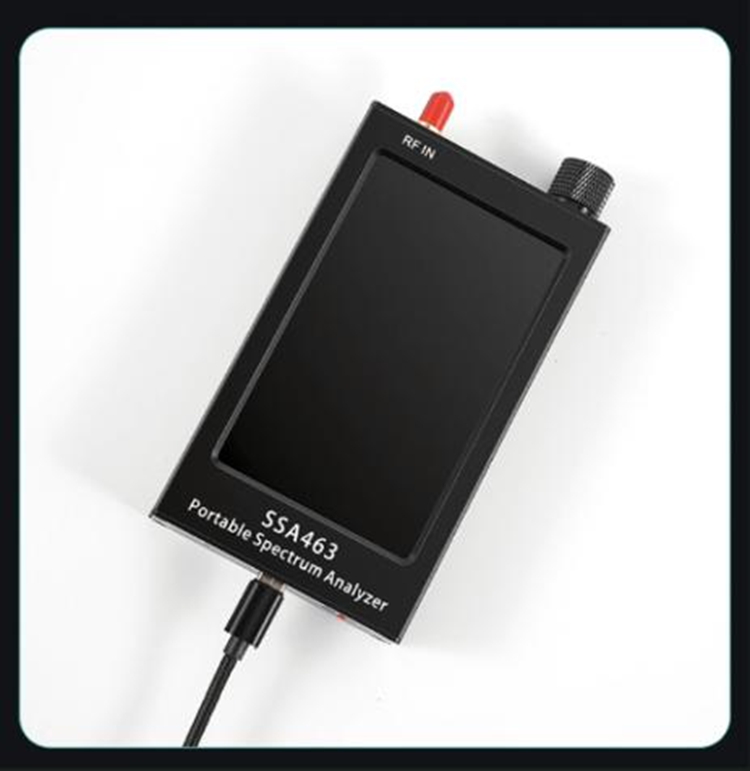

- The body size is 125mm x 74.3mm x 22mm, compact and portable.

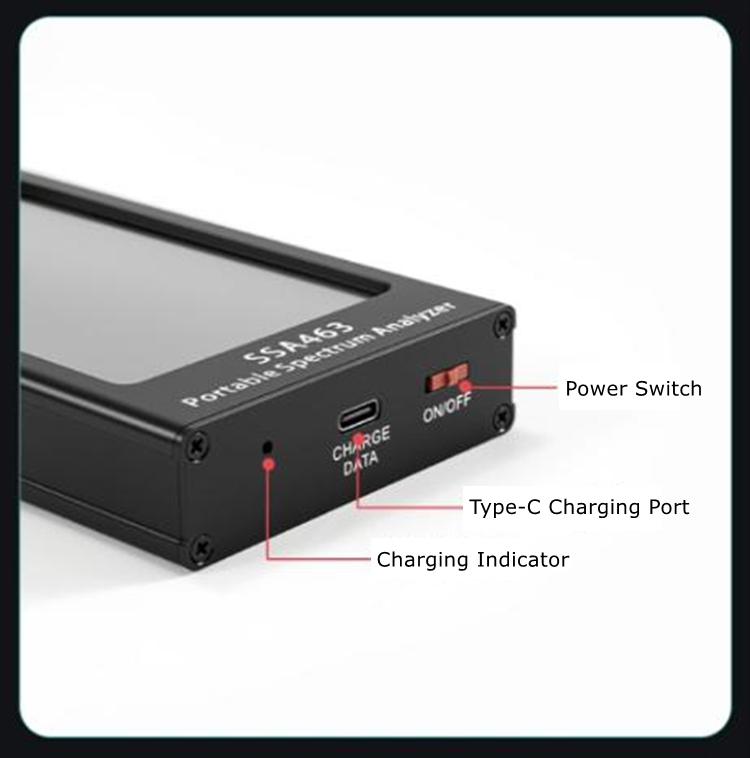

- Built-in 4000mAh lithium battery, with a battery life of over 5 hours and a charging power of 10W (5V/2A)

Package Included:
- 1 x Spectrum Analyzer
