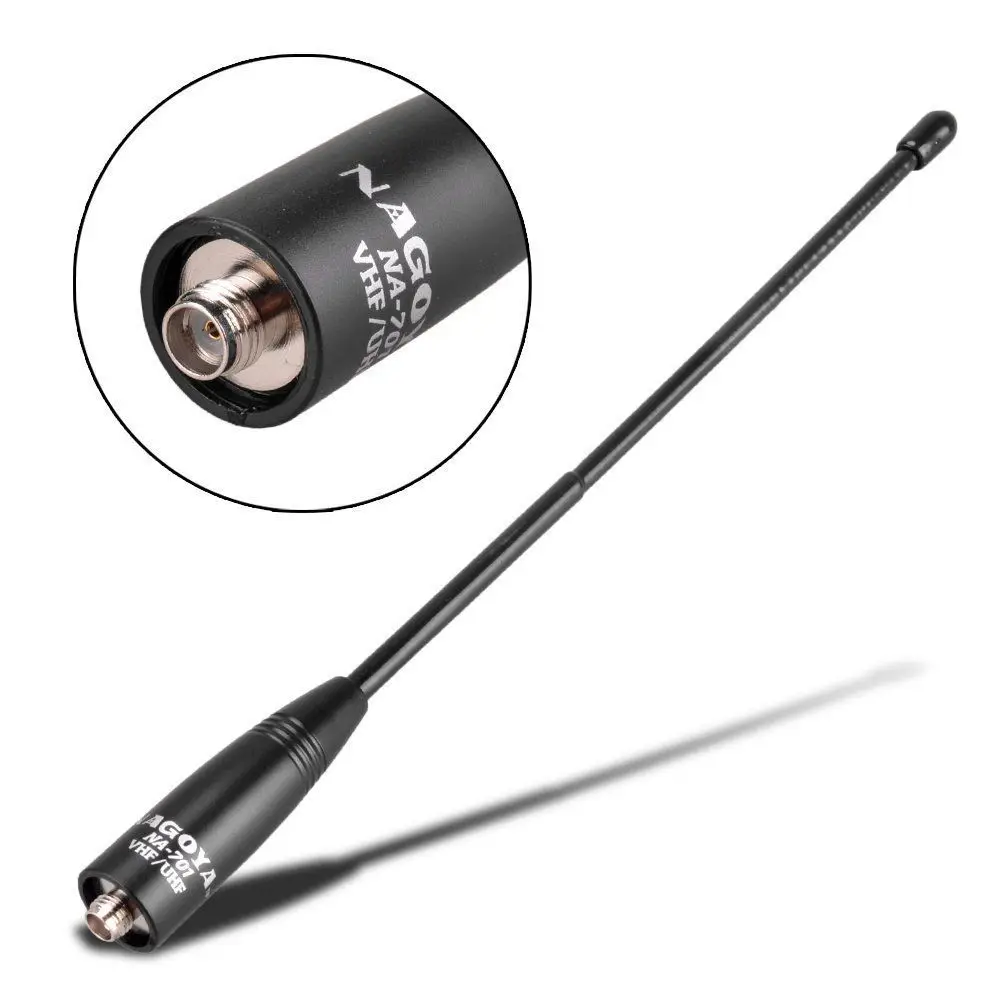

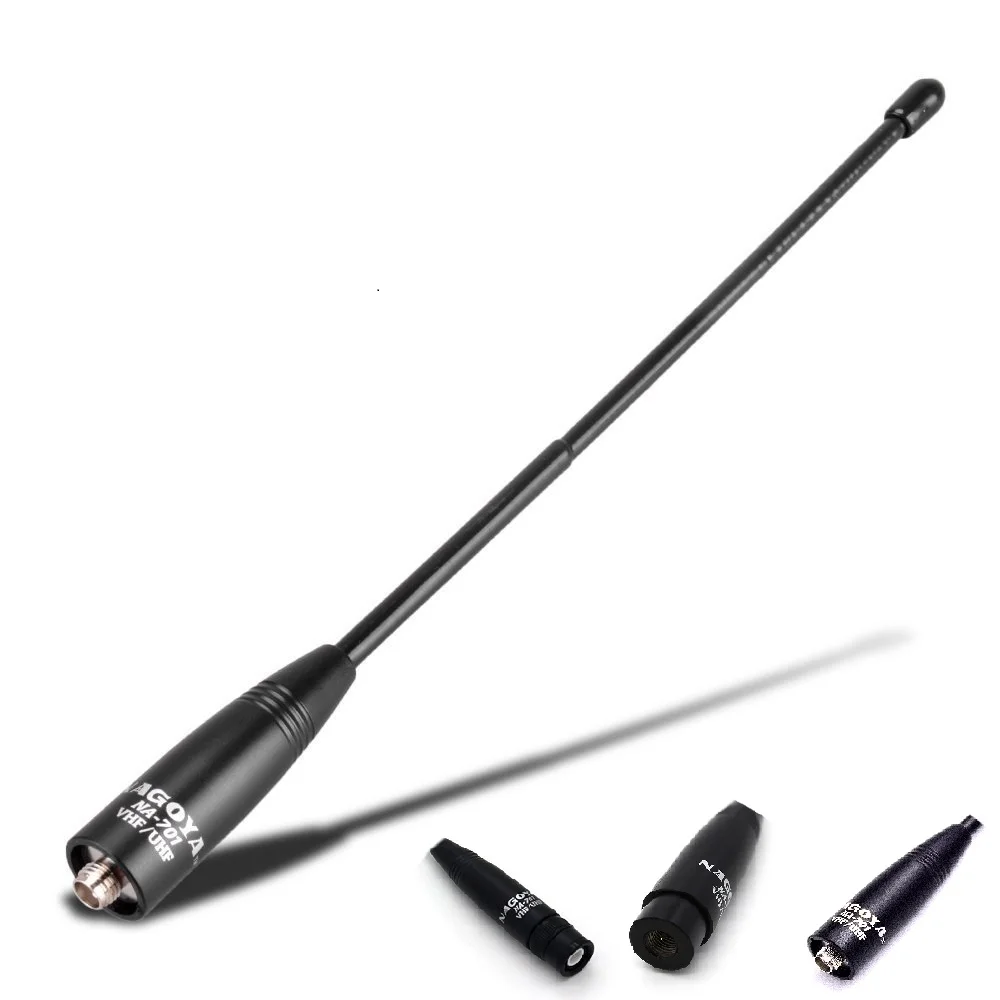

NAGOYA NA-701 Dual Band Antenna

Features

• Model: NAGOYA NA-701
• Frequency: 144/430MHz (dual band, transmit/receive); 120/150/300/450/900MHz (receive only)
• Wavelength: 1/4λ (for 144MHz), 1/2λ (for 430MHz)
• Impedance: 50Ω
• Power Rating: 10W
• Connector: SMA Male
• Weight: 30g
• Length: 21.1cm

Package Includes

• 1 x NAGOYA NA-701 Dual Band Antenna (connector type selectable per your needs)
• 1 x Rubber Gasket

Compatible Radio Models

1. For Radios with SMA-Female Interface

• YAESU/Vertex Standard: VX-1R, VX-2R, VX-3R, VX-5R, VX-6R, VX-7R, VX-8R, VX-110, VX-130, VX-131, VX-150, VX-160, VX-170, VX-177, VX-180, VX-300, VX-400, VX-410, VX-800, FT-270R, FT-250R, FT-60R, VX-230, VX-8d
• PUXING: PX-325, PX-333, PX-2R, PX-V6, PX-A6, PX-358, PX-359
• TYT: TH-F5, TH-UVF9, TH-UV3R, TH-UVF8D, TH-UVF9D
• LINTON: LT-6100, LT-6188
• TonFa: UV-985
• WouXun: KG-UV6D, KG-UV8D
• BaoFeng: UV-3R, UV-100, UV-200
• Zastone: ZT-2R
• Also compatible with other walkie-talkies requiring an SMA-Male antenna

2. For Radios with SMA-Male Interface

• YAESU/Vertex Standard: VX-1R, VX-2R, VX-3R, VX-5R, VX-6R, VX-7R, VX-8R, VX-110, VX-130, VX-131, VX-150, VX-160, VX-170, VX-177, VX-180, VX-300, VX-400, VX-410, VX-800, FT-270R, FT-250R, FT-60R, VX-230, VX-8d
• PUXING: PX-325, PX-333, PX-2R, PX-V6, PX-A6, PX-358, PX-359
• TYT: TH-F5, TH-UVF9, TH-UV3R, TH-UVF8D, TH-UVF9D
• LINTON: LT-6100, LT-6188
• TonFa: UV-985
• WouXun: KG-UV6D, KG-UV8D
• BaoFeng: UV-3R, UV-100, UV-200
• Zastone: ZT-2R

3. For Radios with BNC Interface

• Kenwood: TK100, TK200, TK220, TK300, TK310, TK320, TK308, TH28A, TH42AT
• Icom: IC-V8, IC-V80, IC-V82, IC-U82, IC-W32, IC-V85
• Motorola: HT440, HT90, Maxon HR, CP500, CP520, 1015
• EF Johnson: 577, 578
• Vertex Standard: 734, 834, HR146, HX300, HX320, HX400, CU32, CP/CS 5015, 0420
• Uniden: HH979
• Wilson: HH152, HH154, HH156, HH462, HH464

Note
