Features:
1. Engineered to match the original equipment shape and dimensions to provide a direct, seamless fit.
2. Replace your old or broken window regulator. Make your window move up and down smoothly, quietly and quickly.
3. The window regulator is made of high quality metal and plastic, which is durable and has good wear resistance, corrosion resistance and shock-proof performance.
Specifications:
Condition: Brand New (Never Been Used or Installed)
Material: Metal and Plastic
Color: Black
Attachment Type: Bolt On
Placement on Vehicle: Rear, Left, Right
Part Number: LR078197, LR078196, 16954803, 16954791, LR049253, LR049252
Fitment:
For Land Rover Range Rover 2012-2022
Only fit for models with long wheelbase. Cannot fit for Range Rover Sport.
Please make sure our part number and part photos matches your original one, if the numbers and photos are the same, then ours can fit your car.
Packing Included:
1 Pair Window Regulator
Install the Window Regulator As Follows:
Part1 Disconnecting the Window from the Motor
1. Remove the interior door panel.
2. Gently remove the plastic door cover.
3. Locate the window mounting bolts.
4. Move the window if necessary to access the bolts.
5. Remove the bolts while a friend supports the window.
6. Raise the window up into the door frame.
7. Use masking tape to secure the window in place.
Part2 Disconnecting the Motor and Regulator
8. Remove the window regulator bolts.
9. Locate and remove the window motor mounting bolts.
10. Disconnect the motor wiring harness connector.
11. Remove the motor and regulator through the access port.
12. Connect the regulator to the new motor.
Part3 Installing a New Power Window Motor
13. Slide the new motor and regulator back into place.
14. Replace the mounting bolts.
15. Reconnect the electrical connector.
16. Remove the masking tape and lower the window back down.
17. Insert the window mounting bolts.
Notes:

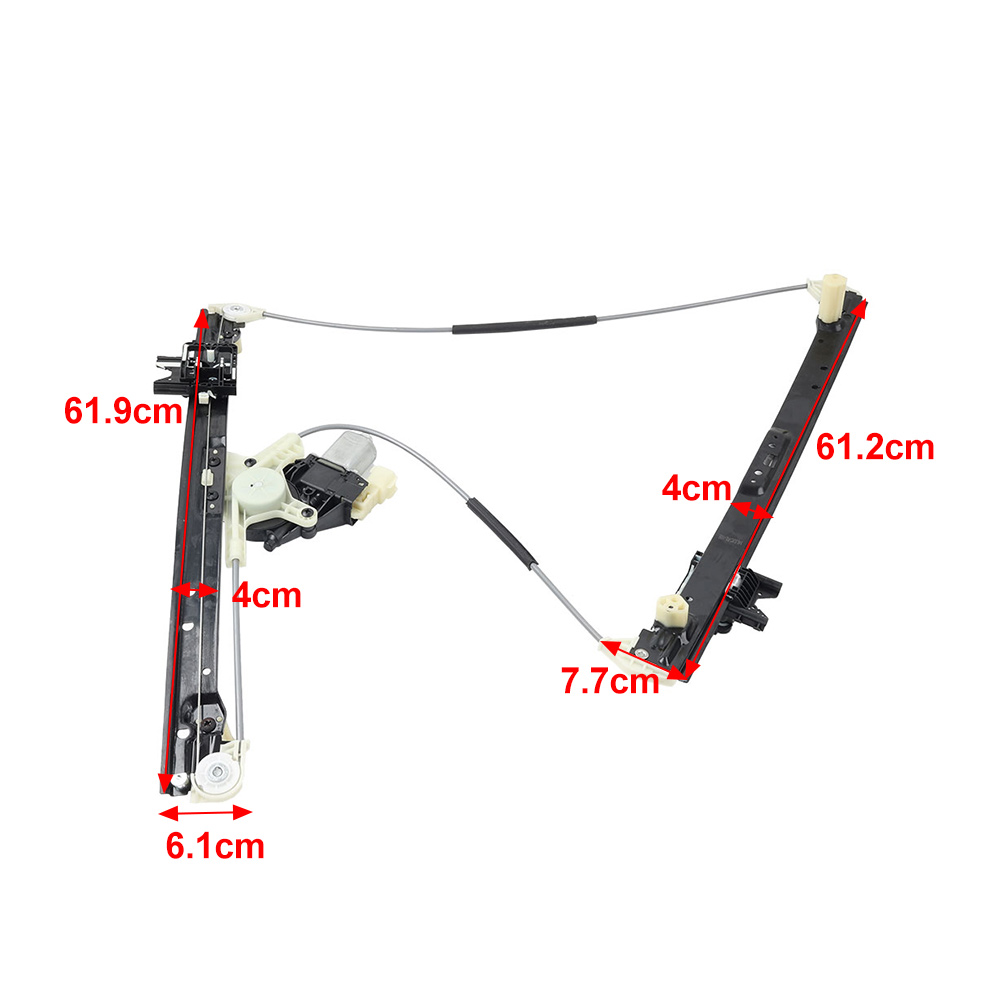

1. All dimensions are measured by hand, there may be small deviations.
2. This product is not a genuine product, but a high-quality replacement part.
3. No installation instruction included, professional installation is highly recommended.
4. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination.
5. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
