GMKtec G10 Mini PC Specification
|
|
CPU
|
AMD Ryzen 5 3500U (4C/8T, 4M Cache,up to 3.7GHz)
|
lnterface
|
1 x USB-C Power Port; 2 x USB 3.2 Ports; 1 x USB 2.0 Ports;1 x Type-C Ports; 1 x HDMI Ports; 1 x DisplayPort; 1 x RJ45 Ethernet LAN Port 2.5Gbps; 1 x 3.5mm CTIA Port
|
|
Graphics
|
Radeon Vega 8 Graphics(1200 MHz)
|
Power Adapter
|
19V-3.42A Certification Input: 100-240V AC, 50/60Hz 1.7A , Output: 19V/3.42A 64.98W
|
|
RAM
|
16GB DDR4 3200Mhz (Dual Channel 2*8GB)
|
Operating Environment
|
-10°C--45°C,30%--85% Humidity
|
|
Storage
|
256GB PCIe 3.0 M.2 2280 NVMe (Expansion: Dual Slot M.2 2280 PCIE Max. 16TB)
|
Storage Environment
|
-20°C--60°C,10%--90% Humidity
|
|
Wireless LAN
|
Realtek 8125BG 2.5G Gigabit LAN RJ45
|
Package Contents
|
1 x GMKtec Nucbox G10 Ryzen 5 3500U Mini PC, 1 x Power Adapter, 1 x VESA Mount with Screws, 1 x HDMI Cable, 1 x User Manual
|
|
Video output
|
Triple Display Output, HDMI 2.1 (4K@60Hz), DisplayPort v1.4 (4K@60Hz), Type-C(4K@30Hz)
|
Why choose GMKtec G10 Mini PC ?
✅ Office Light Gaming GMKtec Mini PC
GMKtec G10 Mini PC equipped with the AMD Ryzen™ 5 3500U, a 64-bit quad-core mobile processor designed for mid-range performance. Built on AMD’s Zen+ architecture and a 12 nm process, this CPU delivers a base clock of 2.1 GHz and a max boost frequency of up to 3.7 GHz within a 15W TDP. It supports up to 32 GB of dual-channel DDR4-2400 RAM and integrates Radeon™ Vega 8 Graphics, running at up to 1.2 GHz.Offers a 35% performance improvement over comparable Intel N-Series processors (N150/N100/N97/N95).

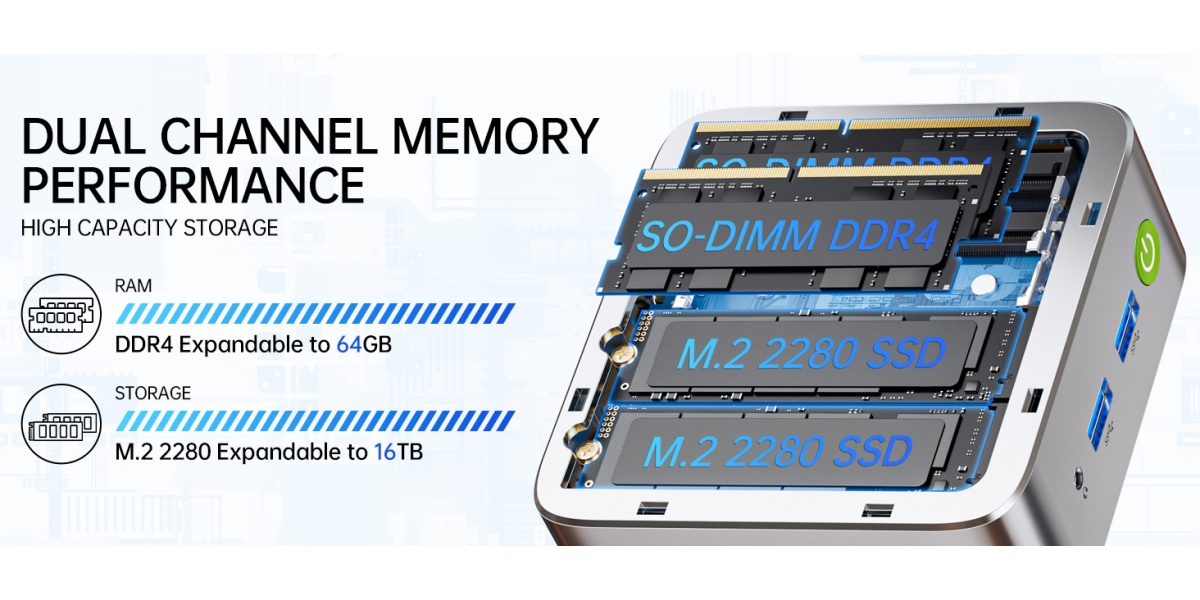

✅16GB Dual-Channel DDR4 + 256GB SSD

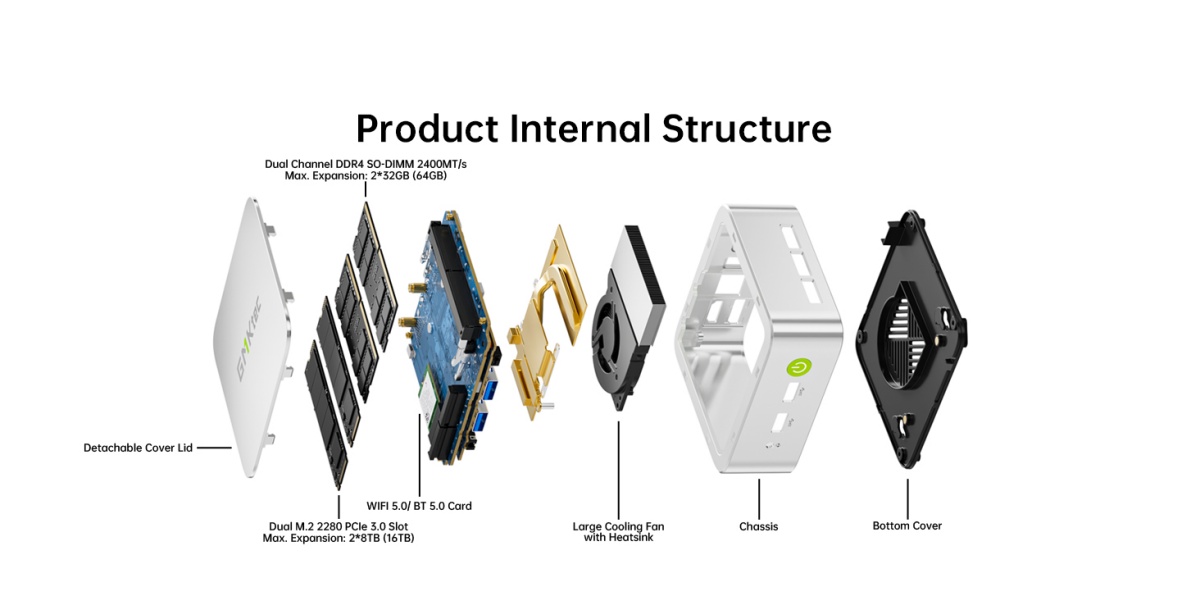

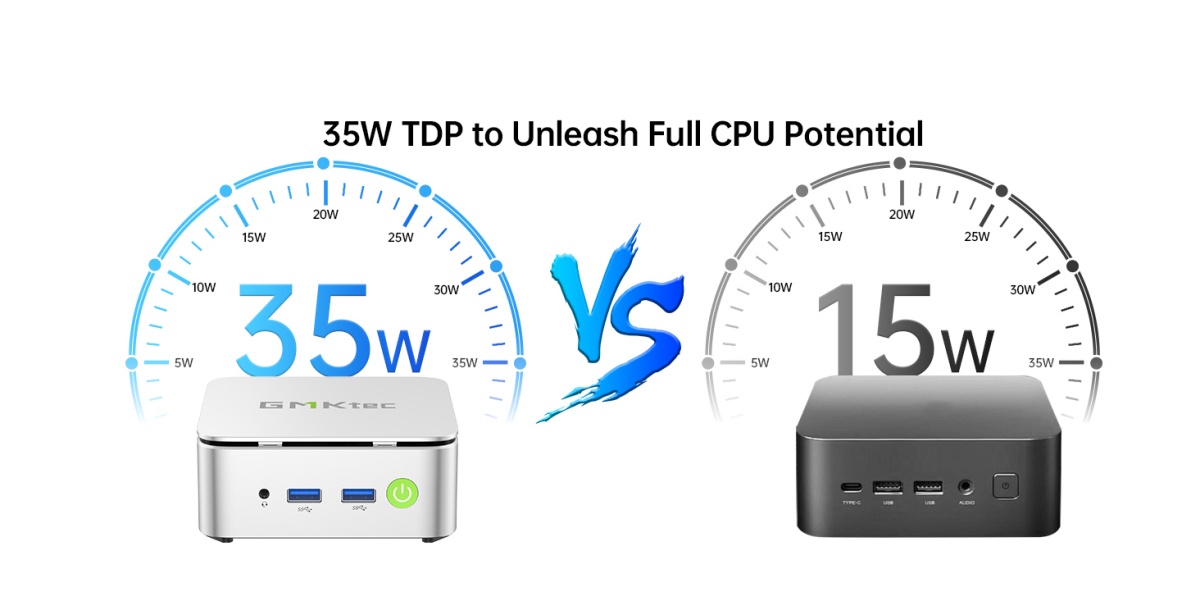

The Nucbox G10 mini PC comes equipped with 16GB dual-channel DDR4 RAM (2×8GB) and a 256GB SSD, with support for memory expansion up to 64GB. It features dual M.2 2280 PCIe 3.0 slots, allowing for storage expansion of up to 16TB SSD (2×8TB). (Upgrade accessories not included.) This model also supports configurable TDP, which can be adjusted between 12W (Power-Saving) and 35W (High-Performance) modes.

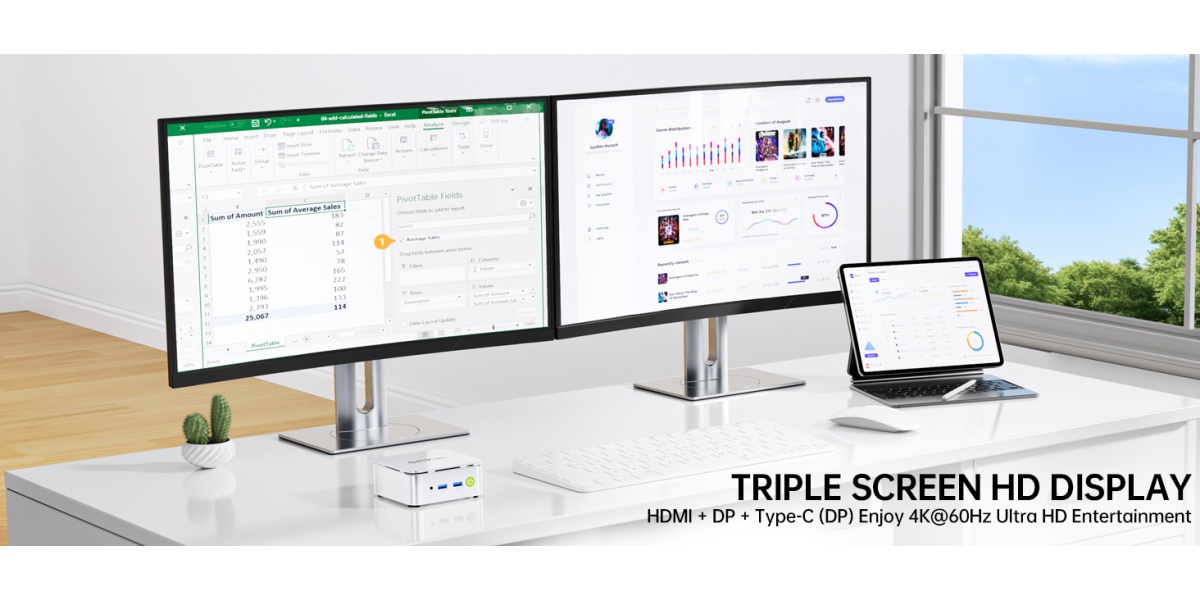

✅Supports Triple-Screen Display
The Nucbox G10 features an integrated AMD Radeon Vega 8 GPU running at up to 1200 MHz, delivering smooth performance for video editing, multimedia playback, and casual gaming. It supports triple-screen output simultaneously via HDMI 2.1 TMDS, DisplayPort 1.4, and USB Type-C.
✅Fast Wireless Connectivity - WiFi 5 & BT 5.0
Experience high-speed WiFi 5 and Bluetooth 5.0 connectivity, combined with a versatile selection of ports including dual USB 3.2, USB 2.0, stunning 4K@60Hz HDMI 2.1 TMDS, a multi-functional USB-C port (supporting PD charging, DisplayPort, and data), a dedicated DisplayPort, 3.5mm audio jack, and PD power input. Enjoy seamless multitasking and premium connectivity in a compact design.
✅ GMKTEC After-Sales Service
GMKtec provides a 1-year limited warranty for each mini PC. From the date of your purchase, you can enjoy a worry free experience. Additionally, a professional after-sales team is available to provide you with service support at any time, allowing you to use this mini PC with peace of mind.
