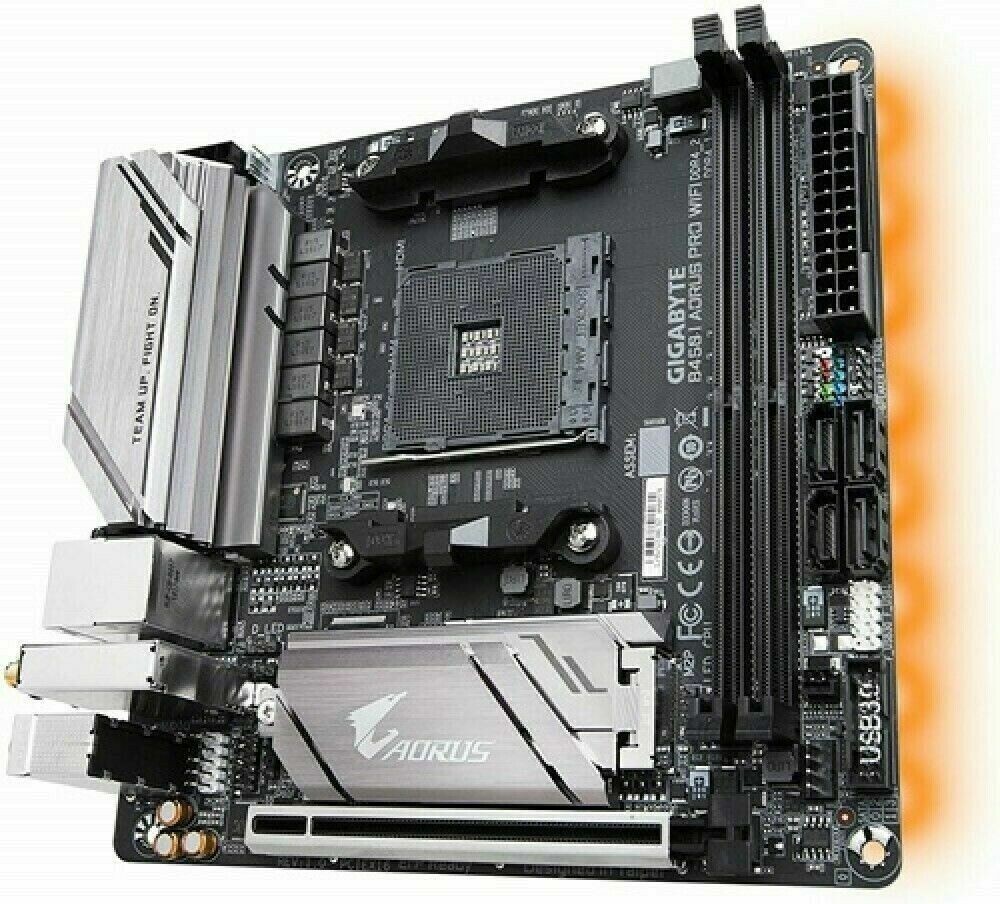

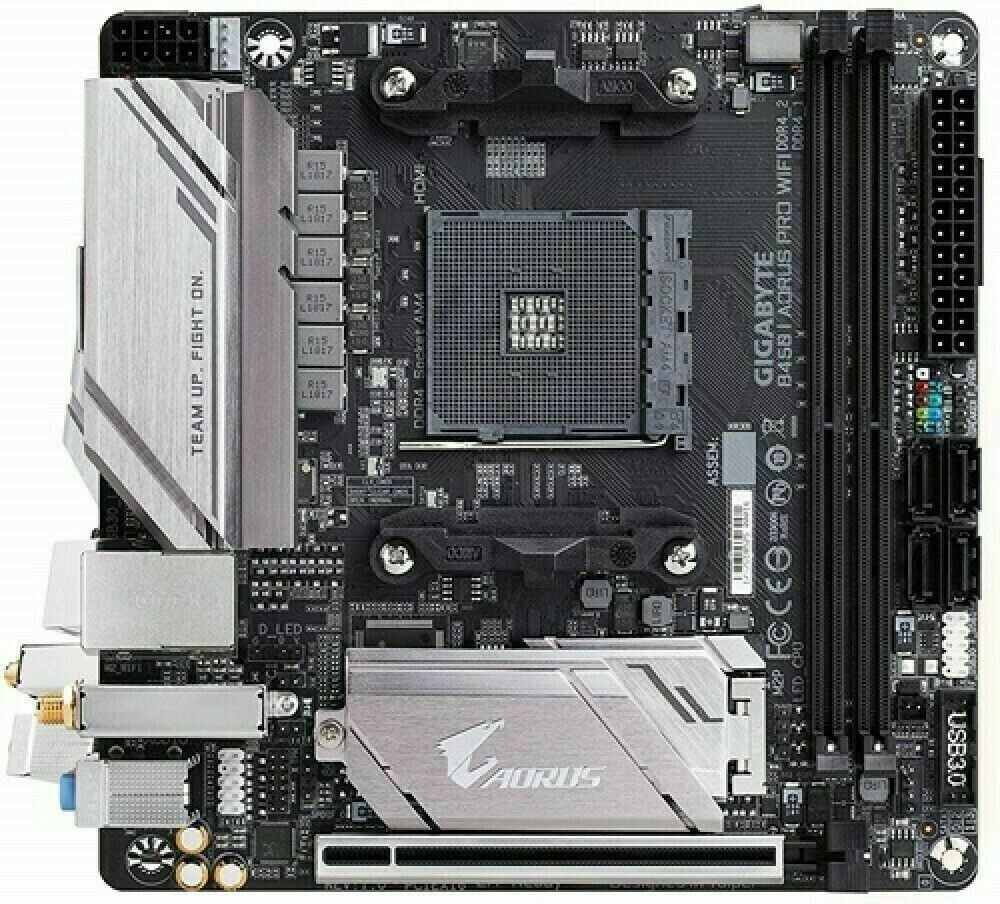

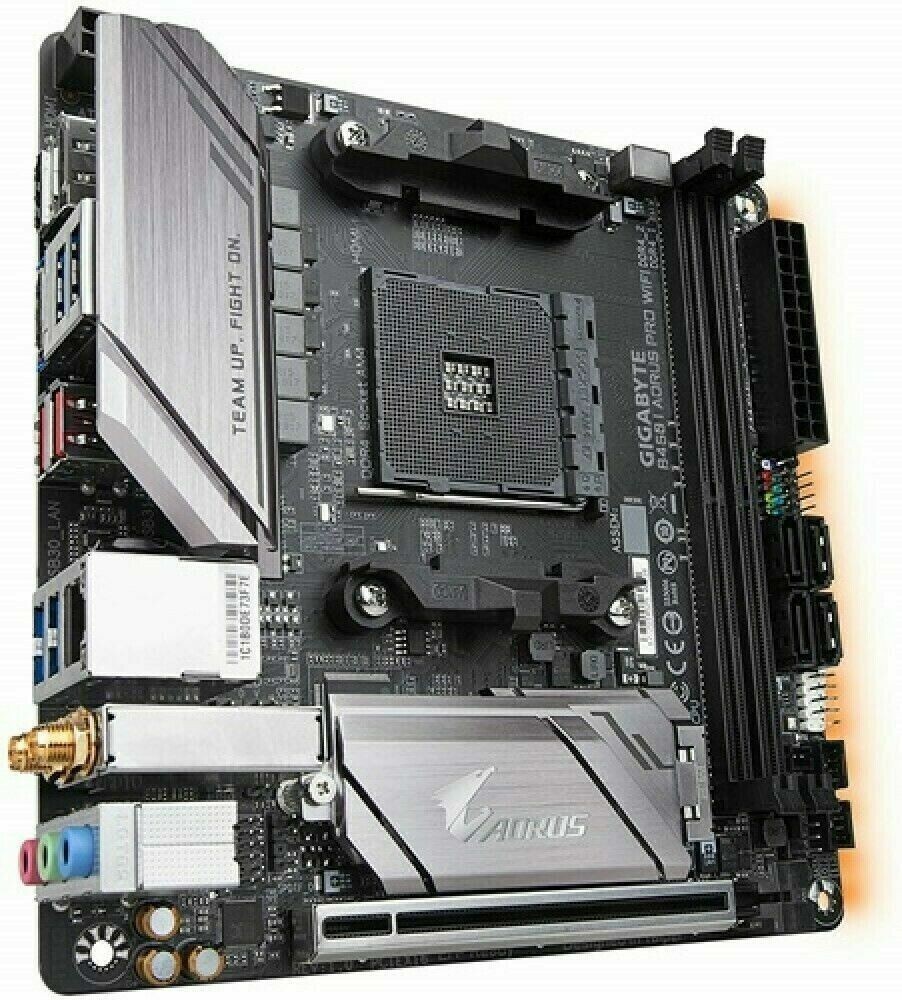

GIGABYTE B450 I AORUS PRO WIFI Motherboard AMDB450 SocketAM4 DDR4 Mini-ITX 1×M.2

CPU

AM4 slot:

Supports AMD Ryzen™ 5000 Series / Ryzen 5000G Series / 3rd Gen Ryzen™ / 2nd Gen Ryzen™ / 1st Gen Ryzen™ / 2nd Gen Ryzen™ Integrated Radeon™ Vega Graphics / 1st Gen Ryzen™ Integrated Radeon™ Vega Graphics / Athlon™ integrated Radeon™ Vega graphics core processor

Chipset

AMD B450

RAM

2 DDR4 DIMM slots, support up to 32 GB

Supports dual-channel memory technology

Support DDR4 3200(O.C.)/2933/2667/2400/2133 MHz

Support ECC Un-buffered DIMM 1Rx8/2Rx8 memory

Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

Display function

Built-in processor with display capability:

1 DisplayPort interface, can support up to 4096x2304@60 Hz resolution

* Supports DisplayPort version 1.2.

2 HDMI ports, can support resolution up to 4096x2160@60 Hz (Note)

* Support HDMI 2.0 version and HDCP 2.2. (Note)

* Up to three screens can be output at the same time

Supports *Maximum Shared Display Memory*16 GB

(Note) Whether this specification is supported depends on the CPU.

Sound effect

Built-in Realtek® ALC1220-VB chip

Support High Definition Audio

Support 2/4/5.1/7.1 channel

* To enable 7.1-channel audio output, you must use the front panel audio output of the HD (High Definition) audio module, and select the multi-channel audio function through the audio software.

Support S/PDIF output

The internet

Built-in Intel® GbE network chip (10/100/1000 Mbit)

wireless communication module

Wi-Fi 802.11a/b/g/n/ac, support 2.4/5 GHz wireless dual-band

BLUETOOTH 5

Support 11ac 160 MHz wireless communication standard, can support transmission speed up to 1.73 Gbps

* Actual transfer speed will vary depending on usage environment and equipment.

Expansion slot

1 PCI Express x16 slot, supports x16 operation specification (Note)

(PCIEX16 slot supports PCI Express 3.0)

1 M.2 Socket 1 socket for wireless communication module (M2_WIFI)

(Note) Whether this specification is supported depends on the CPU.

Storage device interface

1x M.2 socket (support Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD)

4 SATA 6Gb/s sockets

Supports RAID 0, RAID 1 and RAID 10 functions

USB

Built into the chipset:

2 USB 3.1 Gen 2 Type-A ports (red) on the rear panel

2 USB 3.1 Gen 1 ports, which need to be connected from the USB socket on the motherboard via a cable

2 USB 2.0/1.1 ports, which need to be connected from the USB socket in the motherboard via a cable

Built into the processor:

4 USB 3.1 Gen 1 ports on the rear panel

Internal socket

1 24-pin ATX main power socket

1 x 8-pin ATX 12V power socket

1 CPU fan header

1 system fan socket

1 digital LED strip power socket

1 cooling fan light strip/RGB LED light strip power socket

4 SATA 6Gb/s sockets

1 M.2 Socket 3 socket

1 front control panel socket

1 front audio socket

1 S/PDIF output socket

1 speaker socket

1 USB 3.1 Gen 1 socket

1 USB 2.0/1.1 socket

1 security encryption module (TPM) socket (2x6 pin, only used with GC-TPM2.0_S)

1 clear CMOS data pin

1 computer case open detection pin

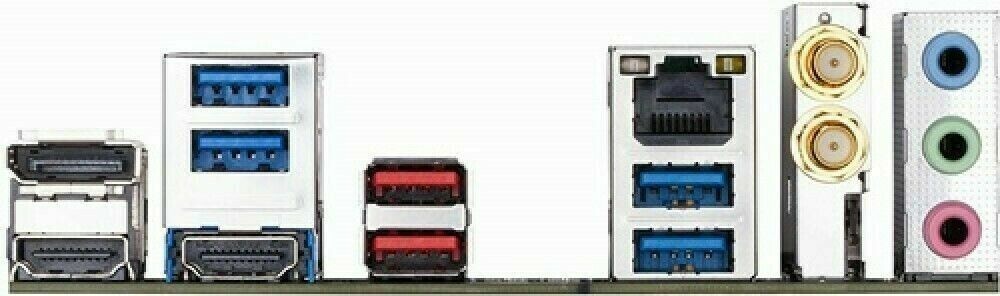

Rear panel unit connection socket

1 DisplayPort interface

2 HDMI ports

2 USB 3.1 Gen 2 Type-A ports (red)

4 USB 3.1 Gen 1 ports

1 RJ-45 interface

2 SMA Antennas (2T2R)

3 audio interface

I/O Controller

Built-in iTE® I/O controller chip

BIOS

1 x 128 Mbit flash

Use an authorized AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

OS

Support Windows 10 64-bit

Support Windows 7 64-bit

* To install Windows 7 64-bit, AMD Pinnacle Ridge & Summit Ridge CPU is required.
