7" HD TFT LCD Monitor Rearview/Sideview Backup Camera for Vehicles with 4-Pin Interface and Remote Control (Batteries Not Included)
Includes two durable 4-pin side-mounted and rear-view backup cameras—equipped with 700TVL Sony CCD sensors, featuring night vision capability, waterproof design, compatible with 12-24V voltage, and comes with 10-meter+5-meter waterproof extension cables.
Ideal for Trucks, Buses,Van, Trailers, RVs, and Heavy-Duty Applications
12V-24V input
10m+ 5m 4-Pin Shield Cable
*No another power cable is needed to connect cameras.
*It will shield vehicle's circuit interference better than normal AV cable
Monitor
- Style: 7'' TFT LCD Color Rear View Mirror Monitor
- Color System: PAL/NTSC (Auto)
- Display Resolution: 800 × 480 (H × V)
- Video Input: 2 Channels AV1 AV2
- Brightness: 350 cd/m²
- Operating Temperature: -20°C to +70°C
- Voltage: DC 12V–24V
CCD Color Camera
- Style: 4-Pin
- Sensor: 1/3" Sharp Color CCD
- Horizontal Resolution: 800 TV Lines
- Effective Pixels:NTSC: 910 × 892 (H × V)
- Minimum Illumination: 0 LUX (with 18 IR LEDs for night vision)
- View Angle: 120°
- Video Output: 1.0 Vp-p, 75Ω
- Voltage: DC 12V–24V

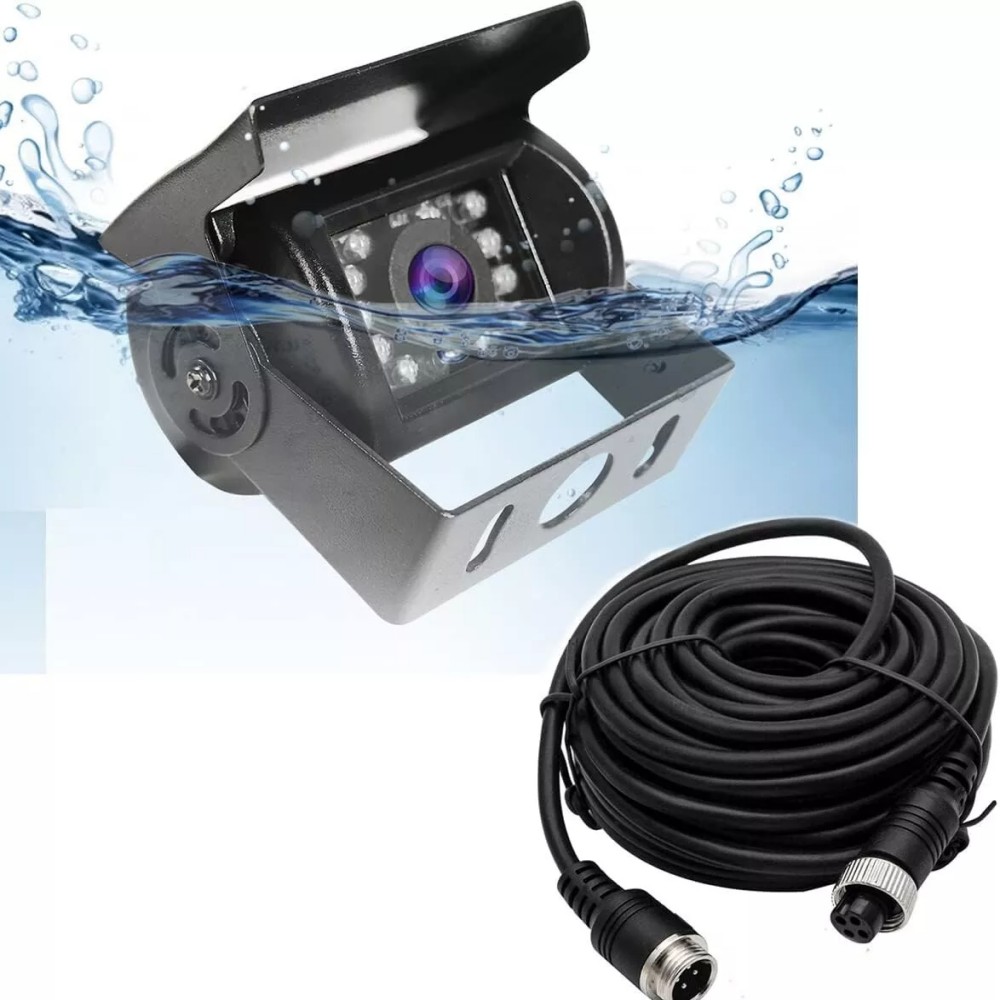

- Waterproof Rating: IP68
- Shockproof: 10G
- Dimensions: 89 × 53 × 48 mm (W × H × D)

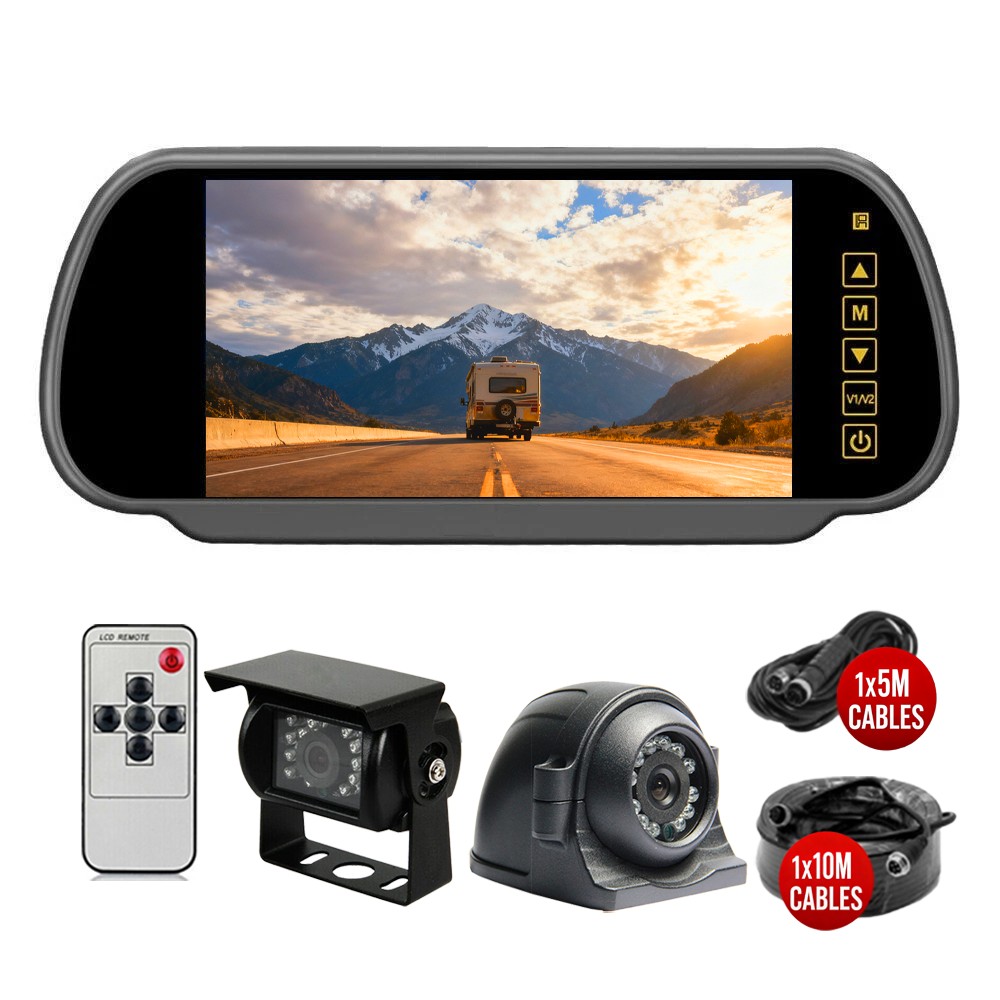

Package Contents
1 x 7-inch TFT LCD Rearview Mirror Monitor
1 x Remote Control
1 x Monitor Power Cable
1 x Side View Camera
1 x Rear View Camera
1 x 10m+ 5m 4-Pin Extension Cable
1 x User Manual
