iPoster 7-inch TFT-LCD monitor kit is an upgraded dual reversing camera system designed to provide clear rearview visibility. With an 800 x 480 HD resolution, it is suitable for trucks, semis, trailers, box trucks, RVs, and vans.

Key Features:

• The display image can be rotated horizontally and vertically for mirror or normal viewing.

• The monitor automatically turns on and switches to the rearview camera when the vehicle is put into reverse.

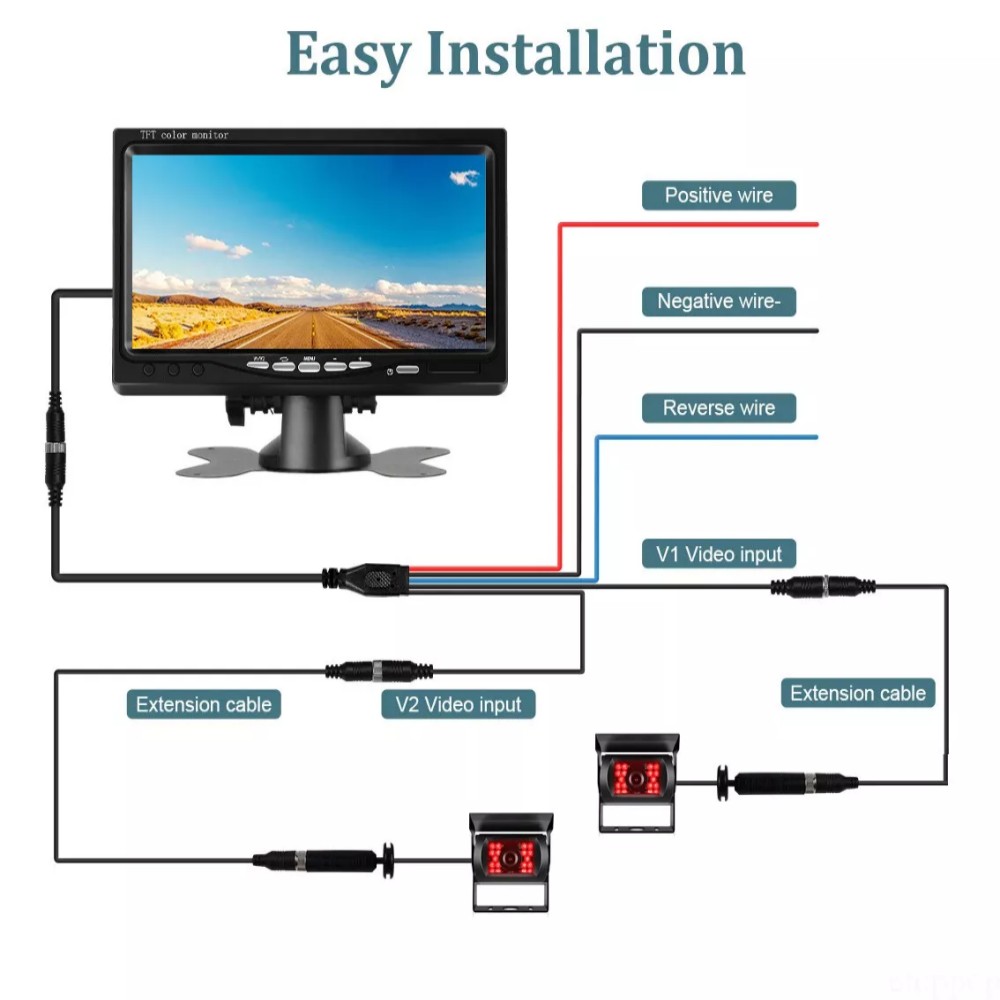

• It supports two camera video inputs (V1/V2 selectable).

• The monitor can be mounted on the roof or dashboard to meet various installation needs.

Monitor Specifications:

• OSD Menu: Allows setting the camera image to mirror or normal view.

• Color System: Auto-detects PAL/NTSC.

• Display Resolution: 800 (Horizontal) x 480 (Vertical) dots.

• Video Inputs: Supports two camera inputs.

• Viewing Angle (CR:10): Up/Down: 45°/65°; Left/Right: 65°/65°.

• Brightness: 250 cd/m².

• Operating Temperature: -20℃ to +70℃.

• Storage Temperature: -30℃ to +80℃.

• Operating Voltage: DC 12V–24V.



CCD Color Camera Specifications:

• Image Sensor: 1/3" SHARP Color CCD.

• Horizontal Resolution: 800 TV Lines.

• Effective Pixels: NTSC: 910(H) x 892(V).

• Minimum Illumination: 0 Lux (features 18 built-in IR LEDs for night vision).

• Viewing Angle: 120° diagonal.

• Waterproof Rating: IP68.

• Shockproof Rating: 10G.

• Video Output: 1.0Vp-p, 75Ω.

• Operating Voltage: DC 12V ~ 24V.

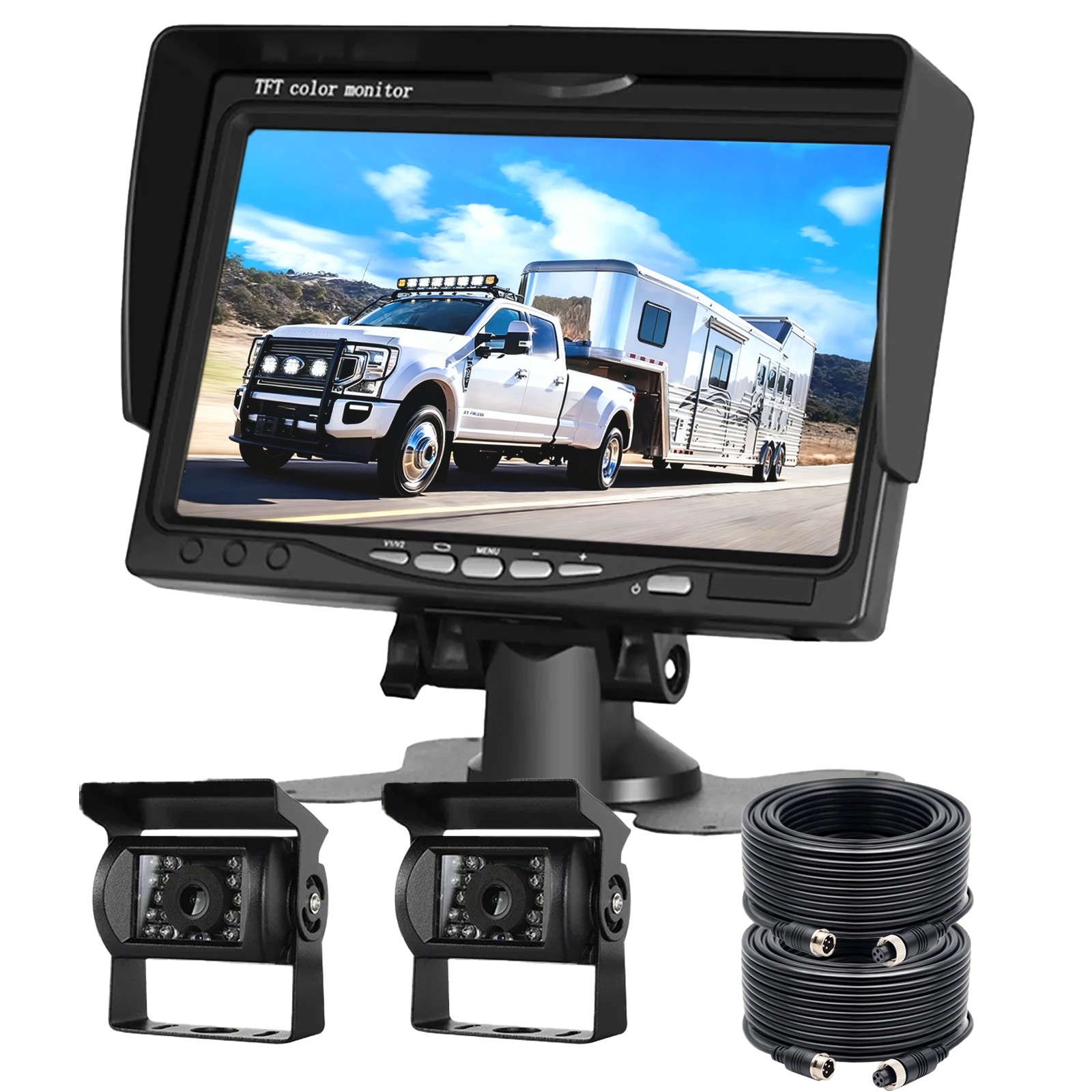

Package Contents:

• 7-inch TFT LCD Monitor

• Bracket

• Power Cord

• Camera (x2)

• Sun Visor

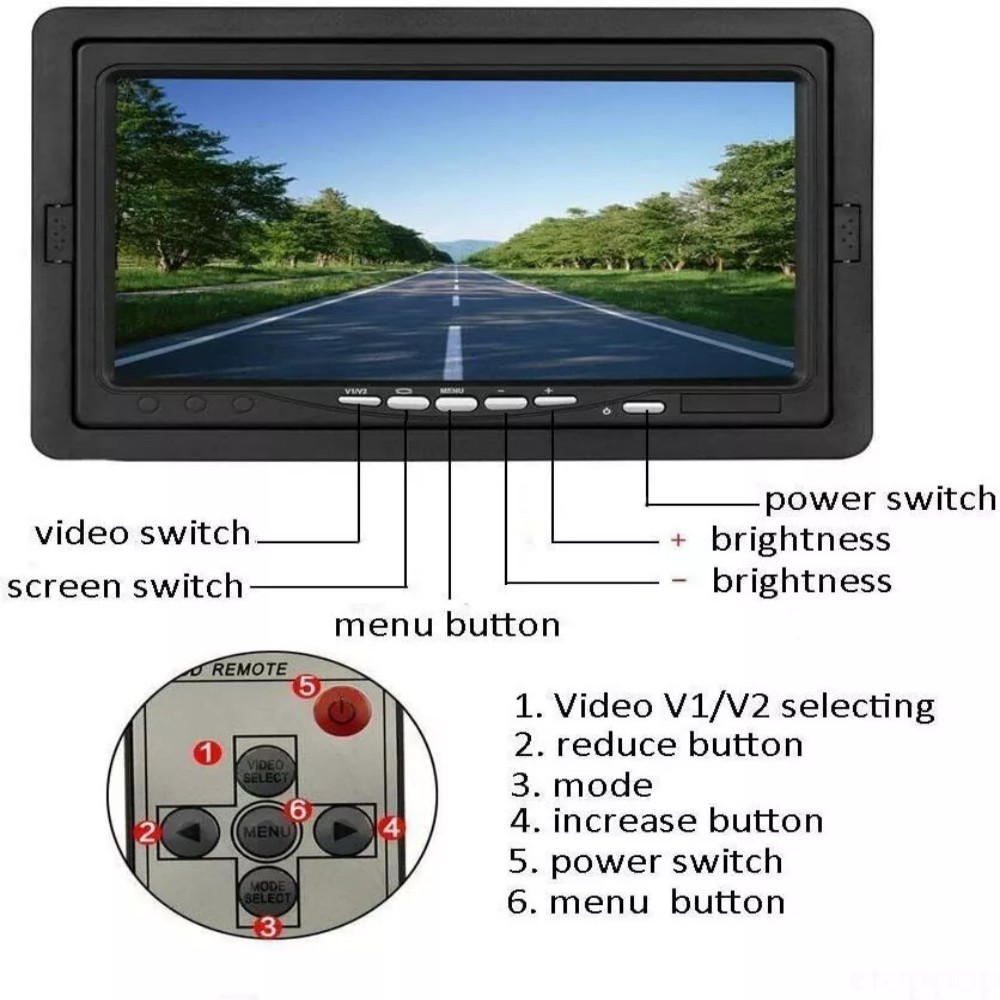

• Remote Controller

• 10m+5m 4-pin Cable
