Compatible with Modesl & Years:

For Ford

• E250/E350 (2009~2010); Edge(2007~2010);
• Escape(2008~2012); Expedition(2007~2010);
• Expedition EL/MAX(U354)(2007~2010);
• Explorer(U251)(2006~2010); F150(2004~2008);
• F250/F350(2006~2010); Five Hundred(2005~2007);
• Focus (2005~2007); Freestar(2004~2007);
• Freestyle(2005~2007); Fusion(2006~2009);
• Fusion(2006~2009); Mark LT(2006~2008);
• Milan(2006~2009); MKX(2007~2009);
• Montego(2005~2007); Mountaineer(2007~2010);
• Mustang(2005~2009); Sable(2008~2009);
• Shelby GT500(2007~2009); Taurus(2008~2009)

Wired/Wireless CarPlay Android Auto MirrorLink AirPlay Function for Ford Mustang Touch Screen Stereo

Smart Car Entertainment System Expert for Ford Mustang CarPlay Radio

Display: The screen automatic mode can automatically adapt according to the intensity of the light. The maximum screen angle is 178°. No matter from which angle to view the navigation, the color is extremely high, and keep the real ultra-clear viewing angle. At the same time, 7 kinds of wallpapers can be selected, 4 kinds of free hosts can be switched at any time, and the Dark theme can also be turned on.

1080P Rear View: This is completely different from the virtual 1080P rear view camera, with high resolution and realistic feeling, this is the ultra-clear version, and the night vision function provides a clear enough picture to help you.

Map/GPS: Google Map is pre-installed, and Google Earth is also supported. GPS supports mainstream satellites: GPS, BDS, GLONASS and other mainstream satellites, you can go to any corner of the world.

Wired and Wireless Mirroring: In Tlink, wired and wireless mirroring are also supported. You can project pictures and video images of your phone onto the navigator.

Advanced version of QLED: Colorful high-definition 2.5D has anti-drop function, and it is not easy to scratch after long-term use. The bass sound quality adjusted by DSP is also fuller. Whether it is video, music, or radio playback, you will feel immersive and extremely shock.

Touch Screen Sensitivity: An effective capacitive induction area is formed through the experiment and detection of finger pressing force, pressing position and circuit response time, bringing you a very user-friendly touch screen experience. Touch screen time feedback is reduced by at least 0.1 second.

Other Features: Strong signal FM upgrade version; compatible with steering wheel control; support external APK direct installation (can be connected through USB Port); support AUX input, can be connected through CVBS port; you can download and install the APP you want to use on Google Play. Support 1080P video playback; screen capture function and sleep function (swipe from top to bottom).

Steering Wheel Control

With the steering wheel control button,you can switch songs, change channels and adjust volume at your fingertip,keep your eyes on the road.

5G WiFi Network

Dual-band Wi-Fi supports both 2.4GHzand 5GHz bands and provide faster speed and flexibility.Easily access the Internet via WiFi or a 4G dongle* Network sharing via Bluetooth is not supported.

GPS Navigation

Install Google map or Waze app, download off-line maps, the GPS navigation of this head unit will work without internet. Never get lost wherever you are.

Bluetooth 5.0

Hands-free calling, Sync contacts,Bluetooth music. Hands-free calling and answer,making your call more safe when driving, built-in microphone, external microphone is in the box.

Online & Offline Map for Mustang Stereo

This android car radio supports online and off-line Navi app, Navigation can be achieved easily by using the online or offline map. It can run all navigation apps like Google Maps, Waze, etc.

How to use Wireless CarPlay/Android Auto?

1. Open the Bluetooth function on iPhone and Car Radio.
2. Connect the mobile phone and car radio via Bluetooth, use the password “0000”
3. Open the car radio application "TLink5" and select CarPlay on iPhone

How to use Wired Android Auto?

1. Connect your phone to the car radio via a 6-pin USB adapter, and install the "android auto" app into your Android phone (some Android phones support built-in Android Auto ).
2. Connect to your mobile phone and radio through the original Android USB data cable.
3. Open the Application "TLink5" and wait for it to automatically connect.

How to use the Wired AirPlay MirrorLink?

• Click on the TLink5 app, and a blue function switch button will be displayed in the bottom right corner, which allows you to select wired or wireless Mirroring for iPhone or Android.
• Wired iPhone Airplay/Android Mirroring: USB wired Mirroring/Airplay. You only need to connect the original power cord of your phone (IOS/Android) to the 4-pin USB interface, and you can achieve wired Mirroring/Airplay

Built-in EQ Settings for Ford Mustang Touch Screen Head Unit

DSP is user-customized. Built-in professional preset equalizer. You can adjust the EQ options to customize the music style and sound effects you want. Enjoy the music while driving and make the driving journey more enjoyable!

Specifications for Ford Mustang Radio:

• Android 13 Operation System, 8-Core Processor - Warm Boot <1s, First Boot time <40s
• 4GB RAM, 64GB ROM - To install more apps via Google Play & APK installer.
• 7 Inch IPS Touch Screen - 1024x600 Pixels resolution.
• Built-in Wireless CarPlay & Wired Android Auto - Voice Control with your smartphone.
• Built-in Wi-Fi -Dual bands: 5GHz faster than 2.4GHz
• Bluetooth 5.0 for Bluetooth Calls and Music
• Built-in DSP - Offers extensive sound adjustment options to get the best out of your car sound system.
• The UI for this head unit comes with four sets of built-in themes that you can choose from.

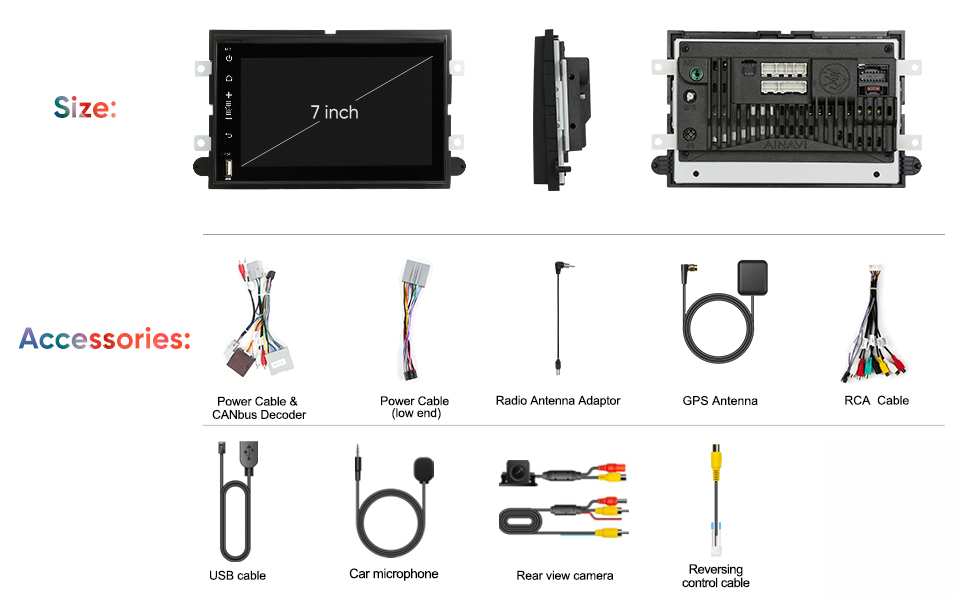

• Supports External microphone (In the box) -Supports AHD Reversing camera (In the box)

Note:

• This head unit comes with Customized harness plugs.
• You don't need to modify the cables of cars except for some special functions.
• It is a plug-and-play wire harness.

Installation Instructions

Special car dedicated

non-destructive installation

Our products are dedicated to the car, the wire is the socket docking without breaking the line, do not cause secondary damage tothe car.

Please kindly notes :

If you received any problem items,please contact us before giving any feedback,

we will confirm the problem and reply you ASAP and give a best solution for this,Please don't worry we are responsible for any possible issues.

It's our responsibility to solve the problem until you satisfied.

Payment

Payment Information

Immediate payment is required upon selecting "Buy It Now" or upon checking out through the basket.

Return

We hope that you will be pleased with your order. However, in the event that your order is not suitable, we are happy to accept returns for a refund (excluding postage) or an exchange with 30 days of purchase.



It is very important that you include a note with your eBay ID, name, reason for returning and return requirements.



In the event of a return, the customer is responsible for postage costs. It is highly unlikely that a product may be faulty, however in the case returning postage will be refunded on arrival.





Exchange and Refund Process

Returns are handled on a daily basis therefore your exchange or refund will be posted on the day that your return arrives; you will also receive an email to confirm this. Exchanges will be posted to the address associated with the original order (unless otherwise stated) and refunds will be issued to the original payment method only.



PLEASE NOTE: All products that have been used or original packaging is incomplete will be charged 25% restock free

Shipping

We will ship items via SpeedPAK, USPS, or UPS,Fedex, AUPOST

Hope you can understand, we will choose the lowest price for your cities.

1. This item will ship to your ebay address, so please confirm your address is right when you pay.

2. Leave your phone number on the address, so if you are not at home, the carrier can contact you easily .

3. Estimated time of arrival?7-12  working days

4. If you do not receive it on time, please contact us via ebay message.

Our Duty Time
China Time			USA(pacific time)
	Start	End		Start		End
Monday	AM 9:00	PM 18:00	Sunday	PM 17:00	Monday	AM 2:00
Tuesday	AM 9:00	PM 18:00	Monday	PM 17:00	Tuesday	AM 2:00
Wednesday	AM 9:00	PM 18:00	Tuesday	PM 17:00	Wednesday	AM 2:00
Thursday	AM 9:00	PM 18:00	Wednesday	PM 17:00	Thursday	AM 2:00
Friday	AM 9:00	PM 18:00	Thursday	PM 17:00	Friday	AM 2:00
Saturday	Out of Duty		Friday		Saturday
Sunday	Out of Duty		Saturday		Sunday

During the duty time ,we can give you a quick respond.

If we are out of work, please kindly be patient and considerable to give us a little more time, thanks for your supporting!

FAQ

Frequently Asked Questions



Q: How do I order?

A: You can place your order online at any time using eBay secure shopping cart.







Q: How do I pay for my order?

A: We accept Visa, Mastercard, Discover, American Express, PayPal.





Q: How will my order be shipped?

A: We offer Ground Shipping for US orders ONLY (including Alaska and Hawaii).





Q: What are your shipping and handling rates?

A: Shipping and handling rates vary by product. Almost all of our items shipped within the continental U.S. come with Free Shipping, however, due to weight and occasional handling fees some of our products have a shipping charge. All shipping fees will be displayed on individual items before you add them to your shopping cart and purchase them. For orders being shipped outside the continental U.S. we will add an extra shipping charge to the entire order. This charge will be displayed on the order confirmation page before you submit your order.





Q: How long does it take for the products to arrive?

A: Most items in stock ship within 1 to 3 days. Please allow up to 5 days for delivery. Some custom items are made to order, and may take 1-2 weeks to be shipped





Q: What is your return policy?

A: Read our Return Policy





Q: How do I check the status of my order?

A: We will email you an order tracking number when your order has shipped. Some of our products, including but not limited to custom seat and car covers, are custom made to order and require us to get the tracking information from the manufacturer. For such orders, please allow additional time for order status information.

Tips:

1.Why can't turn on the car radio ?

1.1Please check the Voltage of car radio:12V

1.2When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.

1.3Replace the same type of insurance to test the car radio.

Note: Please must use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.

2.Why the car radio will show "No Signal" when we reversing?

2.1Please check if the camera's line is properly connected to the car radio.

Note:The video port of rear camera must insert the "CAMIN" port of car radio.

2.2 Please check whether the pink wire is connected to the line on the positive 12V? If not, there will be a light on but the display does not appear reverse image.

3.Why does the radio not turn off after turning off the engine and keep consuming power?

Check if the red ACC power cable and canbus are not disconnected? Otherwise it will keep powering up

4.Why can't search FM?

4.1: No radio antenna inserted;

4.2: Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted;

4.3: The signal of your location is not good. Please go to a better place to test again

4.4: The radio antenna on the car is broken/no effect; please replace the radio antenna and test again.

5.Why can't connect the Bluetooth of car radio?

5.1 Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.

5.2 Please try to use another mobile phone to test this function.

All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minutes.
