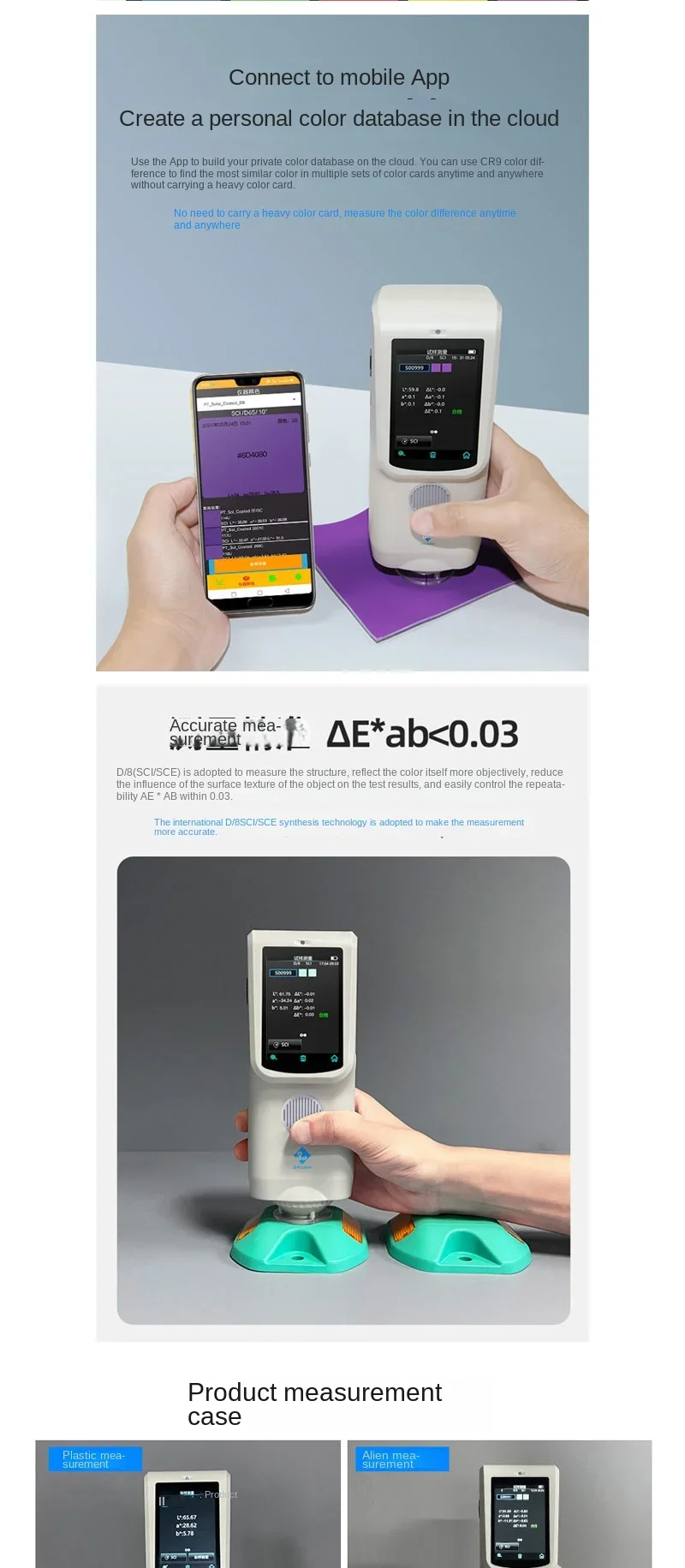

Model NR110
Measurement Geometry 8°/D

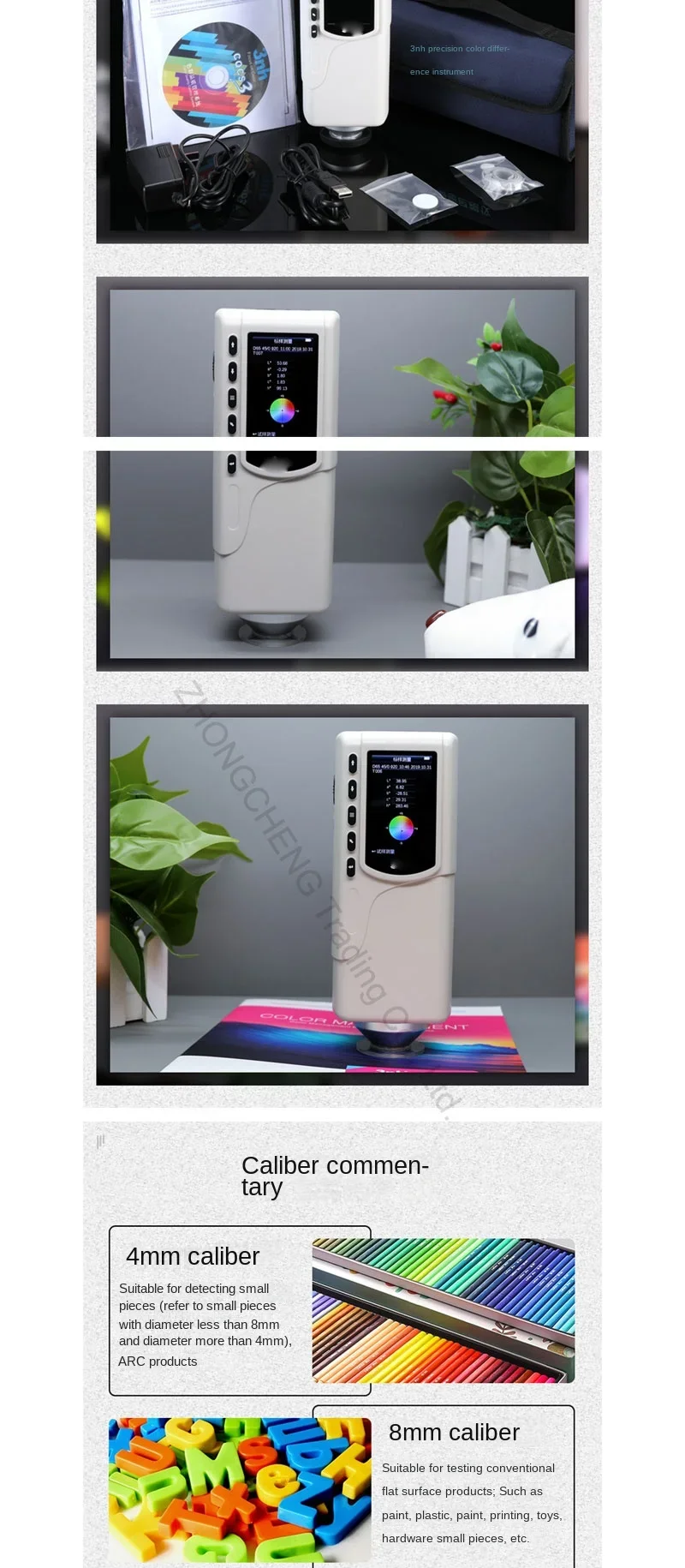

Measurement Aperture Ф4mm
Positioning Method Illumination positioning and crosshair positioning
Measurement End Face Large stable end face and small area measurement of uneven end faces
Detector Silicon photodiode array
Color Space CIEL*a*b*C*h*, CIEL*a*b*, CIEXYZ

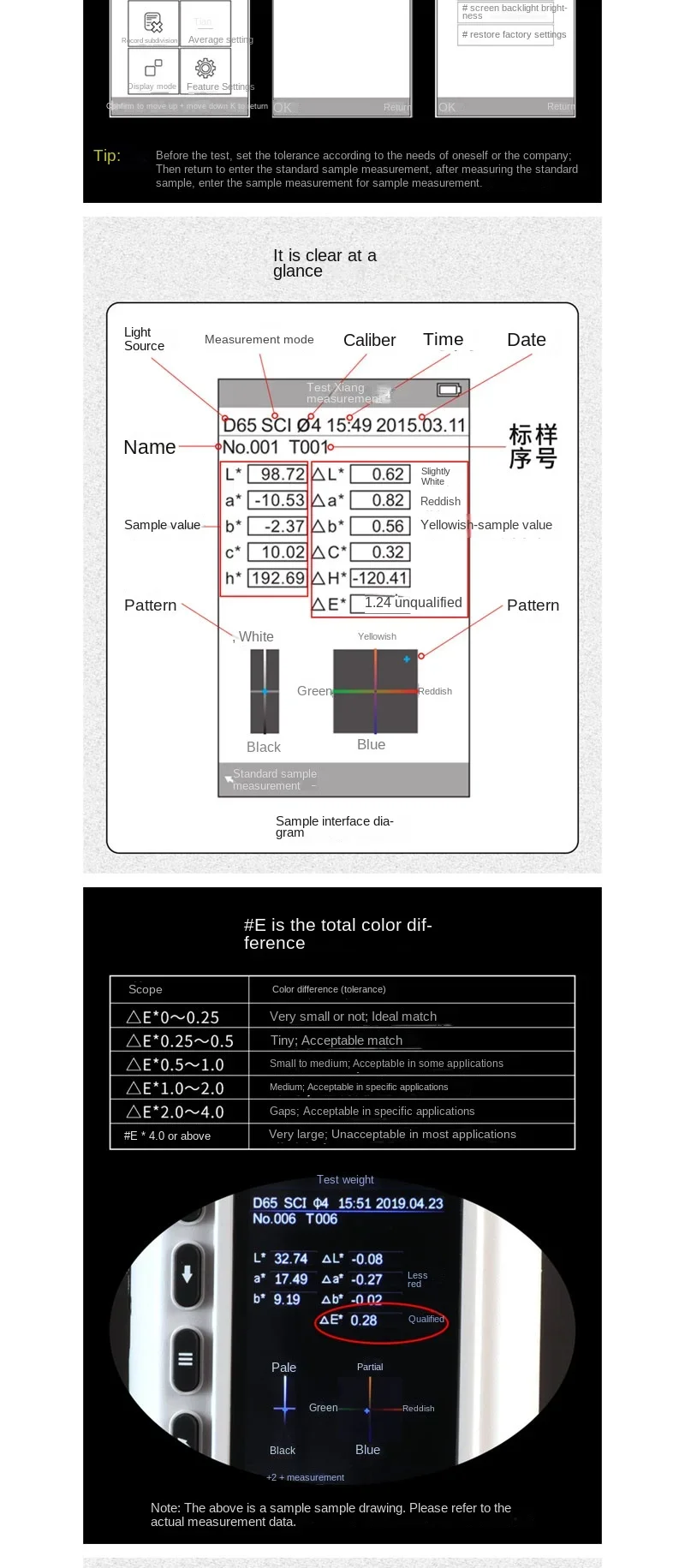

Color Difference Formula: AE*ab, ΔL*a*b*, ΔE*C*h*
Optional Light Source: D65
Light Source Device: LED Blue Light Excitation
Repeatability Accuracy: <0.08 AE*ab (30-measurement average on white standard plate)
Instrument-to-Instrument Variation: <0.50 AE*ab
Storage Capacity: 100 standards, 20,000 samples

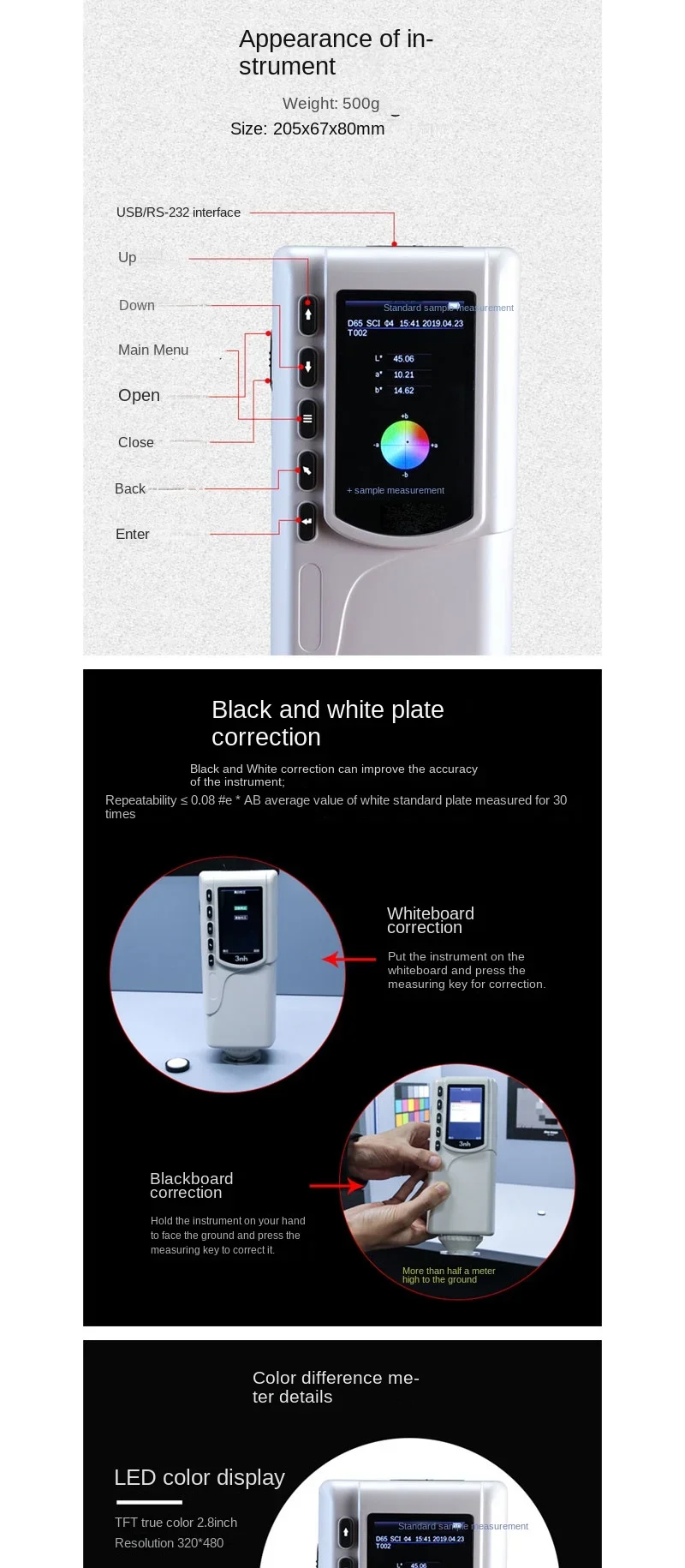

Weight: Approx. 500g
Dimensions: 205x67x80mm
Operating Temperature Range: 0°C~40°C (32°F~104°F)
Storage Temperature Range: -20°C~50°C (-4°F~122°F)
Relative Humidity: <85% RH, no condensation
Data Interface: USB port, RS-232
