Condition: BRAND NEW IN ORIGINAL PACKAGING

Warranty: 1 YEAR MANUFACTURER

Features:

• 500 Watts RMS/1000 Watts Peak

• Dual 4 ohm

• Optimized for small ported enclosures

• Aluminum 1.75” voice coil former for superior heat dissipation

• High-temperature copper voice coil

• Double stitched surround

• Heavy-duty cast basket

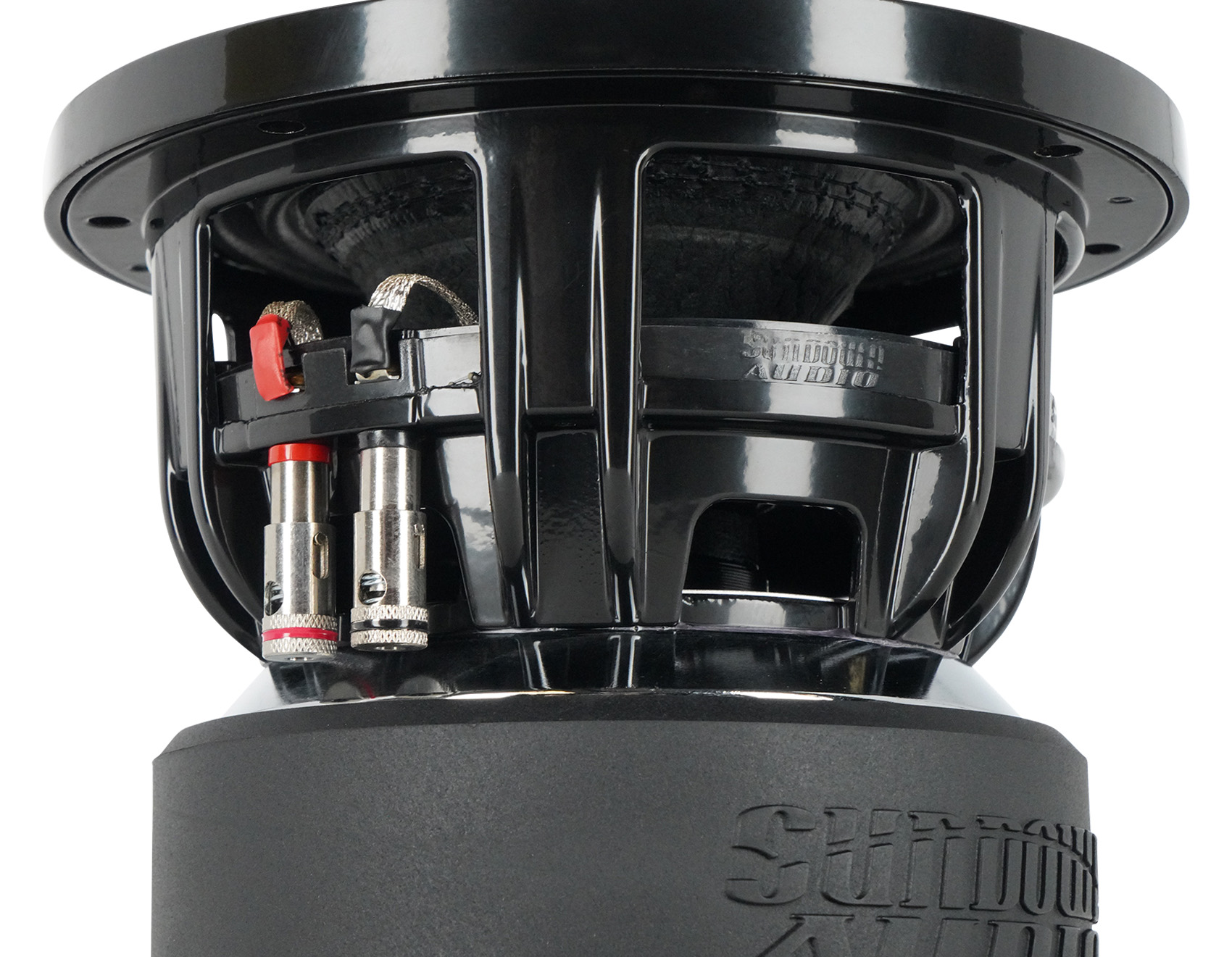

• Spring-loaded terminals accept up to 8-gauge wire

• Stitched-on heavy-duty tinsel leads

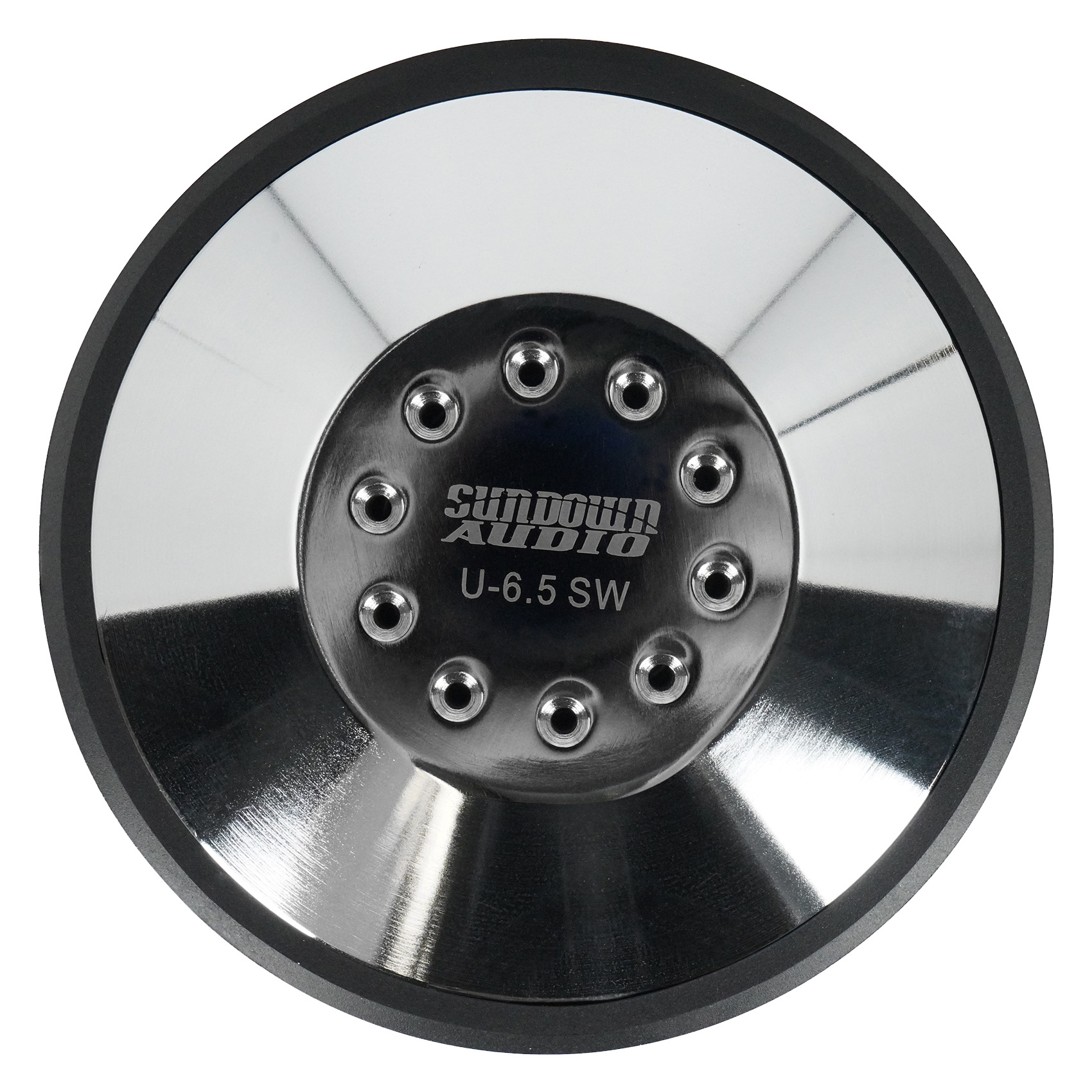

• Solid pole with vent channels and aluminum shorting ring cap

• Rear gap-venting

• Top-Plate Cooling Channels


Specifications:

• RE (Ohms): 6.6274

• FS (Hz): 38.6925

• VAS (L): 3.7701

• Qes: 0.5005

• Qms: 7.247

• Qts: 0.4681
• Le (mH): 5.5892
• BL (NA): 20.0082
• Mms (Grams): 124.3518
• Cms (uM/N): 136.0613
• Sens (dB @ 1w/1m): 78.1460

• Xmax: 19mm


Subwoofer Measurements:

• Displacement (Inches): 0.04

• Depth (Inches): 5.71"

• Cutout (Inches): 5.94"

• Motor Diameter (Inches): 5.51


Ported Enclosure Specs:

• Ported Enclosure Size: 0.25 cu ft

• Recommended Port Area: 4-5 sq in

• Recommended Port Tuning: 35hz


Sealed Enclosure Specs:

• Sealed Enclosure Size: 0.125 cu ft


4th Order Enclosure Specs:

• 4th Order Sealed Side: .09cu ft

• 4th Order Ported Side: 2.25cu ft

• 4th Order Port Area: 5.5sq in

• 4th Order Port Length: 6"
