Product Description
100mm Cylinder Piston Gasket Top End Rebuild Kit For Kawasaki KL650 KLR650 2008-2018

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

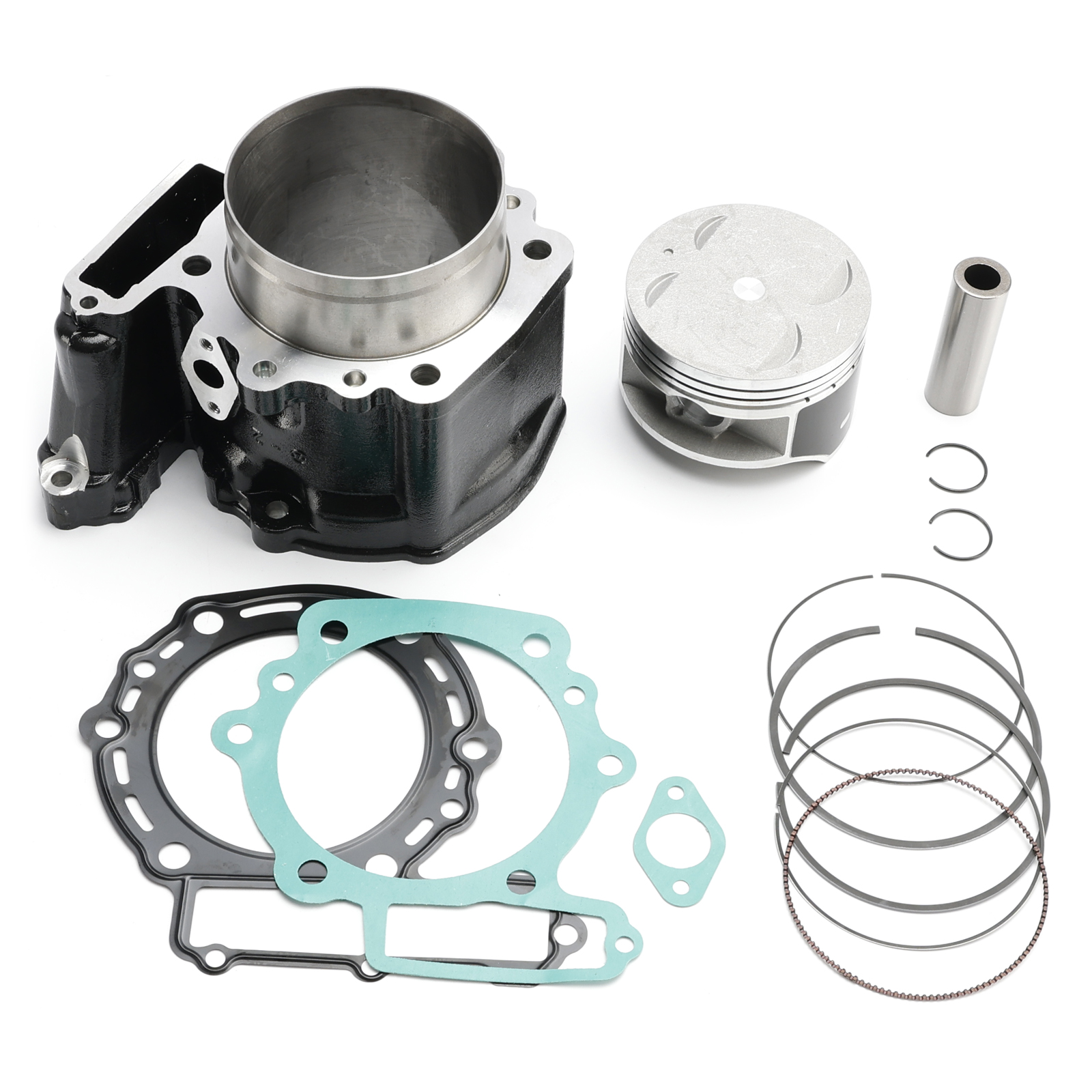

Kit includes cylinder, forged piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 100 mm x 83 mm stroke, 24mm steel piston pin.
Compression Ratio: 9.8:1.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Displacement: 650cc
Bore Type: Standard Bore
Bore diameter: STD 100mm
Stroke: 83mm
Pin diameter: 24mm

Replacement Part Number:
Cylinder: 11005-0097, 11005-0131, 11005-0584
Cylinder Base Gasket: 11060-1110
Cylinder Head Gasket: 11004-1158
Piston (Std): 13001-0121
Pin, Piston: 13002-1101
Piston Ring Set (Std): 13008-0033
Circlips, piston (2): 92033-1226

Fits Make/Model/Year:
Fit for Kawasaki KL650E KLR650 1987-1995
Fit for Kawasaki KL650E KLR650 2008-2018

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:

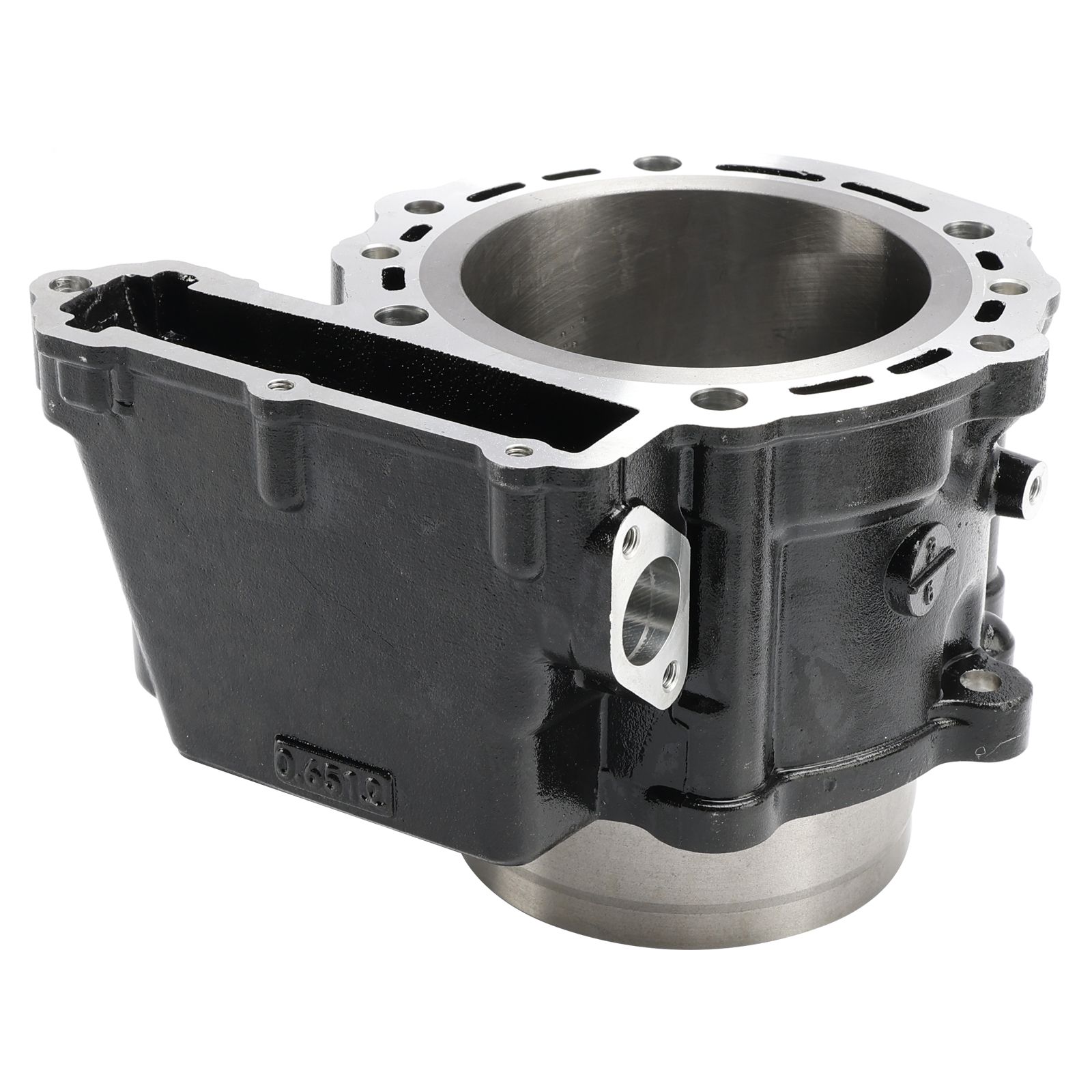

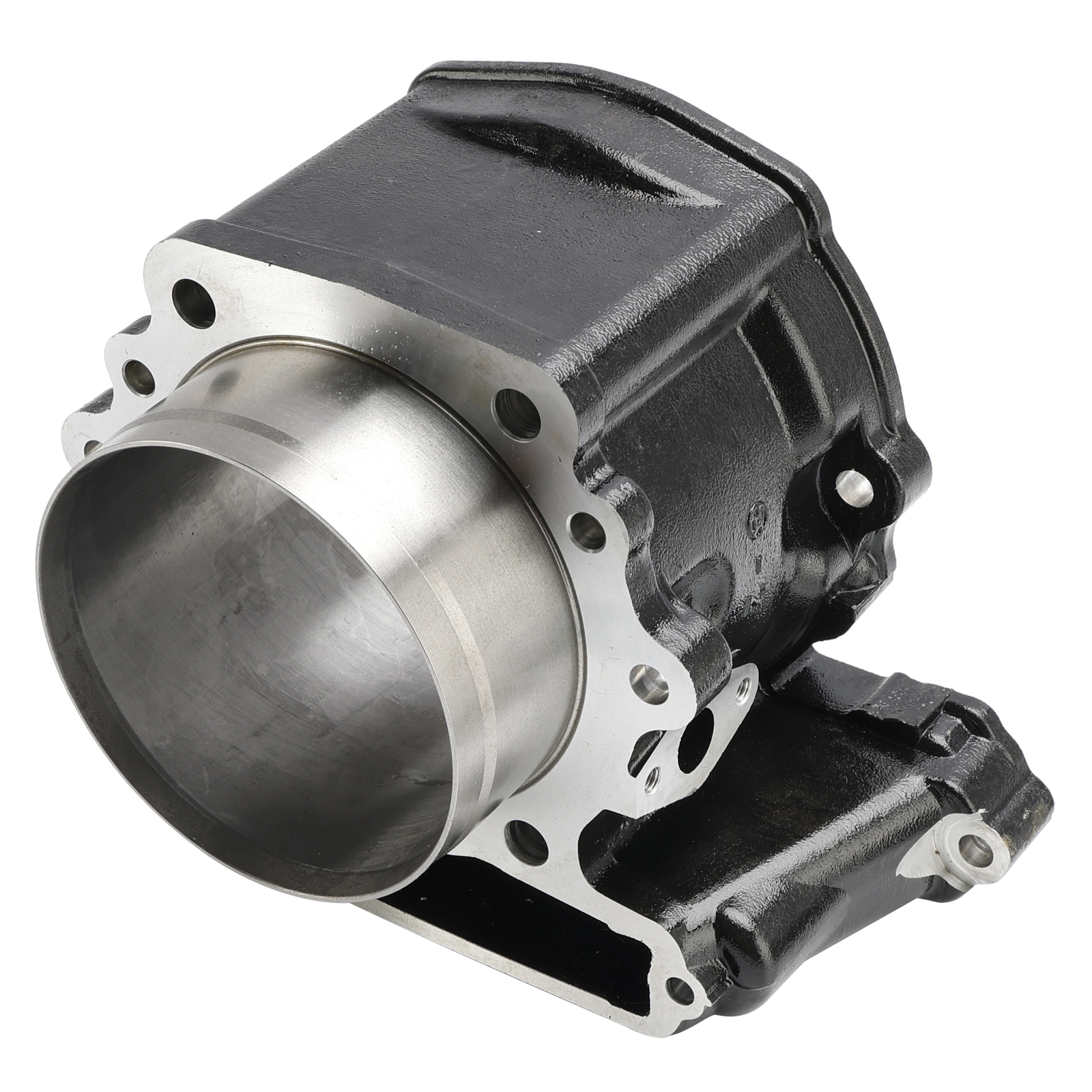

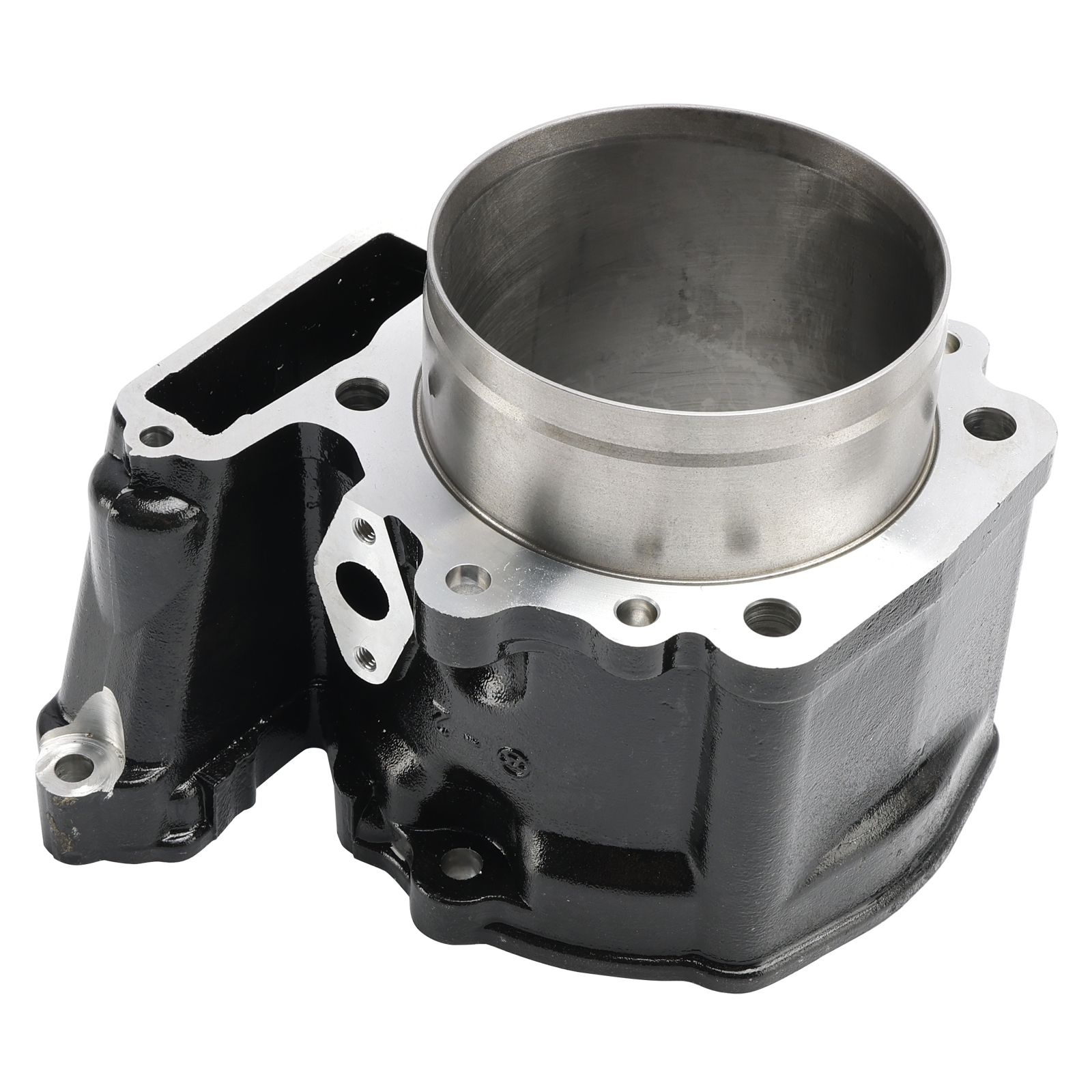

1x Cylinder

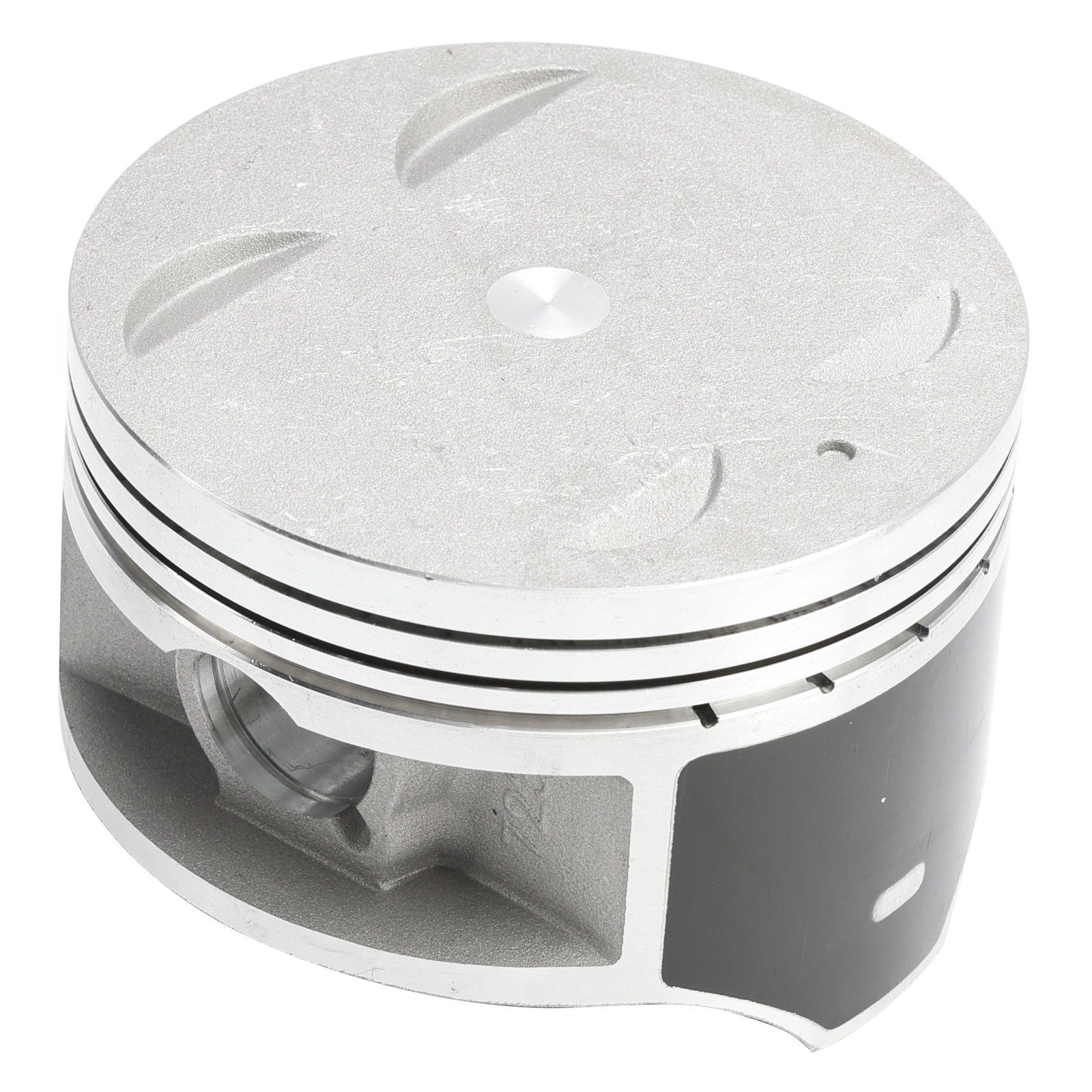

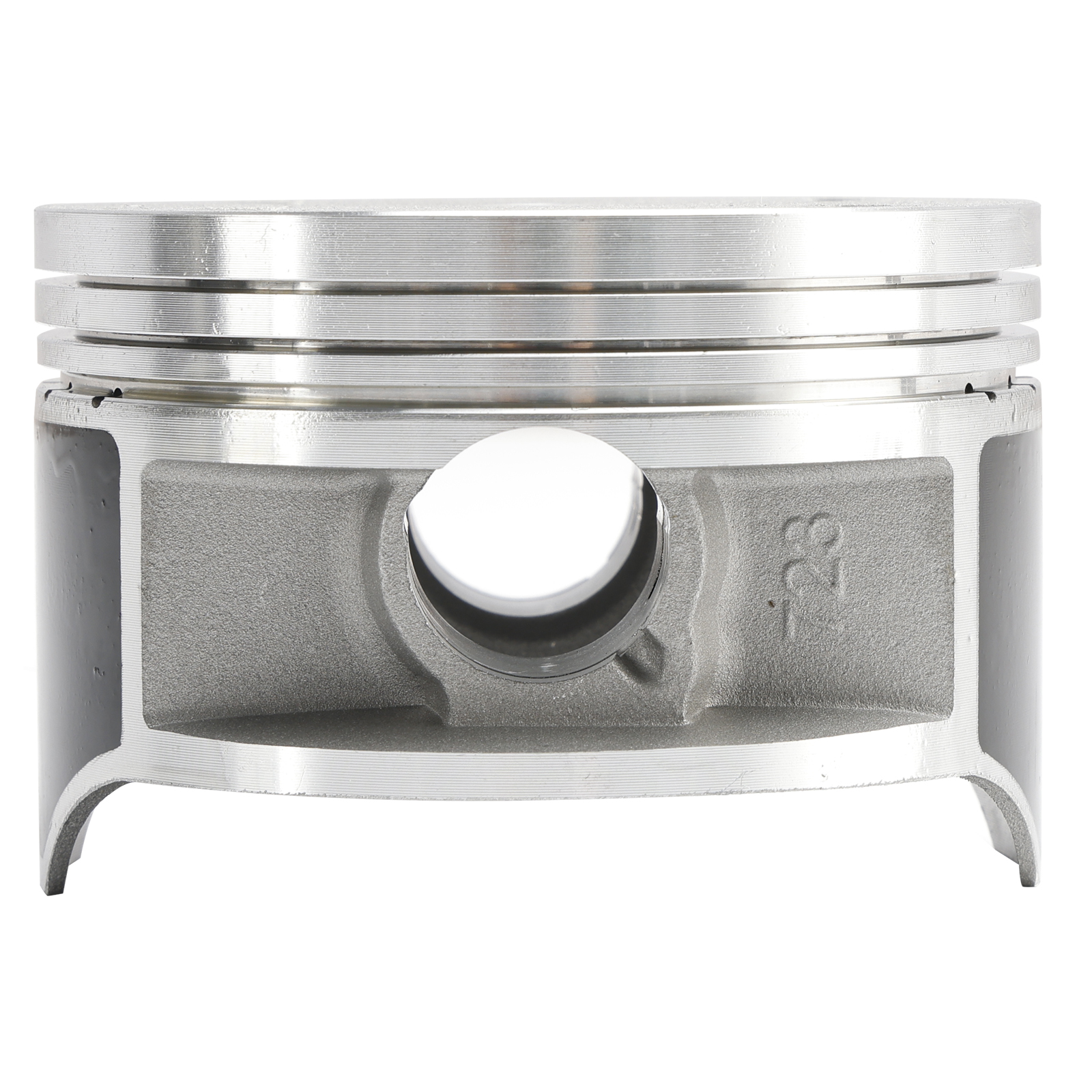

1x Piston

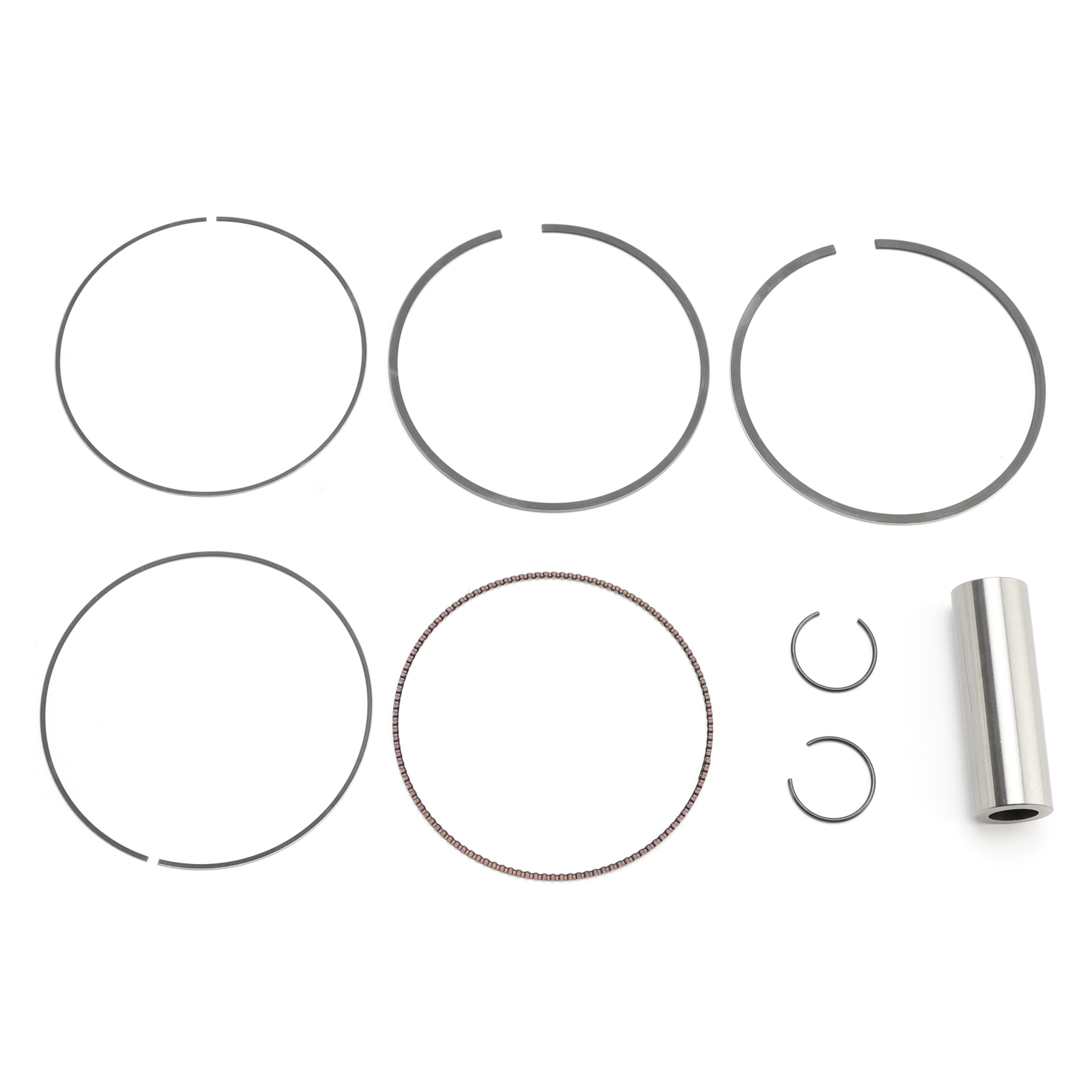

1x Piston Ring Set
1x 24mm Wristpin
1x Circlip(2)

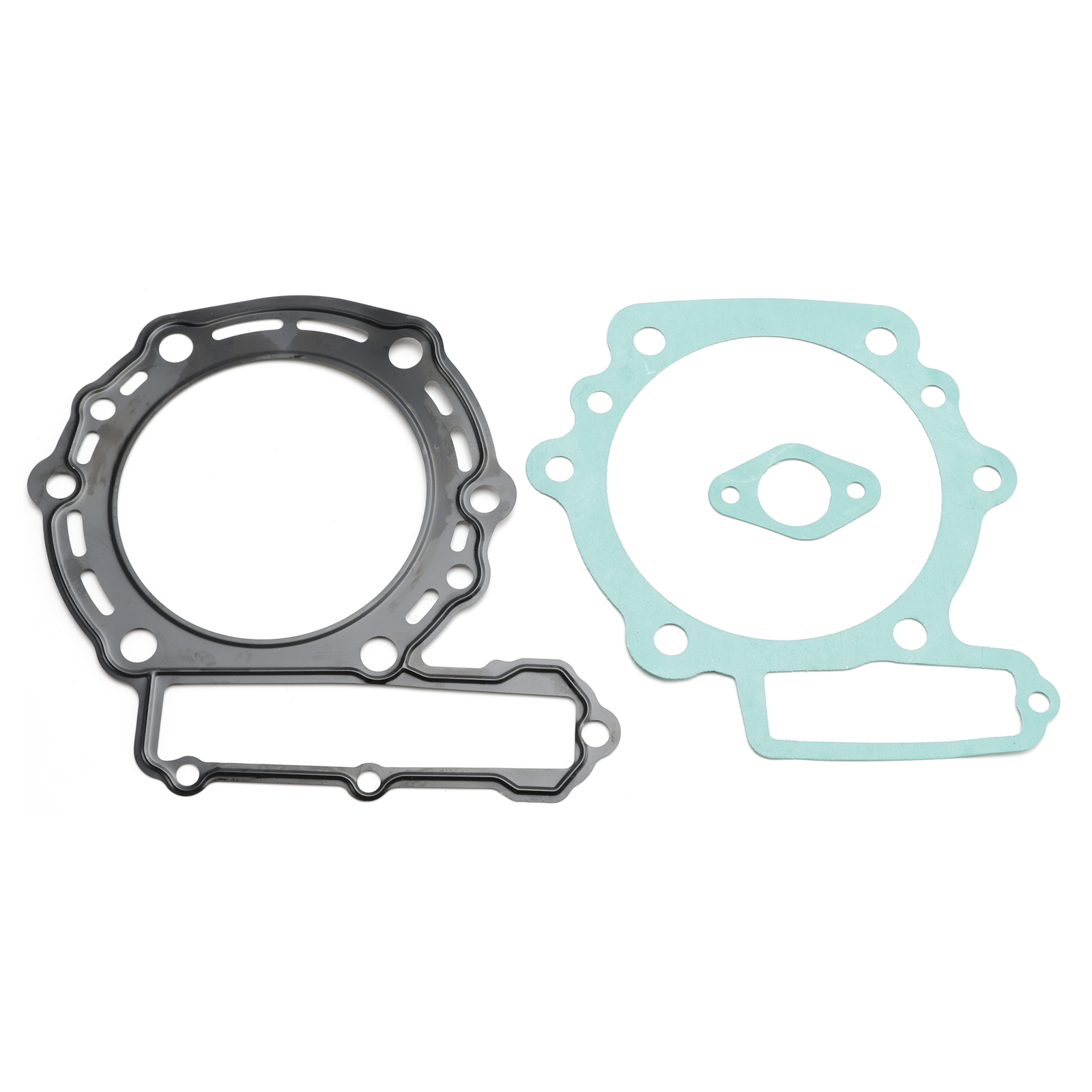

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket

(Comes exactly as pictured.)

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
