Swingarm Bearing Kit for Aprilia RSV4 Tuono V4 RSV 1000 Shiver Dorsoduro Caponord. Model-specific swingarm bearing kit for overhauling the swingarm pivot. You can find the full model and year list in the detailed item description below. Included are 3 swingarm bearings and 4 seals.
endurocult

Swingarm bearings

Swingarm Bearing Kit Aprilia RSV4 Tuono V4 RSV 1000 Shiver Dorsoduro Caponord

Bearing kit for overhauling the swingarm pivot.

Swingarm Bearing Kit Aprilia RSV4 Tuono V4 RSV 1000 Shiver Dorsoduro Caponord, Equivalent references: AP8110078, AP8110079, AP890002, AP8144006, AP8144005, AP8144048

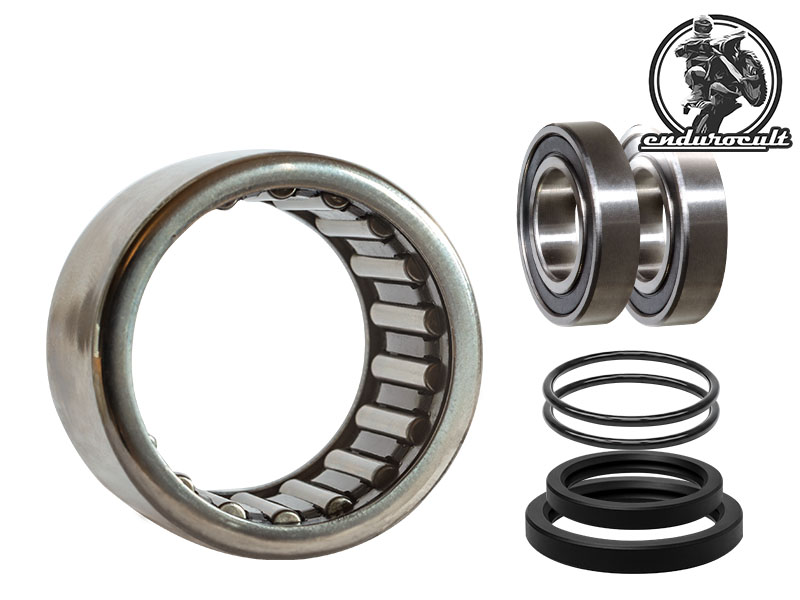

Scope of delivery 3 swingarm bearings and 4 seals

Benefits

Model-specific kit for overhauling the swingarm pivot.
Heat-treated steel needle bearings for high load capacity and low friction.
Double-lip oil seals keep out dirt and water.

Technical data

Bearing size (type 1) 30 x 37 x 26 mm
Bearing size (type 2) 20 x 37 x 9 mm
Seal size (type 1) 25 x 37 x 5 mm
Seal size (type 2) 30 x 37 x 4 mm
Seal size (type 3) 25.8 x 3.53 mm
Bearing material Heat-treated steel
Seal type Double sealing lip
Equivalent references AP8110078 · AP8110079 · AP890002 · AP8144006 · AP8144005 · AP8144048

Compatibility

  • Aprilia Caponord 1200 2013-2017
  • Aprilia Dorsoduro 1200 2010-2016
  • Aprilia Dorsoduro 750 2008-2016
  • Aprilia Dorsoduro 900 2017-2020
  • Aprilia ETV 1000 Caponord 2001-2007
  • Aprilia NA 850 Mana 2007-2016
  • Aprilia NA 850 Mana GT 2009-2012
  • Aprilia RST 1000 Futura 2001-2004
  • Aprilia RSV 1000 SP 1999-2000
  • Aprilia RSV 1000 1998-2010
  • Aprilia RSV4 1000 2009-2020
  • Aprilia RSV4 1100 2019-2020
  • Aprilia Shiver 750 2007-2016
  • Aprilia Shiver 900 2017-2022
  • Aprilia SL 1000 Falco 1999-2005
  • Aprilia Tuono 1000 V2 2002-2011
  • Aprilia Tuono V4 1000 2011-2014
  • Aprilia Tuono V4 1100 2015-2020
  • Aprilia Tuono V4 1000 APRC ABS 2014-2015

Before you buy

  • Check your model and year against the compatibility list.

Installation and care

  • Clean the bearing points and grease to the manufacturer's specification.
