Technical information about the R740xd server model line.

• Server height: 2U
• Server depth: 71cm
• Server weight: 41kg
• Chassis types: 24x2.5", 12x3.5"
• Number of processors: maximum 2 x CPU 2nd Generation Intel Xeon Scalable processors(acceptable configurations: 1 or 2 processors)
• Maximum number of processor cores:: 2x 28-core / 56-thread CPU total 56-core / 112-thread
• Number of RAM banks: 24 DDR4
• Maximum RAM size: 24x128GB DDR4 RDIMM total 3TB
• Number of drive bays: 24x2.5", 12x3.5"
• Motherboard chipset: Intel C610
• Number of USB ports: 5 (2x front, 2x back, 1x inside)
• Number of PCI-E slots: up to 8x PCIe Gen 3
• Maximum number of power supplies:: 2
• Supported power supplies: 495W, 750W, 1100W or 1600W
• Remote management: iDRAC 9
• Supported internal RAID controllers: H330, PERC H730P, PERC H740P, HBA330, S140 and BOSS cards

Optional accessories for the R740xd server

The server can be further equipped with optional accessories:

• Cable organizer
• Empty hard drive bays
• Front panel / bezel / bezel
• Power cables
• PCI-E expansion cards

All additional accessories you will find in our offer.

Razem z serwerem możliwy jest zakup systemu operacyjnego

• Windows Server Standard
• Windows Server Essentials
• Windows Server Data Center
• VMWare (ESXi, vSphere, vSAN)
• other software such as SQL Server

When you buy this server from Hardware Direct, you can rest assured that:

• The server is thoroughly tested, 100% operational and ready for continued long term operation
• She server is restored to factory settings and updated to the latest firmware versions - you are assured that there will be no problems with its use after the upgrade itself
• You are buying the server from an official Dell partner with professional server hardware service
• The server is sold with a premium Next Business Day contract. In case of failure, we are the first to deliver the replacement hardware to you. More details in the corresponding tab.

ATTENTION!

Photos are for reference only, some elements of the server configuration such as risers may differ from those shown in the photos.

ATTENTION!
Our product images are carefully prepared to present the items as accurately as possible. In rare cases, images may be for illustrative purposes only.

If you have any questions or need additional information, feel free to contact us — we respond promptly and are always happy to help.

Tax info

If you have a valid EU VAT number, we can set a VAT 0% invoice for you - contact us for more details.

Shipments to non-EU destinations may be subject to customs clearance. All associated costs, including clearance fees or duties, are the responsibility of the buyer.

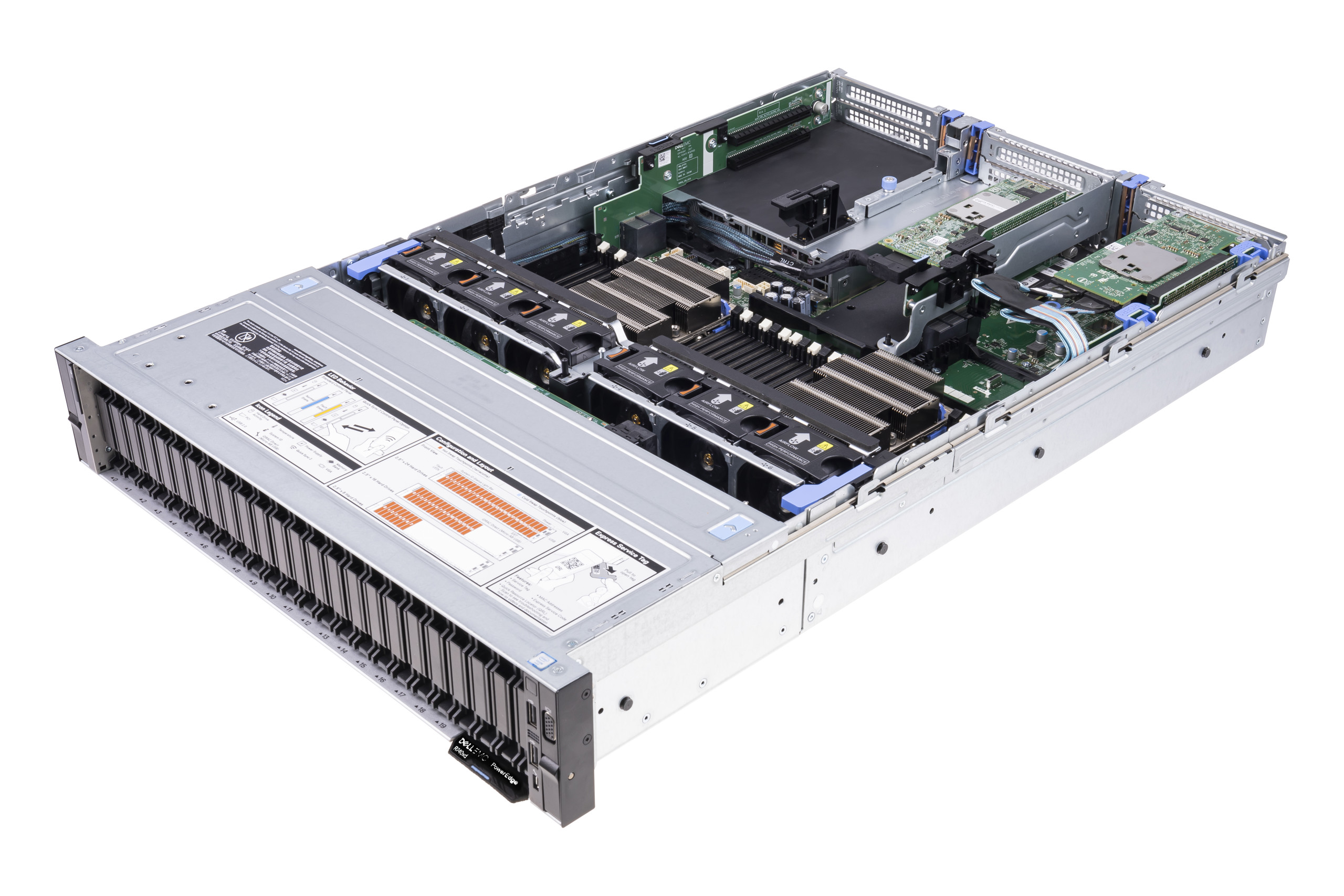

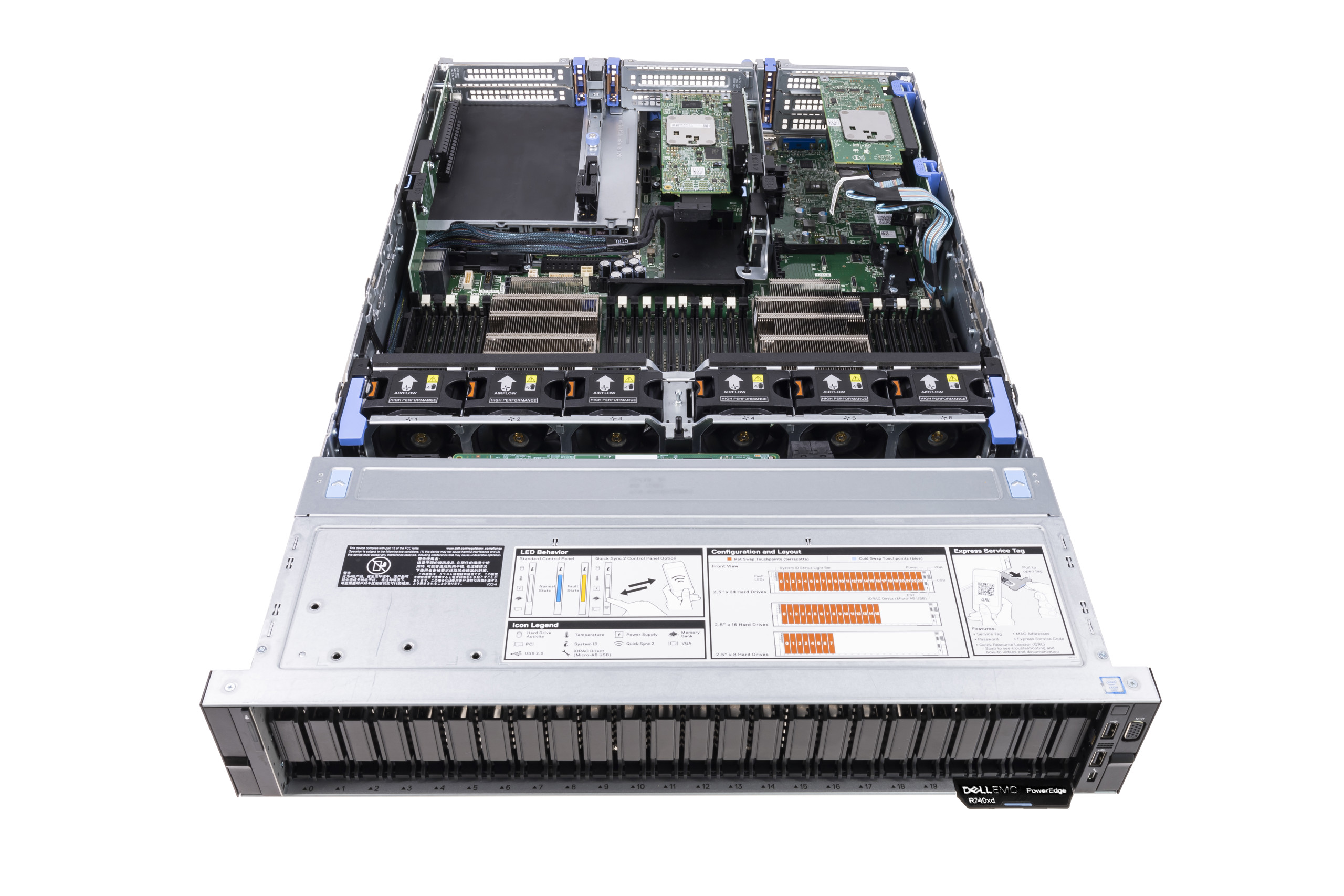

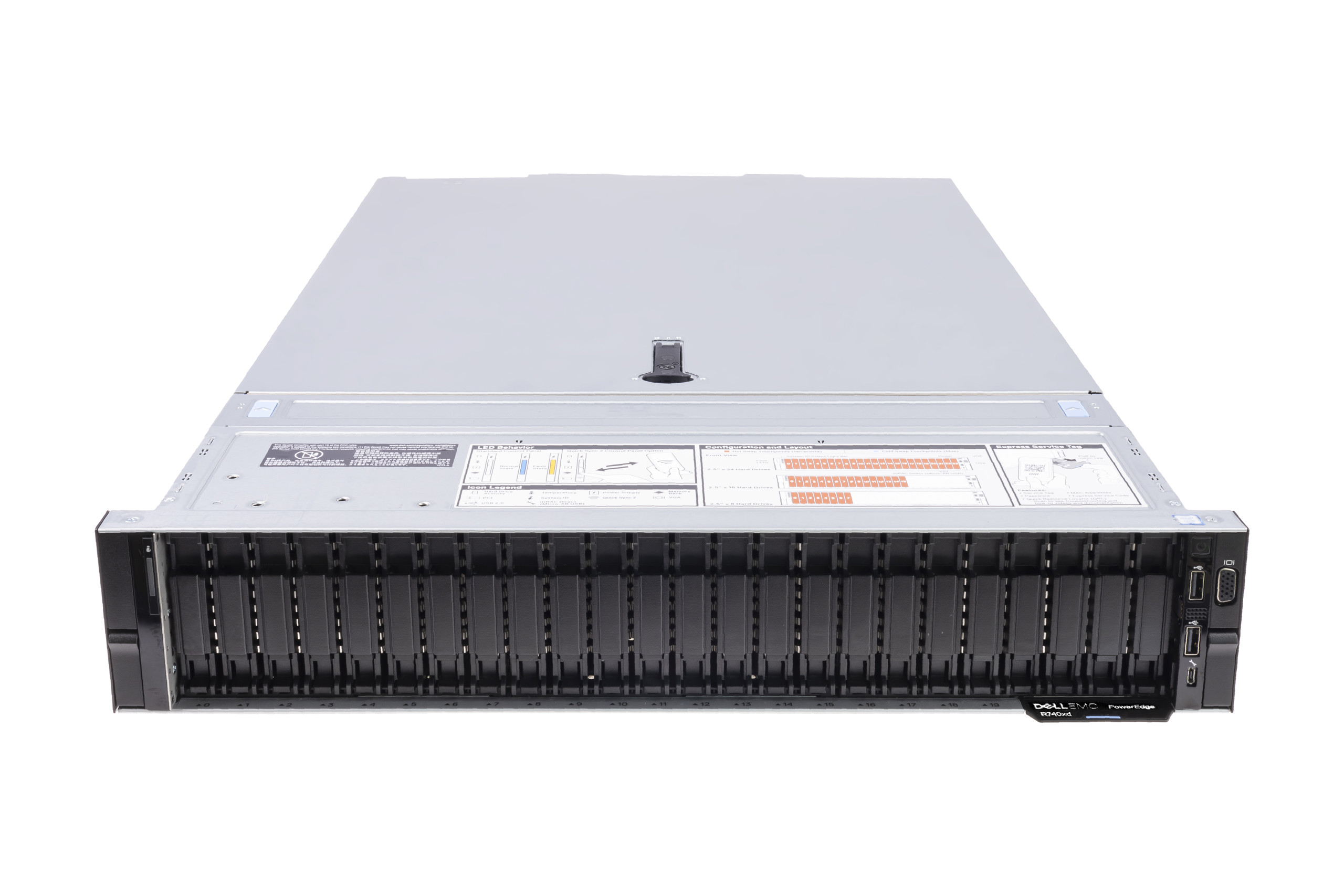

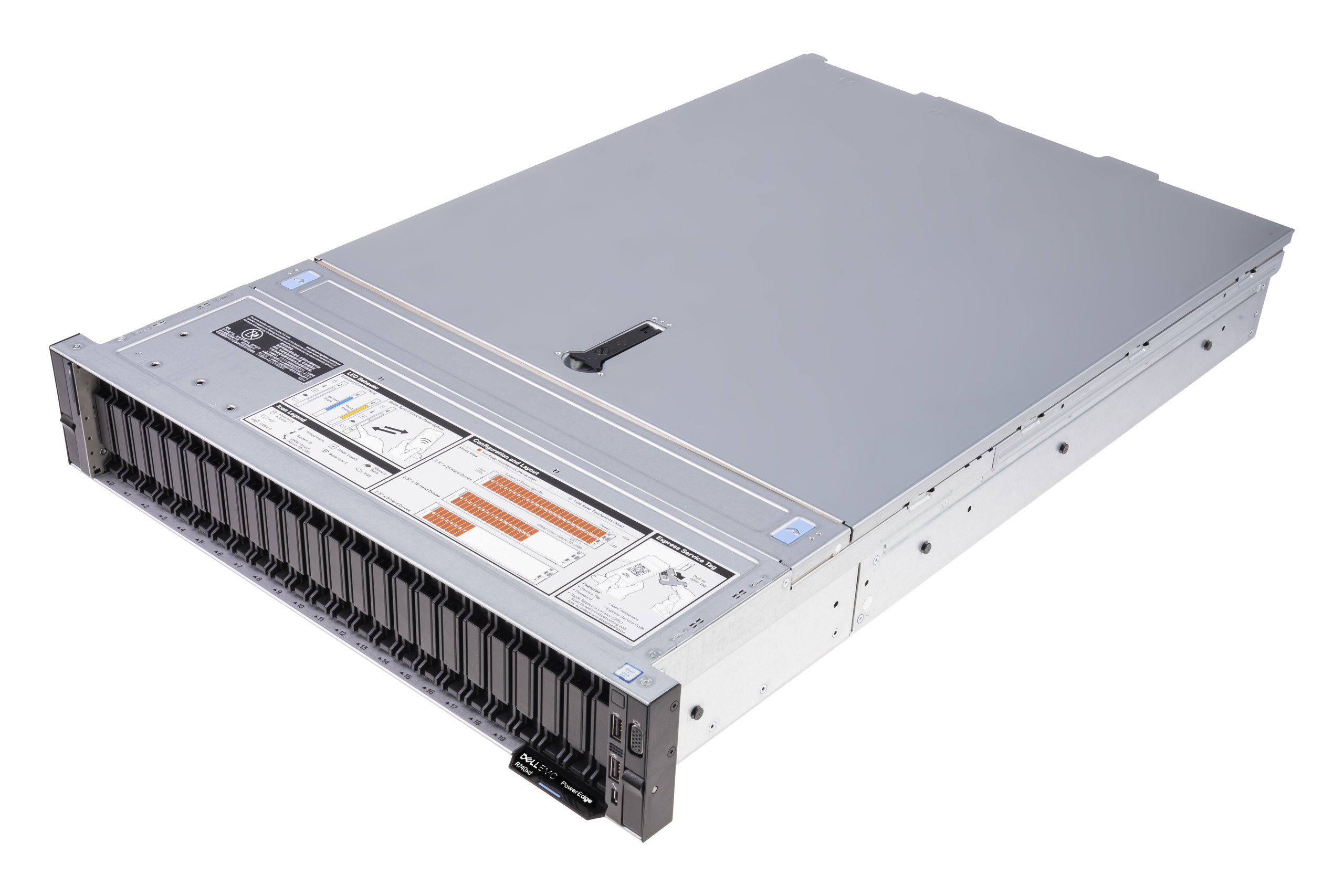

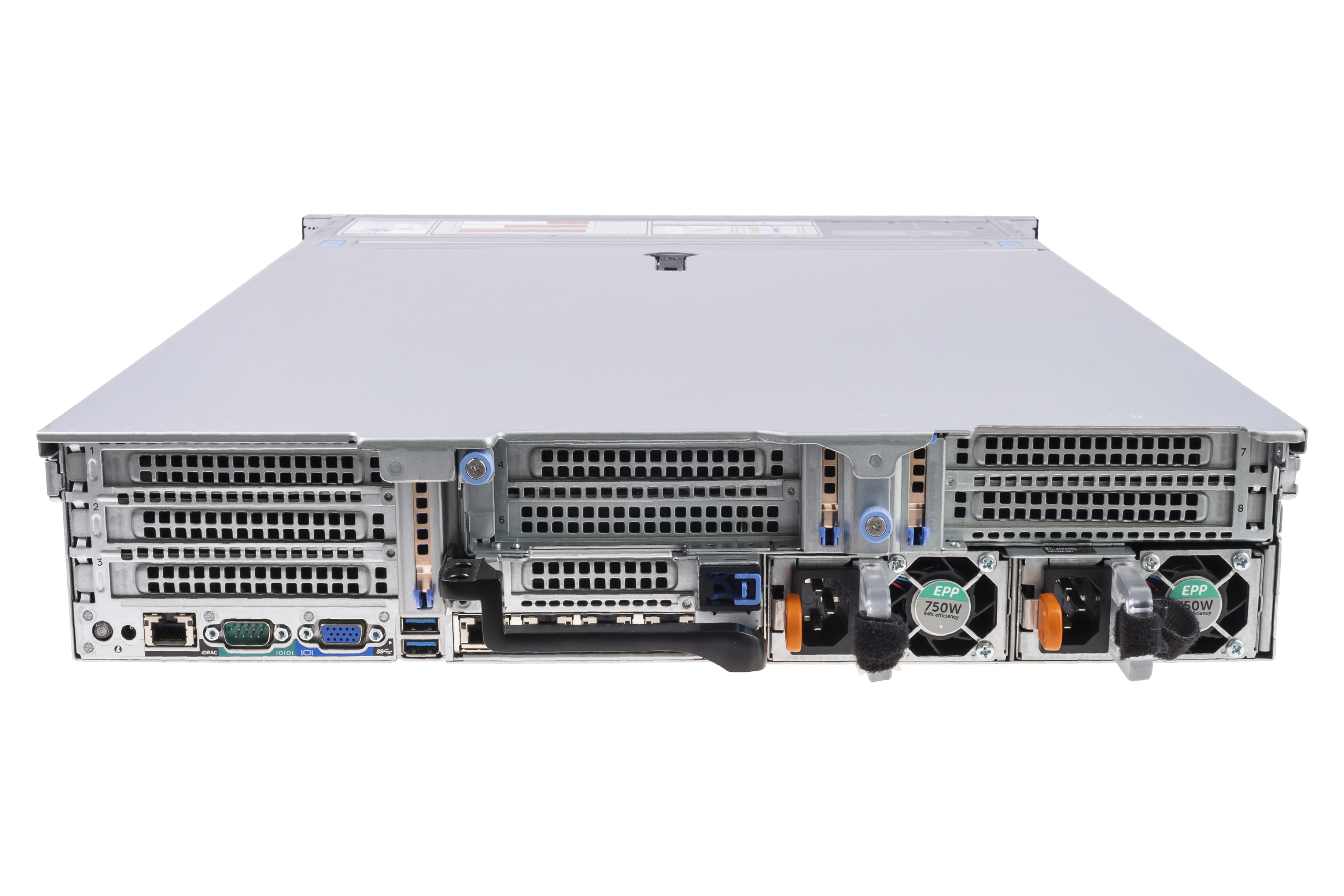

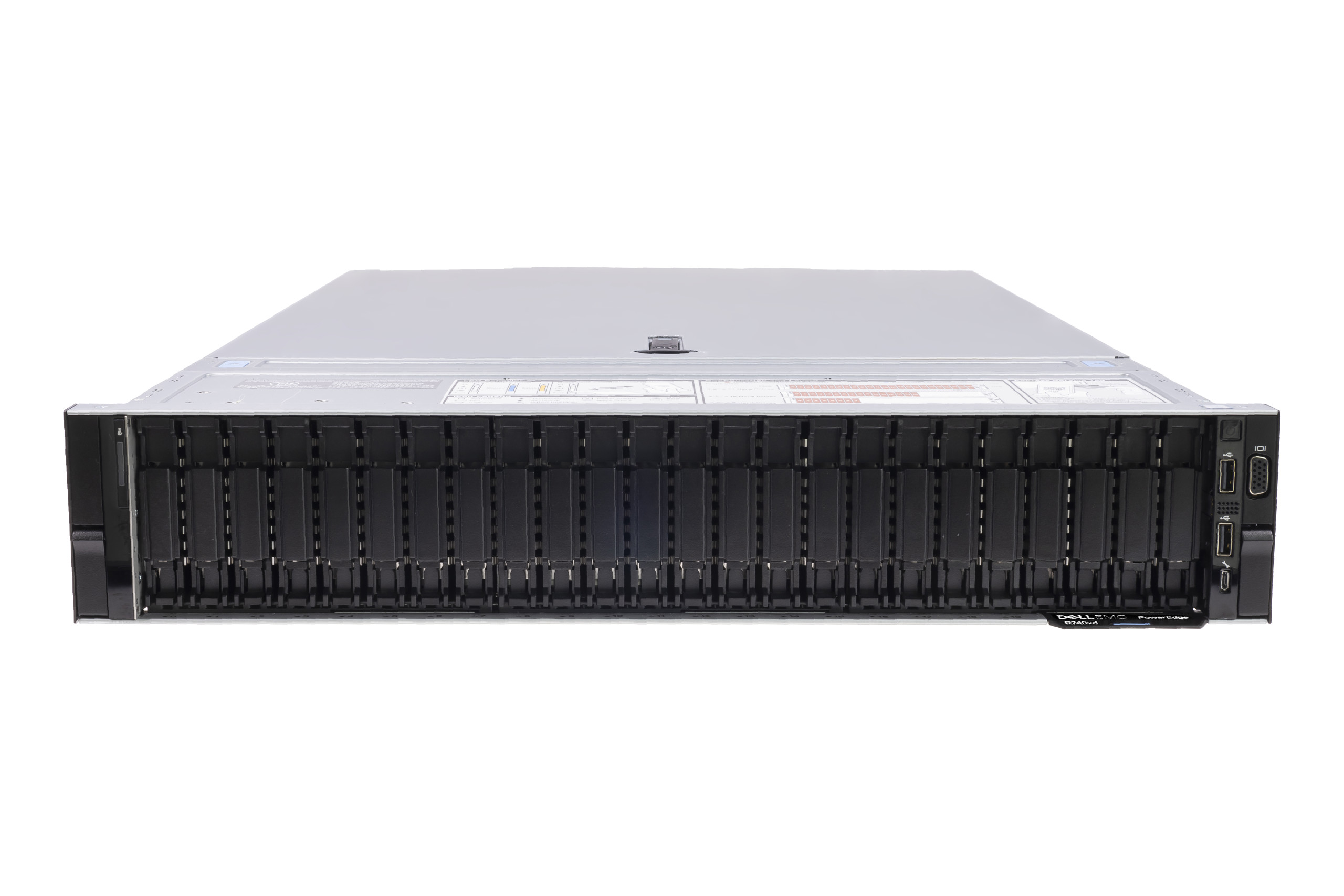

Product photos

Shipping

We ship most packages via DHL or DPD, but in some cases, we can use other shipping methods i.e. FedEx, Raben etc. We can also use your courier account number for covering the shipping cost, if requested.

Servers are packed in individual, dedicated boxes with our custom foam fillings, so you can be sure it will come to you undamaged. Each package is also insured. In most cases courier will call you before delivery and make an appointment for a specific time and place of delivery.

Warranty

Buy your server from us, an authorized Dell partner, and benefit from professional maintenance and support services.

Refurbished devices are sold with a Next Business Day premium service contract and this part is covered by 36-m variant. In the event of a failure, we are first to deliver replacement equipment to you.

New servers are covered by manufacturer’s warranty – you can receive more information by contacting us.

In case of any transportation damages, you must notify us about damaged items within 24 hours from delivery.

Returns

We accept returns within 30 days of receiving the goods.

The buyer is responsible for return shipping costs and ensuring the product is safely delivered to us.

For export shipments (subject to customs duties and/or VAT), the buyer covers all return-related costs, including preparation of customs documentation.

About Hardware Direct

Hardware Direct is an independent broker of enterprise grade IT equipment operating globally.

We offer servers, graphic stations and workstations, storage arrays, enclosures, network devices and other professional computer equipment both new and refurbished.

Since 2013, we have served over 9,000 clients from around the world. Among them there are many Fortune 500 global corporations, as well as public institutions. We have special offer and Partnership program for IT system integrators, internet service providers and data center operators.

99% of the stock levels shown on eBay reflect our current stock levels.
