Important:
- This peristaltic pump model utilizes a stepper motor and must be used with a external driver for operation.
- The hose is consumable and prone to wear and tear due to frequent use. Regular inspection and replacement are recommended.
Why Choose US
- China leading manufacturer of peristaltic pumps.
- Focus on peristaltic pump solutions.
- Peristaltic pump expert, 16+ years experience.
- More than 10,000 cooperative customers.
The DT/JBT peristaltic pumps main features: Easy to assemble peristaltic pump head, easy to disassemble hose, multi channel optional, 2 pump head series.
|
|
|
|
|
||||
|
Product Name
|
DT/JBT Easy Mounting Bracket Peristaltic Pump
|
|
Motor Type
|
57 Stepper motor
|
|
Flow Rate
|

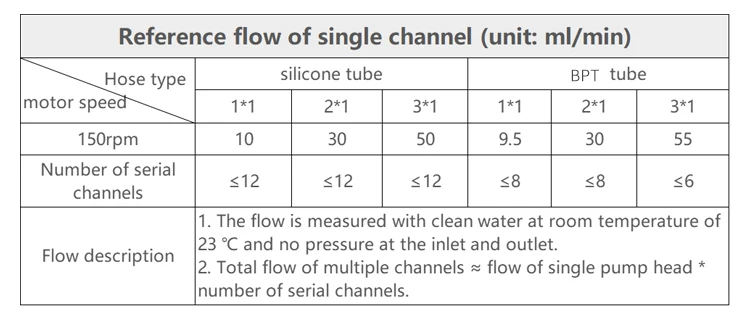

Single channel ≤55ml/min
|
|
Voltage and Current
|
DC 24V, 3A
|
|
Power
|
≤36W
|
|
Motor Life
|
5000~20000 hours
|
|
Weight
|
2.6KG
|
|
Outlet Pressure
|
≤0.17MPa
|
|
Work Environment
|
Temperature 0 (no icing) ~ 60℃, relative humidity < 85%RH
|
|
Noise
|
≤58dB
|
|
Main Material
|
Support: Polyether sulfone, Roller: POM, Wheel frame: 304 stainless steel, L-bracket: 304 stainless steel
|
Common Applications: Analytical instruments, IVD filling, medical instruments, laboratories, grinding machines, et
Applications Industry: medical diagnosis,Environmental protection instrument,Analytical Instruments,inkjet ink,washing cleaning,food and drink,Experimental research,Pharmaceutical machinery,Smart Appliances,industrial machinery etc.

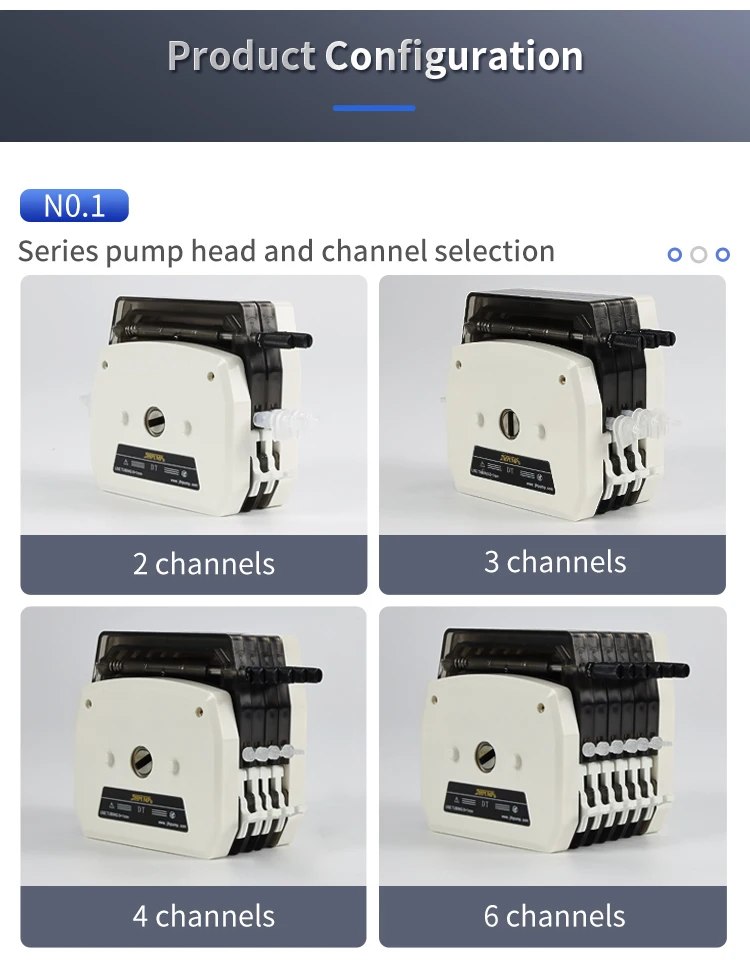

Series pump head and channel selection: DT pump heads are available in 2/3/4/6 multiple channels and 2 pump heads in series.

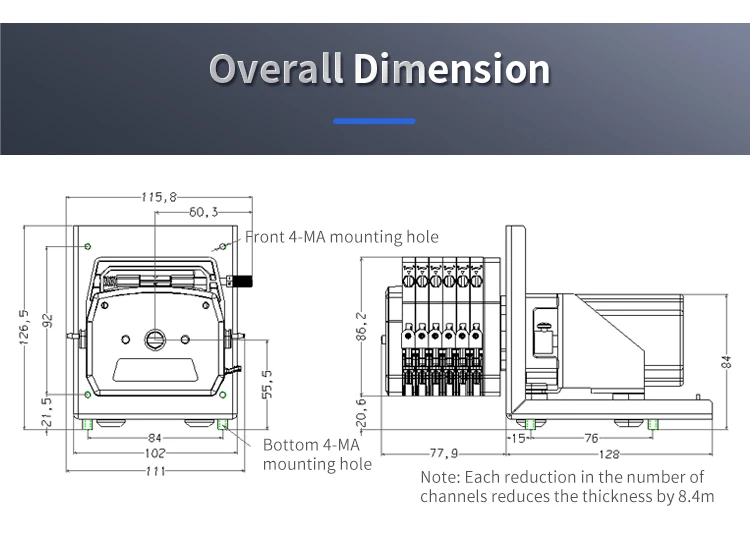

Installation method: L bracket front or bottom installation.
